hganus 10000mAh Mini Compact Power Bank User Manual

1. Product Overview

The hganus 10000mAh Mini Compact Power Bank is a portable external battery designed to provide reliable power for your mobile devices on the go. Its compact size and high capacity make it an ideal companion for daily use and travel. Featuring dual input ports (USB-C and Micro USB) and 2.4A fast charging output, it ensures your devices are charged quickly and efficiently.

Figure 1: The hganus 10000mAh Mini Compact Power Bank, demonstrating its small size when held in hand.

Key Features:

• 10000mAh Capacity: Provides multiple charges for most smartphones.
• Compact and Lightweight Design: Easy to carry in a pocket or bag.
• 2.4A Fast Charging Output: Quickly charges your devices.
• Dual Input (USB-C + Micro USB): Offers flexibility for recharging the power bank.
• Advanced Safety Protection: Built-in safeguards against overcharge, overcurrent, overvoltage, and short-circuit.
• LED Indicator Lights: Clearly show the remaining battery level.

Figure 2: Detailed view of the power bank's ports and LED indicator lights.

2. Specifications

3. Setup

Initial Charging of the Power Bank:

1. Before first use, fully charge the power bank.
2. Connect the power bank to a USB wall charger (not included) using either a Micro USB cable or a USB-C cable.
3. The LED indicator lights will illuminate to show the charging progress. All four lights will be solid when fully charged.

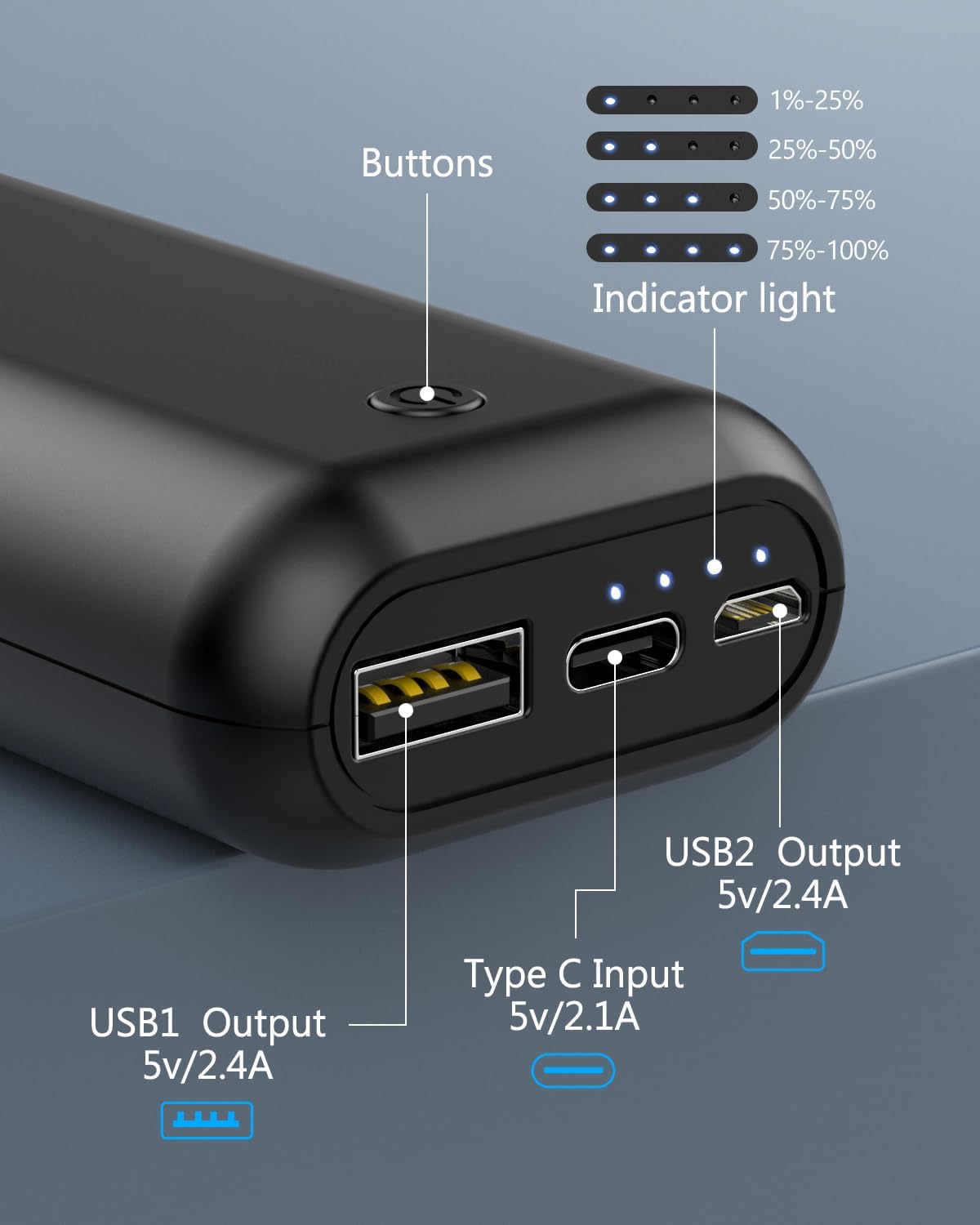

Figure 3: Labeled ports for charging the power bank and external devices.

4. Operating Instructions

Charging Your Devices:

1. Connect your device (smartphone, tablet, etc.) to one of the USB-A output ports on the power bank using your device's charging cable.
2. The power bank will automatically begin charging your device. If it does not, press the power button once to activate charging.
3. The LED indicator lights will show the remaining battery level of the power bank during charging.

Figure 4: The power bank can charge multiple devices at once.

Checking Battery Level:

Press the power button once. The LED indicator lights will illuminate to show the current battery level:

• 1 light: 1% - 25% remaining
• 2 lights: 25% - 50% remaining
• 3 lights: 50% - 75% remaining
• 4 lights: 75% - 100% remaining

Safety Guidelines:

• Do not expose the power bank to extreme temperatures (hot or cold) or direct sunlight.
• Do not disassemble, modify, or attempt to repair the device.
• Keep away from water and high humidity.
• Avoid dropping or subjecting the power bank to strong impacts.
• Use only certified charging cables.
• Keep out of reach of children.

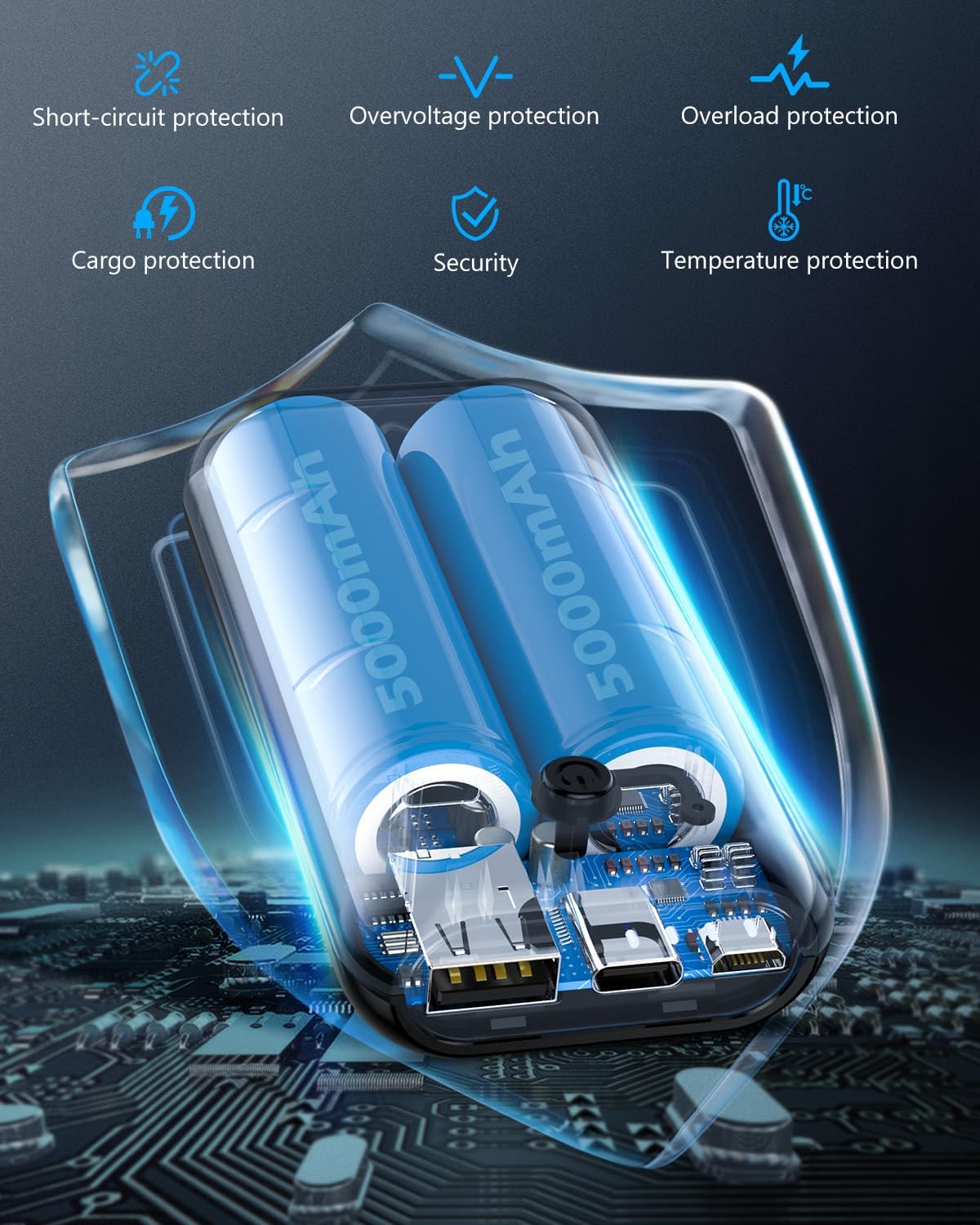

Figure 5: The power bank features multiple safety protections including short-circuit, overvoltage, overload, and temperature protection.

5. Maintenance

Cleaning:

Wipe the power bank with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.

Storage:

Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the power bank to about 50% every 3 months to maintain battery health.

Battery Care:

To prolong the lifespan of the battery, avoid fully discharging it frequently. It is recommended to recharge the power bank before it completely runs out of power.

6. Troubleshooting

Power Bank Not Charging:

• Ensure the charging cable is securely connected to both the power bank and the wall charger.
• Try a different charging cable or wall charger.
• Verify the wall charger's output meets the power bank's input requirements (5V/2.4A).

Device Not Charging from Power Bank:

• Press the power button on the power bank to activate output.
• Ensure your device's charging cable is securely connected to the power bank's output port.
• Check if the power bank has sufficient charge (refer to LED indicators).
• Try a different charging cable or a different output port on the power bank.

Slow Charging:

• Ensure you are using a 2.4A compatible charging cable and wall adapter for optimal charging speed.
• Some devices may limit charging speed based on their battery status or internal temperature.

7. Warranty and Support

Your hganus 10000mAh Mini Compact Power Bank comes with the following assurances:

• 30-Day Money-Back Guarantee: For any quality issues within 30 days of purchase.
• 24-Month Replacement Warranty: For quality-related issues within 24 months of purchase.
• 7D/24H Online Customer Service: Dedicated support available around the clock.

For any product-related inquiries, technical support, or warranty claims, please contact hganus customer service through the platform where you purchased the product or refer to the contact information provided in your product packaging.
