1. Introduction and Overview
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Ariston 5-Burner Gas Cooker with Oven, Model BAM951EGSS. Please read these instructions carefully before using the appliance and keep them for future reference.
The Ariston gas cooker features five gas burners and an integrated gas oven. Its design prioritizes efficient cooking and ease of cleaning.

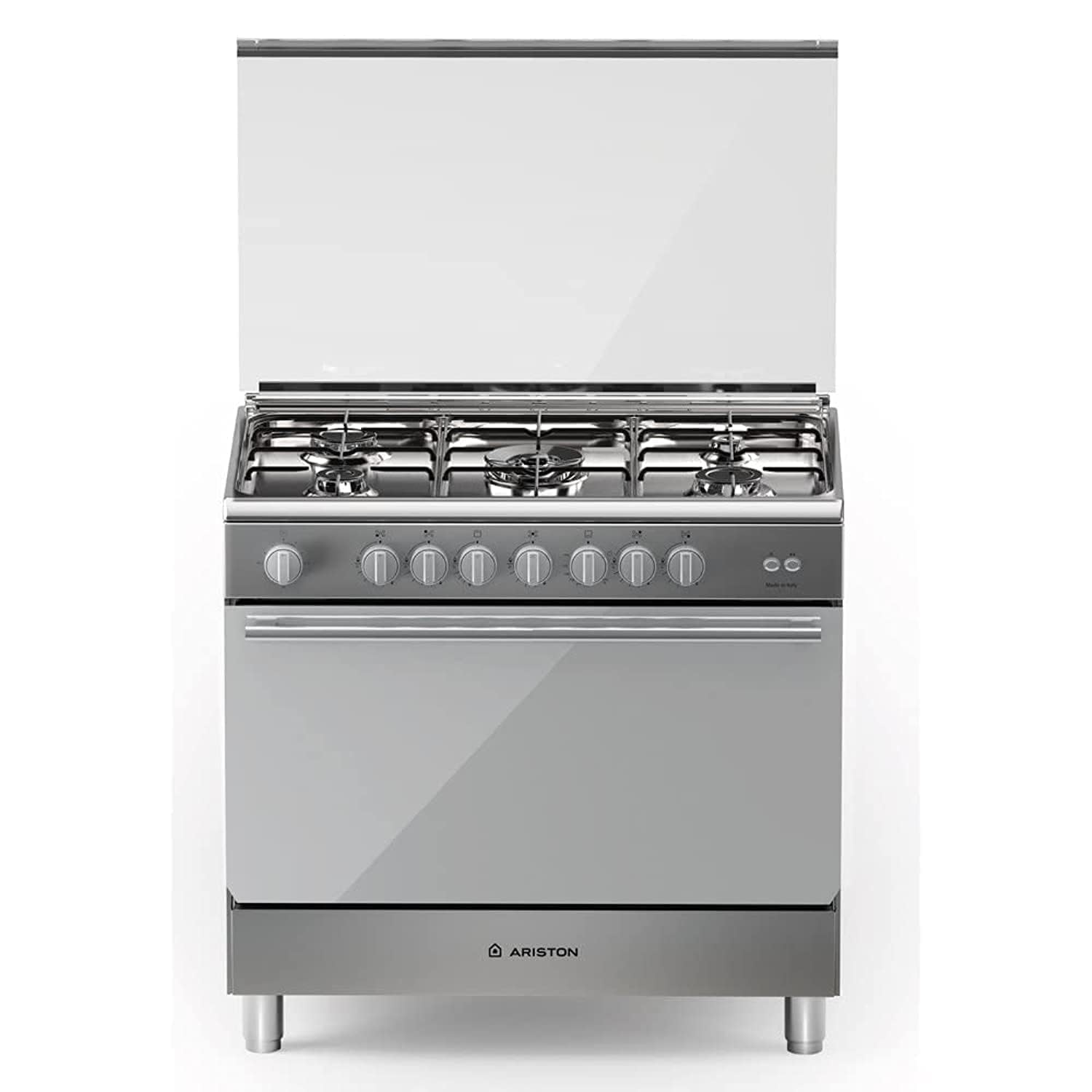

Figure 1: Front view of the Ariston 5-Burner Gas Cooker, Model BAM951EGSS.
2. Safety Information
Important: Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, burns, or injury.
- Ensure proper ventilation in the kitchen when the gas cooker is in use.
- Do not store flammable materials near the appliance.
- Keep children away from the cooker during operation and when it is cooling down.
- Never use water to extinguish oil/grease fires. Smother the fire with a lid or fire blanket.
- Do not modify the appliance. Any repairs or servicing should be performed by qualified personnel.
- Always turn off the gas supply to the appliance when not in use for extended periods.
- Be aware that parts of the appliance become hot during use. Avoid touching heating elements or interior surfaces of the oven.
3. Setup and Installation
The Ariston BAM951EGSS is a freestanding gas cooker designed for placement on a kitchen surface. Proper installation is crucial for safety and performance.
3.1 Unpacking
- Carefully remove all packaging materials.
- Check the appliance for any signs of damage. If damaged, do not install or use it, and contact your supplier.
- Ensure all accessories, such as oven shelves and burner caps, are present.
3.2 Positioning
- Place the cooker on a stable, level surface.
- Ensure adequate clearance from adjacent walls and cabinets as specified in local regulations.
- The appliance requires a 220 Volt electrical connection for ignition and oven light.
3.3 Gas Connection
Warning: Gas installation must be performed by a qualified and certified technician in accordance with all local and national regulations.
- Ensure the gas supply type (Natural Gas or LPG) matches the appliance's specifications.
- Check for gas leaks after connection using a soapy water solution; never use an open flame.
3.4 Initial Burn-off
Before first use, operate the oven at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. Ensure the kitchen is well-ventilated during this process.
Figure 2: Interior view of the Ariston gas oven, showing shelves.
4. Operating Instructions
4.1 Using the Gas Hob Burners
Your cooker is equipped with 5 gas burners of varying sizes for different cooking needs. The hob features cast iron grates for stable cookware support.
- Ignition: Push and turn the control knob for the desired burner counter-clockwise to the maximum flame setting. The integrated ignition system will spark.
- Flame Adjustment: Once lit, hold the knob for a few seconds to allow the thermocouple to heat up. Release the knob. If the flame extinguishes, repeat the process. Adjust the flame size by turning the knob between the maximum and minimum settings.
- Turning Off: Turn the control knob clockwise until it clicks into the 'off' position.
4.2 Using the Gas Oven
The 90-liter gas oven is designed for efficient cooking with a preheating function.
- Setting Temperature: Push and turn the oven control knob to the desired temperature. The oven features a preheating function that will bring the oven to the set temperature.
- Ignition: For ovens with automatic ignition, the burner will light when the knob is turned. For manual ignition, you may need to use a long match or igniter through the designated opening.
- Preheating: Allow the oven to preheat until the indicator light (if present) turns off, or for the recommended time for your recipe. The oven automatically maintains the set temperature.
- Rotisserie Function: If using the rotisserie (drawer type: Rotisserie), ensure the spit is correctly assembled and balanced. Follow specific instructions for rotisserie use.
- Turning Off: Turn the oven control knob to the 'off' position.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Ariston gas cooker.
5.1 General Cleaning
- Always ensure the appliance is cool and disconnected from the power and gas supply before cleaning.
- The polished stainless steel surfaces can be cleaned with a soft cloth and a mild, non-abrasive cleaner specifically designed for stainless steel.
- Avoid using abrasive sponges, harsh chemicals, or steam cleaners, as these can damage the surfaces.
5.2 Hob Cleaning
- Remove the cast iron grates and burner caps/crowns. These can be washed in warm soapy water. Ensure they are completely dry before reassembling.
- Clean any spills on the hob surface immediately to prevent staining.
5.3 Oven Cleaning
- The oven interior can be cleaned with a damp cloth and a mild oven cleaner (ensure it is safe for gas ovens).
- Remove oven shelves and wash them separately.
- The oven's simple design facilitates easy cleaning.
6. Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | No gas supply, power outage, clogged burner, wet burner cap. | Check gas valve, check power, clean burner/cap, ensure dry. |
| Oven not heating | No gas supply, oven control knob not set correctly, ignition failure. | Check gas valve, ensure knob is fully engaged and set, attempt re-ignition. |
| Uneven flame on burner | Clogged burner ports. | Clean burner ports with a fine wire or brush when cool. |
| Gas smell | Gas leak. | Immediately turn off gas supply, open windows, do not operate electrical switches, and contact emergency services. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Ariston |
| Model Name | BAM951EGSS |
| Product Type | Gas Cooker with Oven |
| Installation Type | Freestanding |
| Fuel Type | Gas |
| Number of Burners | 5 |
| Hob Type | Cast Iron |
| Oven Capacity | 90 Liters |
| Number of Oven Shelves | 2 |
| Drawer Type | Storage, Rotisserie |
| Material | Stainless Steel |
| Finish Type | Polished |
| Trim Color | Silver |
| Product Dimensions (D x W x H) | 60 cm x 90 cm x 85 cm |
| Item Weight | 40 kg |
| Voltage | 220 Volts |
8. Warranty and Support
8.1 Warranty Information
This Ariston gas cooker is covered by a manufacturer's warranty for two years from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal domestic use. It does not cover damage caused by misuse, improper installation, or unauthorized repairs.
8.2 Customer Support and Installation Services
For installation services or technical support, please contact the authorized service centers in your region:
- Riyadh: +966 -11- 4094006 Ext – 113
- Jeddah: +966- 12- 6577714
- Dammam: +966-13- 8343691
- Qassim: +966 581044198
- Abha: +966 593322785
When contacting support, please have your model number (BAM951EGSS) and purchase details ready.
