Instruction Manual

1. Introduction

This manual provides instructions for the proper installation, usage, and maintenance of your staubsaugerladen compatible vacuum cleaner bags. These bags are designed to offer optimal filtration performance and are suitable for a wide range of Electrolux and other compatible vacuum cleaner models.

2. Product Overview

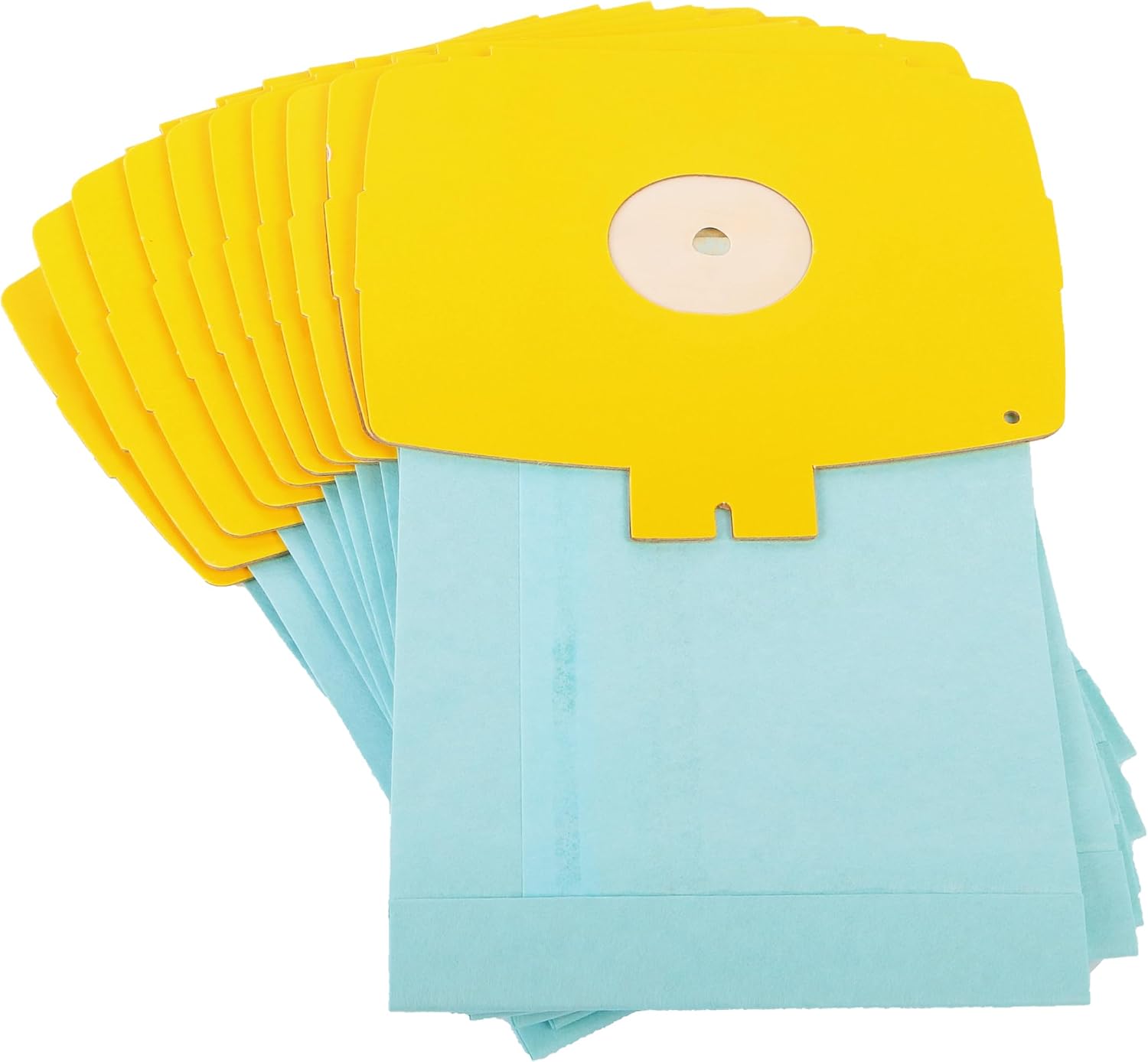

The product consists of a pack of 10 high-quality filter bags, manufactured in Germany, designed for efficient dust collection and filtration. Each bag features a durable construction to prevent dust leakage and ensure clean air exhaust.

3. Compatibility

These vacuum cleaner bags are compatible with a wide range of models from Electrolux, AEG, Electro Helios, Europlus, Filterclean, and Hoover. Please verify your vacuum cleaner model against the list below:

Electrolux (Elektrolux) / AEG / AEG-Electrolux:

• AEG / AEG-Electrolux: 113 466
• Electrolux D Series: D 715, D 720, D 725 (Sanft-o-matic), D 728, D 729, D 730 (Longo-matic), D 735, D 736, D 738, D 739, D 740, D 742, D 745
• Electrolux Z Series: Z 355, Z 358, Z 360, Z 370, Z 375, Z 380, Z 390, Z 400
• Other Electrolux Models: 360, 375, 380, 390, 400, 720, 725, 728, 730, 735, 738, 740, 742, 745, E 6, Logomatic, Sanft-o-matic

Electro Helios:

• 358, 358 / 360, 360, ES 360 S, U 358, U 358 / 360 / ES 360 S / Z 355, Z 355

Replacements for other brands:

• Swirl: E 76 / E76 Swirl
• Wolf: 0730
• Menalux: 1202
• Europlus: V 2504
• Filterclean: E 8
• Hoover: EL 9

4. Setup (Installation)

Follow these general steps to install a new vacuum cleaner bag. Refer to your vacuum cleaner's specific instruction manual for detailed model-specific guidance.

1. Power Off: Ensure your vacuum cleaner is unplugged from the power outlet before attempting any installation or maintenance.
2. Open Compartment: Locate and open the dust bag compartment on your vacuum cleaner. This usually involves releasing a latch or pressing a button.
3. Remove Old Bag: Carefully remove the full dust bag. Many bags have a self-closing mechanism on the cardboard collar to prevent dust from escaping. Dispose of the old bag according to local waste disposal guidelines.
4. Insert New Bag: Take a new staubsaugerladen compatible bag. Align the cardboard collar of the new bag with the bag holder inside the vacuum cleaner compartment. Push firmly until it clicks into place, ensuring a secure seal around the inlet opening.
5. Close Compartment: Close the dust bag compartment securely. Ensure it is fully latched to prevent air leaks during operation.
6. Test: Plug in your vacuum cleaner and perform a brief test to ensure proper suction and operation.

5. Operating (Usage)

These vacuum cleaner bags are designed for single use and should be replaced regularly to maintain optimal vacuum performance and air quality.

• When to Change: Replace the dust bag when the suction power noticeably decreases, or when the "bag full" indicator (if present on your vacuum cleaner) illuminates. Do not wait until the bag is completely full, as this can strain the motor and reduce cleaning efficiency.
• Regular Checks: Periodically check the bag's fullness, especially if you vacuum frequently or clean heavily soiled areas.

6. Maintenance

Proper maintenance of your vacuum cleaner bags primarily involves timely replacement and correct storage of new bags.

• Storage: Store unused vacuum cleaner bags in a cool, dry place, away from direct sunlight and moisture. Keep them in their original packaging to protect them from dust and damage.
• Filter Care: While these bags provide primary filtration, regularly check and clean or replace your vacuum cleaner's motor protection filter and exhaust filter as recommended by your vacuum cleaner's manufacturer. A clogged filter can reduce suction even with a new bag.

7. Troubleshooting

If you experience issues with your vacuum cleaner after installing a new bag, consider the following common problems and solutions:

• Low Suction Power:
  • Ensure the new bag is correctly installed and sealed within the compartment.
  • Check if the bag compartment lid is fully closed and latched.
  • Inspect the vacuum cleaner hose and attachments for blockages.
  • Verify that the motor protection filter or exhaust filter are not clogged and require cleaning or replacement.
• Dust Leakage:
  • Confirm the bag's cardboard collar is securely seated in the bag holder, creating a tight seal.
  • Check for any tears or damage to the bag material before installation.

8. Specifications

9. Warranty and Support

The manufacturer, Staubsaugerladen.de, offers a 2-year warranty on their products. For any inquiries, support, or repair services, please contact Staubsaugerladen directly. They also operate a workshop in Göppingen for vacuum cleaner repairs.

Please note that information regarding the availability of spare parts for these specific bags is not provided.

For further assistance, please refer to the contact information provided by your retailer or on the manufacturer's official website.
