1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Rev9 TC-084_4 K04 Turbocharger Kit. This kit is designed as an upgrade for specific Volkswagen CC(B6) 2.0L turbocharged models manufactured between 2009 and 2017. Please read these instructions thoroughly before proceeding with installation or use to ensure proper function and longevity of the product.
The Rev9 TC-084_4 K04 Turbocharger Kit includes the turbocharger assembly, various gaskets, hoses, and clamps necessary for installation. The turbocharger features a 46mm inducer and 57mm exducer compressor wheel, designed to enhance engine performance.
Figure 1: Complete Rev9 TC-084_4 K04 Turbocharger Kit showing all included components.
2. Setup and Installation
Installation of the Rev9 TC-084_4 K04 Turbocharger Kit requires specialized tools and automotive knowledge. It is highly recommended that installation be performed by a certified professional technician to ensure correct fitment and prevent damage to the product or vehicle.
2.1 Pre-Installation Checks
- Verify that all components listed in the kit are present and undamaged.
- Ensure the vehicle's engine is cool before beginning any work.
- Confirm compatibility with your specific vehicle model and year (Volkswagen CC(B6) 2.0L Turbocharged, 2009-2017).
- Review the vehicle's service manual for specific torque specifications and procedures related to turbocharger removal and installation.
2.2 General Installation Steps (Consult Professional for Detailed Procedure)
- Disconnect the vehicle's battery.
- Drain engine oil and coolant.
- Remove the existing turbocharger assembly, exhaust manifold, and associated plumbing.
- Clean all mating surfaces thoroughly to ensure proper sealing with new gaskets.
- Install the new Rev9 TC-084_4 K04 turbocharger and exhaust manifold using new gaskets and hardware. Ensure all connections are secure and torqued to manufacturer specifications.
- Connect all oil and coolant lines to the new turbocharger. Ensure proper flow and no kinks in lines.
- Install intake and charge piping, securing with provided clamps.
- Refill engine oil and coolant to appropriate levels.
- Reconnect the battery.
- Perform initial engine start-up and check for leaks or unusual noises.
Figure 2: The Rev9 K04 turbocharger assembly, featuring an integrated exhaust manifold for direct fitment.

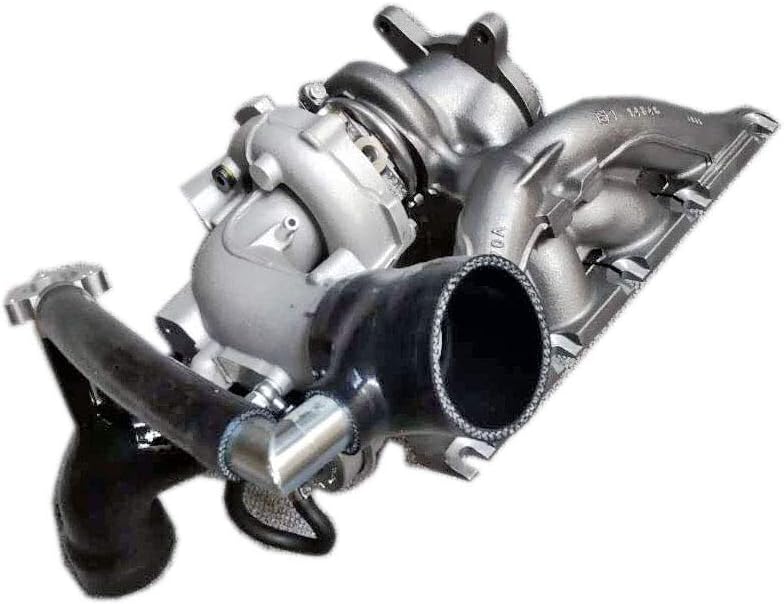

Figure 3: An assembled view of the turbocharger with silicone hoses connected, illustrating typical installation points.
3. Operating Guidelines
After installing the K04 turbocharger, it is important to follow specific operating procedures to ensure optimal performance and longevity.
- Engine Warm-up: Allow the engine to reach operating temperature before engaging in high-boost driving. This ensures proper oil circulation and lubrication for the turbocharger bearings.
- Engine Cool-down: After periods of high-load or high-speed driving, allow the engine to idle for a few minutes before shutting it off. This allows the turbocharger to cool down gradually, preventing oil coking in the bearing housing.
- Engine Tuning: An upgraded turbocharger often requires appropriate engine software tuning to maximize performance and ensure safe operation. Consult with a reputable tuner for specific recommendations for your vehicle.
- Monitoring: Pay attention to engine warning lights, boost gauges, and any unusual noises. Address any issues promptly.
4. Maintenance
Regular maintenance is crucial for the performance and lifespan of your turbocharger and engine.
- Oil Changes: Perform regular oil changes using high-quality synthetic engine oil as recommended by your vehicle manufacturer, or more frequently if operating under severe conditions. Clean oil is vital for turbocharger bearing lubrication.
- Oil Filter: Replace the oil filter with every oil change.
- Air Filter: Ensure the engine air filter is clean and free of obstructions to prevent foreign objects from entering the turbocharger compressor and to maintain optimal airflow.
- Boost Leaks: Periodically inspect all intake and charge piping, hoses, and clamps for any signs of leaks or damage. Boost leaks can lead to reduced performance and potential engine issues.
- Coolant System: Maintain the engine's cooling system, ensuring proper coolant levels and condition, as the turbocharger is also liquid-cooled.
5. Troubleshooting
This section outlines common issues and basic troubleshooting steps. For complex problems, consult a qualified technician.
| Symptom | Possible Cause | Action |
|---|---|---|
| Loss of Boost/Reduced Power | Boost leak, wastegate malfunction, faulty diverter valve, ECU tuning issue. | Check all charge pipes and hoses for leaks. Inspect wastegate actuator. Verify diverter valve operation. Consult tuner for ECU diagnostics. |
| Unusual Noises (Whining, Hissing) | Boost leak (hissing), failing turbocharger bearings (whining), foreign object ingestion. | Inspect piping for leaks. Check for shaft play in turbocharger. Inspect compressor and turbine wheels for damage. |
| Excessive Smoke from Exhaust | Oil leaking into exhaust or intake side of turbocharger. | Check turbocharger oil seals. Verify proper oil drain. Consult technician for diagnosis. |
| Check Engine Light (CEL) | Various engine or turbocharger related faults. | Scan for diagnostic trouble codes (DTCs) using an OBD-II scanner. Address specific codes. |
6. Specifications
Key specifications for the Rev9 TC-084_4 K04 Turbocharger Kit:
- Model: TC-084_4
- Brand: Rev9
- Compressor Wheel Inducer Diameter: Approximately 46mm
- Compressor Wheel Exducer Diameter: Approximately 57mm
- Compatibility: Volkswagen CC(B6) 2.0L Turbocharged (2009-2017)
- Part Type: K04 Turbocharger Upgrade Kit
Figure 4: Measurement of the compressor wheel's inducer diameter, approximately 46mm.

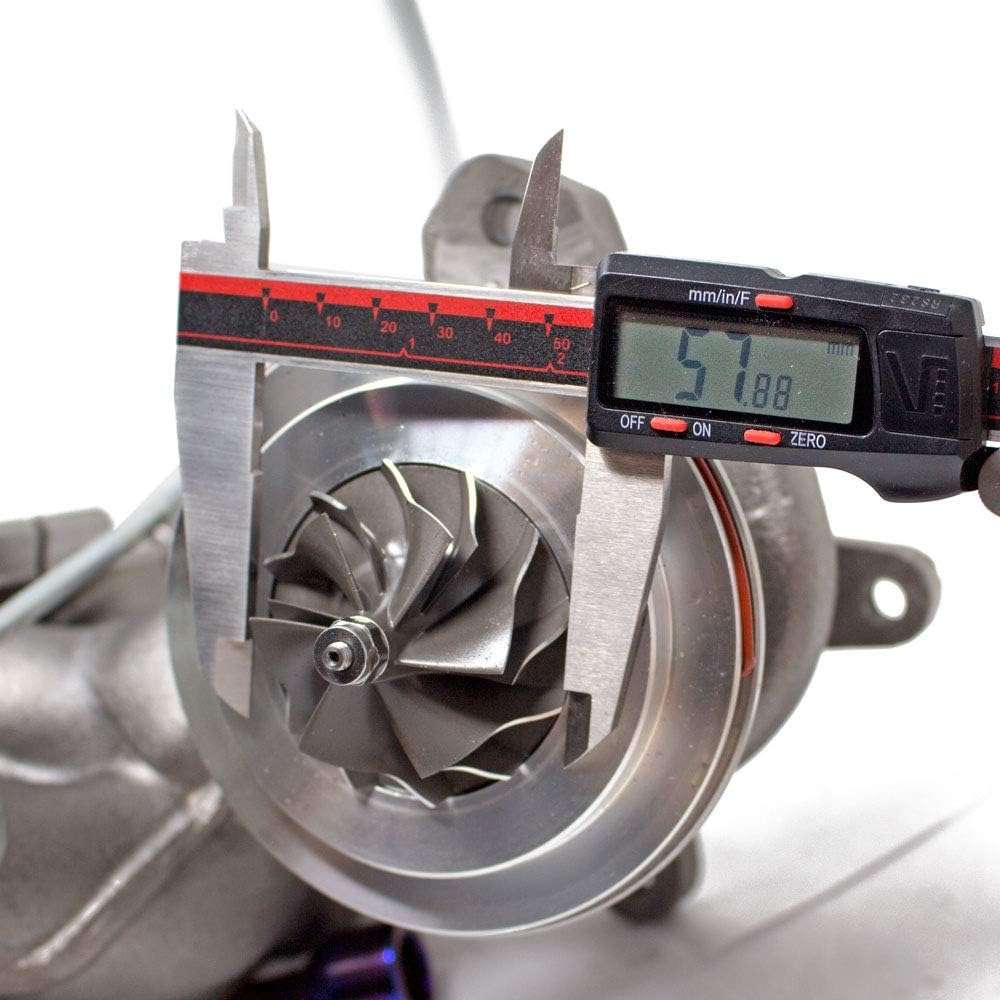

Figure 5: Measurement of the compressor wheel's exducer diameter, approximately 57mm.

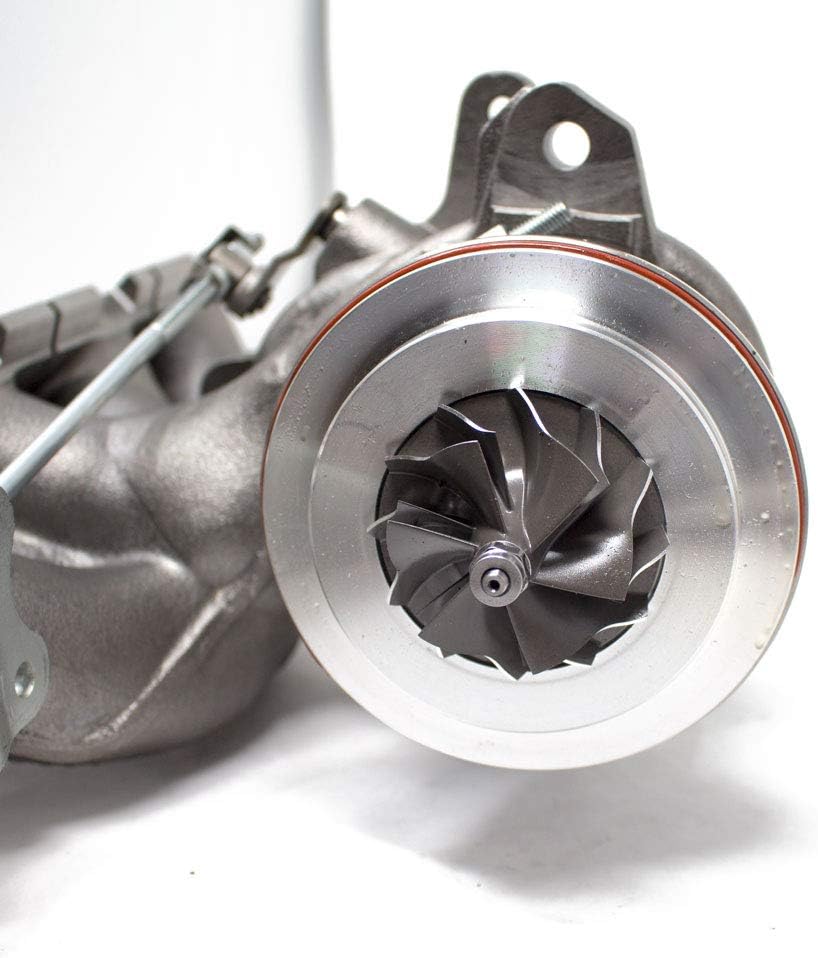

Figure 6: Detailed view of the compressor wheel, highlighting its design and construction.
7. Warranty Information
Specific warranty details for the Rev9 TC-084_4 K04 Turbocharger Kit were not provided in the product information. Please refer to the original purchase documentation or contact the seller directly for warranty terms and conditions.
8. Customer Support
Contact information for customer support was not provided in the product details. For technical assistance or inquiries, please reach out to your point of purchase or the Rev9 brand's official channels if available.
