Huepar B03CG 3X360 Green Laser Level User Manual

Introduction

The Huepar B03CG 3X360 Green Laser Level is a precision instrument designed for various leveling and alignment tasks. It features three 360-degree green laser lines, offering comprehensive coverage for floors, walls, and ceilings. This manual provides detailed instructions for safe operation, setup, and maintenance to ensure optimal performance and longevity of your device.

Safety Instructions

Please read and understand all safety instructions before operating this laser level. Failure to follow these instructions may result in serious injury.

• WARNING: Avoid direct exposure of the laser beam to the eyes. Direct eye exposure can cause permanent eye damage.
• Do not stare directly into the laser beam.
• Do not modify the laser level in any way. Unauthorized modifications can increase the risk of laser radiation exposure.
• Do not operate the laser level near children or allow children to operate it.
• Use only specified accessories and attachments.
• Ensure the work area is free from obstructions and potential hazards.
• Store the laser level in a safe, dry place when not in use.

Package Contents

Verify that all items listed below are included in your package:

• Huepar B03CG Laser Level
• Dedicated Hard-shell Carrying Case
• Lithium-ion Battery with Type-C Charging Port (3.7V / 5200mAh)
• Magnetic Pivoting Base
• USB-C / Type-C Charging Cable
• Power Adapter
• Target Plate
• User Manual

Image: Contents of the Huepar B03CG package, including the laser level, carrying case, battery, magnetic bracket, charging cable, power adapter, target plate, and user manual.

Product Features

• 3 x 360° Laser Lines: One horizontal and two vertical 360° laser planes provide comprehensive coverage for various applications.
• Green Laser Technology: Green lasers are up to twice as bright as red lasers of the same power, offering enhanced visibility up to 25m (300 LUX) with an accuracy of ±3mm at 10m.
• Dual Power Methods & Type-C Charging: Equipped with a 3.7V/5200mAh rechargeable lithium battery, providing up to 8 hours of operation. The battery features a Type-C charging port for separate charging. The laser tool can also be used directly plugged in without the battery.
• Outdoor Pulse Mode: Activates to extend the laser range up to 60m when used with a Huepar line laser detector (sold separately).
• Versatile Mounting Options: Features a 1/4"-20 thread for standard tripods or laser mounting poles. Includes a 360° magnetic pivoting base for attachment to metal surfaces and adjustable angles. Also compatible with 5/8"-11 tripod threads.
• Durable Design: Fully covered by soft TPR rubber for enhanced protection and a comfortable grip. IP54 dustproof and waterproof rating.

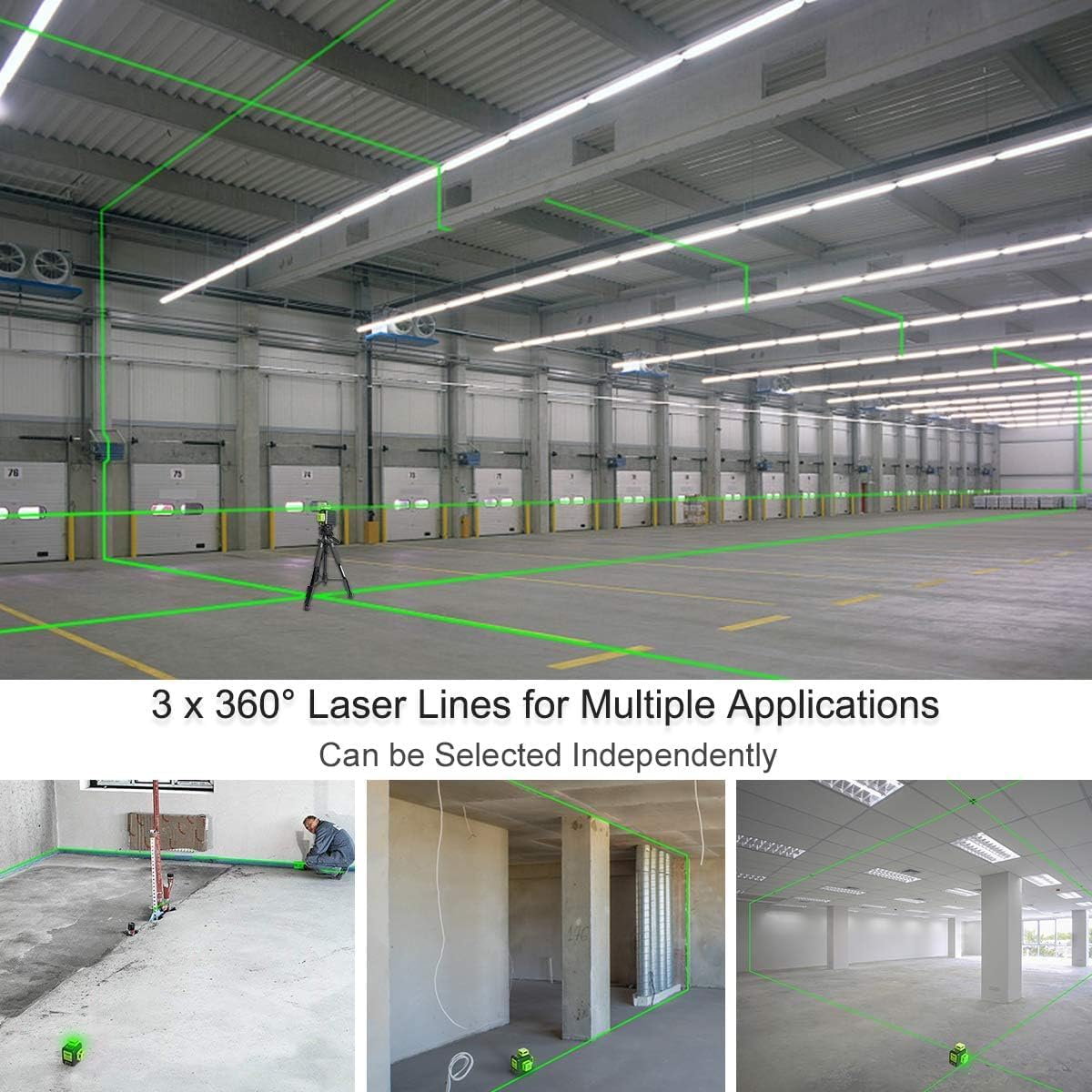

Image: The Huepar B03CG laser level projecting green lines in a room, demonstrating its 360-degree coverage.

Image: Illustrations showing the Huepar B03CG's large-capacity Li-ion battery with Type-C charging port, direct plug-in use without battery, and Type-C charging via a power bank.

Image: Close-up views of the Huepar B03CG laser level highlighting its dustproof, shockproof, and waterproof construction.

Setup

1. Battery Installation: Open the battery compartment and insert the provided lithium-ion battery. Ensure correct polarity. The battery can also be charged separately using the Type-C port.
2. Charging: Connect the Type-C charging cable to the laser level or directly to the battery. Use the provided power adapter or a compatible USB power source. The charging indicator will show the charging status.
3. Mounting:
   • For tripod mounting, use the 1/4"-20 thread on the bottom of the unit.
   • Attach the magnetic pivoting base to the laser level, then secure it to metal surfaces using the strong magnets. The base allows for 360-degree rotation.
4. Positioning: Place the laser level on a stable, level surface or mount it securely. Ensure the pendulum/transit lock is unlocked for self-leveling mode.

Image: Various fixing methods for the Huepar B03CG, including tripod mounting via 1/4"-20 thread and attachment using the 360° magnetic pivoting bracket.

Image: Detailed diagram of the Huepar B03CG laser level, showing laser windows, battery compartment, 1/4"-20 female threaded mount, manual mode indicator, operation button, power indicator, pulse mode button, lithium battery, charging indicator, Type-C charging port, pendulum/transit lock, and keypad.

Operating Instructions

1. Power On/Off: Slide the pendulum/transit lock to the unlocked position to power on the device and activate self-leveling mode. Slide it to the locked position to power off and protect the pendulum during transport.
2. Self-Leveling Mode: When unlocked, the laser level will automatically self-level within ±4°. If the device is outside this range, the laser lines will flash rapidly, and an audible alarm may sound, indicating an out-of-level condition. Adjust the position until the lines stabilize.
3. Manual / Tilt Mode: To use the laser at an angle, first lock the pendulum/transit lock. Then, press and hold the operation button to activate manual mode. The laser lines will be projected at the desired angle without self-leveling.
4. Switching Laser Lines: Press the operation button (power button) to cycle through different laser line combinations (e.g., horizontal only, vertical only, all lines).
5. Pulse Mode: Press the pulse mode button (P+) to activate pulse mode. This mode is indicated by the pulse mode indicator light. Pulse mode is essential for use with a laser receiver in bright light or outdoor conditions to extend the working range. Press the button again to deactivate.

Image: Comparison of the Huepar B03CG in self-leveling mode (level lines) and manual/tilt mode (angled lines).

Image: The Huepar B03CG laser level operating in pulse mode, showing how it extends the working range up to 50m/165ft with a Huepar Laser Receiver in bright light or outdoor conditions.

Maintenance

• Cleaning: Use a soft, damp cloth to clean the laser level. Do not use abrasive cleaners or solvents. Keep the laser windows clean for optimal beam clarity.
• Storage: When not in use, store the laser level in its hard-shell carrying case with the pendulum lock engaged. Store in a dry place, away from direct sunlight and extreme temperatures.
• Battery Care: For long-term storage, charge the lithium-ion battery to approximately 50% and recharge every 3-6 months to maintain battery health.
• Calibration: If you suspect the laser level is out of calibration, refer to the troubleshooting section or contact customer support. Do not attempt to recalibrate the device yourself unless specifically instructed.

Troubleshooting

Specifications

Warranty and Support

Huepar is committed to providing high-quality products and excellent customer service.

• Product Support: Enjoy 2-5 years of support for your Huepar tool.
• Lifetime Technical Support: Receive assistance with setup and troubleshooting throughout the product's lifespan.
• Responsive Service: Expect a 12-hour response time for inquiries.
• Contact Information:
  • Email: support@huepar.com
  • WhatsApp: +16267029700
