SONGMICS 6-Tier Iron Shoe Rack Instruction Manual

Introduction

Thank you for choosing the SONGMICS 6-Tier Iron Shoe Rack. This manual provides detailed instructions for assembly, usage, maintenance, and troubleshooting to ensure you get the most out of your product. Please read this manual carefully before assembly and retain it for future reference.

Safety Instructions

• Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assemble the product on a soft, clean surface to prevent scratches.
• Do not exceed the maximum static load capacity of 5 kg per tier or 30 kg total. Overloading can cause damage or injury.
• Keep small parts away from children during assembly to prevent choking hazards.
• Periodically check all connections to ensure they remain secure and tighten if necessary.

Warning: Children should not climb on or play with the product to prevent tipping and injury.

Product Overview

Components

• Iron Tubes (for frame and shelves)
• Plastic Connectors (for joining tubes)
• 6 Tiers (forming the storage levels)

Dimensions and Capacity

• Overall Dimensions (L x W x H): 45 x 30 x 106 cm (17.7 x 11.8 x 41.7 inches)
• Product Weight: 1.99 kg (4.39 lbs)
• Max. Static Load Capacity per Tier: 5 kg (11 lbs)
• Total Max. Static Load Capacity: 30 kg (66 lbs)

Figure 1: Product Dimensions. The rack measures 45 cm in length, 30 cm in width, and 106 cm in height.

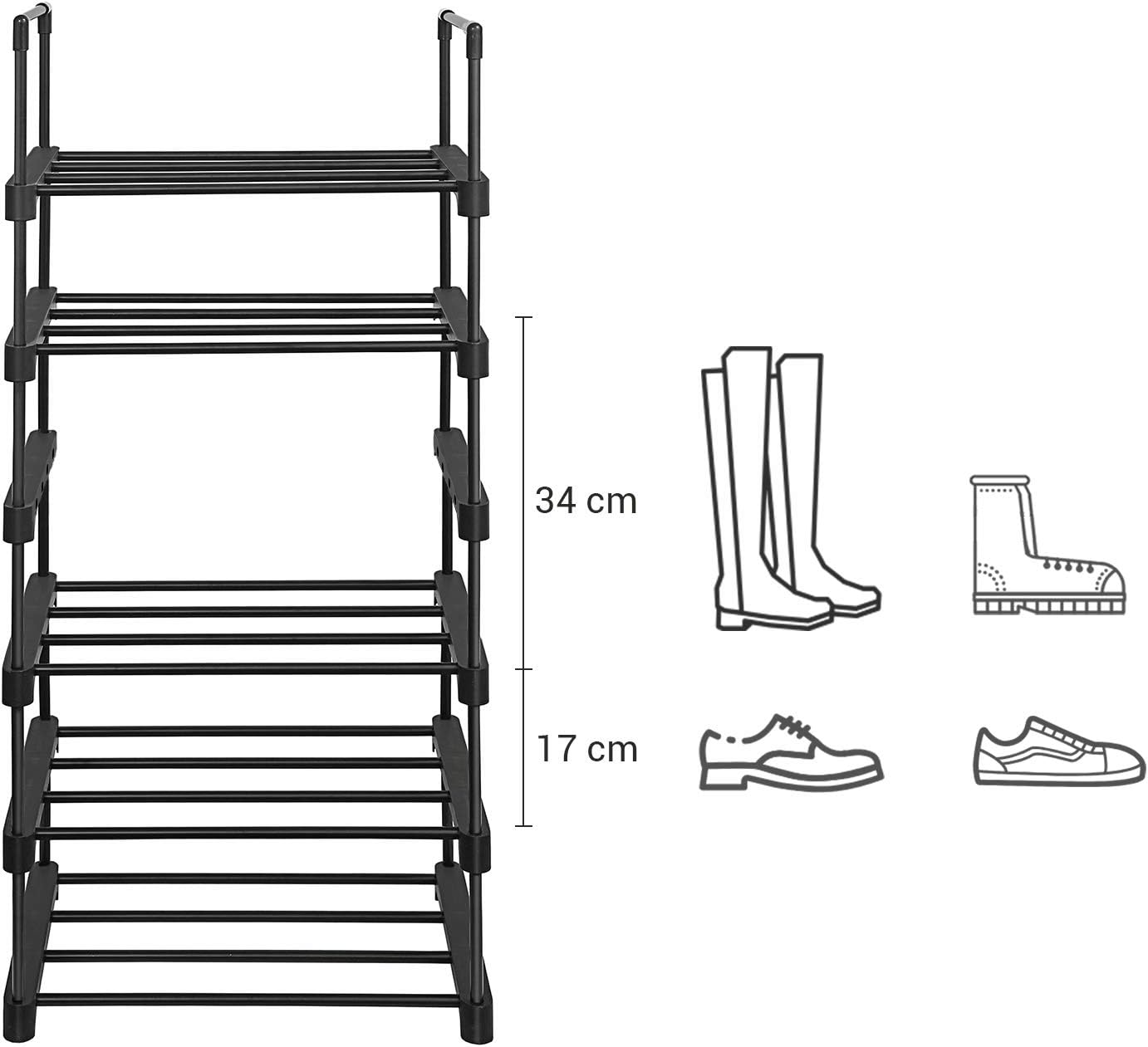

Figure 2: Tier Height Clearances. Each standard tier provides 17 cm of height, suitable for most shoes. Taller items like boots can be accommodated by removing a tier, creating 34 cm of space.

Assembly Instructions

This shoe rack features a simple snap-together system, requiring no tools for assembly.

1. Unpack and Verify: Carefully unpack all components and verify against the parts list in your packaging to ensure nothing is missing.
2. Assemble Base Tier: Begin by connecting the iron tubes for the bottom tier to the plastic connectors. Ensure the tubes are fully inserted into the connectors until they click securely into place.
3. Build Upwards: Continue adding the vertical support tubes and then the next set of horizontal tubes for the next tier. Repeat this process for all 6 tiers.
4. Secure Connections: As you assemble each tier, gently push down on the connections to ensure they are firm and stable.
5. Customization (Optional): If you wish to create a shorter rack or multiple smaller racks, you can stop assembly at any desired height or split the components to form separate units.

Figure 3: Close-up of tube insertion into a connector, demonstrating the tool-free assembly.

Figure 4: Assembly Configurations. The modular design allows for various setups, including a full 6-tier rack, two 3-tier racks, or even smaller units.

Usage and Customization

The SONGMICS 6-Tier Iron Shoe Rack is designed for versatile use, offering practical storage solutions in various areas of your home.

Recommended Placement and Use:

• Entryway: Ideal for organizing daily footwear, keeping your entrance tidy and welcoming.
• Living Room: Can be used to store books, small decorative items, or children's toys, blending seamlessly with your decor.
• Bedroom/Closet: Perfect for organizing shoes, folded clothes, or storage boxes, maximizing vertical space.
• Kitchen: Suitable for storing lightweight kitchen essentials or pantry items.

Figure 5: Shoe rack in an entryway, demonstrating its use for organizing footwear.

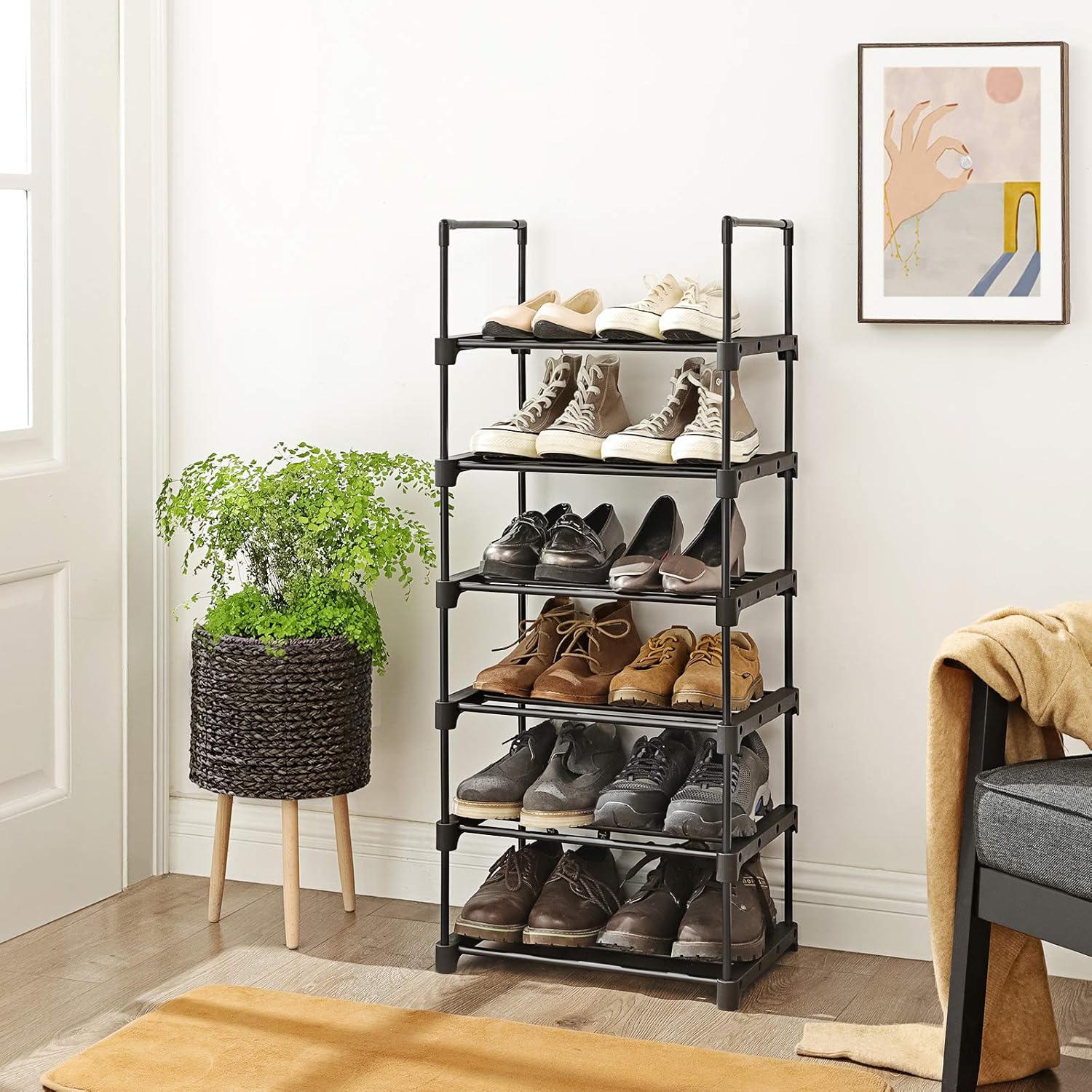

Figure 6: The shoe rack used in a living space, showcasing its versatility beyond just shoes.

Customization Options:

The modular design of this shoe rack allows for flexible configurations to suit your specific needs:

• Full Height Unit: Assemble all 6 tiers to create a tall, space-saving storage unit, ideal for narrow spaces.
• Split Units: The rack can be divided into two separate 3-tier racks, allowing you to place them in different rooms or side-by-side.
• Adjustable Tier Height: You can remove one or more tiers to create taller compartments, perfect for storing boots, high heels, or larger items.

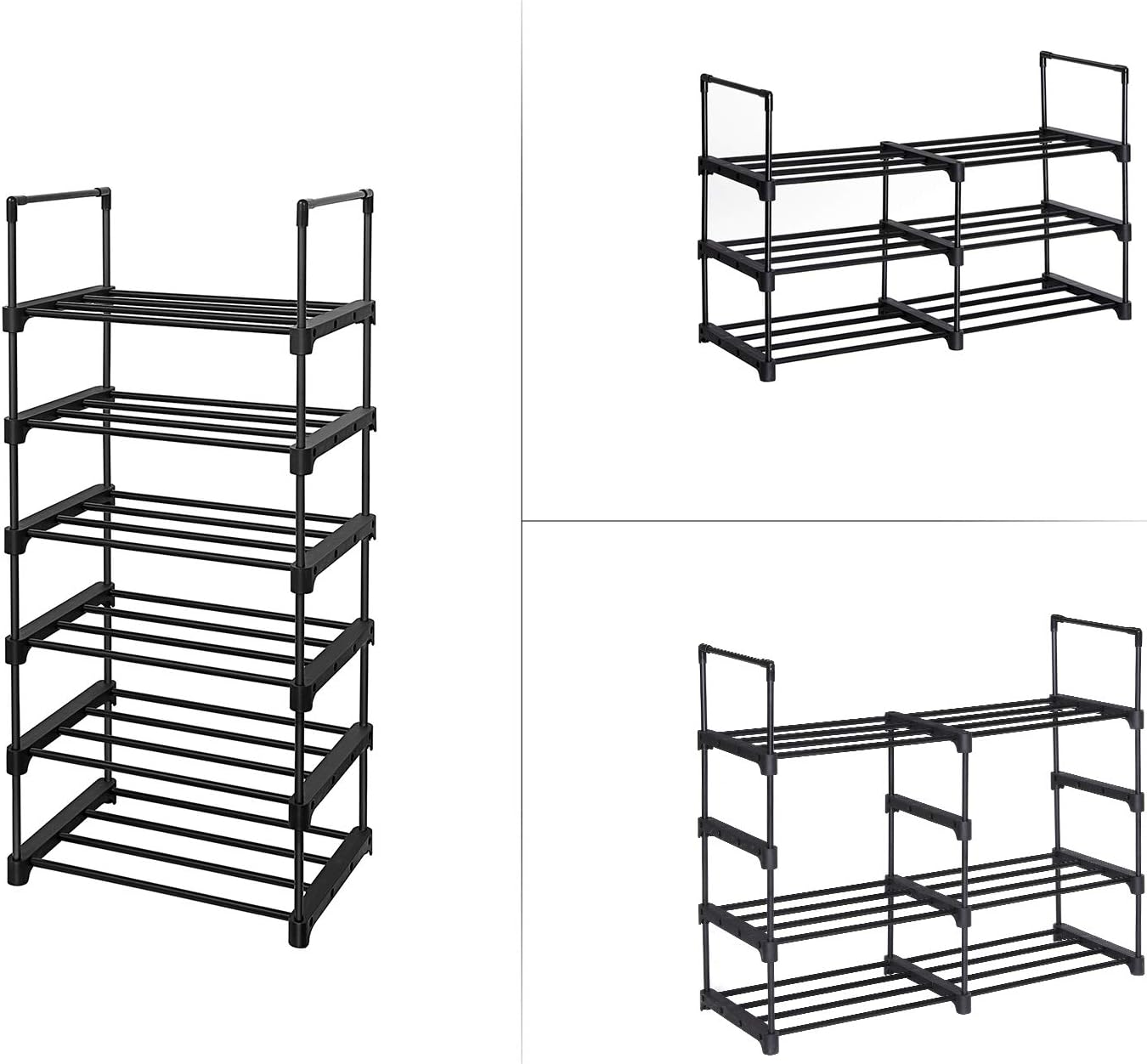

Figure 7: Modular Configurations. The rack can be assembled as a tall unit, or split into multiple smaller units to fit various spaces and needs.

Maintenance

Proper care and maintenance will help prolong the life of your SONGMICS shoe rack.

• Cleaning: Wipe the surfaces with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by wiping with a clean, dry cloth. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Stability Check: Periodically inspect all connections and joints to ensure they remain tight and secure. If any part feels loose, gently push or re-snap it into place.
• Load Management: Always adhere to the specified load capacities. Distribute weight evenly across the tiers to maintain stability and prevent warping or damage.
• Environment: Place the shoe rack in a dry environment. Avoid prolonged exposure to direct sunlight or high humidity, which can affect the material integrity.

Troubleshooting

If you encounter any issues with your shoe rack, refer to the following common problems and solutions:

Issue: The rack feels wobbly or unstable.

Solution:

• Ensure all iron tubes are fully inserted into their respective plastic connectors. A clicking sound indicates a secure connection.
• Check that the rack is placed on a flat, level surface. Uneven flooring can cause instability.
• If necessary, disassemble the affected section and reassemble, paying close attention to firmly connect each piece.

Issue: Parts are missing from the package.

Solution:

• Carefully check all packaging materials, as small parts can sometimes be overlooked.
• If parts are genuinely missing, please contact SONGMICS customer support with your purchase details and a list of the missing components.

Issue: Tubes do not fit into connectors.

Solution:

• Ensure you are using the correct tubes for the corresponding connectors. While assembly is simple, double-check the orientation.
• Apply firm, even pressure. The connections are designed to be snug for stability.

Specifications

Warranty and Support

For detailed warranty information regarding your SONGMICS 6-Tier Iron Shoe Rack, please refer to the terms and conditions provided by your retailer at the time of purchase. Warranty coverage typically varies by region and retailer policy.

For customer support, product inquiries, or assistance with replacement parts, please contact SONGMICS directly through their official website or the contact information provided with your product packaging. Please have your model number (LSA23BK) and purchase details ready when contacting support.
