Holzstar HBS 231-1 Band Saw Instruction Manual

Model: HBS 231-1 | Brand: Holzstar

1. Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Holzstar HBS 231-1 Band Saw. Please read and understand all instructions before operating the machine. Retain this manual for future reference.

General Safety Information

Always prioritize safety. Wear appropriate personal protective equipment (PPE) including eye protection, hearing protection, and dust masks. Ensure the work area is clean, well-lit, and free from obstructions. Disconnect power before performing any adjustments or maintenance.

2. Product Overview

The Holzstar HBS 231-1 is a precision band saw designed for model makers and DIY enthusiasts. It is suitable for cutting various wood materials with accuracy and control.

Key Features:

High-quality die-cast aluminum flywheels with special coating for optimal smooth running and stability.
Work table made of die-cast aluminum, adjustable up to 45 degrees for angled cuts.
Precise 3-roller saw blade guide above and below the table for reliable blade guidance.
Adjustable aluminum parallel guide with magnifying glass and millimeter scale for precise settings.
Two adjustable band speeds to suit different materials and requirements.

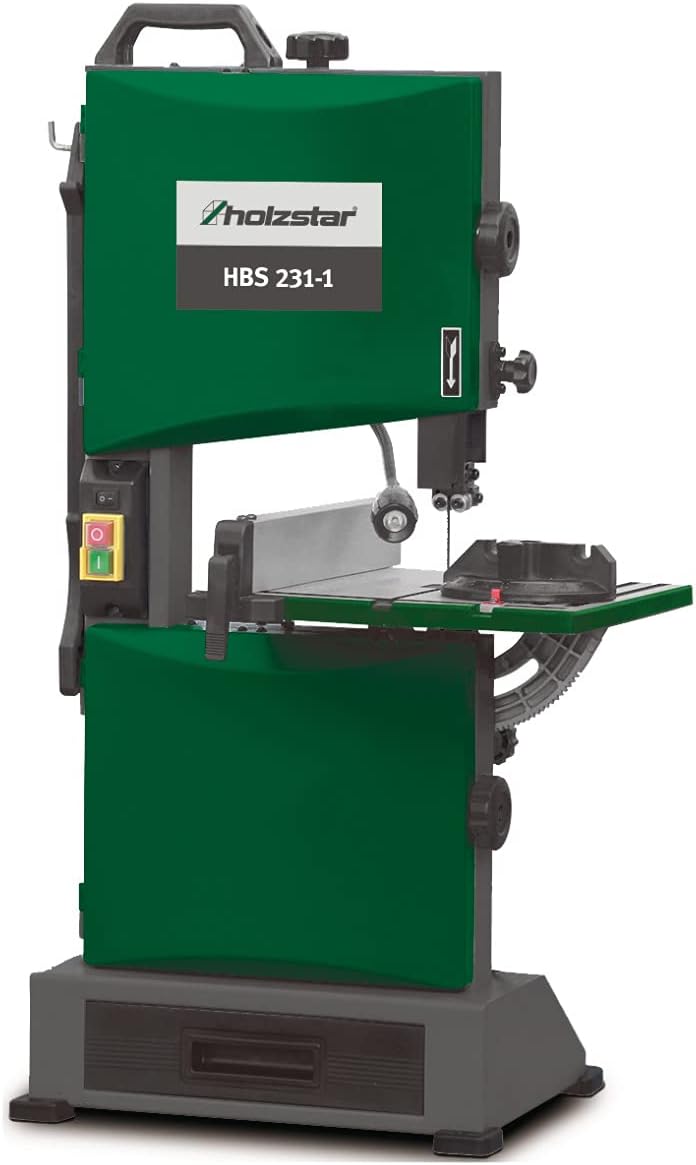

Figure 1: Holzstar HBS 231-1 Band Saw. This image shows the complete band saw unit, highlighting its green housing, the work table, blade guard, and control panel.

3. Components and Controls

Familiarize yourself with the main components of the band saw:

Power Switch: On/Off button, typically located on the front panel.
Work Table: The surface where the workpiece rests during cutting. It can be tilted for miter cuts.
Blade Guard: Protects the user from the moving blade.
Band Saw Blade: The cutting element.
Blade Tension Knob: Used to adjust the tension of the band saw blade.
Blade Guides: Upper and lower guides that support the blade during operation.
Parallel Guide: Used for making straight, parallel cuts.
Dust Extraction Port: Connection point for a dust collection system.
Flywheel Covers: Enclose the upper and lower flywheels.

4. Setup and Assembly

4.1 Unpacking and Placement

Carefully remove the band saw from its packaging.
Inspect for any shipping damage. Report any damage immediately.
Place the machine on a stable, level workbench or stand. Ensure adequate space around the machine for safe operation and material handling.

4.2 Work Table Adjustment

The work table can be tilted from 0 to 45 degrees.
Loosen the locking mechanism beneath the table.
Adjust the table to the desired angle using the angle scale.
Tighten the locking mechanism securely before operation.

4.3 Parallel Guide Installation

Attach the aluminum parallel guide to the work table.
Use the magnifying glass and millimeter scale for precise positioning.
Ensure the guide is parallel to the blade for accurate cuts.

4.4 Dust Extraction Connection

Connect a dust extraction system to the 53mm diameter port to maintain a clean working environment.

5. Operating Instructions

5.1 Power Connection

Ensure the power supply matches the machine's requirements (230 V, 50 Hz).
Plug the power cord into a grounded outlet.

5.2 Selecting Band Speed

The band saw offers two adjustable speeds to optimize cutting for different materials:

Refer to the machine's internal mechanism or manual for instructions on how to change between the two speeds. This typically involves adjusting a belt on pulleys.
Use lower speeds for harder materials or intricate cuts, and higher speeds for softer woods or faster cutting.

5.3 Making a Cut

Ensure the workpiece is securely positioned on the work table.
Adjust the blade guard to be just above the workpiece.
Turn on the machine using the power switch.
Allow the blade to reach full speed before beginning the cut.
Feed the material slowly and steadily into the blade. Do not force the material.
Use the parallel guide for straight cuts and the miter gauge (if applicable) for angled cuts.
After completing the cut, turn off the machine and wait for the blade to stop completely before removing the workpiece.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your band saw.

6.1 Cleaning

Always disconnect the power supply before cleaning.
Remove sawdust and debris from the work table, blade guides, and inside the flywheel covers using a brush or vacuum cleaner.
Ensure the dust extraction port is clear.

6.2 Blade Replacement

Disconnect power.
Loosen the blade tension.
Open the flywheel covers.
Carefully remove the old blade and install the new blade, ensuring it is correctly seated on the flywheels and within the blade guides.
Adjust blade tension according to the manufacturer's recommendations (refer to specific instructions on the machine or in a more detailed manual).
Close the flywheel covers.

6.3 Lubrication

Periodically lubricate moving parts as recommended by the manufacturer to ensure smooth operation.

7. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

Problem	Possible Cause	Solution
Machine does not start	No power supply; faulty switch; tripped circuit breaker.	Check power connection; inspect switch; reset circuit breaker.
Blade wanders or cuts inaccurately	Incorrect blade tension; worn blade; misaligned blade guides; dull blade.	Adjust blade tension; replace blade; adjust blade guides; replace blade.
Excessive vibration or noise	Loose components; unbalanced flywheels; worn bearings.	Check and tighten all fasteners; inspect flywheels; contact service for bearing replacement.
Motor overheats	Overloading the motor; insufficient ventilation.	Reduce cutting pressure; ensure proper ventilation around the motor.

8. Technical Specifications

Model	HBS 231-1
Manufacturer	Holzstar
Article Number	5902423
Dimensions (L x W x H)	83.5 x 49 x 42 cm
Net Weight	20 kg
Power Supply	230 V, 50 Hz
Power Consumption	0.3 kW (300 W)
Output Power	0.17 kW
Work Table Dimensions	300 mm x 300 mm
Work Table Height	405 mm
Work Table Tilt	0 - 45 degrees
Max. Cutting Height (90°)	90 mm
Max. Cutting Height (45°)	50 mm
Max. Cutting Width (with stop)	125 mm
Max. Cutting Width (without stop)	228 mm
Band Speed	635 m/min
Flywheel Diameter	238 mm
Band Saw Blade Length	1575 mm
Band Saw Blade Width	6.35 mm (min) to 10.0 mm (max)
Band Saw Blade Thickness	0.35 mm
Dust Extraction Port Diameter	53 mm

9. Safety Guidelines

Always wear safety glasses, hearing protection, and a dust mask.
Keep hands clear of the blade path. Use push sticks when cutting small pieces.
Ensure the blade guard is properly adjusted and secured.
Never operate the machine with damaged or dull blades.
Do not wear loose clothing, gloves, or jewelry that could get caught in moving parts.
Keep the work area clean and well-lit.
Ensure the machine is stable and securely fastened to a workbench.
Disconnect power before changing blades, making adjustments, or performing maintenance.
Never leave the machine unattended while it is running.
Do not operate the machine in damp or wet conditions.

10. Warranty and Support

For warranty information, technical support, or spare parts, please contact your authorized Holzstar dealer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Product components included: Holzstar HBS 231-1 Band Saw.
