Introduction
Welcome to the world of high-performance remote-controlled vehicles! This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your HIMOTO Raptor 5XB 1/5 Scale 4WD Off-Road Buggy. Please read this manual thoroughly before operating your vehicle to ensure safe and optimal performance.
Safety Information
Operating a gas-powered RC vehicle requires adherence to strict safety guidelines. Failure to follow these instructions can result in injury or damage to property.
- Adult Supervision: This product is not a toy and requires adult supervision for operation, especially for users under 14 years of age.
- Fuel Handling: Use only recommended fuel (gasoline mixed with 2-stroke oil). Handle fuel in a well-ventilated area, away from open flames or sparks. Store fuel in an approved container.
- Engine Heat: The engine and exhaust system become extremely hot during operation. Avoid touching these components to prevent burns. Allow the engine to cool completely before handling or performing maintenance.
- Moving Parts: Keep hands, hair, and loose clothing away from all rotating parts (wheels, gears, engine flywheel) when the engine is running.
- Operating Environment: Operate the buggy in open, clear areas, away from people, pets, and obstacles. Do not operate near public roads, water, or in confined spaces.
- Ventilation: Never run the engine indoors or in poorly ventilated areas due to carbon monoxide fumes.
- Emergency Stop: Familiarize yourself with the emergency engine stop procedure on the remote control and on the vehicle itself.
Package Contents
Please verify that all items listed below are included in your package. If any items are missing or damaged, contact your retailer immediately.
- HIMOTO Raptor 5XB 1/5 Scale 4WD Off-Road Buggy (RTR)
- 2.4GHz Remote Control Transmitter
- Basic Tool Kit (e.g., wrench, screwdriver)
- Instruction Manual (this document)
- Fuel Bottle (empty)
Note: Fuel, engine oil, and batteries for the transmitter and receiver are typically sold separately.
Setup
1. Unpacking and Inspection
Carefully remove the buggy and all accessories from the packaging. Inspect the vehicle for any visible damage that may have occurred during shipping. Ensure all screws are tight and components are securely fastened.
2. Fueling the Engine
Your Raptor 5XB is powered by a 32CC gasoline engine. It requires a specific mixture of gasoline and 2-stroke engine oil. Consult your engine manual for the exact mixing ratio (typically 25:1 or 30:1). Use a clean fuel bottle for mixing.
- Prepare the fuel mixture in a separate container according to the engine manufacturer's specifications.
- Locate the fuel tank cap on the buggy.
- Carefully pour the mixed fuel into the fuel tank using a funnel to avoid spills. Do not overfill.
- Securely replace the fuel tank cap.
Image: Close-up of the 32CC engine and fuel tank, showing the 'Fuelie 30CC' sticker and 'STOP ENGINE!' warning.
3. Battery Installation (Receiver and Transmitter)
The buggy's receiver and the remote control transmitter require batteries for operation. Ensure you use fresh, fully charged batteries of the correct type and voltage.
- Receiver Battery: Locate the receiver box on the buggy chassis. Open the box and connect a fully charged receiver battery pack (e.g., NiMH or LiPo, as specified) to the receiver. Ensure proper polarity. Close the receiver box securely to protect it from dirt and moisture.
- Transmitter Batteries: Open the battery compartment on the back of the 2.4GHz remote control transmitter. Insert the required number of AA batteries (usually 4 or 8), observing the correct polarity. Close the compartment.

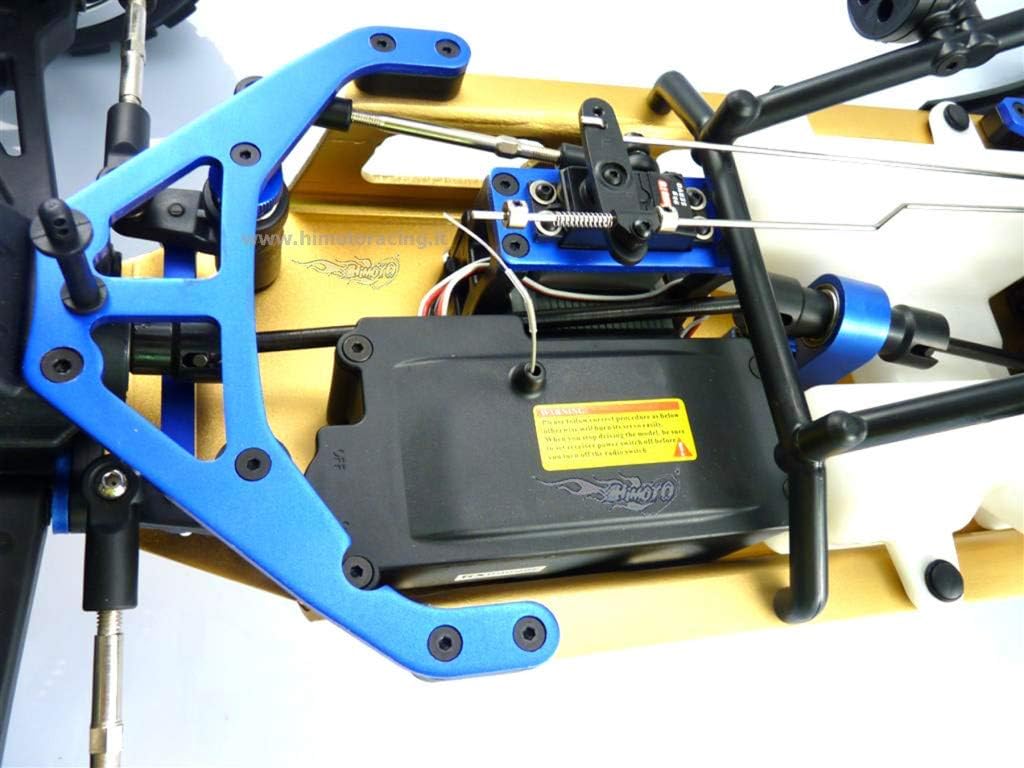

Image: View of the electronics compartment on the chassis, showing the receiver box and servo linkages.
4. Remote Control Pairing (Binding)
Your 2.4GHz remote control and receiver are typically pre-bound from the factory. If you need to re-bind them or are using a new transmitter/receiver, follow the specific instructions provided with your radio system. Generally, this involves powering on the receiver while holding a bind button, then powering on the transmitter while holding its bind button.
Operating Instructions
1. Pre-Operation Checklist
- Ensure fuel tank is adequately filled with the correct mixture.
- Verify receiver and transmitter batteries are fully charged.
- Check all linkages (steering, throttle/brake) for free movement and proper adjustment.
- Inspect tires for damage and ensure wheel nuts are tight.
- Confirm radio system is functioning correctly: turn on transmitter, then receiver. Test steering and throttle/brake servos.
2. Starting the Engine
Starting a gas engine can require a specific procedure. Always perform this in a well-ventilated outdoor area.
- Place the buggy on a stable surface with the wheels off the ground if possible.
- Turn on the remote control transmitter, then the receiver switch on the buggy.
- Locate the choke lever on the carburetor and set it to the 'ON' or 'CLOSED' position (for cold starts).
- Locate the primer bulb (if present) and press it several times until fuel is visible in the fuel lines.
- Pull the recoil starter cord firmly and smoothly until the engine attempts to start. Do not pull the cord to its full extension.
- Once the engine 'pops' or briefly starts, move the choke lever to the 'OFF' or 'OPEN' position.
- Continue pulling the recoil starter until the engine runs consistently.
- Allow the engine to warm up for a minute or two before driving.
Image: Detailed view of the 32CC engine, highlighting the recoil starter and carburetor area.
3. Driving the Buggy
With the engine running and warmed up, you are ready to drive. Always maintain a safe distance from yourself and others.
- Throttle: Gently pull the throttle trigger on the transmitter to accelerate. Push forward to apply brakes.
- Steering: Turn the steering wheel on the transmitter to control the buggy's direction.
- Control: Practice gentle throttle and steering inputs initially to get a feel for the vehicle's response. Avoid sudden, aggressive movements.
- Line of Sight: Always keep the buggy within your direct line of sight.
Image: Front-side view of the HIMOTO Raptor 5XB, ready for operation.
4. Stopping the Engine
To stop the engine, use one of the following methods:
- Engine Kill Switch: Locate the engine kill switch on the engine itself (often a red button) and press it.
- Throttle Trim: If your transmitter has a throttle trim adjustment, you can adjust it to reduce the idle speed until the engine stalls.
- Choke: As a last resort, you can apply the choke to flood the engine and cause it to stall.
Always turn off the receiver on the buggy first, then the transmitter, after operation.
Maintenance
Regular maintenance is crucial for the longevity and performance of your HIMOTO Raptor 5XB.
1. Post-Operation Cleaning
- Remove dirt, dust, and debris from the chassis, suspension, and engine using a soft brush, compressed air, or a damp cloth.
- Clean the air filter regularly. A dirty air filter can restrict airflow and cause engine performance issues.
2. Engine Maintenance
- Spark Plug: Inspect and clean or replace the spark plug periodically.
- Carburetor: Ensure the carburetor is clean and properly adjusted. Refer to the engine manual for tuning procedures.
- Fuel Lines: Check fuel lines for cracks or leaks and replace as needed.
3. Chassis and Suspension Inspection
- Inspect all suspension components (shocks, control arms, linkages) for damage or wear.
- Check for loose screws or nuts on the chassis and tighten them as necessary.
- Lubricate moving parts with appropriate RC-grade lubricants.

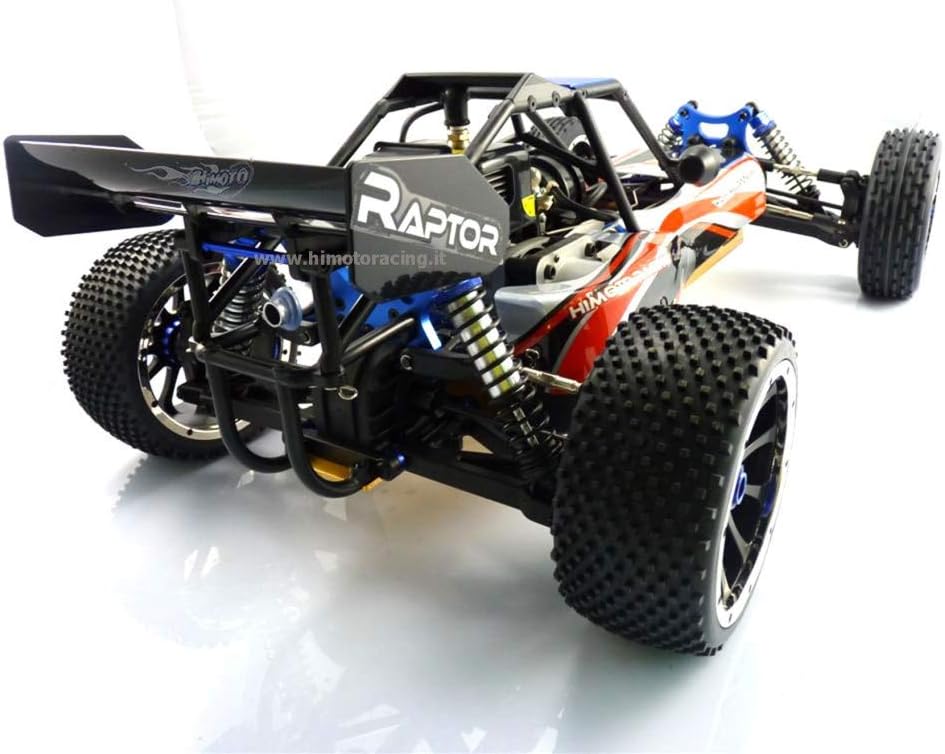

Image: Rear-side view of the buggy, illustrating the robust suspension system.
4. Tire and Wheel Care
- Inspect tires for punctures, tears, or excessive wear. Replace worn tires for optimal traction.
- Ensure wheel nuts are tight before each run.
Troubleshooting
This section addresses common issues you might encounter with your HIMOTO Raptor 5XB.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, incorrect fuel mixture, fouled spark plug, carburetor issues, no spark. | Check fuel level and mixture. Clean/replace spark plug. Check for spark. Adjust carburetor. |
| Loss of control/range | Low transmitter/receiver batteries, interference, loose antenna. | Replace batteries. Check antenna connections. Operate in a clear area. |
| Engine stalls frequently | Improper carburetor tuning, dirty air filter, old fuel. | Clean air filter. Adjust carburetor idle/mixture. Use fresh fuel. |
| Steering/throttle not responding | Servo disconnected, damaged servo, low receiver battery, radio not bound. | Check servo connections. Replace servo if damaged. Charge receiver battery. Re-bind radio. |
Specifications
Key technical specifications for the HIMOTO Raptor 5XB 1/5 Scale 4WD Off-Road Buggy:
- Brand: HIMOTO
- Model Name: Raptor 5XB
- Scale: 1/5
- Drive System: 4WD (Four-Wheel Drive)
- Engine: 32CC Explosion Engine (Gas Powered)
- Radio System: 2.4GHz Remote Control
- Operation Mode: Remote Control
- Recommended Age: 0 - 8 years (Manufacturer's recommendation, adult supervision advised for all ages)
- Batteries Required: Yes (for receiver and transmitter, not included)
- Assembly Required: No (RTR - Ready-to-Run)
- ASIN: B08285JQN7
Warranty and Support
HIMOTO products are manufactured to high standards. For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact the authorized HIMOTO distributor or your point of purchase.
Please retain your proof of purchase for warranty claims.
