1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your MELUCEE Mini Pendant Light, Model 450-1-SN. Please read this manual thoroughly before beginning installation and retain it for future reference.
The MELUCEE Mini Pendant Light features a brushed nickel finish with a clear glass shade, designed for contemporary and modern interior spaces. It is suitable for various applications such as kitchen islands, dining rooms, entryways, and living rooms.
2. Safety Information
WARNING: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing. Improper installation can result in electric shock or fire.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure the fixture is properly grounded.
- Do not exceed the maximum wattage specified for the bulb.
- Handle glass components with care to prevent breakage and injury.
- Keep flammable materials away from the light fixture.
3. Package Contents
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer service for assistance.
- Mini Pendant Light Fixture
- Clear Glass Shade
- Mounting Hardware (Canopy, Mounting Plate, Screws, Wire Nuts)
- Adjustable Rods (4 x 10-inch rods)
4. Specifications
| Feature | Specification |
|---|---|
| Brand | MELUCEE |
| Model Number | 450-1-SN |
| Color | Brushed Nickel |
| Material | Glass, Metal |
| Style | Modern, Contemporary |
| Light Fixture Form | Ceiling Pendant |
| Room Type | Entryway, Living Room, Lobby, Dining Room, Kitchen Island |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Special Features | Dimmable, Adjustable Height |
| Light Source Type | Incandescent, LED, CFL, Edison (Bulb Not Included) |
| Shade Material | Glass |
| Number of Light Sources | 1 |
| Voltage | 120 Volts |
| Wattage | Max 60 Watts |
| Bulb Base | E26 Medium |
| Product Dimensions | 40 x 10 x 40 inches (Max Height x Width x Length) |
| Item Weight | 2.79 pounds |
Figure 1: Product Dimensions Overview. The diagram illustrates the maximum adjustable height and the dimensions of the glass shade.
5. Setup and Installation
This hanging lamp comes with a quick install instruction. All necessary hardware is included for quick and easy installation. Professional installation is recommended if you are not familiar with electrical wiring.
5.1. Before You Begin
- Turn off the electricity at the main fuse box or circuit breaker.
- Ensure the mounting surface can support the weight of the fixture.
- Review all steps before proceeding.
5.2. Assembly Steps
- Prepare the Mounting Plate: Attach the mounting plate to the junction box in your ceiling using the provided screws. Ensure it is securely fastened.
- Adjust Height: The pendant lamp comes with four 10-inch rods. You can adjust the height from 10 inches to 40 inches by using the desired number of rods. Connect the rods together and then to the fixture body and canopy.
- Wire Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using the provided wire nuts. Ensure all connections are secure.
- Mount the Canopy: Secure the canopy to the mounting plate, covering the electrical connections.
- Install Glass Shade: Carefully attach the clear glass shade to the fixture body.
- Install Bulb: Insert an E26 base bulb (not included) into the socket. Do not exceed 60W.
5.3. Angled Ceilings
The glass pendant light includes a durable sloped ceiling adapter, allowing it to be mounted on vaulted or angled ceilings.

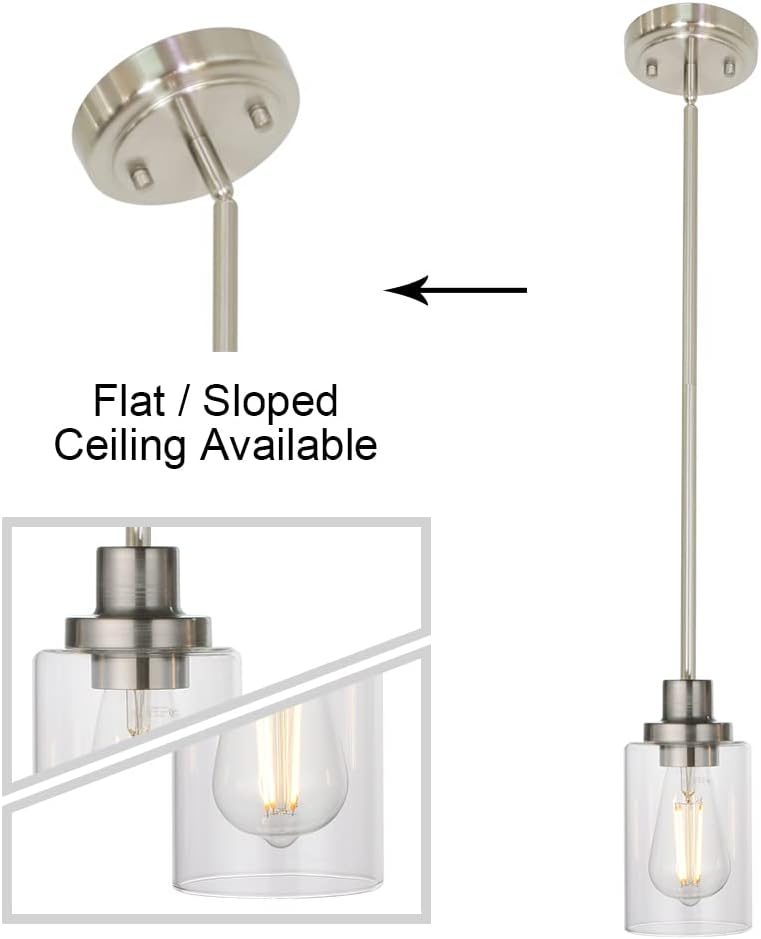

Figure 2: Flat / Sloped Ceiling Compatibility. The fixture is designed to accommodate various ceiling types.
6. Operating Instructions
Once installed, ensure the power is restored at the circuit breaker. The light fixture operates with a standard wall switch.
6.1. Bulb Requirements
- Requires one (1) E26 base bulb.
- Maximum wattage: 60W.
- Compatible with LED, CFL, Incandescent, or Edison bulbs.

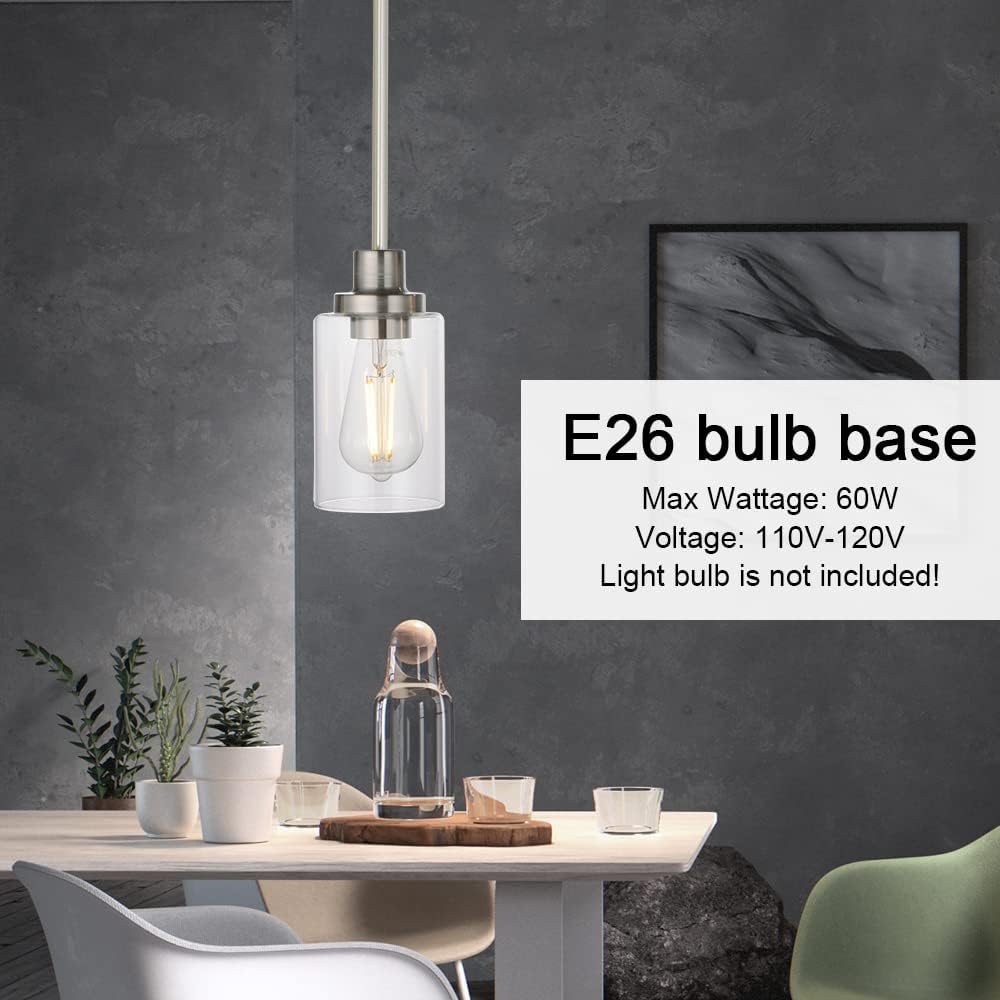

Figure 3: Bulb Base and Wattage Information. This image highlights the E26 bulb base and electrical specifications.
6.2. Dimmable Functionality
This pendant light can be fully dimmable when used with dimmable bulbs and a compatible dimmer switch (both sold separately).
7. Maintenance
Regular maintenance will help preserve the appearance and functionality of your light fixture.
- Cleaning: Always disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass.
- Bulb Replacement: Ensure the fixture is cool before replacing a bulb. Follow the bulb requirements specified in Section 6.1.
8. Troubleshooting
If you experience issues with your pendant light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connections Faulty bulb | Check circuit breaker/fuse Verify all wire connections are secure Replace bulb with a new one |
| Light flickers | Loose wire connections Incompatible dimmer switch/bulb Faulty bulb | Check wire connections Ensure dimmable bulbs are used with a compatible dimmer Replace bulb |
| Glass shade is loose | Shade not properly secured | Gently tighten the retaining ring or screws holding the shade |
If the problem persists after attempting these solutions, please contact customer support.
9. Warranty and Support
For warranty information or technical support, please contact MELUCEE customer service. Keep your purchase receipt as proof of purchase.
Contact Information: Refer to the product packaging or the official MELUCEE website for the most current contact details.
10. Product Application Examples
The MELUCEE Mini Pendant Light is versatile and can enhance various interior settings. Below are examples of its application:
Figure 4: Bedroom Application. The pendant light provides focused illumination and adds a modern touch.
Figure 5: Living Room Application. Enhances the ambiance with its clear glass design.

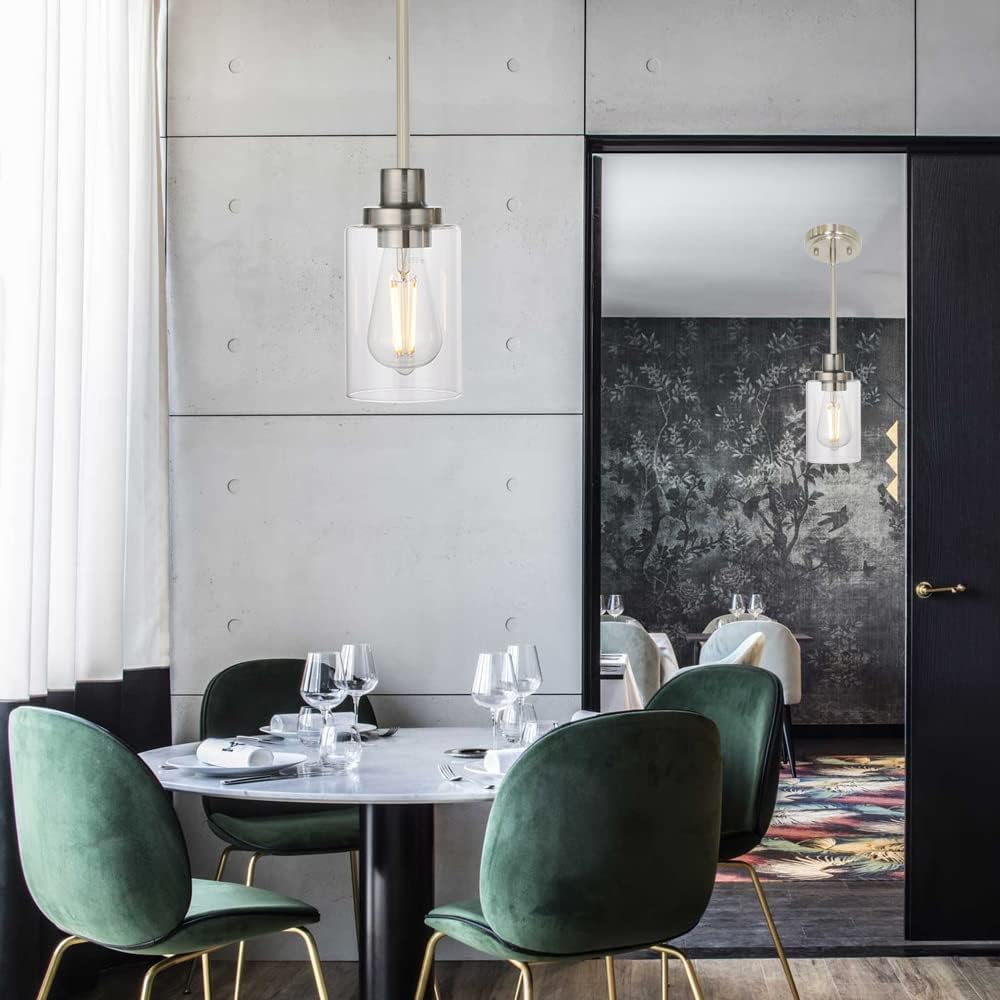

Figure 6: Dining Area Application. Ideal for focused lighting over dining tables or kitchen islands.
