1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Schwinn Meridian Adult Tricycle. Please read this manual thoroughly before using the tricycle to ensure proper function and to prevent injury. Retain this manual for future reference.
The Schwinn Meridian tricycle is designed for adults, featuring a stable three-wheeled design, a low step-through aluminum frame, and a 7-speed drivetrain. It includes a rear folding basket for cargo transport.
Image 1.1: The Schwinn Meridian Adult Tricycle in red, showcasing its three-wheel design, low step-through frame, and rear cargo basket.
2. Safety Information
Always prioritize safety when operating your tricycle. Failure to follow safety guidelines can result in serious injury or damage to the product.
- Always wear a helmet that meets safety standards.
- Ensure all components are securely fastened before each ride.
- Do not exceed the recommended weight limit of 300 pounds for the rider.
- The rear basket has a weight limit of 44 pounds and is not suitable for children, pets, or other passengers.
- Be aware of your surroundings and obey all traffic laws.
- Avoid riding in adverse weather conditions or on uneven terrain that may compromise stability.
3. Components and Features
The Schwinn Meridian Adult Tricycle is equipped with several features designed for comfort, stability, and utility.
- Frame: Low step-through aluminum frame for easy mounting and dismounting.
- Wheels: 26-inch wheels with heavy-duty double-wall alloy rims and oversized tires for strength and stability.
- Drivetrain: 7-speed system with twist shifter for precise gear changes.
- Brakes: Front alloy linear pull brake and rear expander brake for reliable stopping power.
- Seat: Extra-large comfort cruiser saddle for an upright riding position.
- Handlebars: Wide, upright, and adjustable handlebars.
- Basket: Redesigned rear folding basket with a solid bottom and steel mesh sides for cargo.
- Fenders: Full coverage fenders on all three wheels to help keep the rider dry.
Image 3.1: Close-up view of the tricycle's drivetrain and pedals, highlighting the 7-speed system for varied terrain.
Image 3.2: Detail of the front wheel and full-coverage fender, designed to protect against splashes.
Image 3.3: A person walking alongside a tricycle with a full rear basket, demonstrating its cargo capacity.

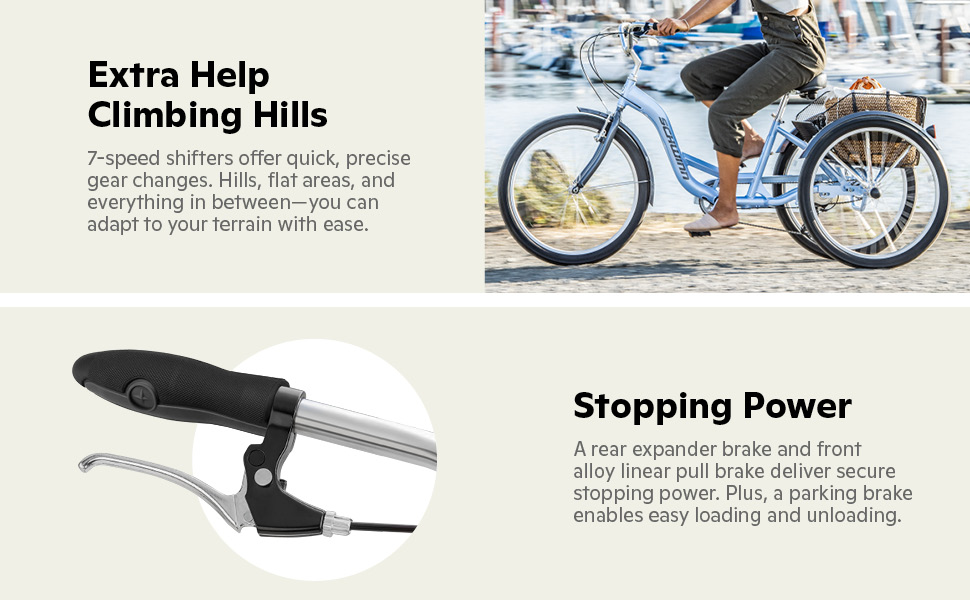

Image 3.4: Visuals illustrating the tricycle's ability to climb hills with its 7-speed shifters and the secure stopping power provided by the brake system, including a parking brake.
4. Setup and Assembly
Your Schwinn Meridian Tricycle requires assembly. Please follow the instructions provided in the separate assembly guide included with your purchase. Ensure all parts are present and undamaged before beginning assembly.
4.1 Rider Height Adjustment
The tricycle is suitable for riders 5'4" to 6'2" in height. Proper seat and handlebar adjustment is crucial for comfort and control.
- Adjust the seat height so that your feet can comfortably reach the ground while seated.
- Adjust the handlebars to a comfortable upright position that allows for easy steering and braking.
Image 4.1: The Schwinn Fit Guide, providing recommended rider heights for different wheel sizes, including 26-inch wheels for riders 64-74 inches (5'4"-6'2").
5. Operating Instructions
5.1 Riding the Tricycle
The three-wheeled design provides enhanced stability compared to a two-wheeled bicycle, making it suitable for various riders.
- Mount the tricycle using the low step-through frame.
- Begin pedaling gently to gain momentum.
- Steer by turning the handlebars in the desired direction.
5.2 Shifting Gears
Your tricycle features a 7-speed drivetrain for adapting to different terrains.
- Use the twist shifter located on the handlebar to change gears.
- Shift to lower gears (smaller numbers) for easier pedaling on inclines.
- Shift to higher gears (larger numbers) for faster speeds on flat or downhill sections.
- Shift gears while pedaling to ensure smooth transitions.
5.3 Braking
The tricycle is equipped with both front and rear brakes.
- Apply both brake levers simultaneously for controlled stopping.
- The rear expander brake and front linear pull brake provide effective stopping power.
- A parking brake feature allows for easy loading and unloading of the basket. Engage the parking brake when stationary on an incline or when loading cargo.
5.4 Using the Cargo Basket
The rear folding basket is designed for carrying cargo.
- Place items securely within the basket, ensuring they do not interfere with the wheels or rider's movement.
- Do not exceed the basket's weight limit of 44 pounds.
- The basket can be folded flat for storage when not in use.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your tricycle.
- Tire Pressure: Check tire pressure regularly and inflate to the recommended PSI indicated on the tire sidewall.
- Brakes: Inspect brake pads for wear and ensure brake levers operate smoothly. Adjust brake cables as needed to maintain proper stopping power.
- Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
- Fasteners: Periodically check all nuts, bolts, and quick releases to ensure they are tight and secure.
- Cleaning: Clean the tricycle with mild soap and water. Avoid high-pressure washing, which can damage bearings and other components.
7. Troubleshooting
This section addresses common issues you might encounter with your tricycle.
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty shifting gears | Derailleur out of adjustment, dirty/dry chain, damaged shifter cable | Adjust derailleur, clean and lubricate chain, inspect and replace shifter cable if necessary. |
| Brakes feel weak | Worn brake pads, loose brake cable, contaminated brake surface | Replace brake pads, tighten brake cable, clean brake surfaces. |
| Tricycle pulls to one side | Uneven tire pressure, wheel misalignment, loose axle nuts | Check and adjust tire pressure, inspect wheels for true, tighten axle nuts. |
| Squeaking or grinding noises | Lack of lubrication, loose components, worn bearings | Lubricate moving parts (chain, pedals), check for loose components, inspect bearings. |
If you are unable to resolve an issue, please contact Schwinn customer support or consult a professional bicycle mechanic.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | S4071AZA |
| Bike Type | Cruiser Bike, Adult Tricycle |
| Wheel Size | 26 Inches |
| Number of Speeds | 7-Speed |
| Frame Material | Aluminum |
| Brake Type | Front Linear Pull, Rear Expander |
| Recommended Rider Height | 5'4" to 6'2" (162.6 cm - 188 cm) |
| Maximum Rider Weight | 300 lbs (136.1 kg) |
| Maximum Basket Weight | 44 lbs (20 kg) |
| Item Weight | 15.9 kg (35 lbs) |
| Color | Red |
| Special Features | Aluminum Frame, Folding Rear Basket, Full Coverage Fenders |
9. Warranty and Support
Schwinn offers a limited lifetime warranty for this product. This warranty covers the bike for as long as you own it, subject to certain restrictions.
Image 9.1: Information regarding Schwinn's Limited Lifetime Warranty, indicating coverage for the duration of ownership with specific restrictions.
For detailed warranty information, product registration, or customer support, please visit the official Schwinn website at Schwinnbikes.com or contact Schwinn customer service directly.
