Belanger 2-inch ABS Shower Drain Model XAFG-601 Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Belanger 2-inch ABS Shower Drain, Model XAFG-601. This product is designed to efficiently drain water from shower areas while preventing larger debris from entering the plumbing system. It features a durable ABS plastic body and a polished stainless steel grate.

2. Components

The Belanger 2-inch ABS Shower Drain typically includes the following components:

• ABS Drain Body: The main plastic housing that connects to the plumbing.
• Stainless Steel Grate: The removable top cover with drainage holes.
• Mounting Screws: Used to secure the grate to the drain body.

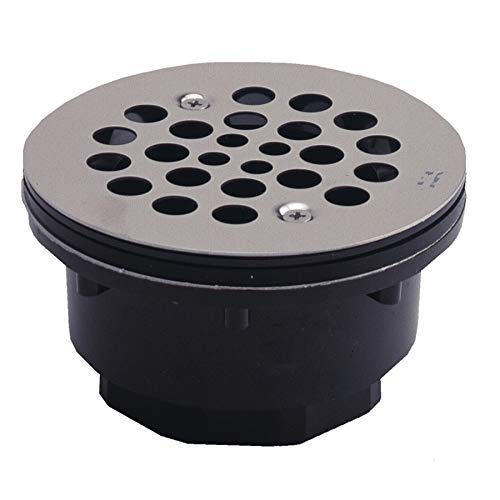

Figure 1: Belanger 2-inch ABS Shower Drain. This image displays the complete drain assembly, featuring a black ABS plastic body and a round, polished stainless steel grate secured by two screws. The grate has multiple circular openings for efficient water drainage.

3. Setup and Installation

Proper installation is crucial for the effective functioning of your shower drain. It is recommended that installation be performed by a qualified professional.

3.1 Tools and Materials (Not Included)

• Plumber's putty or silicone sealant
• Screwdriver (appropriate for grate screws)
• Pipe cement (for ABS connections, if applicable)
• Measuring tape

3.2 Installation Steps

1. Prepare the Shower Base: Ensure the shower base or pan is properly installed and leveled, with the drain opening aligned with the existing 2-inch ABS waste pipe.
2. Connect to Waste Pipe: The ABS drain body is designed to fit over a 2-inch ABS pipe. Apply appropriate ABS pipe cement to the inside of the drain body's connection point and the outside of the waste pipe. Firmly push the drain body onto the waste pipe, twisting slightly to ensure a secure, watertight seal. Allow adequate curing time as per cement manufacturer's instructions.
3. Seal the Drain Flange: Apply a bead of plumber's putty or silicone sealant around the underside of the drain body's flange (the part that rests on the shower base). Position the drain body into the opening in the shower base, ensuring it is centered.
4. Secure the Grate: Once the drain body is securely in place and any sealants have set, place the stainless steel grate over the drain opening. Align the screw holes on the grate with those on the drain body. Insert and tighten the mounting screws until the grate is firmly seated. Do not overtighten.
5. Test for Leaks: After installation, run water into the shower base and observe the drain connections from below (if accessible) to check for any leaks.

4. Operation

The Belanger 2-inch ABS Shower Drain operates passively by allowing water to flow through its grate and into the connected plumbing system. The grate prevents larger objects, such as hair or soap pieces, from entering and potentially clogging the drain pipe.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your shower drain.

• Regular Cleaning: Periodically remove the stainless steel grate by unscrewing the mounting screws. Clean any accumulated hair, soap scum, or debris from the underside of the grate and the drain opening. Use a mild non-abrasive cleaner and a soft brush or cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, steel wool, or harsh chemical drain cleaners, as these can damage the stainless steel finish or the ABS plastic.
• Reinstallation: After cleaning, replace the grate and secure it with the mounting screws. Do not overtighten.

6. Troubleshooting

If you encounter issues with your shower drain, refer to the following common problems and solutions:

6.1 Slow Drainage or Clogging

• Cause: Accumulation of hair, soap scum, or other debris in the drain opening or pipe.
• Solution: Remove the grate and thoroughly clean any visible obstructions. For deeper clogs, a plumbing snake or a mixture of baking soda and vinegar followed by hot water may be used. If the issue persists, consult a plumber.

6.2 Leaks Around the Drain

• Cause: Improper sealing during installation or degradation of sealant over time.
• Solution: Inspect the sealant around the drain flange. If it appears compromised, it may need to be reapplied. For leaks at the pipe connection, professional plumbing assistance is recommended.

7. Specifications

8. Warranty and Support

Specific warranty information for the Belanger 2-inch ABS Shower Drain, Model XAFG-601, may vary. Please refer to the original product packaging or contact Belanger customer service for detailed warranty terms and conditions.

For technical support or inquiries, please visit the official Belanger website or contact their customer service department using the contact information provided with your purchase or on their website.
