Introduction

This manual provides essential information for the safe and efficient use of your new Bosch PSR 7.2 LI Cordless Electric Screwdriver and Bosch POD 6 Metal, Wire, and Electrical Detector. Please read these instructions carefully before first use and keep them for future reference.

Product Overview: Bosch PSR 7.2 LI Cordless Electric Screwdriver

Image: The Bosch PSR 7.2 LI cordless electric screwdriver, shown with its carrying case and a set of screwdriver bits. This image illustrates the compact design and included accessories.

Key Features

• Powered by a robust Lithium-ion battery for consistent performance.
• Maximum screwdriver diameter: 6 mm.
• Quick charging time: Approximately 3 hours.
• Battery voltage: 7.2 Volts.
• No-load speed: 240 revolutions per minute (RPM).
• Lightweight design: Approximately 0.5 kg.

Components

The PSR 7.2 LI includes the main screwdriver unit, a charging cable/adapter, a carrying case, and a set of screwdriver bits for various applications.

Product Overview: Bosch POD 6 Metal, Wire, and Electrical Detector

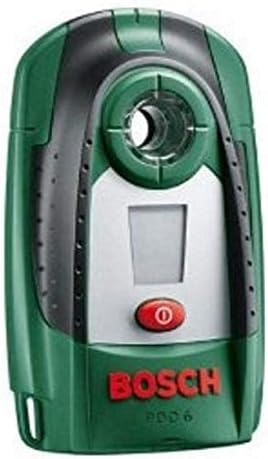

Image: The Bosch POD 6 detector, showcasing its compact form factor and single-button operation. This image highlights the device's design for easy handling.

Key Features

• Electronic detector with intuitive one-button operation.
• Acoustic warning signal (beep) indicates safe drilling areas.
• Easy to operate and lightweight for comfortable use.
• Maximum detection depth for steel: 60 mm.
• Maximum detection depth for live wires: 30 mm.
• Compact dimensions: 3.5 x 8.5 x 14 cm.
• Operates on 9 Volts (typically a 9V 6LR61 battery).
• Weight: Approximately 358 grams.

Components

The POD 6 detector consists of the main detection unit and requires a 9V battery (not always included).

Safety Instructions

Always observe general safety precautions when using power tools and electronic detectors. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Keep your work area clean and well-lit.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Keep children and bystanders away while operating a power tool.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.
• Always wear appropriate personal protective equipment (PPE), such as safety glasses.
• Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• For the detector, always test on a known object before relying on its readings for critical tasks.

Setup

Bosch PSR 7.2 LI Screwdriver Setup

1. Charging the Battery: Connect the charger to the screwdriver and plug it into a power outlet. The charging indicator light will show the charging status. A full charge takes approximately 3 hours. Ensure the battery is fully charged before first use.
2. Inserting Screwdriver Bits: Select the appropriate screwdriver bit for your task. Insert the bit firmly into the magnetic bit holder at the front of the screwdriver until it clicks into place.

Bosch POD 6 Detector Setup

1. Battery Installation: Open the battery compartment cover on the back of the device. Insert a new 9V 6LR61 battery, ensuring correct polarity (+/-). Close the compartment cover securely.
2. Initial Calibration: Before each use, especially when moving to a new location or after a long period of inactivity, perform a quick calibration. Hold the detector in the air, away from any walls or metal objects, and press the power button. The device will briefly calibrate itself.

Operating Instructions

Bosch PSR 7.2 LI Screwdriver Operation

1. Power On/Off: The screwdriver is activated by pressing the trigger switch. Releasing the trigger turns the tool off.
2. Forward/Reverse Rotation: Use the direction switch (usually located above the trigger) to select forward (for screwing in) or reverse (for unscrewing) rotation. Ensure the switch is fully engaged in the desired position before operating.
3. Screwing/Unscrewing: Place the screwdriver bit onto the screw head. Apply gentle pressure and press the trigger. For optimal results, maintain a steady hand and apply consistent pressure.

Bosch POD 6 Detector Operation

1. Activating the Detector: Press the single power button to turn on the device. It will perform a brief self-test.
2. Scanning: Place the detector flat against the surface you wish to scan. Move the device slowly and steadily across the surface in a straight line. Avoid tilting or lifting the device during scanning.
3. Interpreting Signals:
   • Green Light/No Beep: Indicates a clear area, safe for drilling.
   • Red Light/Beep: Indicates the presence of metal, live wires, or other objects. Do not drill in this area. The intensity of the beep and light may vary with the proximity and type of object.
4. Pinpointing: Once an object is detected, move the device back and forth over the area to pinpoint the exact location and edges of the object.

Maintenance

General Maintenance for Both Tools

• Cleaning: Regularly clean the tools with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no dust or debris accumulates in ventilation openings.
• Storage: Store both tools in a dry, cool place, away from direct sunlight and moisture. Use the provided carrying case for the screwdriver to protect it.
• Battery Care (PSR 7.2 LI): For optimal battery life, avoid completely discharging the Lithium-ion battery. Charge it regularly, even if not in frequent use. Store the battery with a partial charge if storing for extended periods.
• Battery Care (POD 6): Remove the 9V battery from the detector if it will not be used for an extended period to prevent leakage and damage to the device.

Troubleshooting

Bosch PSR 7.2 LI Screwdriver Troubleshooting

Bosch POD 6 Detector Troubleshooting

Specifications

Bosch PSR 7.2 LI Cordless Electric Screwdriver

Bosch POD 6 Metal, Wire, and Electrical Detector

Warranty and Support

Bosch products are manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Bosch Power Tools website for your region. Keep your purchase receipt as proof of purchase.

For further assistance, you may contact Bosch customer service through their official channels.
