1. Introduction
This manual provides essential information for the safe and efficient use of your Daewoo Mini Wall-Mounted Front Load Washer, model DWD-M301WA. Please read these instructions carefully before installation and operation, and retain them for future reference.
The Daewoo Mini is a compact, wall-mounted front-load washing machine designed for convenience and space-saving. It offers a 3 kg capacity, suitable for daily laundry needs.
2. Safety Information
Important Safety Instructions:
- Read all instructions before using the appliance.
- This appliance must be properly installed and grounded by a qualified technician in accordance with all local codes and ordinances.
- Do not install or store this appliance where it will be exposed to the weather or to freezing temperatures.
- Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.
- Keep flammable materials and vapors away from the appliance.
- Always unplug the appliance from the power supply before cleaning or performing any maintenance.
- Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
3. Product Features
The Daewoo Mini Wall-Mounted Front Load Washer DWD-M301WA incorporates several features for efficient and convenient laundry care:
- Wall-Mounted Design: Unique space-saving installation, suitable for various locations such as bathrooms, pantries, or kitchens.
- Compact Capacity: 3 kg washing capacity, ideal for daily loads of small items like towels, shirts, underwear, and socks.
- Efficient Wash Cycles: Includes a 29-minute synthetic cycle for quick laundry processing, reducing water and power consumption.
- Baby Care Cycle: Specifically designed to ensure no detergent residue remains after washing, protecting sensitive baby skin.
- Delicate Cleaning: Gentle washing options for high-quality clothes such as blouses, knitwear, and wool, preventing fabric damage and discoloration.
- Front Load Access: Convenient loading and unloading of laundry.

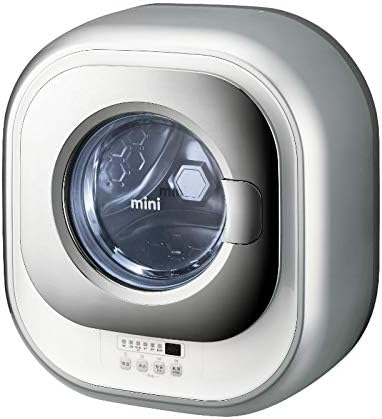

Image 1: Daewoo Mini Wall-Mounted Front Load Washer DWD-M301WA. This image displays a silver-colored, compact, wall-mounted front-load washing machine. It features a circular transparent door with 'mini' branding and a digital display with control buttons located below the door.
4. Setup and Installation
The Daewoo Mini Washer is designed for wall-mounted installation. Due to the specialized nature of this installation, it is highly recommended that a qualified professional performs the setup to ensure proper mounting, water connections, and electrical wiring.
Key Installation Considerations:
- Wall Structure: The wall must be strong enough to support the weight of the washer (approximately 55.3 kg) when filled with water and laundry.
- Water Supply: Ensure access to hot and cold water lines with appropriate pressure.
- Drainage: A suitable drain point must be available for wastewater discharge.
- Electrical Connection: The appliance requires a dedicated and properly grounded electrical outlet.
- Leveling: Although wall-mounted, the unit must be installed perfectly level to ensure proper operation and prevent vibration.
Refer to the detailed installation guide provided separately with the product for specific measurements and procedures.
5. Operating Instructions
Basic Operation:
- Load Laundry: Open the front door and place laundry inside the drum. Do not overload the machine beyond its 3 kg capacity.
- Add Detergent: Dispense the appropriate amount of detergent into the detergent drawer. Consult your detergent packaging for recommended amounts.
- Select Wash Cycle: Use the control knob or buttons to select the desired wash program. Available programs include:
- Synthetic 20 (29 minutes): For quick washes of synthetic fabrics.
- Baby Care: For baby clothes, ensuring thorough rinsing.
- Delicate: For sensitive fabrics like wool or silk.
- Other multi-programs as indicated on the control panel.
- Start Cycle: Press the Start/Pause button to begin the wash cycle.
- End of Cycle: The machine will signal when the cycle is complete. Carefully remove laundry.
Control Panel: The control panel typically features a digital display showing remaining time and cycle status, along with buttons for program selection, temperature, spin speed, and start/pause functions. Specific button functions are detailed in the product's quick start guide.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washer.
- Cleaning the Exterior: Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners.
- Cleaning the Drum: Periodically run a cleaning cycle (if available) or a hot wash with no laundry and a cup of white vinegar to remove residue and odors.
- Detergent Dispenser: Remove and clean the detergent dispenser drawer regularly to prevent buildup.
- Door Seal: Wipe the rubber door seal after each wash to prevent mold and mildew growth. Leave the door slightly ajar when not in use to allow air circulation.
- Filter Cleaning: Consult the separate service manual for instructions on cleaning the drain pump filter, which should be done periodically.
7. Troubleshooting
If you encounter issues with your washer, refer to the following common troubleshooting steps:
- Washer does not start: Check if the power cord is securely plugged in, the door is fully closed, and the Start/Pause button has been pressed. Ensure there is power to the outlet.
- No water filling: Verify that the water supply faucets are fully open and that the water inlet hoses are not kinked.
- Water not draining: Check if the drain hose is properly installed and not kinked or blocked. The drain pump filter might need cleaning.
- Excessive vibration: Ensure the washer is installed level. Reduce the laundry load if it is unbalanced.
- Error codes: If an error code appears on the display, consult the detailed troubleshooting section in the full user manual for specific meanings and solutions.
For persistent problems, contact customer support or a qualified service technician.
8. Specifications
| Specification | Detail |
|---|---|
| Brand | Daewoo |
| Model Number | DWD-M301WA |
| Type | Wall-Mounted Front Load Washer |
| Capacity | 3 Kilograms |
| Color | Silver |
| Material | Metal |
| Finish Type | Stainless Steel |
| Installation Method | Wall Mounted |
| Number of Wash Programs | Multi Programs |
| Operation Mode | Fully Automatic |
| Controls Type | Knob |
| Item Weight | 55.3 Kilograms |
| Package Dimensions | 120 x 100 x 90 cm |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact Daewoo customer service. Keep your purchase receipt as proof of purchase.
For technical support, service requests, or to order replacement parts, please contact Daewoo customer support through their official website or the contact details provided in your product packaging.
