Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF Offset Patio Umbrella Base with Wheels. Please read all instructions carefully before use to ensure proper setup and safe operation. This base is designed to provide stable support for compatible PURPLE LEAF cantilever umbrellas.
Safety Information
- Always ensure the base is fully filled with sand and/or water to achieve maximum stability before attaching an umbrella.
- Do not attempt to move the base with the umbrella open, especially in windy conditions.
- Close and secure the umbrella during strong winds or severe weather to prevent damage to the umbrella and base.
- When moving the base, ensure the wheels are fully engaged and the path is clear of obstructions.
- Keep children and pets away from the base during assembly and movement.
- Periodically check all connections and fasteners to ensure they are secure.
Package Contents
Verify that all components are present before beginning assembly.
- Umbrella Base Unit (Square, 35.4" x 35.4" x 7.9")
- 4 Individual Water/Sand Tanks (pre-installed or separate)
- Crank Handle for Wheel Adjustment
- Mounting Bracket for Umbrella Pole
- Hardware (bolts, washers, nuts for mounting)
Image: The main PURPLE LEAF Offset Patio Umbrella Base unit, shown from an elevated angle, highlighting its square shape and dark grey finish.
Setup Instructions
- Position the Base: Place the empty umbrella base in your desired location. Ensure the surface is flat and stable.
- Fill the Tanks: The base features four individual tanks designed to be filled with water or sand for stability.
- Open the caps on each of the four tanks.
- Fill each tank with sand or water. For maximum stability (approximately 353 lbs), fill with sand first, then top off with water. Stir the sand-water mixture with a rod to ensure full capacity and prevent air pockets.
- Securely close all caps once tanks are filled.
Image: An overhead view of the umbrella base with its top cover removed, showing the four individual tanks. Arrows indicate filling with water and sand.
- Attach the Umbrella Pole:
- Insert the pole of your PURPLE LEAF cantilever umbrella into the designated mounting bracket on the base.
- Align the holes and secure the umbrella pole using the provided bolts and hardware. Ensure all connections are tightened firmly.
- This base is specifically designed for PURPLE LEAF cantilever umbrellas. Compatibility with other brands is not guaranteed.
Image: A visual guide showing the PURPLE LEAF umbrella base and various compatible PURPLE LEAF cantilever umbrella models (round, square, rectangle) with their respective sizes.
Operating Instructions
- Engaging/Disengaging Wheels: The base is equipped with a crank mechanism to raise and lower the wheels for mobility.
- To engage the wheels and move the base, rotate the crank handle clockwise until the base lifts slightly and rests on its wheels.
- To disengage the wheels and secure the base in a stationary position, rotate the crank handle counter-clockwise until the base lowers and rests firmly on the ground.
Image: A diagram illustrating the crank handle operation for lifting and lowering the umbrella base, showing the wheels retracting and extending.
- Moving the Base:
- Ensure the umbrella is closed and secured before attempting to move the base.
- Engage the wheels using the crank handle.
- The base features a pulley bracket for 360-degree rotation, allowing easy movement in any direction. Carefully push or pull the base to its new desired location.
- Once in position, disengage the wheels by rotating the crank handle counter-clockwise to lower the base onto its stationary pads.

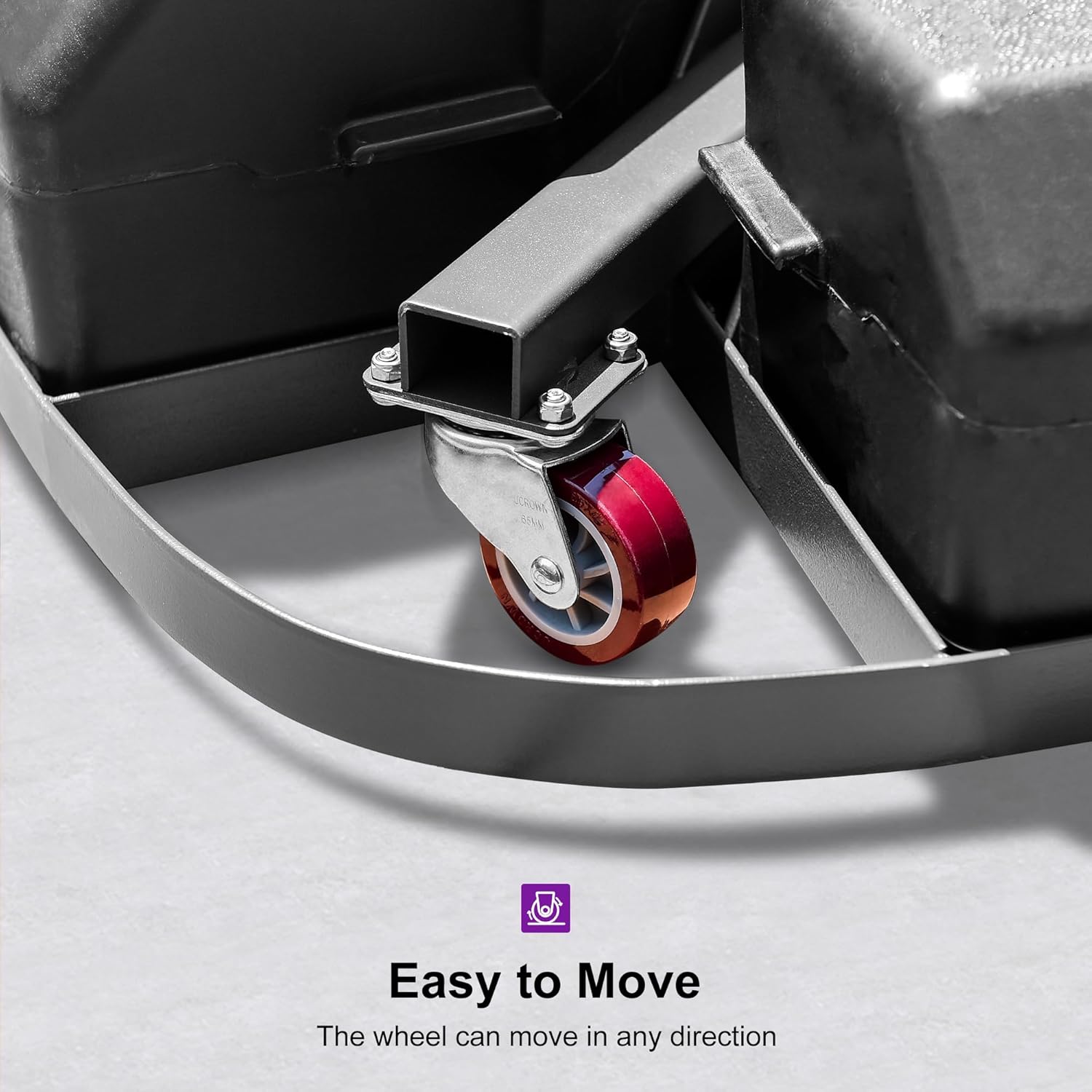

Image: A close-up view of one of the durable wheels and the bracket system, illustrating the "Easy to Move" feature of the base.
Maintenance
- Cleaning: Clean the base periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the plastic.
- Winterization (if applicable): If you live in an area with freezing temperatures, and the tanks are filled with water, it is recommended to drain the water to prevent ice expansion and potential damage to the base. If filled with sand, ensure the caps are tightly sealed.
- Inspection: Regularly inspect the base, wheels, and crank mechanism for any signs of wear, damage, or loose connections. Tighten any loose bolts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Base feels unstable. | Tanks not fully filled; uneven ground. | Ensure all four tanks are completely filled with sand and/or water. Relocate the base to a flat, level surface. |
| Difficulty moving the base. | Wheels not fully engaged; obstruction; heavy load. | Rotate the crank handle clockwise to fully engage the wheels. Check for debris under the wheels. Ensure the umbrella is closed. |
| Crank handle is stiff. | Dirt or debris in mechanism; lack of lubrication. | Clean the crank mechanism. Apply a silicone-based lubricant if necessary. |
| Water leakage from tanks. | Caps not securely closed; tank damage. | Ensure all tank caps are tightened. Inspect tanks for cracks; if damaged, contact customer support. |
Specifications
- Model: Offset Patio Umbrella Base with Wheels
- Dimensions: 35.4" L x 35.4" W x 7.9" H
- Material: High-Density PP Plastic
- Weight (Empty): Not specified (but implied to be light before filling)
- Weight (Filled): Approximately 353 lbs (with sand and water)
- Compatibility: Designed for PURPLE LEAF cantilever umbrellas
- Features: Integrated wheels, crank-operated lifting mechanism, 360-degree rotation.
Image: Detailed product dimensions of the umbrella base, showing length, width, and height from front, side, and vertical views.
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your original purchase or visit the official PURPLE LEAF website. You may also contact PURPLE LEAF customer service directly for assistance with product issues or replacement parts.
Contact Information: Please refer to your purchase receipt or the PURPLE LEAF official website for the most current contact details.
