WOVUU Lawn Sprinkler User Manual

Introduction

Thank you for choosing the WOVUU 360-degree automatic rotating garden sprinkler. This manual provides essential information for the proper setup, operation, and maintenance of your new sprinkler, ensuring efficient and effective irrigation for your lawn or garden. Please read these instructions carefully before use.

Product Overview

The WOVUU Lawn Sprinkler is designed for automatic 360-degree rotation, offering adjustable spray patterns to cover various areas. It features a durable ABS plastic construction and is equipped with 36 angular spray nozzles for comprehensive coverage.

Image: The WOVUU Lawn Sprinkler, showcasing its main body, three rotating arms with nozzles, and included accessories like quick connectors and waterproof tape.

Components Diagram

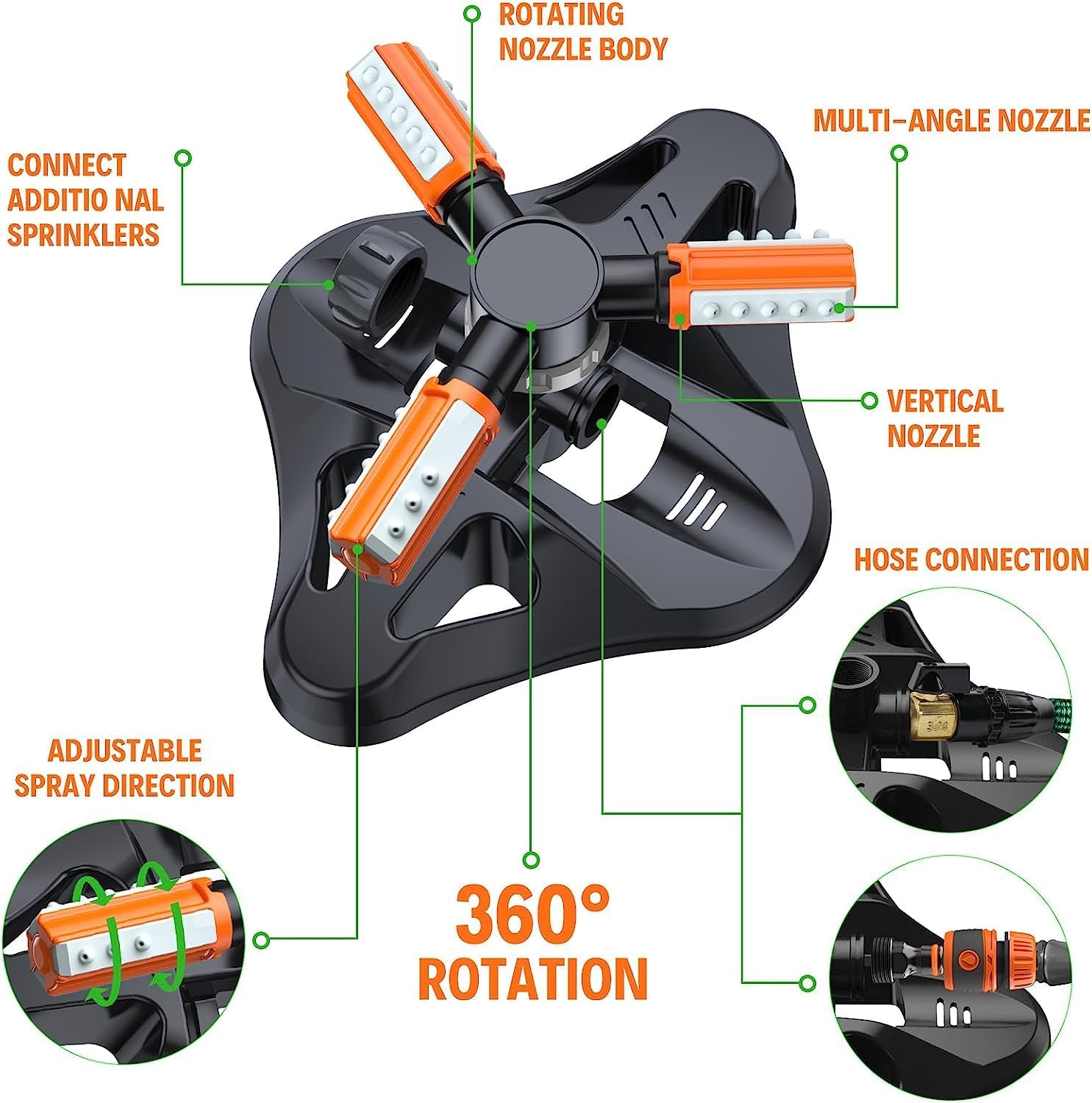

Image: A detailed diagram illustrating key components such as the rotating nozzle body, multi-angle nozzles, adjustable spray direction, 360-degree rotation mechanism, and hose connection point.

• Rotating Nozzle Body: Central mechanism for 360-degree rotation.
• Adjustable Spray Arms: Three arms with adjustable nozzles for different spray patterns.
• Hose Connection: Inlet for garden hose attachment.
• Quick Connectors: For easy attachment to traditional rubber hoses.
• Waterproof Tape: For ensuring a secure, leak-free connection.

Setup Instructions

Proper setup is crucial for optimal performance. Follow these steps to connect your sprinkler:

1. Hose Connection:
   • For Threaded Hoses: If your garden hose has a screw thread, simply connect it directly to the WOVUU sprinkler's inlet. Ensure a tight fit to prevent leaks.
   • For Traditional Rubber Hoses: First, install the provided quick connector onto the WOVUU sprinkler's inlet. Then, attach your traditional rubber hose to the quick connector.
2. Secure Connection: Use the included waterproof tape around the threads of your hose connection to ensure a leak-free seal.
3. Placement: Position the sprinkler in the desired area of your lawn or garden, ensuring it is on a stable, level surface.

Image: The WOVUU Lawn Sprinkler in operation, demonstrating its connection to a garden hose and its effective water distribution across a lawn.

Operating Instructions

The WOVUU sprinkler offers versatile operation for various irrigation needs:

1. Adjusting Spray Patterns: Each arm of the sprinkler has adjustable nozzles. You can select between 3, 4, or 5 spray units per arm to customize the water distribution. A clicking sound indicates the correct position for the nozzle setting.
2. Water Pressure and Coverage: The sprinkler requires a minimum water pressure of 28.4 PSI to rotate effectively. Higher water pressure will result in a wider spray range. For example, at 80 PSI:
   • Up to 10 meters (32.8 feet) with 5 holes per arm.
   • Up to 13 meters (42.6 feet) with 4 units per arm.
   • Up to 15 meters (49.2 feet) with 3 units per arm.
3. 360-Degree Rotation: Once water pressure is applied, the sprinkler will automatically rotate 360 degrees, ensuring even coverage of the area.
4. Serial Connection: For larger areas, multiple WOVUU sprinklers can be connected in series. When doing so, it is recommended to increase the water pressure to maintain adequate spray coverage for all connected units.

Image: The sprinkler demonstrating its effective spray range and the quick connect coupling, highlighting its ability to cover a significant area.

Image: Close-up view illustrating the different nozzle patterns and the 45-degree spraying capability to expand coverage area, ensuring every corner of your garden is reached.

Maintenance

To ensure the longevity and optimal performance of your WOVUU sprinkler, consider the following maintenance tips:

• Assembly: When installing the nozzle body to the base, do not screw too tightly to avoid damage.
• Nozzle Cleaning: The nozzles are not designed for internal cleaning if debris enters. It is best to use clean water sources to prevent blockages.
• Storage: During colder months or extended periods of non-use, drain any remaining water from the sprinkler and store it in a dry, protected area to prevent freezing and damage.

Troubleshooting

If you encounter issues with your WOVUU sprinkler, refer to the following common problems and solutions:

• Sprinkler Not Spinning:
  • Low Water Pressure: Ensure your water pressure meets the minimum requirement of 28.4 PSI. Increase pressure if necessary.
  • Nozzle Adjustment: Verify that the nozzle patterns are correctly set and clicked into place on the rotating arms.
  • Obstruction: Check for any debris or foreign objects obstructing the rotating mechanism or nozzles.
• Uneven Water Coverage:
  • Nozzle Settings: Adjust the nozzle patterns (3, 4, or 5 units per arm) to achieve the desired coverage.
  • Water Pressure: Insufficient water pressure can lead to reduced spray distance and uneven coverage.
  • Placement: Ensure the sprinkler is centrally located and on level ground for optimal distribution.
• Leaks at Connection Point:
  • Tighten Connection: Ensure the hose connection is securely tightened.
  • Waterproof Tape: Reapply or add more waterproof tape to the threads for a better seal.

If problems persist, please contact WOVUU customer support for assistance.

Specifications

Safety Notice

Supervision is advised for young children during the use of this product.

Warranty and Support

For any questions, concerns, or technical support regarding your WOVUU Lawn Sprinkler, please contact the manufacturer directly. Refer to your purchase documentation for specific warranty details, if applicable.
