1. Product Overview

The MAC VALVES INC Model 6311D-000-PM-112DA is a high-performance single solenoid valve designed for industrial applications. This valve operates on 110-120 V AC power at 50/60 Hz and is capable of handling pressures up to 150 PSI. It is engineered for reliable control of fluid or air flow in various pneumatic and hydraulic systems.

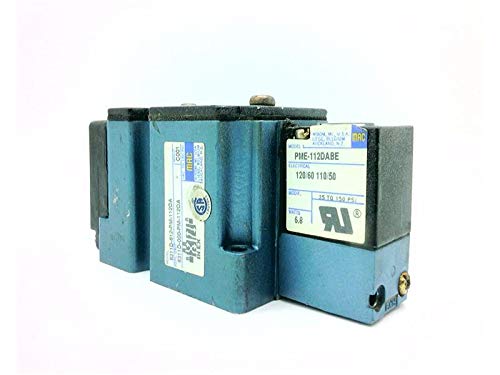

Figure 1: Front view of the MAC VALVES INC 6311D-000-PM-112DA Solenoid Valve. This image displays the compact design and electrical connection points of the valve, highlighting its robust construction suitable for industrial environments.

2. Specifications

3. Setup and Installation

Proper installation is crucial for the safe and efficient operation of the solenoid valve. Always ensure power is disconnected before beginning installation.

3.1 Safety Precautions

• Ensure the power supply matches the valve's voltage and frequency requirements (110-120 V AC, 50/60 HZ).
• Disconnect all power to the system before installation or maintenance.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Verify that the system pressure does not exceed the valve's maximum rating of 150 PSI.
• Install the valve in a clean, dry environment, free from excessive vibration or corrosive substances.

3.2 Mounting the Valve

1. Identify the inlet and outlet ports on the valve.
2. Securely mount the valve using appropriate fasteners to a stable surface, ensuring it is level.
3. Connect the pneumatic or hydraulic lines to the designated ports. Use thread sealant on all connections to prevent leaks.
4. Ensure all connections are tight but do not overtighten, which could damage the valve or fittings.

3.3 Electrical Connections

1. Connect the electrical wiring to the solenoid coil terminals. Refer to the wiring diagram provided with your specific system.
2. Ensure proper grounding to prevent electrical hazards.
3. Verify that all electrical connections are secure and insulated.
4. Once connections are complete, restore power and test for proper operation.

4. Operating Instructions

The 6311D-000-PM-112DA solenoid valve is designed for straightforward operation once properly installed.

4.1 Basic Operation

• When electrical power is supplied to the solenoid coil, the valve will actuate, changing its state (e.g., opening or closing a flow path).
• When power is removed, the valve will return to its de-energized state, typically by spring return for single solenoid valves.
• Monitor system pressure and flow to ensure the valve is operating within its specified parameters.

4.2 Flow Control

This valve provides on/off control of fluid or air. It is not designed for proportional flow control. Ensure that the system's control logic is compatible with the valve's discrete (on/off) operation.

5. Maintenance

Regular maintenance helps ensure the longevity and reliable performance of your solenoid valve.

5.1 Routine Checks

• Periodically inspect the valve for any signs of leaks, corrosion, or physical damage.
• Check electrical connections for tightness and signs of wear or overheating.
• Ensure the operating environment remains clean and free of debris that could interfere with valve operation.

5.2 Cleaning

If cleaning is necessary, disconnect power and pressure from the valve. Use a soft, damp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners that could damage the valve's materials.

5.3 Component Replacement

Internal components of solenoid valves are typically not user-serviceable. If the valve malfunctions, it is generally recommended to replace the entire unit. Contact MAC VALVES INC or an authorized distributor for replacement parts or service.

6. Troubleshooting

This section provides guidance for common issues you might encounter with your solenoid valve.

If troubleshooting steps do not resolve the issue, contact a qualified technician or MAC VALVES INC customer support.

7. Warranty and Support

For information regarding product warranty, technical support, or replacement parts for the 6311D-000-PM-112DA Solenoid Valve, please contact MAC VALVES INC directly or refer to their official website. Details on warranty periods and service procedures are typically provided with the product purchase or available through authorized distributors.
