Bio Bidet U770 Ultimate 770 Bidet Seat User Manual
Model: U770
Introduction
The Bio Bidet U770 Ultimate 770 Bidet Seat is designed to enhance personal hygiene and comfort. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your bidet seat. Please read this manual thoroughly before installation and use to ensure safe and effective operation.

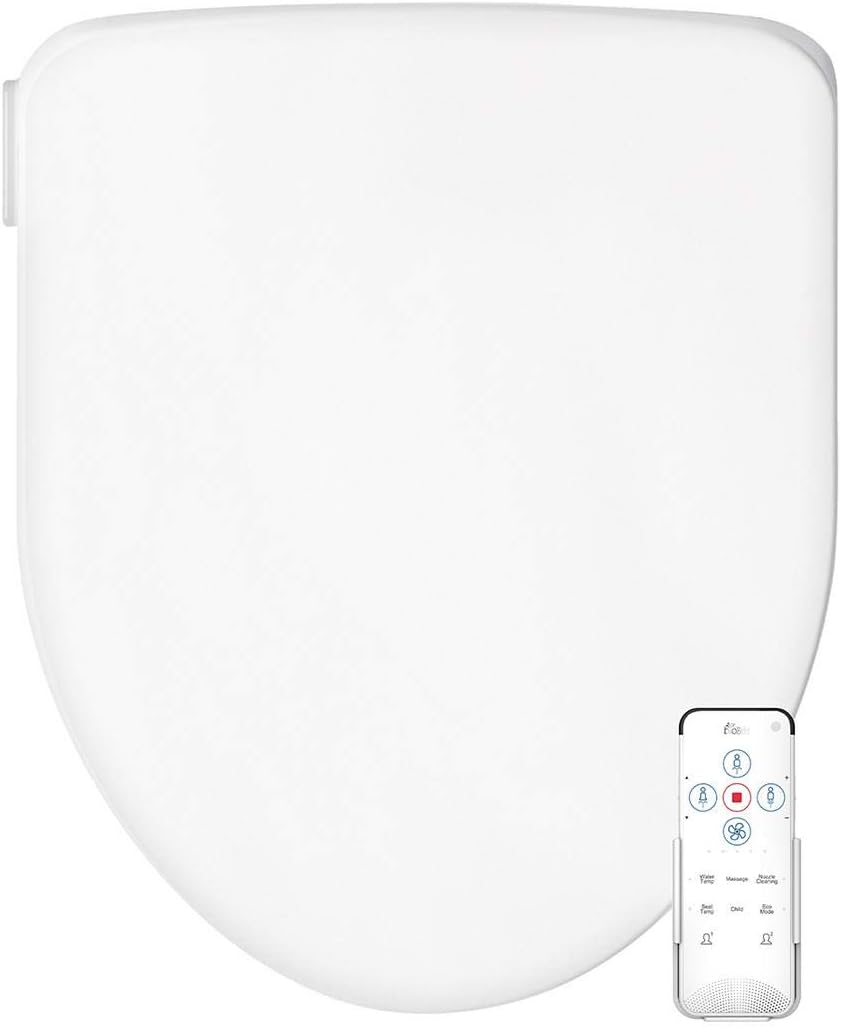

Figure 1: Bio Bidet U770 Ultimate 770 Bidet Seat with Remote Control
Setup and Installation
Proper installation is crucial for the optimal performance of your Bio Bidet U770. Ensure you have a nearby electrical outlet (120V AC) and access to the toilet's water supply line before beginning installation.
Pre-Installation Checklist:
- Verify toilet type (Elongated).
- Confirm availability of a grounded electrical outlet within reach of the bidet seat's power cord.
- Ensure access to the toilet's cold water supply valve.
General Installation Steps:
- Remove existing toilet seat and clean the toilet bowl area.
- Install the mounting plate onto the toilet bowl using the provided hardware.
- Slide the bidet seat onto the mounting plate until it clicks into place.
- Connect the bidet seat to the cold water supply using the included T-valve and hose. Ensure all connections are secure and leak-free.
- Plug the bidet seat into the grounded electrical outlet.
Figure 2: Installed Bio Bidet U770 Bidet Seat
For detailed, step-by-step installation instructions, please refer to the official Bio Bidet U770 User Guide (PDF).
Operating Instructions
The Bio Bidet U770 is operated via a wireless remote control, offering a range of customizable features for your comfort and hygiene.
Key Features and Functions:
- 3-in-1 Stainless Steel Nozzle: Provides posterior, feminine, and vortex washes for comprehensive cleaning. The nozzle is self-cleaning before and after each use.
- Fusion Warm Water Technology: Delivers a continuous supply of warm water for a comfortable wash. Water temperature is adjustable via the remote control.
- Adjustable Heated Seat: Enjoy a warm seat, especially beneficial in colder environments. Seat temperature can be adjusted to your preference.
- Warm Air Dryer: Reduces the need for toilet paper by providing a gentle stream of warm air for drying.
- Night Light: An in-bowl LED night light illuminates the toilet bowl for convenient use in low-light conditions.
- Oscillating Wide Clean & Pulsating Massage: Enhance the washing experience with oscillating nozzle movement for a wider cleaning area and pulsating water flow for a gentle massage effect.

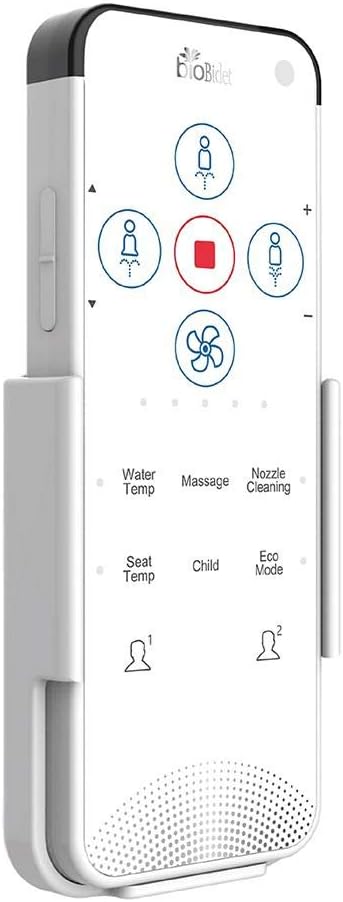

Figure 3: Bio Bidet U770 Remote Control
Remote Control Functions:
The remote control allows you to select wash modes, adjust water pressure and temperature, control seat temperature, and activate the air dryer. Refer to the remote's icons for specific functions:
- Posterior Wash: Standard rear wash.
- Feminine Wash: Softer, wider spray for feminine hygiene.
- Stop: Halts any active wash or drying cycle.
- Dry: Activates the warm air dryer.
- Water Temp: Adjusts water temperature.
- Seat Temp: Adjusts heated seat temperature.
- Massage: Activates pulsating wash.
- Nozzle Cleaning: Initiates a self-cleaning cycle for the nozzle.
- Child Mode: Adjusts settings for child-friendly use.
- Eco Mode: Reduces power consumption.
- User Presets (1 & 2): Allows saving and recalling preferred settings for two different users.
Figure 4: Stainless Steel Nozzle in Operation
Figure 5: In-Bowl Night Light
Maintenance
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your Bio Bidet U770.
Cleaning the Bidet Seat:
- Unplug the unit from the electrical outlet before cleaning.
- Wipe the exterior surfaces of the bidet seat with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, bleach, or abrasive pads, as these can damage the finish.
- For stubborn stains, a diluted solution of dish soap and water can be used.
Nozzle Cleaning:
The stainless steel nozzle performs a self-cleaning function automatically. For additional cleaning, you can manually activate the nozzle cleaning cycle via the remote control.
Filter Maintenance:
Periodically check the water inlet filter for any debris or sediment. If necessary, clean or replace the filter to maintain optimal water flow and pressure. Refer to the full user manual for specific instructions on filter access and maintenance.
Figure 6: Underside View of Bidet Seat
Troubleshooting
If you encounter issues with your Bio Bidet U770, refer to the common problems and solutions below. For more complex issues, consult the full user manual or contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power / Unit not turning on | Power cord unplugged; Circuit breaker tripped; Outlet malfunction. | Ensure power cord is securely plugged in. Check circuit breaker. Test outlet with another device. |
| No water spray / Weak water pressure | Water supply valve closed; Water inlet filter clogged; Nozzle blocked. | Ensure water supply valve is fully open. Clean water inlet filter. Perform nozzle cleaning cycle. |
| Water temperature not warm | Water heater not activated; Temperature setting too low. | Allow time for water to heat up. Adjust water temperature setting on remote. |
| Heated seat not working | Seat heater not activated; Temperature setting too low. | Ensure seat heater is on. Adjust seat temperature setting on remote. |
| Remote control not responding | Dead batteries; Obstruction between remote and unit. | Replace AAA batteries in the remote. Ensure clear line of sight to the bidet seat's receiver. |
| Unit leaking water | Loose water connections; Damaged hose or internal component. | Check and tighten all water connections. If leaking persists, discontinue use and contact customer support. |
Specifications
Detailed technical specifications for the Bio Bidet U770 Ultimate 770 Bidet Seat.
| Feature | Detail |
|---|---|
| Model | U770 |
| Color | White |
| Shape | Elongated (Oval) |
| Product Dimensions | 20"L x 16"W |
| Item Weight | 16.02 pounds |
| Material | Stainless Steel (Nozzle) |
| Operation Mode | Automatic (Remote Control) |
| Included Components | Remote Control |
| Batteries Required | 3 AAA batteries (included) |
| UPC | 865411000168 |
Warranty and Support
The Bio Bidet U770 Ultimate 770 Bidet Seat comes with a manufacturer's warranty to protect your investment.
Warranty Information:
Manufacturer warranty covers US and Canada customer purchases for 1 year from the date of purchase. This warranty typically covers defects in materials and workmanship under normal use.
For complete details regarding warranty terms, conditions, and limitations, please refer to the official Warranty Document (PDF).
Customer Support:
If you have any questions, require technical assistance, or need to file a warranty claim, please contact Bio Bidet customer support. Contact information can typically be found on the Bio Bidet official website or within the product packaging.
