Ferrex 40V Li-ion Cordless Leaf Blower, Vacuum, and Mulcher FN-ABV-40 Instruction Manual

1. Introduction

Thank you for choosing the Ferrex 40V Li-ion Cordless Leaf Blower, Vacuum, and Mulcher. This versatile tool is designed to help you efficiently clear leaves and debris from your garden and outdoor spaces. Please read this instruction manual carefully before operating the device to ensure safe and effective use. Keep this manual for future reference.

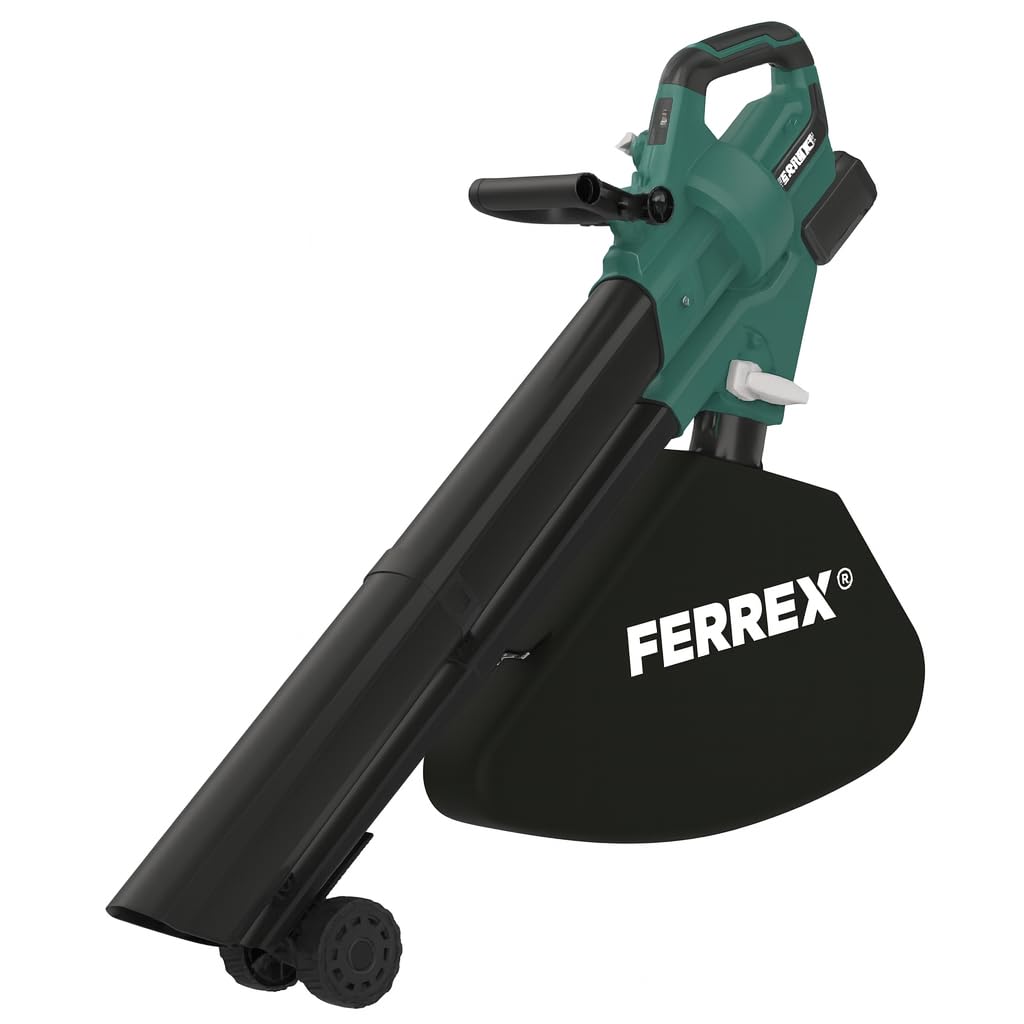

Figure 1: Ferrex 40V Li-ion Cordless Leaf Blower, Vacuum, and Mulcher.

2. Safety Instructions

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Read all instructions before using this product.

• Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and sturdy footwear. Long pants and gloves are also recommended.
• Keep Area Clear: Ensure the work area is clear of bystanders, children, and pets.
• Inspect Before Use: Before each use, check the device for any damage, loose parts, or blockages. Do not operate if damaged.
• Battery Safety: Use only the specified 40V Li-ion battery and charger. Do not expose batteries to extreme temperatures or water.
• Secure Grip: Always maintain a firm grip on the tool with both hands during operation.
• Avoid Obstructions: Do not point the blower/vacuum at people, animals, or fragile objects. Be aware of flying debris.
• Proper Ventilation: Ensure adequate ventilation when charging batteries.
• Switch Off: Always switch off the device and remove the battery before cleaning, maintenance, or when not in use.
• Wet Conditions: Do not use the device in wet conditions or rain.

3. Product Overview (Components)

Familiarize yourself with the main components of your Ferrex leaf blower/vacuum:

• Motor Unit: Contains the motor, battery slot, and control switches.
• Blower Tube: Attaches for blowing functionality.
• Vacuum Tube: Attaches for vacuuming and mulching functionality.
• Collection Bag: Attaches to collect vacuumed debris. Features a quick-release mechanism.
• Front Wheels: For easier maneuverability during vacuuming.
• Adjustable Shoulder Strap: For comfortable carrying during operation.
• 40V Li-ion Battery (sold separately): Provides power to the unit.
• Battery Charger (sold separately): For recharging the battery.

Figure 2: Close-up of the motor unit and controls.

4. Assembly and Setup

4.1 Battery Charging

Before first use, ensure the 40V Li-ion battery is fully charged. Use only the compatible Ferrex 40V battery charger.

1. Connect the charger to a suitable power outlet.
2. Insert the 40V Li-ion battery into the charger. Ensure it clicks securely into place.
3. The charging indicator lights on the charger will show the charging status. Refer to the charger's specific manual for detailed indicator meanings.
4. Once fully charged, remove the battery from the charger.

4.2 Attaching Tubes and Collection Bag

The device can be configured for blowing or vacuuming/mulching. Always ensure the battery is removed before assembly.

For Blowing Mode:

1. Attach the blower tube to the outlet opening of the motor unit. Ensure it is securely locked.
2. Attach the adjustable shoulder strap to the designated points on the motor unit for comfortable carrying.

For Vacuuming/Mulching Mode:

1. Attach the vacuum tube to the intake opening of the motor unit. Ensure it is securely locked.
2. Attach the collection bag to the outlet opening. Ensure the quick-release mechanism is properly engaged.
3. The front wheels should be attached to the vacuum tube for easier ground-level operation.
4. Attach the adjustable shoulder strap for support.

5. Operation

Always wear appropriate PPE (safety glasses, hearing protection, gloves, long pants, sturdy shoes) during operation.

5.1 Starting and Stopping

1. Insert the charged 40V Li-ion battery into the battery slot on the motor unit until it clicks into place.
2. To start the device, press the ON/OFF switch.
3. To stop the device, release or press the ON/OFF switch again (depending on the switch type).

5.2 Blowing Mode

Use this mode to clear leaves and light debris from hard surfaces, driveways, and patios.

• Ensure the device is configured for blowing mode (blower tube attached, collection bag removed).
• Hold the unit firmly with both hands.
• Sweep the blower tube from side to side, directing the airflow to move debris into piles.

5.3 Vacuuming and Mulching Mode

Use this mode to collect leaves and debris into the collection bag, where they will be mulched.

• Ensure the device is configured for vacuuming mode (vacuum tube and collection bag attached).
• Hold the unit firmly and use the front wheels to guide it along the ground.
• Move the vacuum tube slowly over the leaves and debris. The mulching function will reduce the volume of collected material.
• Empty the collection bag when it is full. Always switch off the device and remove the battery before emptying the bag.

Figure 3: User demonstrating the operation of the leaf blower/vacuum.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your device. Always remove the battery before performing any maintenance.

• Cleaning: After each use, clean the exterior of the device with a damp cloth. Remove any debris from the air vents, tubes, and collection bag.
• Impeller Inspection: Periodically check the impeller for any lodged debris or damage. Clear any blockages carefully.
• Storage: Store the device in a dry, secure place, out of reach of children. Ensure the battery is removed for long-term storage.
• Battery Care: Store batteries in a cool, dry place. Do not store fully discharged. Recharge periodically if not used for extended periods.

7. Troubleshooting

If you encounter problems with your Ferrex leaf blower/vacuum, refer to the following common issues and solutions:

8. Technical Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or contact Ferrex customer service. If you have any questions, require technical assistance, or need to order replacement parts, please contact our support team:

• Customer Service: Refer to your purchase documentation for contact details.
• Online Support: Visit the official Ferrex website for FAQs and additional resources.
