TORC T28B Blinc Wireless Integrated Full Face Motorcycle Helmet User Manual

1. Product Overview

The TORC T28B Blinc Wireless Integrated Full Face Motorcycle Helmet is designed for optimal sportiness, style, and comfort, featuring a one-button modular design and integrated Blinc Wireless technology. It includes a convenient drop-down sun shield and adjustable flow-through ventilation for extended rides. This helmet meets Federal Motor Vehicle Safety Standard (FMVSS) 218 and ECE 22.05 safety certifications.

Key Features:

• Super lightweight modular design with built-in Blinc Bluetooth technology.
• One-button latch system for easy chin bar operation.
• Integrated drop-down sun visor for eye protection.
• Adjustable flow-through controlled ventilation system.
• Washable, removable Cool Max inner comfort padding for hygiene and comfort.
• Anti-fog and anti-scratch main shield.
• Certified to DOT and ECE 22.05 safety standards.

Figure 1: Front-side view of the TORC T28B helmet, showcasing its sleek design and integrated Bluetooth module.

Figure 2: Side view of the TORC T28B helmet, highlighting the Blinc Bluetooth control unit.

2. Safety Information

Your safety is paramount. Always wear a helmet that fits correctly and is securely fastened. This helmet is designed to absorb the energy of an impact by partial destruction of the shell and liner. This damage may not be visible. Therefore, if the helmet sustains an impact, it should be replaced immediately.

Certifications:

• DOT Certified: Complies with US Federal Motor Vehicle Safety Standard 218 (FMVSS 218).
• ECE 22.05 Approved: Meets European safety standards for motorcycle helmets.

Warning: Never modify your helmet. Any modifications can compromise its protective capabilities and void the warranty.

3. Sizing and Fit

A properly fitting helmet is crucial for safety and comfort. Use the following guide to determine your correct helmet size. The helmet should fit snugly around your head without causing pressure points.

How to Measure Your Head:

1. Wrap a measuring tape around the fullest part of your head, approximately half an inch above your eyebrows and ears.
2. Take the measurement at the forehead.
3. For the most accurate measure, it is recommended to have assistance with this step.

Figure 3: Illustration of how to measure your head for proper helmet sizing, along with the TORC helmet size chart.

Checking the Fit:

• The helmet should feel snug all around your head.
• Your cheeks should be slightly compressed by the cheek pads.
• When you move your head, the helmet should move with it, without shifting independently.
• Ensure there are no pressure points that cause discomfort.

4. Setup and Initial Use

4.1. Chin Strap Fastening

The T28B uses a double D-ring retention system. To fasten:

1. Thread the strap through both D-rings.
2. Loop the strap back through only the first D-ring.
3. Pull the strap tight against your throat. The strap should be snug enough that you cannot pull the helmet off your head when pulling from the rear.

4.2. Blinc Bluetooth Pairing

The integrated Blinc Bluetooth system allows for communication and audio playback. Refer to the specific Blinc user guide included with your helmet for detailed pairing instructions. Generally, the process involves:

1. Ensure the Blinc unit is charged.
2. Activate pairing mode on the Blinc unit (usually by holding a specific button).
3. Enable Bluetooth on your mobile device and search for available devices.
4. Select 'TORC Blinc' or similar from the list to connect.

5. Operation

5.1. Modular Chin Bar System

The T28B features a one-button latch system to raise and lower the chin bar. Locate the release button, typically at the center front of the chin bar. Press the button and lift the chin bar upwards until it locks into the open position. To close, pull the chin bar down firmly until it clicks securely into place.

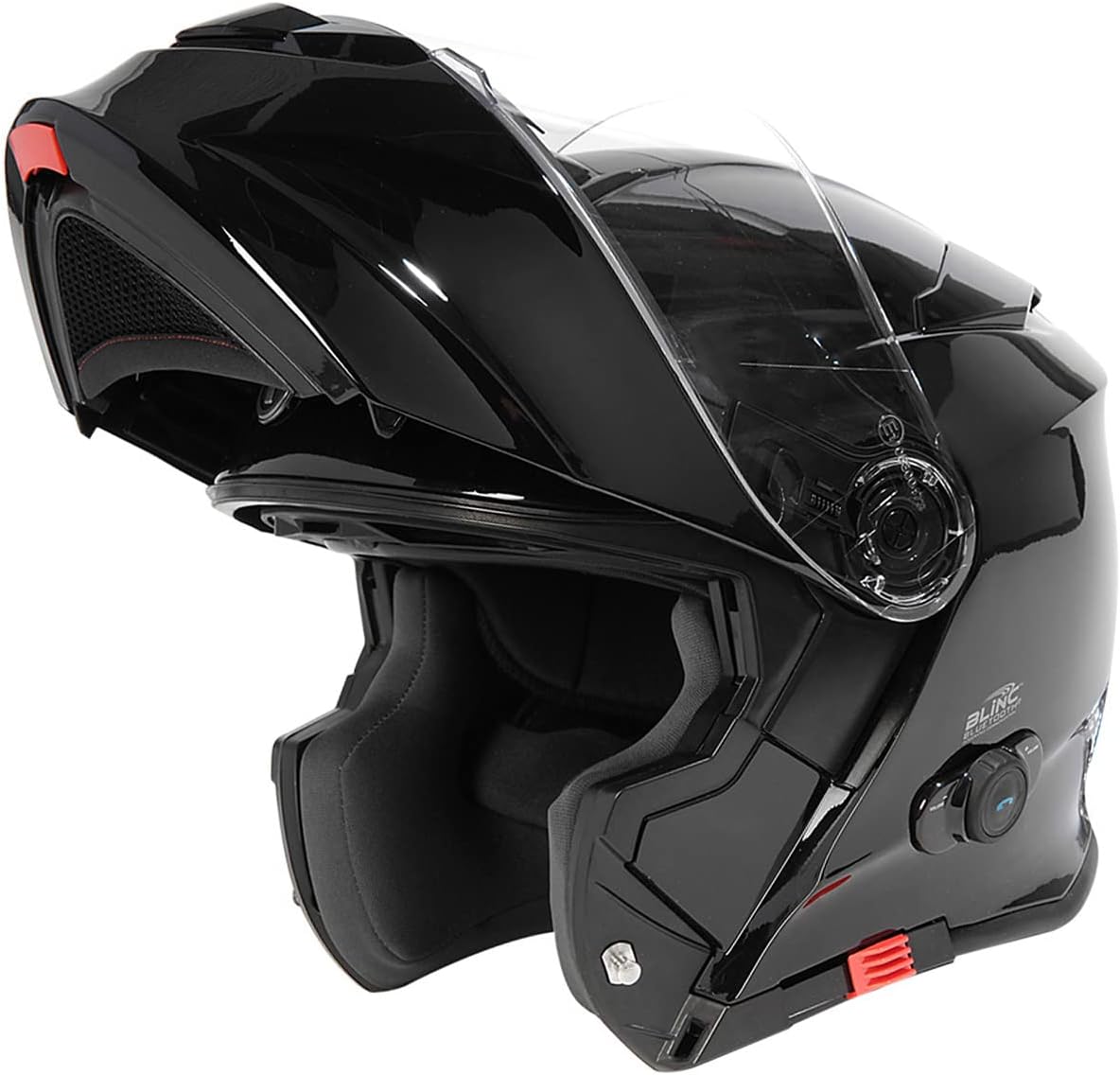

Figure 4: The TORC T28B helmet with its modular chin bar in the raised position.

5.2. Drop-Down Sun Visor

A retractable sun visor is integrated for convenience. Operate the sun visor using the slider mechanism located on the side of the helmet. Slide it down to deploy the visor and up to retract it.

5.3. Ventilation System

The helmet features adjustable flow-through ventilation. Locate the vents on the top and front of the helmet. Adjust the sliders or switches on these vents to control airflow, allowing for a comfortable climate inside the helmet.

Figure 5: Diagram illustrating the double barrel exhaust ports and EPS air flow system for enhanced ventilation.

5.4. Blinc Bluetooth Controls

The Blinc Bluetooth unit typically features buttons for power, volume control, call management, and music playback. Familiarize yourself with these controls before riding. Specific functions may include:

• Power On/Off: Long press the main button.
• Volume Adjustment: Press '+' or '-' buttons.
• Answer/End Call: Single press the main button.
• Play/Pause Music: Single press the main button.

6. Maintenance

6.1. Cleaning the Exterior

Clean the helmet's exterior with a soft cloth and mild soap and water. Avoid harsh chemicals, solvents, or abrasive cleaners, as these can damage the helmet's finish and materials.

6.2. Visor Care

The main shield is anti-fog and anti-scratch. Clean it with a soft, damp cloth and mild soap. Do not use abrasive materials or window cleaners, which can damage the coating. Allow to air dry or gently wipe with a clean, soft cloth.

6.3. Removable Inner Padding

The Cool Max inner comfort padding is washable. Carefully remove the cheek pads and liner according to the instructions in the detailed Blinc user guide or by gently detaching the snaps/velcro. Hand wash with mild soap and cool water, then air dry completely before reinserting.

Figure 6: Illustration of the removable Coolmax inner padding and cheek pads for easy cleaning.

6.4. Storage

Store your helmet in a cool, dry place away from direct sunlight and extreme temperatures. Use a helmet bag to protect it from dust and scratches.

7. Troubleshooting

This section addresses common issues you might encounter with your TORC T28B helmet, particularly concerning the integrated Blinc Bluetooth system.

7.1. Bluetooth Connectivity Issues

• Cannot Pair: Ensure the Blinc unit is fully charged and in pairing mode. Make sure your device's Bluetooth is on and visible. Try restarting both the Blinc unit and your mobile device.
• Intermittent Connection: Check for obstructions between your device and the helmet. Ensure the Blinc unit is fully charged. Avoid placing your device in pockets that might block the signal.
• No Sound: Verify volume levels on both the Blinc unit and your connected device. Ensure the helmet speakers are properly connected (if removable) and not obstructed.

7.2. Audio Quality Issues

• Low Volume: Increase volume on both the Blinc unit and your connected device. Note that ambient wind noise at higher speeds can affect perceived volume.
• Tinny Sound/Poor Bass: Ensure speakers are correctly positioned over your ears. The sound quality of integrated Bluetooth systems can vary; for optimal audio, ensure a secure fit of the helmet.

7.3. Modular Chin Bar Not Latching

• Ensure no debris is obstructing the latch mechanism.
• Apply firm, even pressure when closing the chin bar until you hear a distinct click.

If you encounter persistent issues not covered here, please refer to the comprehensive Blinc Bluetooth manual or contact TORC customer support.

8. Specifications

9. Warranty and Support

For detailed information regarding the warranty coverage for your TORC T28B helmet and the integrated Blinc Bluetooth system, please refer to the warranty card included with your purchase or visit the official TORC website. Warranty terms typically cover manufacturing defects.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact TORC customer service through their official website or the contact information provided in your helmet's packaging.

Online Resources:

• Visit the TORC Store on Amazon for product information and updates.
