1. Product Overview
This manual provides essential information for the safe and correct installation, operation, and maintenance of your REPORSHOP SAVA 4000W Oven Resistance. This heating element is designed for use in compatible ovens, operating at either 230V or 380V. It is a critical component responsible for generating heat within the oven cavity.

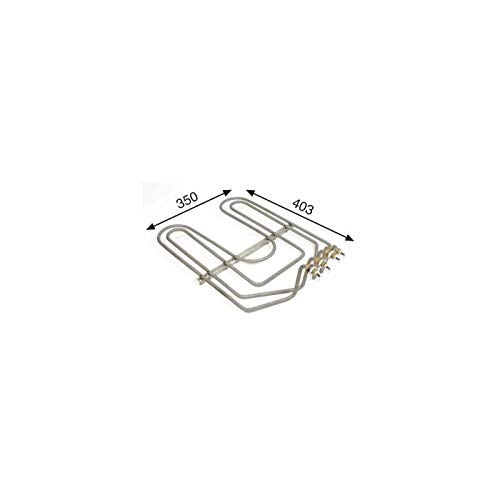

An image showing the REPORSHOP SAVA 4000W Oven Resistance. The element is typically U-shaped or coiled, designed to fit inside an oven cavity. It features electrical terminals for connection to the oven's power supply. This specific model is rated for 4000 watts and compatible with both 230V and 380V electrical systems.
2. Important Safety Instructions
To prevent personal injury or property damage, always follow these basic safety precautions:
- Read all instructions thoroughly before attempting installation or maintenance.
- Always disconnect the oven's power supply at the circuit breaker before performing any service or installation.
- Installation and replacement must be performed by a qualified electrician or appliance technician.
- Ensure the correct voltage (230V or 380V) is applied to the element, matching your oven's specifications.
- Do not operate the oven if the heating element appears damaged or faulty.
- Keep all flammable materials away from the heating element during operation.
3. Package Contents
Verify that all items are present upon unpacking:
- 1 x REPORSHOP SAVA 4000W Oven Resistance (Model ELH6148)
4. Installation Guide
Warning: Installation should only be performed by a qualified electrician or appliance technician. Incorrect installation can lead to electric shock, fire, or damage to the appliance.
- Power Disconnection: Ensure the oven's power supply is completely disconnected at the main circuit breaker before beginning any work. Verify with a voltage tester.
- Access Old Element: Carefully open the oven door and locate the existing heating element. Depending on the oven model, this may involve removing screws or clips that secure the element or an access panel.
- Remove Old Element: Disconnect the electrical wiring from the old heating element, carefully noting the position and color of each wire for correct re-connection. Remove the old element from its mounting brackets.
- Install New Element: Position the new REPORSHOP SAVA 4000W Oven Resistance (Model ELH6148) in the same location as the old one. Secure it firmly with the appropriate screws or clips provided or reused from the original installation.
- Connect Wiring: Reconnect the electrical wires to the new heating element's terminals, ensuring they are securely fastened and match the original configuration. Double-check the voltage compatibility (230V or 380V) with your oven's electrical system before connecting.
- Secure and Test: Close up any access panels or covers. Restore power to the oven at the circuit breaker. Perform a test cycle to ensure the new element heats correctly and evenly. Observe for any unusual smells or sounds.
5. Operating Principles
The REPORSHOP SAVA 4000W Oven Resistance is a passive electrical component. Once correctly installed, its operation is entirely controlled by the oven's thermostat and control system. When the oven is turned on and set to a temperature, electrical current passes through the resistance element, converting electrical energy into heat for cooking. No direct user interaction with the resistance element itself is required for its operation.
6. Care and Maintenance
Proper care ensures the longevity and efficiency of your heating element:
- Regular Inspection: Periodically inspect the heating element for any visible signs of damage, such as cracks, severe discoloration, or loose electrical connections. Perform this inspection only when the oven is cool and disconnected from power.
- Cleaning: Do not attempt to clean the heating element directly with water, abrasive cleaners, or sharp objects. Any spills or food residue within the oven cavity should be cleaned according to the oven manufacturer's instructions, ensuring the element is cool and power is disconnected.
- Professional Service: If you suspect the element is faulty, damaged, or not heating correctly, contact a qualified appliance technician for inspection, diagnosis, and replacement. Do not attempt repairs yourself.
7. Troubleshooting
Refer to the table below for common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating at all | Faulty heating element, no power to oven, or oven control issue. | Verify oven has power. If power is present, consult a qualified technician for diagnosis and potential element replacement. |
| Uneven heating in oven | Partially failed element, or issue with oven's thermostat/fan. | Consult a qualified technician for thorough inspection. |
| Element not glowing when oven is on | No power reaching the element, or the element has failed internally. | Ensure oven is receiving power. If power is confirmed, the element is likely faulty; consult a technician. |
For issues not listed above, or if the suggested solutions do not resolve the problem, always contact a qualified appliance repair professional.
8. Technical Specifications
- Model: ELH6148
- Power Rating: 4000W
- Voltage Compatibility: 230V / 380V
- Manufacturer: REPORSHOP
- Item Weight: Approximately 1.32 pounds (0.6 kg)
- ASIN: B07ZQTMN7Z
- Date First Available: January 5, 2020
9. Warranty Information and Customer Support
Specific warranty details for the REPORSHOP SAVA 4000W Oven Resistance (Model ELH6148) are typically provided at the point of purchase or by the retailer. Please refer to your purchase documentation, such as receipts or warranty cards, for the most accurate and up-to-date warranty terms and conditions.
For technical support, installation inquiries, or any other product-related questions, please contact your retailer or the manufacturer, REPORSHOP, through their official customer service channels. Contact information can usually be found on the product packaging or the retailer's website.
