PURPLE LEAF 12ft Solar LED Cantilever Patio Umbrella Instruction Manual

1. Introduction

Thank you for choosing the PURPLE LEAF 12ft Solar LED Cantilever Patio Umbrella. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor umbrella. Please read these instructions carefully before use and retain them for future reference.

Safety Information:

• Always close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage or injury.
• Ensure the base is adequately weighted with sand or water to maintain stability.
• Do not hang heavy objects from the umbrella frame.
• Keep children and pets away from the umbrella during opening and closing operations.

2. Product Overview & Features

The PURPLE LEAF 12ft Solar LED Cantilever Patio Umbrella is designed for commercial and residential outdoor use, offering extensive shade and integrated lighting. Key features include:

• Canopy Size: 12 ft round, with a unique double-top design for enhanced ventilation.
• Multi-function Adjustment: Features a unique handle design and crank system, offering 6 height and angle positions, plus 360-degree rotation for precise shading control.
• Upgraded Fabric: Constructed from 240/gsm yarn-dyed polyester fabric, providing UV 25 protection, water-repellent properties, and colorfast fadeless performance.
• Structural Stability: Equipped with 8 all-aluminum poles and a wider outdoor umbrella tray, anti-oxidation spray painted for extended use and wind resistance up to Bft 7.
• Solar Powered LED Lights: Integrated LED lights within the ribs, powered by a solar panel, providing ambient lighting for evening use.

3. Package Contents

Please ensure all components are present and undamaged before proceeding with assembly. The package typically includes:

• Umbrella Canopy with Frame
• Main Pole
• Base Tube
• Solar Panel (pre-installed or separate)
• Hand Crank(s)
• Bolts, Washers, and Allen Wrench for assembly
• Umbrella Cover (for storage)
• Instruction Book

Note: The weighted base is NOT included and must be purchased separately (search for PL210BD or B0D8JCGGR6).

4. Setup & Assembly

Follow these steps to assemble your PURPLE LEAF Cantilever Patio Umbrella:

1. Prepare the Base: If using a water/sand-fillable base (sold separately), fill it completely to ensure maximum stability. The base should weigh approximately 220 lbs (100 kg) when fully filled.
2. Attach Base Tube: Insert the base tube into the weighted base. Secure it using the provided bolts and washers with the Allen wrench.
3. Install Umbrella Pole: Carefully lift the main umbrella pole and insert it into the base tube. Ensure it is seated firmly.
4. Connect Solar Panel: If the solar panel is separate, connect its cord to the designated port on the umbrella frame and securely screw the panel into place at the top of the umbrella.
5. Install Hand Cranks: Attach the hand cranks to their respective positions on the main pole.
6. Remove Packaging: Before opening, remove any protective packaging material, such as Styrofoam, from the umbrella ribs.

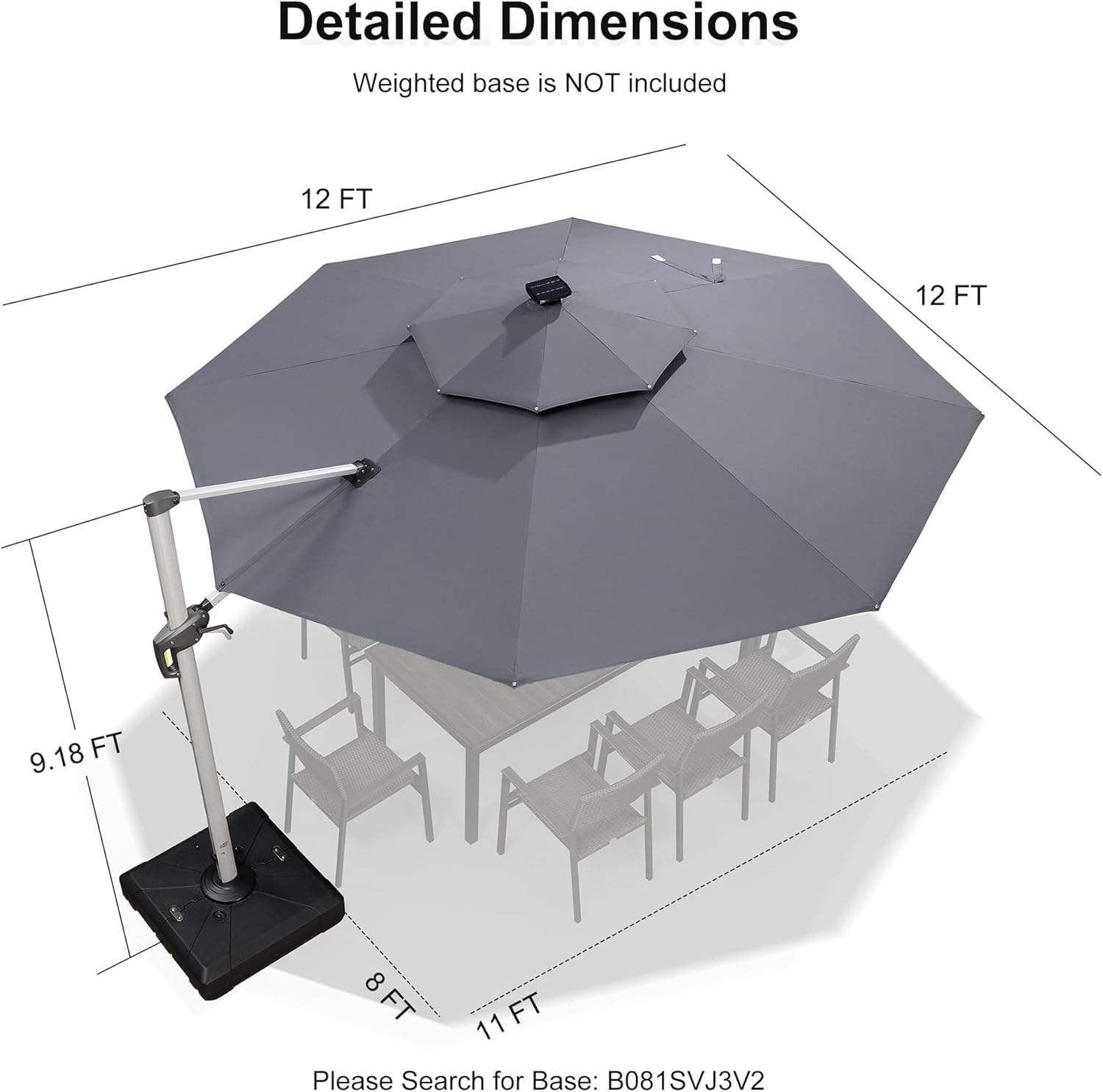

Image: Detailed dimensions of the PURPLE LEAF 12ft cantilever umbrella, showing a 12ft canopy diameter and 9.18ft height. The weighted base is not included.

5. Operating Instructions

Your PURPLE LEAF umbrella offers versatile adjustments for optimal shade and convenience:

1. Opening the Umbrella: Undo the Velcro strap that secures the folded canopy. Use the main hand crank to slowly extend the umbrella canopy until fully open.
2. Adjusting Height and Angle: Use the handle on the main pole to adjust the umbrella's height and tilt angle. There are 6 preset positions to choose from. Pull the handle to release the lock, adjust to the desired position, and release the handle to secure.
3. 360-Degree Rotation: To rotate the umbrella, use the crank located at the base of the main pole. Turn it clockwise or counter-clockwise to position the umbrella for optimal shade coverage.
4. Operating LED Lights: The LED lights are solar-powered. Ensure the solar panel at the top of the umbrella receives direct sunlight for approximately 8 hours to fully charge the battery. To turn the lights on/off, locate the power button on the control panel near the crank arm.
5. Closing the Umbrella: Use the main hand crank to retract the canopy until it is fully closed. Secure it with the Velcro strap.

Image: Close-up of the cast aluminum handle and crank system on the PURPLE LEAF umbrella pole, showing the yellow lever for height and angle adjustment.

Image: Diagram illustrating the 360-degree rotation feature of the PURPLE LEAF cantilever umbrella for easier shading area control.

6. Maintenance

Proper care will extend the life of your umbrella:

• Cleaning: Wipe the canopy with a damp cloth for general cleaning. For stubborn dirt, use a mild soap solution and rinse thoroughly. Allow to air dry completely before closing or storing.
• Frame Care: Wipe the aluminum frame with a dry cloth to remove dust and debris.
• Storage: When not in use for extended periods or during harsh weather, close the umbrella and cover it with the provided umbrella cover. Store in a dry, protected area.
• Solar Panel: Keep the solar panel clean and free of obstructions to ensure efficient charging.

Image: Close-up of the 240/gsm premium yarn-dyed polyester fabric of the PURPLE LEAF umbrella, highlighting its water-repellent, UV-resistant, and 3-year fade-resistant properties.

7. Troubleshooting

• Umbrella is unstable: Ensure the weighted base is completely filled with sand or water. Check that the main pole and base tube are securely fastened.
• LED lights not working: Verify the solar panel is clean and exposed to direct sunlight for at least 8 hours. Check the power button on the control panel.
• Difficulty opening/closing: Ensure no obstructions are present in the canopy mechanism. Apply a silicone-based lubricant to moving parts if necessary.
• Umbrella not rotating smoothly: Check for any debris around the rotation mechanism at the base. Ensure the base is level.

8. Specifications

9. Warranty and Support

Your PURPLE LEAF Cantilever Patio Umbrella comes with the following protection plan:

• Fabric: 3 years warranty
• Rib Structure: 1 year warranty

For customer support, please refer to the contact information provided with your purchase or visit the official PURPLE LEAF website.
