Wonline 36-inch Bathroom Vanity and Sink Combo Instruction Manual

1. Product Overview

This manual provides detailed instructions for the assembly, installation, and maintenance of your Wonline 36-inch Bathroom Vanity and Sink Combo. This unit features a durable MDF board cabinet, a ceramic undermount sink, and ample storage space with drawers and cabinet doors. It is designed for long-lasting use in a bathroom environment.

The vanity includes a high-definition mirror, a chrome faucet, and a pop-up drain, offering a complete solution for your bathroom. The cabinet is constructed from eco-friendly MDF wood, providing resistance to humidity and corrosion.

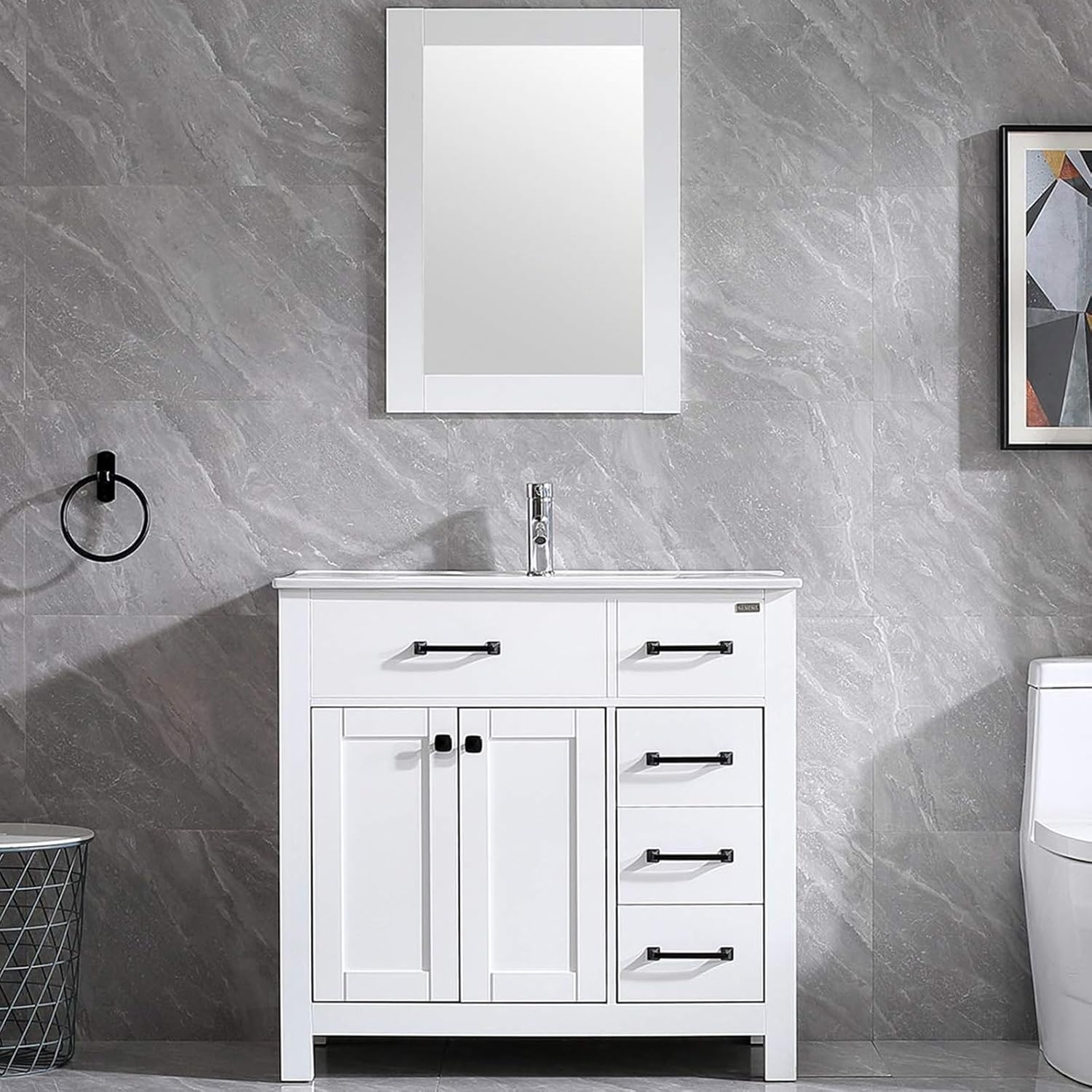

Image 1.1: Wonline 36-inch Bathroom Vanity and Sink Combo.

2. Safety Information

Please read and understand all safety warnings and instructions before beginning assembly or use. Failure to follow these instructions may result in injury or damage to the product.

• Always follow the assembly instructions carefully.
• Keep electrical components (if any) away from water.
• Do not overload the cabinet or drawers.
• Use appropriate safety gear, such as gloves and eye protection, when handling sharp objects or heavy components during assembly.
• Ensure the vanity is securely anchored to the wall to prevent tipping, especially if children are present.

3. Package Contents

Your Wonline Bathroom Vanity and Sink Combo is shipped in two separate packages. Please verify that all components are present and undamaged before beginning assembly.

Image 3.1: Detailed breakdown of package contents and product dimensions.

4. Assembly and Installation

Assembly is required for this product. It is recommended that two people assemble the vanity. Please refer to the included installation instruction manual for detailed step-by-step diagrams and ensure all parts are correctly oriented.

4.1. Assembly Video Guide

For a visual guide on assembling the vanity base and installing the cabinet doors, please watch the official installation video below:

4.2. Key Assembly Steps (Refer to Video for Details)

1. Unpacking and Part Identification: Carefully unpack all components and lay them out. Identify each part using the provided diagrams in the printed manual.
2. Drawer Slide Preparation: Separate the drawer slides as shown in the video (0:08).
3. Cabinet Base Assembly (Steps 1 & 2 in video): Assemble the side panels and internal dividers of the cabinet using the provided dowels, cam locks, and screws. Ensure all connections are secure.
4. Hinge Installation (Step 3 in video): Attach the hinges to the cabinet doors and then to the main cabinet structure.
5. Drawer Assembly (Step 4 in video): Assemble the individual drawer boxes and attach the remaining drawer slides.
6. Drawer Installation (Step 5 in video): Insert the assembled drawers into their respective slides within the cabinet.
7. Handle Installation (Step 5 in video): Attach the handles to the cabinet doors and drawers.
8. Wall Anchoring (Step 6 in video): Secure the vanity to the bathroom wall using the provided wall anchors and screws to prevent accidental tipping.
9. Sink and Faucet Installation: Place the ceramic sink onto the vanity cabinet. Install the faucet and pop-up drain according to their individual instructions. Connect plumbing as required.
10. Mirror Installation: Mount the mirror securely on the wall above the vanity.

4.3. Adjusting Cabinet Doors

If the cabinet doors are not aligned correctly after installation, you can adjust them using the screws on the hinges:

• Vertical Adjustment (Up/Down): Adjust the screws to move the door up or down (0:24 in video).
• Depth Adjustment (Forward/Backward): Adjust the screws to move the door forward or backward (0:27 in video).
• Horizontal Adjustment (Left/Right): Adjust the screws to move the door left or right (0:30 in video).

5. Operating Instructions

Your Wonline Bathroom Vanity is designed for ease of use and functionality.

• Cabinet Doors: The cabinet features two doors that open to reveal two tiers of storage space.
• Drawers: The vanity includes multiple drawers for organizing smaller items. The superior stainless steel rails ensure smooth operation.
• Sink and Faucet: The ceramic undermount sink is designed for daily washing, and the chrome faucet provides a stable and smooth water flow.

Image 5.1: Vanity with storage compartments shown open and closed.

6. Maintenance

Proper care and maintenance will ensure the longevity and appearance of your Wonline Bathroom Vanity.

• Cleaning the Cabinet: Wipe the MDF board surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Cleaning the Sink: The ceramic vessel sink has a smooth surface that is easy to clean. Use mild soap and water to remove stains and maintain its appearance.
• Cleaning the Faucet: Clean the chrome faucet with a soft cloth and a non-abrasive cleaner specifically designed for chrome finishes.
• Mirror Care: Clean the mirror with a glass cleaner and a lint-free cloth.
• Moisture Control: While the MDF board is designed to resist moisture, it is best to wipe up any standing water immediately to prevent long-term damage.

7. Troubleshooting

If you encounter issues during assembly or use, consider the following common solutions:

• Missing or Damaged Parts: If any parts are missing or damaged upon arrival, please contact Wonline customer service immediately for assistance.
• Assembly Difficulties: Review the assembly video and the printed instruction manual carefully. Ensure all components are oriented correctly and all screws and cam locks are tightened. Sometimes, pre-drilled holes may require slight adjustment or re-alignment.
• Cabinet Doors Not Aligning: Refer to Section 4.3 for instructions on how to adjust the cabinet door hinges.
• Drawers Not Sliding Smoothly: Check that the drawer slides are correctly installed and free of obstructions. Ensure the drawer boxes are assembled squarely.

For further assistance, please contact Wonline customer support.

8. Specifications

9. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to your purchase documentation or contact Wonline customer service directly. Keep your proof of purchase for any warranty claims.
