Arebos Heavy Duty Shelf Storage Rack User Manual

Introduction

This user manual provides essential information for the safe and efficient assembly, operation, and maintenance of your Arebos Heavy Duty Shelf Storage Rack. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image: Two Arebos heavy duty shelf storage racks, highlighting their robust construction and certifications.

Safety Instructions

Always adhere to the following safety guidelines to prevent injury or damage to the product:

• Ensure all components are present and undamaged before assembly. Do not use damaged parts.
• Assemble the shelf on a flat, stable surface.
• Wear appropriate personal protective equipment, such as gloves, during assembly to avoid cuts or pinches.
• Do not exceed the maximum load capacity of 175 kg per shelf or 875 kg total for the unit. Distribute weight evenly.
• Secure the shelf to a wall if there is any risk of tipping, especially in areas with children or pets, or if storing heavy items.
• Keep children and pets away from the assembly area.
• Avoid climbing on the shelf.

Package Contents

Verify that all the following components are included in your package:

• Vertical support beams (uprights)
• Horizontal support beams (long and short)
• MDF shelves (5 per unit)
• Plastic feet/caps (8 per unit)
• Connectors for joining vertical beams (if applicable for height)

Image: Key components of the Arebos shelf, illustrating the plug-in system and materials.

Setup and Assembly Instructions

The Arebos Heavy Duty Shelf features a tool-free plug-in system for quick and easy assembly. Follow these steps:

1. Prepare the Area: Clear a spacious, flat, and stable area for assembly.
2. Assemble the Base Frame: Connect two short horizontal beams and two long horizontal beams to four vertical support beams to form the base rectangle. Ensure the tabs on the beams align with the slots on the vertical supports and are securely pushed into place. A rubber mallet may be used gently if needed.
3. Install Lower Shelves: Insert the first MDF shelf onto the lowest set of horizontal beams.
4. Build Upwards: Continue attaching horizontal beams at desired heights for the remaining shelves. The adjustable spacing allows for customization.
5. Connect Upper Vertical Beams (if applicable): If assembling a full-height unit, use the provided connectors to extend the vertical beams. Ensure a secure fit.
6. Install Remaining Shelves: Place the remaining MDF shelves onto their respective horizontal supports.
7. Attach Plastic Feet: Place the plastic caps on the top and bottom ends of the vertical support beams to protect your floor and the shelf.
8. Final Check: Ensure all connections are secure and the shelf is stable.

Alternative Configuration: This shelf can also be assembled as two half-height workbenches. To do this, assemble two separate units, each using half the vertical beams and shelves, as shown in the image below.

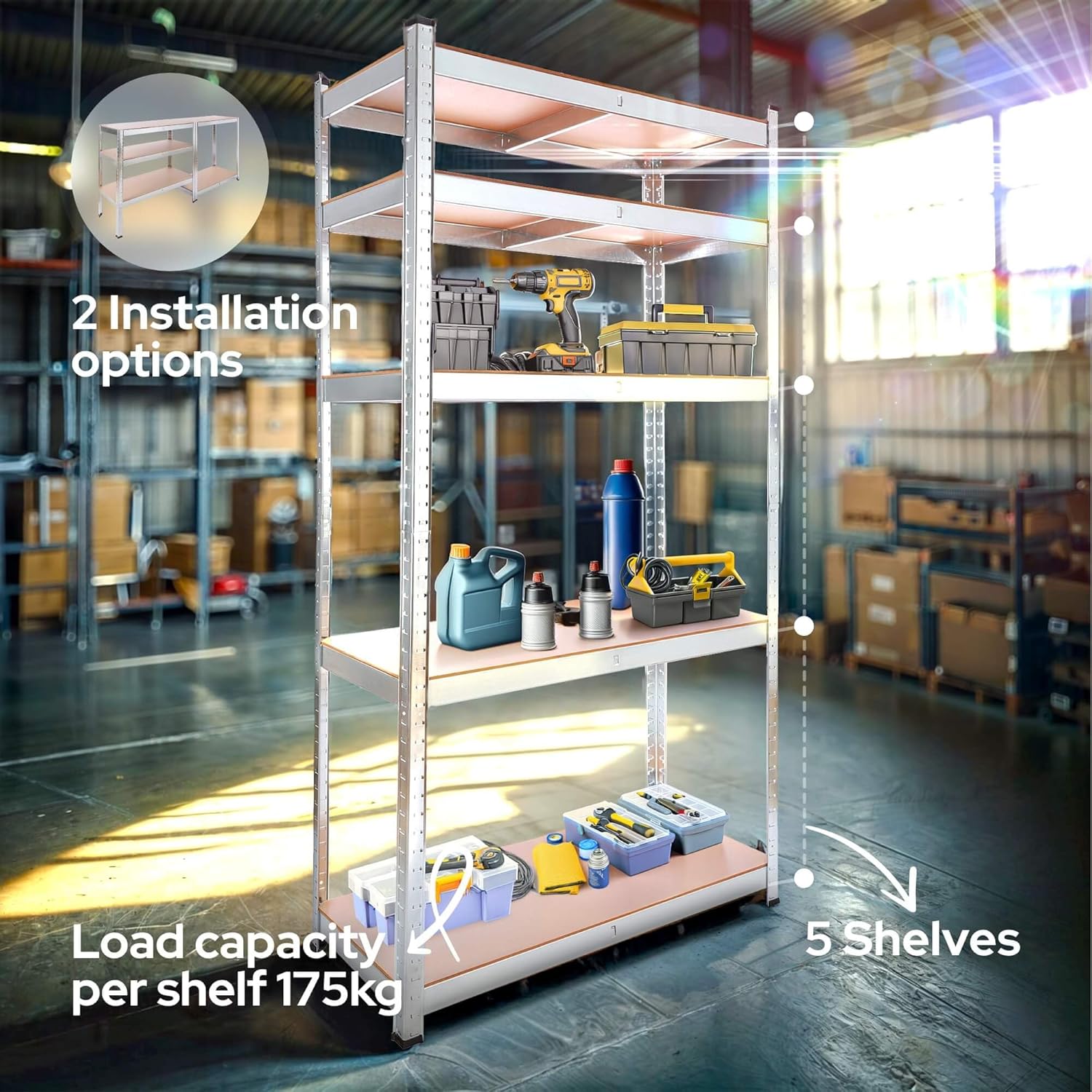

Image: Two installation options for the Arebos shelf, demonstrating its versatility as a tall unit or two workbenches.

Image: The Arebos shelf assembled into two workbench configurations, ideal for various tasks.

Operating Instructions

Your Arebos Heavy Duty Shelf is designed for versatile storage in various environments:

• Loading: Place items evenly across the shelves. Avoid concentrating heavy loads in one small area.
• Weight Distribution: For optimal stability, place heavier items on lower shelves.
• Application: Ideal for use in garages, basements, pantries, workshops, and offices to organize tools, supplies, and other items.

Image: Arebos shelf in a garage, showcasing its capacity for organizing tools and supplies.

Image: The Arebos shelf demonstrating its suitability for garage, office, and pantry environments.

Maintenance

To ensure the longevity and continued performance of your Arebos shelf:

• Cleaning: Wipe down the metal frame with a damp cloth. For the MDF shelves, use a dry or slightly damp cloth and ensure they are thoroughly dried to prevent warping or damage.
• Inspection: Periodically check all connections to ensure they remain secure. Re-seat any loose beams if necessary.
• Environment: While robust, avoid prolonged exposure to excessive moisture or extreme temperatures to preserve the integrity of the MDF shelves and metal frame.

Troubleshooting

Specifications

• Brand: Arebos
• Model Number: AR-HE-2SLR02
• Dimensions (H x W x D): 180 x 90 x 40 cm (70.9 x 35.4 x 15.7 inches)
• Weight: Approximately 15.5 kg (34.2 lbs)
• Material: Galvanized Metal Frame, MDF Shelves
• Number of Shelves: 5
• Maximum Load Capacity per Shelf: 175 kg (385 lbs)
• Total Maximum Load Capacity: 875 kg (1929 lbs)
• Special Features: Expandable, Adjustable Shelf Spacing, Can be configured as two workbenches.

Image: Dimensional overview and adjustable shelf spacing feature of the Arebos shelf.

Image: Details of the robust construction, including connectors and load-bearing capacity.

Warranty Information

For specific warranty details regarding your Arebos Heavy Duty Shelf, please refer to the warranty card included with your product or contact Arebos customer support directly. Generally, products are covered against manufacturing defects for a specified period from the date of purchase.

Customer Support

If you have any questions, require assistance with assembly, or encounter issues not covered in this manual, please contact Arebos customer support:

• Manufacturer: Canbolat Vertriebs GmbH
• Website: www.arebos.de (Please note: This is a general website, specific support contact may vary by region.)
• Refer to your purchase documentation for direct contact information or visit the seller's page on Amazon.
