1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your TRUPOW 600W 110V Macerator Pump. Please read these instructions thoroughly before installation and retain this manual for future reference. This macerator pump is designed for handling waste water from toilets, basins, showers, and bathtubs, providing a solution for plumbing installations where gravity drainage is not feasible.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in electric shock, fire, serious injury, or property damage.
- Always disconnect the power supply before performing any installation, maintenance, or troubleshooting.
- Installation must be performed by a qualified plumber or electrician in accordance with local plumbing and electrical codes.
- Ensure the power supply matches the pump's requirements (110-120V/60Hz).
- Do not operate the pump if the power cord or plug is damaged.
- Do not dispose of foreign objects (e.g., sanitary products, wet wipes, large food scraps, chemicals) into fixtures connected to the macerator pump, as this can cause blockages and damage.
- Ensure adequate ventilation around the pump.
- Protect the pump from freezing temperatures.
3. Product Overview and Features
The TRUPOW 600W 110V Macerator Pump is a robust and efficient unit designed for waste water disposal in various applications. Key features include:
- Automated Operation: Fully automated operation triggered by flushing or water inflow.
- Powerful Motor: Equipped with a quiet and powerful 600W motor.
- High Capacity: Massive 140 liters per minute (L/min) capacity.
- Versatile Pumping: Capable of pumping up to 6.5 meters (19.6 feet) vertically and 65 meters (213 feet) horizontally.
- Multiple Inlets: Features three inlets for connecting various fixtures.
- Durable Blades: Stainless steel impeller blades for efficient waste processing.
- Reliable Seals: Superior quality seals to prevent leaks.
- Non-Return Valve: Integrated non-return valve to prevent backflow.
- Override Switch: Manual override switch for controlled operation.

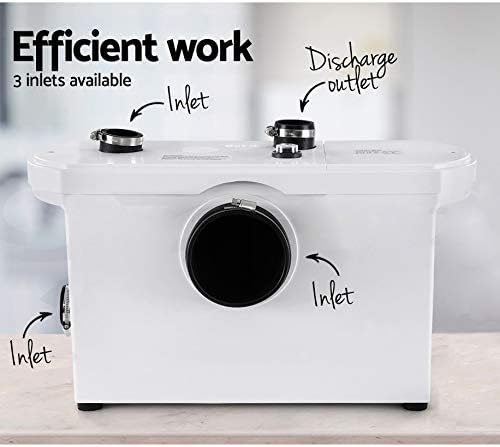

Figure 1: Front view of the TRUPOW Macerator Pump, highlighting the three available inlets and the discharge outlet.
Figure 2: Close-up of the TRUPOW Macerator Pump, illustrating the strong impeller blade and the manual override switch.
4. Specifications
| Feature | Specification |
|---|---|
| Voltage | 110-120V/60Hz |
| Wattage/Horsepower | 600W |
| Maximum Flow Rate | 140 L/min (0.04 Cubic Meters Per Minute) |
| Maximum Vertical Lift | 6.5 meters (19.6 feet) |
| Maximum Horizontal Lift | 65 meters (213 feet) |
| Product Dimensions (L x W x H) | 17" x 12" x 7" (40cm x 17cm x 27cm) |
| Material | Plastic (Housing), Stainless Steel (Impeller Blades) |
| Item Weight | 8.64 Kilograms (19.01 pounds) |
| Cord Length | 4.9 feet |
Figure 3: Dimensional drawing of the TRUPOW Macerator Pump, showing key measurements.
5. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your macerator pump. It is recommended that installation be carried out by a qualified professional.
- Placement: Position the macerator pump on a stable, level surface, ideally behind the toilet or in an accessible location for maintenance. Ensure sufficient space for connections and ventilation.
- Inlet Connections: Connect the waste outlets from your toilet, basin, shower, or bathtub to the designated inlets on the macerator pump. The pump features three inlets for flexible connection options. Use appropriate plumbing fittings and ensure all connections are watertight. If an inlet is not used, it must be properly capped.
- Discharge Outlet: Connect the discharge outlet of the macerator pump to the main drainage system. The pump can discharge waste vertically up to 6.5m or horizontally up to 65m. Ensure the discharge pipework is correctly sized and sloped according to local plumbing codes. A non-return valve is integrated to prevent backflow.
- Electrical Connection: Connect the pump to a dedicated 110-120V/60Hz electrical outlet. Ensure the circuit is protected by a Residual Current Device (RCD) or Ground Fault Circuit Interrupter (GFCI) as required by local electrical codes.
- Testing: After all connections are secure and power is supplied, test the system by flushing the toilet or running water into connected fixtures to ensure proper operation and check for any leaks.
Figure 4: Illustrative diagram of a typical installation setup, showing connections from a toilet and sink to the macerator pump.
Figure 5: Examples of versatile use, demonstrating connections to various fixtures including basins, toilets, and showers.
6. Operating Instructions
The TRUPOW Macerator Pump operates automatically once properly installed and connected to a power source.
- Automatic Operation: The pump will activate automatically when waste water enters the unit, typically triggered by flushing a toilet or draining a sink/shower. The macerating blades will process solids, and the pump will then discharge the liquid waste.
- Manual Override: An override switch is provided on the unit for manual activation if needed. This can be useful for testing or clearing minor issues. Refer to Figure 2 for the location of the override switch.
- Quiet Operation: The pump is designed for quiet operation, minimizing disturbance during use.
7. Maintenance
Regular maintenance ensures the longevity and efficient performance of your macerator pump.
- Power Disconnection: Always disconnect the power supply before any maintenance.
- Cleaning: Periodically clean the exterior of the pump with a damp cloth. Do not use abrasive cleaners or solvents.
- Internal Cleaning: For internal cleaning, specialized macerator cleaning solutions can be used following the product's instructions. This helps prevent build-up and odors.
- Check for Blockages: If the pump's performance decreases or it makes unusual noises, check for blockages in the inlets or discharge pipe. Access to the pump for jam clearing is available via a small access hatch.
- Seal Inspection: Regularly inspect seals and connections for any signs of wear or leaks. Address any leaks immediately to prevent water damage.
8. Troubleshooting
This section provides solutions to common issues you might encounter with your macerator pump. For problems not listed here, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start or run. | No power supply; tripped circuit breaker; faulty wiring; motor issue. | Check power connection and circuit breaker. Verify wiring. If issues persist, consult an electrician. |
| Pump runs continuously or cycles frequently. | Leak in the system; faulty pressure switch; non-return valve issue. | Inspect all connections for leaks. Check the non-return valve for proper function. If the pressure switch is suspected, contact service. |
| Pump is noisy or vibrates excessively. | Foreign object in macerator chamber; worn bearings; improper installation. | Disconnect power and carefully inspect the macerator chamber for foreign objects. Ensure the pump is securely mounted. If noise persists, professional service may be required. |
| Pump does not discharge waste effectively. | Blockage in discharge pipe or macerator; insufficient water flow; airlock. | Check for blockages in pipes and macerator. Ensure adequate water supply to fixtures. Bleed any airlocks if present. |
| Water leaks from the pump. | Loose connections; damaged seals; cracked housing. | Tighten all plumbing connections. Inspect seals for damage and replace if necessary. If the housing is cracked, the unit may need replacement. |
9. Warranty and Support
For warranty information, technical support, or service inquiries regarding your TRUPOW Macerator Pump, please contact TRUPOW customer service. Keep your purchase receipt as proof of purchase.
Manufacturer: TRUPOW
For contact details, please refer to the packaging or the official TRUPOW website.
