1. Product Overview
The ztowoto Double Shoulder Camera Strap is engineered for professional and enthusiast photographers who require a comfortable and secure way to carry two DSLR or SLR cameras simultaneously. Its ergonomic design distributes weight evenly, reducing strain during extended use. The strap features quick-release mechanisms for easy camera access and robust safety tethers for added security. It can also be reconfigured into two individual single shoulder straps, offering versatile carrying options.
Figure 1.1: Front view of the ztowoto Double Shoulder Camera Strap in use.
Figure 1.2: Back view of the ztowoto Double Shoulder Camera Strap, highlighting the lumbar pad for improved weight distribution.
Key Features:
- Ergonomic Design: Features a force pad at the back waist to distribute weight and reduce shoulder strain, especially when bending or climbing.
- Comfortable Material: Constructed from neoprene for elastic decompression and sandwich net for ventilation, minimizing fatigue.
- Dual Camera Capacity: Designed to carry two SLR cameras simultaneously with a maximum load capacity of 50kg.
- Quick Release System: Equipped with quick release plates and standard 1/4 inch screws for fast camera attachment and detachment.
- Enhanced Safety: Includes two safety tethers for secondary protection against accidental camera drops.
- Convertible Design: Can be easily split into two single shoulder straps for use on either the left or right shoulder.
- Durable Components: All plastic fasteners are made from high-quality, temperature-resistant materials.
2. Package Contents
Please verify that all components listed below are included in your package. If any items are missing or damaged, please contact customer support.
Figure 2.1: All components included in the package.
Figure 2.2: Labeled components of the camera strap system.
| Item | Quantity |
|---|---|
| Right Main Shoulder Pad | 1 |
| Left Main Shoulder Pad | 1 |
| Lumbar Pad | 1 |
| Webbing + Hardware Buckle Set | 2 |
| Safety Rope (Tether) | 2 |
| Connecting Webbing (Chest Strap) | 1 |
| Quick Release Plate | 2 |
| Lens Cleaning Cloth | 1 |
3. Setup Instructions
3.1 Assembling the Double Shoulder Strap
- Lay out the Right and Left Main Shoulder Pads.
- Attach the Connecting Webbing (chest strap) to the buckles on the front of both shoulder pads. Ensure the buckles click securely into place.
- Attach the Lumbar Pad to the back of the shoulder pads using the hook-and-loop fasteners. This pad provides crucial lower back support and helps stabilize the strap.
- Connect the Webbing + Hardware Buckle sets to the D-rings at the bottom of each shoulder pad. These will be used to attach your cameras.
3.2 Attaching Cameras
- Screw a Quick Release Plate into the 1/4 inch tripod mount on the bottom of each camera. Ensure it is tightened securely.
- Attach the carabiner from the Webbing + Hardware Buckle set to the Quick Release Plate on your camera.
- Important: Attach a Safety Rope (tether) from the camera's strap lug (or another secure point on the camera body) to a D-ring or secure loop on the main shoulder strap. This provides a critical secondary attachment point in case the primary quick-release connection fails.
- Repeat for the second camera.
3.3 Adjusting the Strap
Once the cameras are attached, put on the strap. Adjust the length of the shoulder straps and the chest strap using the buckles until the strap feels snug and comfortable, distributing the weight evenly across your shoulders and back. The cameras should hang freely at your sides, allowing for easy access without excessive swinging.
3.4 Converting to Single Shoulder Straps
The ztowoto Double Shoulder Camera Strap can be easily converted into two single shoulder straps for increased versatility.
- Disconnect the Chest Strap: Open the connection belt on the chest by unbuckling it.
- Detach the Lumbar Pad: Open the hook-and-loop connection point on the back of the lumbar pad to separate it from the shoulder pads.
- Each shoulder pad, along with its attached webbing and quick release system, now functions as an independent single shoulder strap.

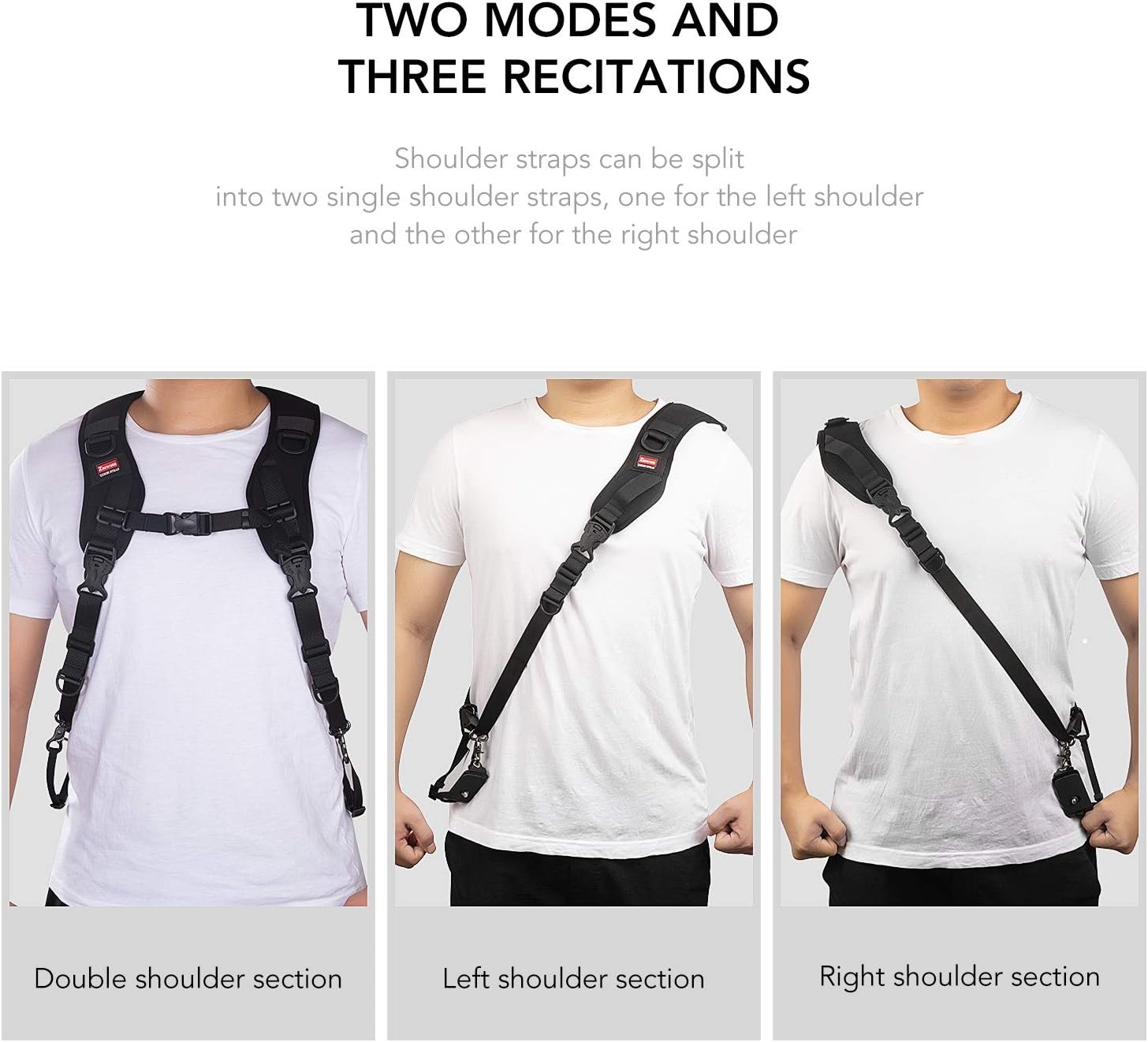

Figure 3.1: Illustration of double and single shoulder strap configurations and conversion steps.
4. Operating Instructions
4.1 Wearing the Strap
After assembly and camera attachment, put on the strap like a backpack. Ensure the shoulder pads sit comfortably on your shoulders and the lumbar pad is positioned correctly on your lower back. Adjust all straps for a snug fit that allows freedom of movement while keeping cameras secure.
4.2 Using Your Cameras
The quick-release system allows you to swiftly bring your camera up to eye level for shooting. When not in use, the cameras will hang at your sides, ready for action. Always ensure the safety tether is properly connected to prevent accidental drops, especially when moving quickly or in crowded environments.
Figure 4.1: The strap allows for comfortable carrying and quick access to cameras in various environments.
5. Maintenance
Proper maintenance will extend the life of your ztowoto Camera Strap.
- Cleaning: The neoprene and sandwich net materials can be spot cleaned with a damp cloth and mild soap. Do not machine wash or tumble dry. Allow to air dry completely before storage.
- Inspection: Regularly inspect all buckles, webbing, D-rings, quick release plates, and safety tethers for signs of wear, fraying, cracks, or damage. Pay close attention to the areas where components connect.
- Storage: Store the strap in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
- Lubrication: If the quick release mechanism feels stiff, a small amount of silicone-based lubricant can be applied to the moving parts, avoiding contact with fabric.
6. Troubleshooting
If you encounter any issues with your ztowoto Camera Strap, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Strap feels uncomfortable or causes neck/shoulder pain. | Improper adjustment; weight not evenly distributed. | Adjust all straps (shoulder, chest, lumbar) to ensure a snug fit and even weight distribution. Ensure the lumbar pad is correctly positioned. |
| Cameras swing too much. | Strap is too loose; cameras not properly secured. | Tighten the shoulder straps and ensure the quick release plates are firmly attached. The lumbar pad also helps reduce front-to-back swing. |
| Camera feels insecure or detaches. | Quick release plate not fully tightened; primary attachment failure. | Always ensure the quick release plate is securely screwed into the camera. Crucially, always use the safety tether as a secondary attachment point. Inspect the quick release mechanism for wear or damage. |
| Unsure how to use all included parts. | Lack of familiarity with components. | Refer to Section 2 (Package Contents) and Section 3 (Setup Instructions) for detailed descriptions and assembly guidance. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | zt191021 |
| Product Dimensions | 6 x 4 x 2 inches (approximate, packaged) |
| Item Weight | 110 pounds (Note: This weight seems unusually high for the product. Please refer to actual product for accurate weight.) |
| Material | Neoprene, Sandwich Net, High-Quality Plastic Buckles, Nylon Webbing |
| Maximum Load Capacity | 50 kg (110 lbs) |
| Compatibility | DSLR, SLR Cameras with 1/4 inch tripod mount |
| Country of Origin | China |
8. Warranty & Support
ztowoto is committed to providing high-quality products. If you encounter any problems during the use of your Double Shoulder Camera Strap, please do not hesitate to contact our customer service staff. We are dedicated to providing a satisfactory solution to any issues you may experience.
For further assistance or to explore other ztowoto products, please visit the official ztowoto store: ztowoto Store on Amazon
