Willpower YY-04-42
Willpower 42W LED Light Pods Instruction Manual
Model: YY-04-42
Product Overview
The Willpower 42W LED Light Pods are high-intensity LED work lights designed for various applications, including off-road vehicles, automotive, and general lighting needs. These lights feature a durable construction and efficient illumination.
Key Features:
- Super bright light: High-quality LED chips emit very bright and white light, PMMA lens with high light transmittance, clear view.
- Further irradiation distance: Concentrated spot beam illuminates to further distance, lighting up the forward dark road.
- Better heat dissipation: Specially designed die-cast aluminum alloy cooling fins effectively extend the lifespan to over 30,000 hours.
- Wide application: Jeeps, 4x4, cars, trucks, motorcycles, SUVs, ATVs, boats, etc. Garden lighting, backyard lighting, back-up light, off road lighting, Construction lighting and so on.
- Package include: 10Pcs 42W LED work lights.
Image: A set of ten Willpower 42W LED Light Pods, showcasing the quantity included in the package.
Specifications
| LED Power | 42W (14 x 3W High Intensity LED) |
| Beam Pattern | Spot Beam |
| Input Voltage | 9-30V DC (fits 12V, 24V vehicles) |
| Working Lifespan | Over 30,000 hours |
| Working Temperature | -40~85 degrees Celsius |
| LED Color Temperature | Pure White 6000K-6500K |
| Material | 6063 Aluminum Profile, High quality Led Chips, PMMA Lens |
| Waterproof Rate | IP67; Waterproof, dustproof, quakeproof and anti-corrosive. |
| Certifications | CE and RoHS |
| Product Dimensions | 4 x 4.5 x 1.5 inches |
| Item Weight | 6.6 pounds (for the package of 10) |
Image: Detailed product dimensions of a single LED light pod, including width, height, and depth.
Setup and Installation
The Willpower LED Light Pods are designed for straightforward installation. Follow these steps to properly mount and connect your lights.
Required Tools (Not Included):
- Wrench or socket set
- Wire strippers/crimpers
- Electrical tape or heat shrink tubing
- Drill (if new mounting holes are required)
Installation Steps:
- Prepare the Mounting Bracket: Attach the provided mounting bracket to the light pod using the small bolt and nut. Ensure the bracket is oriented correctly for your desired mounting position.
- Secure the Light: Choose a suitable mounting location on your vehicle or desired surface. Use the larger bolt and nut to secure the light pod, with its attached bracket, to the mounting surface. Tighten securely.
- Wire Connection: The light pod has two wires: one positive (+) and one negative (-). Connect the positive wire to a 9-30V DC power source (e.g., vehicle battery, auxiliary power). Connect the negative wire to a suitable ground point.
- Insulate Connections: Ensure all electrical connections are properly insulated using electrical tape or heat shrink tubing to prevent short circuits and protect against moisture.
- Test Functionality: Before finalizing the installation, test the lights to ensure they illuminate correctly.
- Adjust Beam Angle: Once mounted, you can adjust the tilt angle of the light pod by loosening the side bolts on the bracket, setting the desired angle, and then re-tightening the bolts.
Image: Step-by-step visual instructions for assembling the mounting bracket and attaching the light pod.

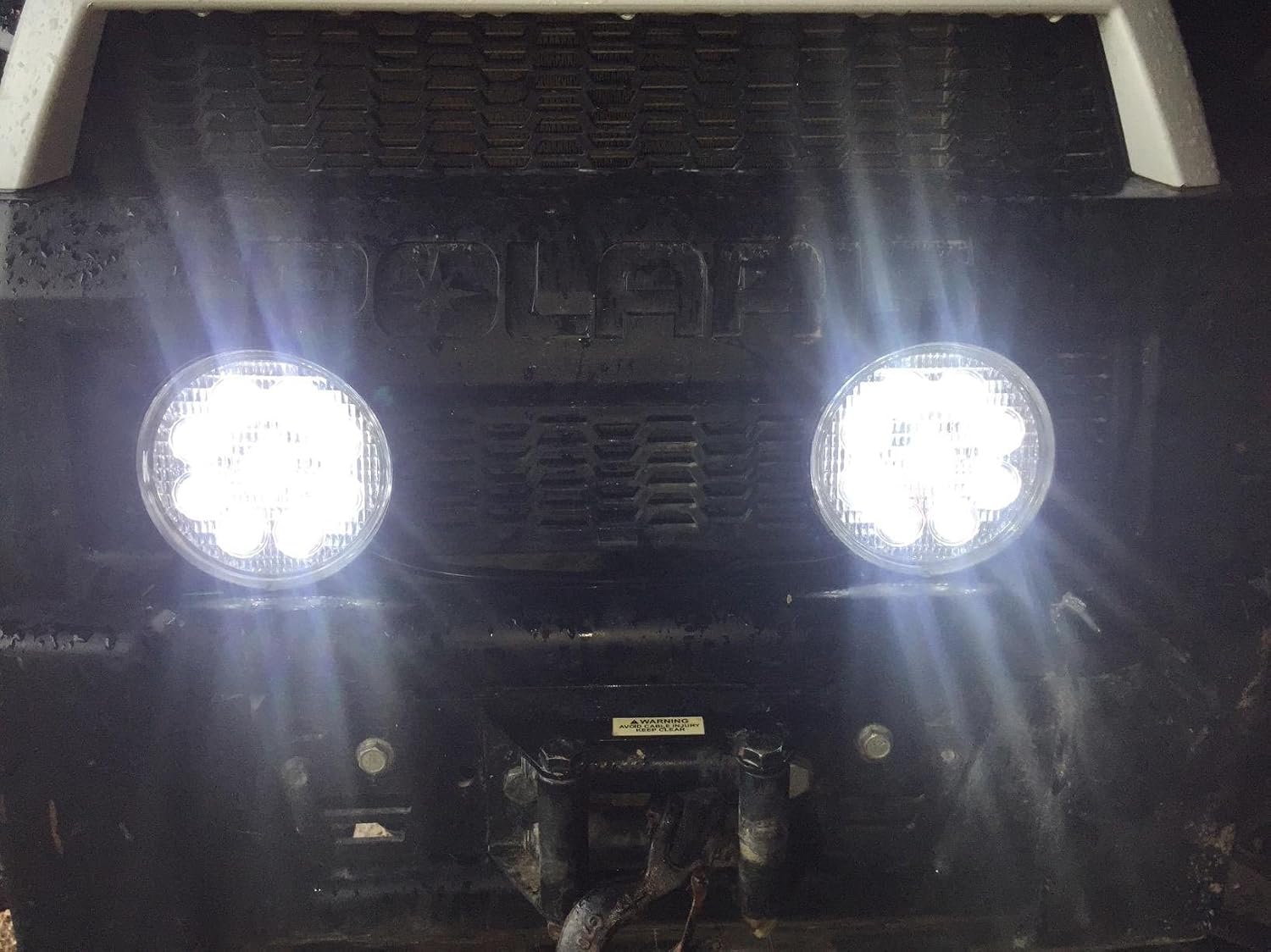

Image: Example of two LED light pods installed and operating on the front of an off-road vehicle.
Operating Instructions
Once installed, operating the Willpower LED Light Pods is simple. They are designed for continuous illumination when powered.
- Power On/Off: The lights will turn on when power is supplied to their wiring and turn off when power is cut. This is typically controlled by an external switch connected to your vehicle's electrical system.
- Voltage Range: Ensure the input voltage is within the specified 9-30V DC range. Operating outside this range may damage the lights or reduce their lifespan.
- Beam Type: These are spot beam lights, designed to provide concentrated illumination over a longer distance.
Image: The LED light pod in operation, demonstrating its bright spot beam illumination.
Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Willpower LED Light Pods.
- Cleaning: Periodically clean the lens with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could scratch the lens or damage the housing.
- Inspect Wiring: Regularly check the wiring and connections for any signs of wear, fraying, or corrosion. Ensure all connections remain secure and insulated.
- Check Mounting: Verify that the mounting bolts are still tight and the lights are securely fastened to prevent vibration damage or misalignment.
- Heat Dissipation: Ensure the cooling fins on the back of the light are free from dirt, mud, or debris to allow for proper heat dissipation.
Image: The back of the LED light pod, highlighting the heat dissipation fins that require periodic cleaning.
Troubleshooting
If you encounter issues with your LED Light Pods, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power supply, loose connection, blown fuse, incorrect wiring. | Check power source, verify all connections are secure, inspect fuses in the circuit, ensure positive and negative wires are correctly connected. |
| Lights are dim or flickering. | Insufficient voltage, poor ground connection, damaged wiring. | Confirm voltage is within 9-30V DC, check ground connection for corrosion or looseness, inspect wiring for damage. |
| Moisture inside the lens. | Seal compromise, extreme temperature changes. | While IP67 rated, extreme conditions can cause condensation. If persistent, check for physical damage to the seal. Allow to dry out in a warm, dry place. |
| Lights turn off unexpectedly. | Overheating, intermittent power supply, loose connection. | Ensure proper airflow around the heat sink. Check power supply for stability and all connections for security. |
Important Safety Information
- Voltage: Only connect to a 9-30V DC power source. Connecting to AC power or voltages outside this range will damage the product.
- D.O.T. Approval: These are aftermarket parts and are NOT D.O.T. approved. Do not use if D.O.T. approval is required for your application. For off-road use only.
- Local Laws: Before installing this product, please check your state/provincial and local/municipal laws and regulations regarding auxiliary lighting.
- Installation: If you are unsure about electrical wiring, consult a qualified professional.
- Heat: The light housing can become hot during operation. Avoid touching the light directly after extended use.
Warranty and Support
Willpower products are manufactured to high standards. For any questions, technical support, or warranty inquiries, please contact the seller or manufacturer directly through the platform where the product was purchased.
Manufacturer: Willpower
Model Number: YY-04-42
For more information, visit the Willpower Store on Amazon.
