1. Introduction
Thank you for choosing the vidaXL SMC Shower Base Tray. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower base. Please read this manual thoroughly before installation and keep it for future reference.
Figure 1.1: The vidaXL SMC Shower Base Tray, showcasing its sleek black finish and rectangular design.
The vidaXL SMC Shower Base Tray is designed for modern bathrooms, offering durability, skid resistance, and easy maintenance. Its low-threshold design ensures safe and easy access.
2. Safety Instructions
Always adhere to local building codes and plumbing regulations during installation. Failure to do so may result in property damage or personal injury.
- Ensure the installation area is level and structurally sound to support the weight of the shower tray and water.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during handling and installation.
- Handle the shower tray with care to avoid damage to the product or injury to yourself.
- Keep all packaging materials away from children.
- Do not use abrasive cleaners or tools that could scratch the surface of the shower tray.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact your retailer immediately.
- 1 x vidaXL SMC Shower Base Tray
- 1 x Drain Cover (if included with your model)
4. Setup and Installation
4.1. Preparation
- Clear the installation area of any debris or obstructions.
- Ensure the subfloor is clean, dry, and perfectly level. Use a spirit level to check.
- Confirm that the plumbing for the drain is correctly positioned and accessible. The shower tray features a standard 3.5" drain opening.
- Review the product dimensions to ensure proper fit within your bathroom space.

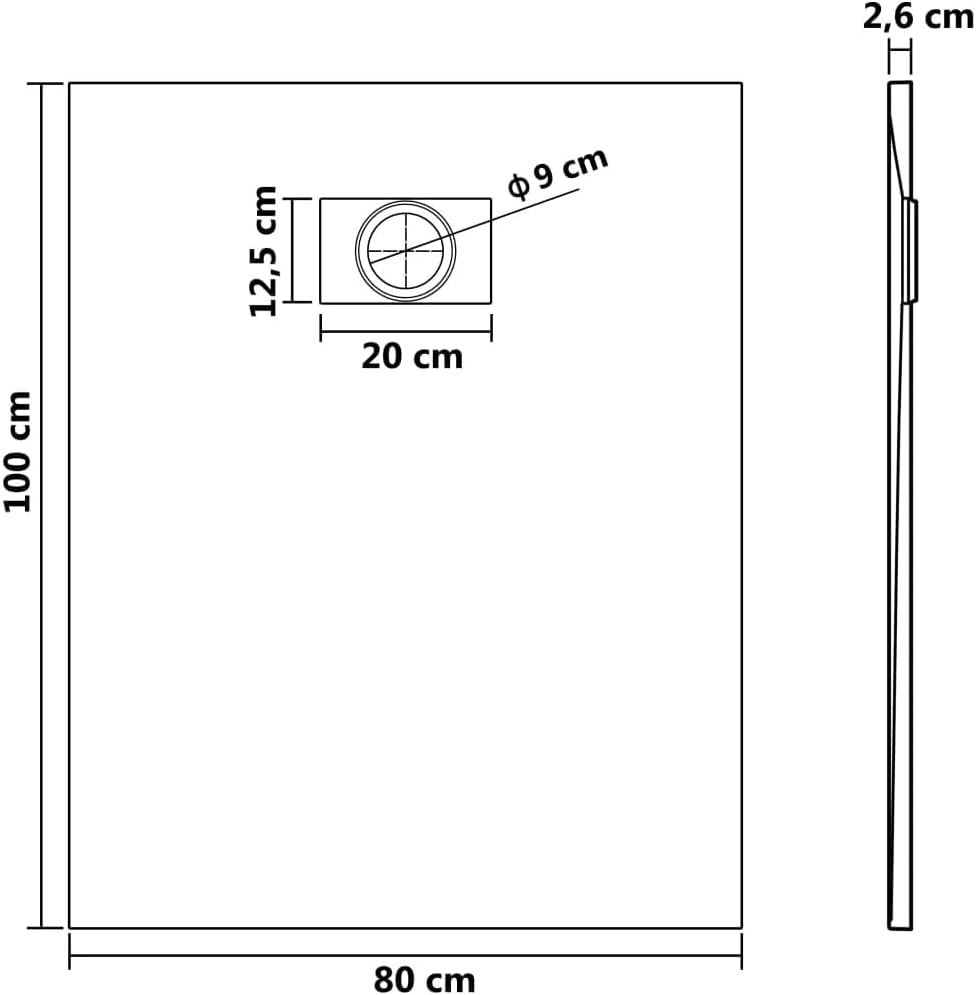

Figure 4.1: Dimensional drawing of the shower base tray, indicating overall size and drain placement.
4.2. Installation Steps
- Positioning the Tray: Carefully place the shower tray in its intended position. Ensure it is flush against any walls and that the drain opening aligns with your plumbing.
- Leveling: Use shims or a mortar bed to ensure the shower tray is perfectly level in all directions. This is crucial for proper drainage.
- Drain Connection: Connect the shower drain assembly to the tray's drain opening according to the drain manufacturer's instructions. Ensure all connections are watertight.
- Sealing: Apply a waterproof sealant (e.g., silicone caulk) along all edges where the shower tray meets the walls and floor to prevent water leakage. Allow adequate curing time as per sealant manufacturer's instructions.
- Testing: Once the sealant has cured, perform a water test by running water into the tray to check for any leaks around the drain or edges.

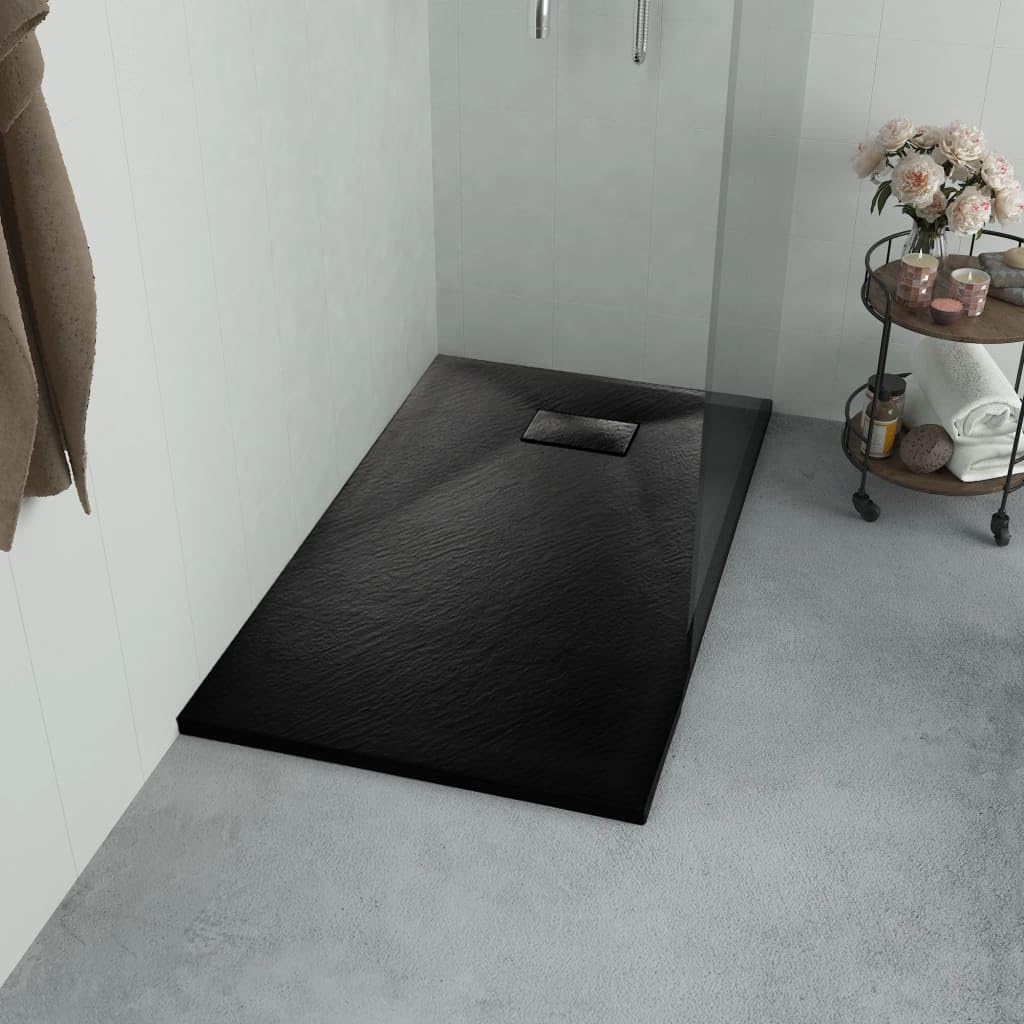

Figure 4.2: The shower base tray installed, demonstrating its integration into a bathroom design.

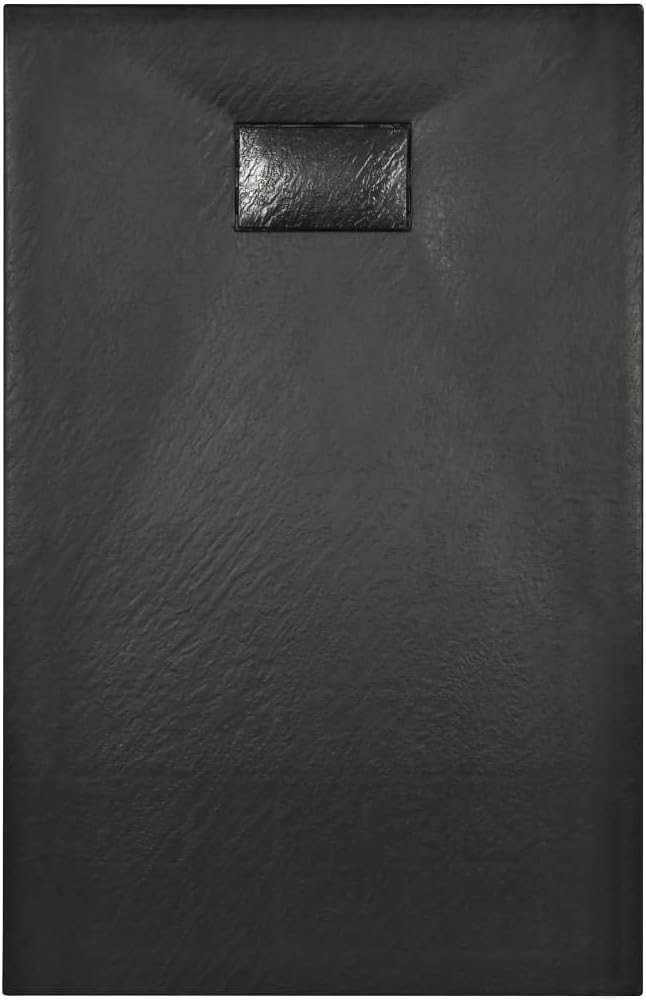

Figure 4.3: Close-up of the drain area on the shower base, highlighting its design for efficient water flow.
5. Operation
The vidaXL SMC Shower Base Tray is designed for straightforward use. Once properly installed and sealed, it functions as the foundation for your shower enclosure. Ensure the drain cover is correctly seated to prevent debris from entering the drain pipe.

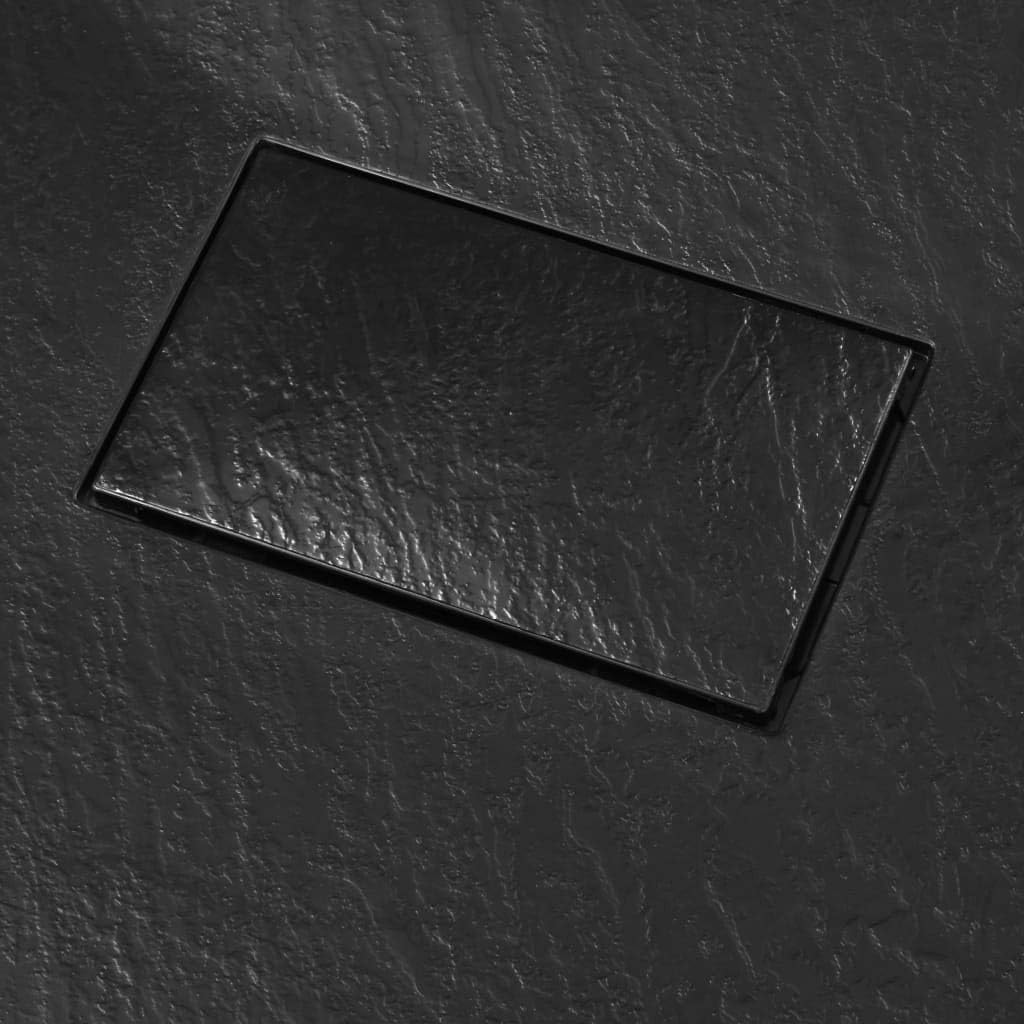

Figure 5.1: The removable drain cover, designed for easy access and maintenance.
6. Maintenance and Care
Regular cleaning will help maintain the appearance and longevity of your shower base. The SMC material is designed to be scratch and stain resistant.
- Daily Cleaning: Rinse the tray with water after each use to remove soap residue and prevent buildup.
- Regular Cleaning: Use a soft cloth or sponge with mild, non-abrasive bathroom cleaner. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the surface.
- Drain Maintenance: Periodically remove the drain cover and clean any hair or debris to ensure proper drainage and prevent clogs.
- Stain Removal: For stubborn stains, consult the cleaner's instructions for use on SMC or composite materials. Test on an inconspicuous area first.
7. Troubleshooting
This section addresses common issues you might encounter with your shower base tray.
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Drainage | Clogged drain; improper slope. | Clean the drain of debris. Ensure the tray is perfectly level with a slight slope towards the drain during installation. |
| Water Leaks Around Edges | Improper sealing; sealant degradation. | Reapply waterproof sealant along all edges where the tray meets walls/floor. Ensure surfaces are clean and dry before application. |
| Surface Scratches/Stains | Use of abrasive cleaners/tools; harsh chemicals. | Use only mild, non-abrasive cleaners and soft cloths. Avoid dropping heavy or sharp objects onto the tray. |
8. Specifications
Detailed technical specifications for the vidaXL SMC Shower Base Tray.
| Feature | Detail |
|---|---|
| Model Number | 144781 |
| Dimensions (L x W x H) | 39.4" x 31.5" x 1" (100 cm x 80 cm x 2.6 cm) |
| Material | SMC (Sheet Moulding Compound) with resin, fiberglass, and stone powder |
| Color | Black |
| Finish | Matte |
| Installation Type | Freestanding |
| Drain Opening Size | 3.5" (9 cm diameter) |
| Item Weight | 24.2 pounds (11 kg) |
| Country of Origin | China |
9. Warranty and Support
For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the warranty card included with your product or visit the official vidaXL website. You may also contact vidaXL customer service directly for assistance.
Website: www.vidaxl.com
Please have your model number (144781) and purchase date ready when contacting support.
