1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Warehouse of Tiffany Kimalex 52-inch Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Product Overview
The Kimalex ceiling fan features a 52-inch span with five wood-style blades, a satin nickel finish motor housing, and a 3-light fixture with a crystal shade. It is designed for indoor use in living rooms and similar spaces. Control options include a pull chain and an optional infrared remote control (sold separately).

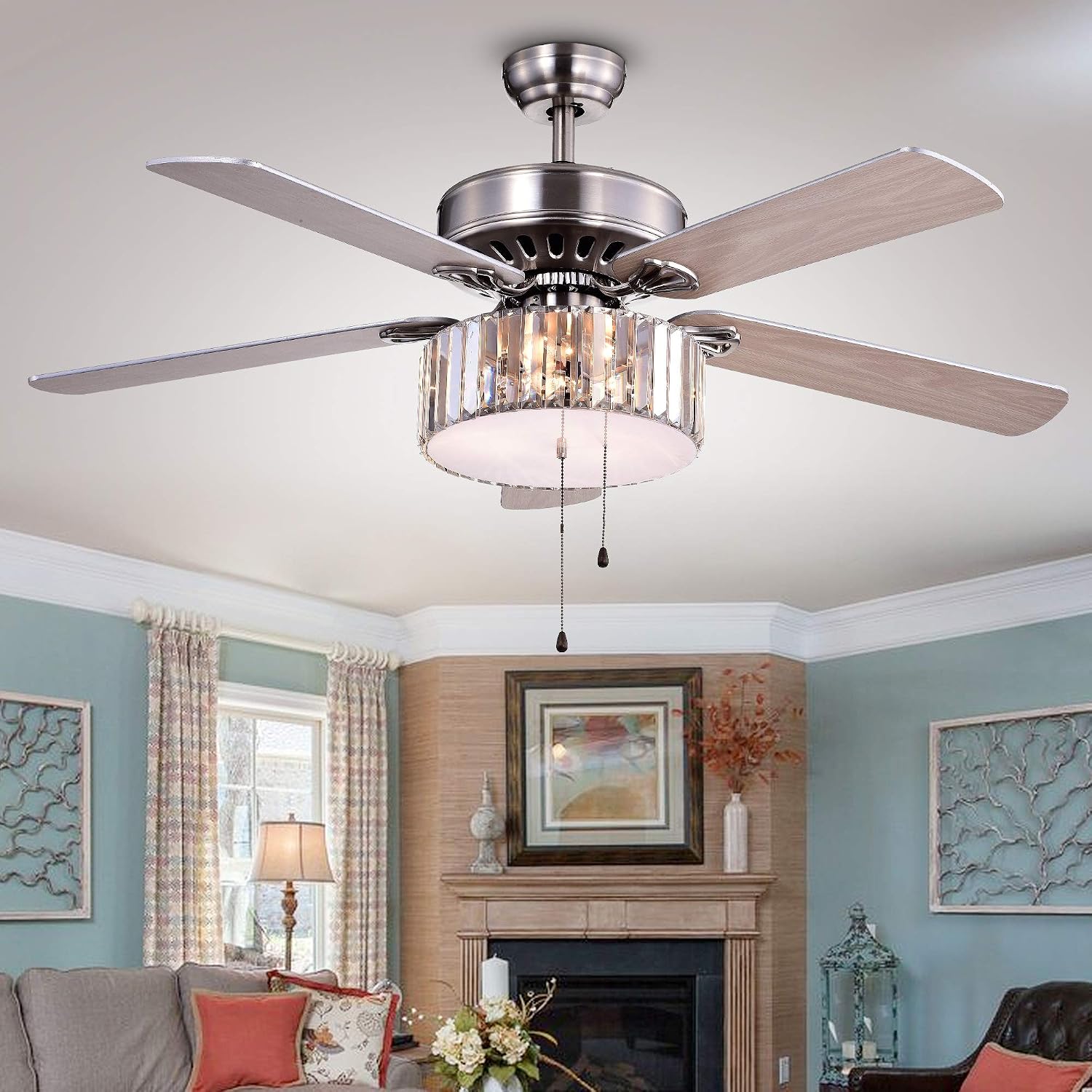

Figure 1: Full view of the Kimalex 52-inch Ceiling Fan installed, showcasing its five blades, satin nickel finish, and crystal light fixture.
2. Safety Information
To reduce the risk of electric shock, fire, or injury to persons, read and follow all instructions carefully.
- Always disconnect power at the main circuit breaker before installation or servicing.
- All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unsure about wiring.
- The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting a minimum of 35 lbs (15.9 kg).
- Ensure the fan blades are at least 7 feet (2.1 meters) from the floor and 30 inches (76 cm) from any wall or obstruction.
- Do not operate the fan with damaged blades or housing.
- This product is for indoor use only and is not water resistant.
- Use only E26 base incandescent bulbs, maximum 60 watts per bulb.
3. Setup and Installation
Installation of this ceiling fan requires assembly. It is recommended that two people perform the installation.
Tools Required:
- Phillips screwdriver
- Flathead screwdriver
- Adjustable wrench
- Wire strippers
- Electrical tape
- Step ladder
Installation Steps:
- Turn off Power: Before starting, ensure power is turned off at the circuit breaker to prevent electrical shock.
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling outlet box. Ensure the outlet box is securely fastened to the building structure and can support the fan's weight.
- Fan Assembly: Attach the downrod to the motor housing. Carefully feed the electrical wires from the fan motor through the downrod.
- Hang the Fan: Lift the fan assembly and hang it from the mounting bracket using the provided hook or ball-and-socket system.
- Electrical Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the packaging. Typically, this involves connecting live, neutral, and ground wires. Use wire nuts to secure connections.
- Canopy Installation: Slide the canopy up to the ceiling and secure it to the mounting bracket, covering the electrical connections.
- Blade Attachment: Attach the five fan blades to the motor housing using the provided screws and washers. Ensure all screws are tightened securely.
- Light Kit Installation: Connect the light kit wires to the fan motor wires. Secure the light kit to the bottom of the fan motor housing.
- Crystal Shade and Bulbs: Install three E26 base incandescent bulbs (not included) into the light kit sockets. Carefully attach the crystal shade to the light kit.
- Restore Power: Once all components are securely installed and connections are checked, restore power at the circuit breaker.

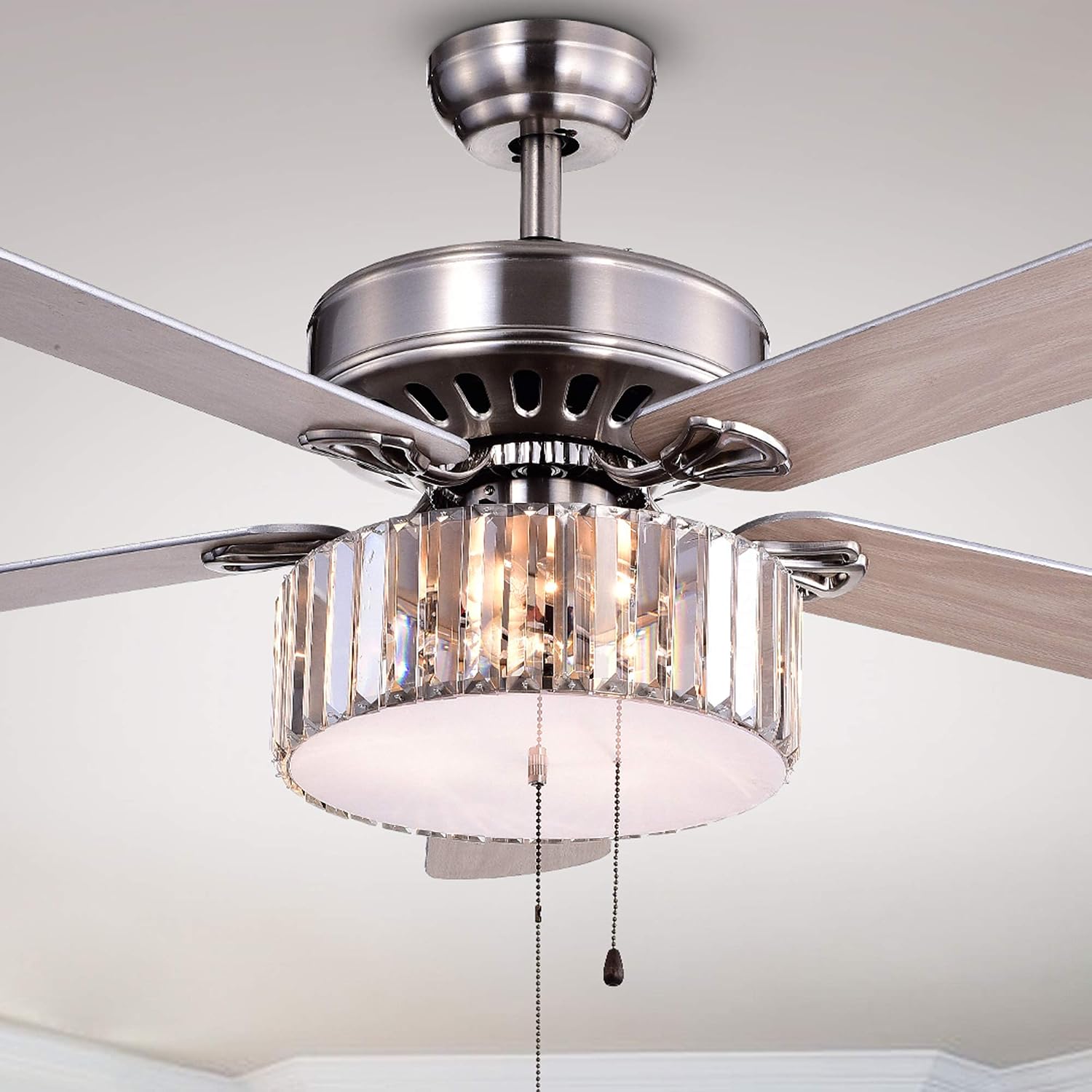

Figure 2: Detail view of the fan's central unit, showing the satin nickel finish, blade attachment points, and the crystal light fixture.
4. Operating Instructions
The Kimalex ceiling fan can be operated using the integrated pull chains or an optional infrared remote control.
Pull Chain Operation:
- Fan Speed Control: One pull chain controls the fan speed. Pulling it cycles through High, Medium, Low, and Off settings.
- Light Control: The other pull chain controls the light. Pulling it turns the light On or Off.
Optional Remote Control (Infrared):
If you have purchased an optional infrared remote control, refer to its specific instruction manual for pairing and operation. The remote typically allows for fan speed adjustment, light control, and sometimes a timer function.
Seasonal Operation (Reversible Blades):
Most ceiling fans include a reverse switch on the motor housing to change blade direction. This allows for seasonal optimization:
- Summer Operation: Blades rotate counter-clockwise, pushing air down to create a cooling breeze.
- Winter Operation: Blades rotate clockwise, drawing air up to circulate warm air trapped near the ceiling.
Always turn off the fan and wait for the blades to stop completely before changing the direction switch.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your ceiling fan.
Cleaning:
- General Cleaning: Periodically wipe the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Crystal Shade Cleaning: For the crystal shade, use a soft, lint-free cloth, possibly dampened with a mild glass cleaner, then dry thoroughly.
- Dusting: Use a feather duster or a soft brush attachment on a vacuum cleaner to remove dust from the blades and motor housing.
Always turn off power to the fan at the circuit breaker before cleaning.
Tightening Fasteners:
Check all screws and fasteners on the fan assembly, especially those securing the blades, at least twice a year. Tighten any loose screws to prevent wobbling and noise.
6. Troubleshooting
Before attempting any repairs, ensure power is disconnected at the circuit breaker.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan Loose wire connections Motor malfunction | Check circuit breaker and wall switch Verify all wire connections are secure Contact customer support if motor is faulty |
| Fan wobbles | Loose blade screws Unbalanced blades Improper mounting | Tighten all blade screws Use a blade balancing kit (not included) Ensure mounting bracket is securely attached to a ceiling joist |
| Light does not work | Bulb burned out Loose wire connection in light kit Light switch/pull chain issue | Replace bulbs Check light kit wiring connections Ensure pull chain is fully engaged or remote is functioning |
| Noisy operation | Loose screws Motor bearings Canopy rubbing ceiling | Tighten all screws Lubricate motor bearings if accessible (consult professional) Adjust canopy position |
7. Specifications
Technical details for the Kimalex 52-inch Ceiling Fan (Model: CFL-8174SN).
- Model Number: CFL-8174SN
- Brand: Warehouse of Tiffany
- Dimensions (L x W x H): 52" x 52" x 20"
- Item Weight: 22 Pounds
- Number of Blades: 5
- Blade Material: Wood-style
- Finish: Satin Nickel (Motor Housing)
- Shade Material: Crystal, Metal, Wood
- Number of Lights: 3
- Bulb Base: E26
- Max Wattage per Bulb: 60 watts (Incandescent)
- Light Color: Warm White (dependent on bulb)
- Control Method: Pull Chain (standard), Infrared (optional remote)
- Power Source: Corded Electric
- Installation Type: Semi Flush Mount
- Mounting Type: Ceiling Mount
- Indoor/Outdoor Usage: Indoor Only
- Safety Certification: ETL Listed
- Required Assembly: Yes
Figure 3: EnergyGuide label for the CFL-8174SN ceiling fan, indicating an estimated yearly energy cost of $10 and an airflow of 3246 Cubic Feet Per Minute.
Figure 4: Energy Information chart detailing airflow (3,246 CFM), electricity use (37 Watts excluding lights), and airflow efficiency (89 CFM per Watt) at high speed.
8. Warranty Information
This product is sold without a manufacturer's warranty. Please refer to the retailer's return policy for details regarding returns or exchanges.
9. Support
For technical assistance or inquiries regarding your Warehouse of Tiffany Kimalex ceiling fan, please contact your place of purchase or refer to the contact information provided by the retailer.
Manufacturer: Home Accessories
