1. Introduction
This manual provides essential information for the safe and efficient operation of your Bosch BFL520MB0 microwave oven. Please read these instructions carefully before using the appliance and keep them for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your microwave.
2. Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, personal injury, or exposure to excessive microwave energy.
- Read all instructions: Before operating the appliance.
- Grounding: Ensure the appliance is properly grounded.
- Supervision: Close supervision is necessary when the appliance is used by or near children.
- No empty operation: Do not operate the oven when empty.
- Metal objects: Do not place metal containers, foil, or utensils in the microwave, as this can cause arcing.
- Sealed containers: Do not heat sealed containers, as they may explode.
- Eggs: Do not cook whole eggs with shells, as they may explode.
- Flammable materials: Do not store or use flammable materials near the oven.
- Damage: Do not operate the oven if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
- Cleaning: Clean the oven regularly and remove any food deposits.
3. Product Overview
Familiarize yourself with the components of your Bosch BFL520MB0 microwave oven.

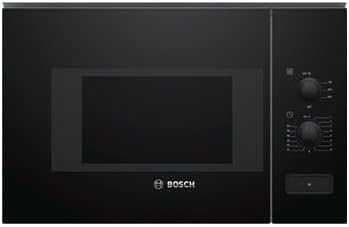

Figure 3.1: Front view of the Bosch BFL520MB0 microwave oven, showcasing its sleek black design and control panel on the right side.
Figure 3.2: Interior view of the Bosch BFL520MB0 microwave oven with the door open, revealing the stainless steel cavity and glass turntable.
Figure 3.3: The Bosch BFL520MB0 microwave oven seamlessly integrated into a modern kitchen cabinet, demonstrating its built-in design.
Control Panel
The control panel typically consists of:
- Power Level Selector: A rotary knob to select the desired microwave power level.
- Time Selector: A rotary knob to set the cooking duration.
- Start/Stop Button: To begin or end cooking.
- Door Release Button: To open the microwave door.
4. Setup
4.1 Unpacking
Carefully remove all packaging materials from the microwave oven and its accessories. Check for any damage during transit. Do not discard packaging until you are satisfied with the product.
4.2 Placement and Installation
The Bosch BFL520MB0 is designed for built-in installation. Ensure proper ventilation and a stable, level surface. Refer to the installation diagram for precise measurements.
Figure 4.1: Technical diagram showing the dimensions of the Bosch BFL520MB0 microwave oven (594 mm width, 382 mm height, 346 mm depth) and the required cutout dimensions for installation (560 mm width, 362 mm height).
- Ventilation: Ensure adequate space around the oven for proper air circulation. Do not block ventilation openings.
- Level Surface: The oven must be placed on a flat, stable surface to prevent vibration and noise.
- Electrical Connection: Plug the microwave into a properly grounded electrical outlet. Do not use extension cords.
4.3 First Use
Before using for the first time, wipe the interior and exterior with a damp cloth. Place the turntable and support ring inside. You may run the microwave empty for a few minutes on high power to eliminate any manufacturing odors.
5. Operating Instructions
5.1 Basic Microwave Cooking
- Place food in a microwave-safe container on the turntable.
- Close the oven door securely.
- Turn the Power Level Selector knob to choose the desired power (e.g., 800W for full power).
- Turn the Time Selector knob to set the cooking duration.
- Press the Start button to begin cooking. The oven light will turn on, and the turntable will rotate.
- To stop cooking at any time, open the door or press the Stop button.
5.2 Defrosting
The Bosch BFL520MB0 offers a defrost function. For best results, turn food over halfway through the defrosting time.
- Place the frozen food in a microwave-safe container.
- Select the appropriate defrost setting or a lower power level (e.g., 300W).
- Set the defrosting time.
- Press Start.
6. Maintenance
6.1 Cleaning the Interior
Regular cleaning helps maintain hygiene and efficiency.
- Wipe the interior cavity with a damp cloth after each use to prevent food splatters from drying.
- For stubborn stains, place a bowl of water with lemon juice inside and heat for 5-10 minutes on high power. The steam will loosen the grime, making it easier to wipe away.
- Remove the glass turntable and support ring for separate cleaning with warm, soapy water.
6.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals, as they can damage the finish.
7. Troubleshooting
If you encounter issues with your microwave, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Microwave does not start | Door not closed properly; Power cord unplugged; Blown fuse/tripped circuit breaker | Ensure door is latched; Check power connection; Reset circuit breaker or replace fuse |
| Food not heating | Incorrect power level/time set; Microwave-safe container not used; Door not fully closed | Adjust settings; Use appropriate cookware; Close door firmly |
| Unusual noise during operation | Turntable not seated correctly; Food container touching cavity walls | Reposition turntable; Ensure proper clearance for food container |
| Oven light not working | Bulb needs replacement | Contact customer service for bulb replacement |
If the problem persists after attempting these solutions, please contact Bosch customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model | Bosch BFL520MB0 |
| Capacity | 20 Liters |
| Maximum Microwave Power | 800 W |
| Product Dimensions (W x H x D) | 594 mm x 382 mm x 346 mm |
| Required Cutout Dimensions (W x H) | 560 mm x 362 mm |
| Color | Black |
| Power Supply | Standard household electrical supply (refer to product label for exact voltage/frequency) |
9. Warranty and Support
Your Bosch BFL520MB0 microwave oven comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or to schedule a service appointment, please contact Bosch customer support. You can find contact information on the official Bosch website or in your product documentation.
