KIOTI DK35SE, DK40SE, DK45SE, DK50SE Hydro Tractor Maintenance Service Filters Instruction Manual

1. Introduction

This manual provides essential instructions for the proper installation and maintenance of the service filters for your KIOTI DK35SE, DK40SE, DK45SE, and DK50SE Hydro series tractors. Regular filter maintenance is crucial for ensuring the longevity, optimal performance, and efficiency of your tractor's engine and hydraulic systems. Adhering to these guidelines will help prevent premature wear and potential system failures.

Always refer to your tractor's primary operator's manual for detailed safety procedures, torque specifications, and comprehensive service schedules specific to your model.

2. Product Overview

This maintenance kit includes a selection of filters designed to replace worn or clogged components in your KIOTI Hydro series tractor. The specific filters included are critical for maintaining clean engine oil, hydraulic fluid, and air intake.

Image 2.1: Overview of the complete filter maintenance kit for KIOTI DK Hydro series tractors. The kit typically includes an air filter, engine oil filter, hydraulic filter, and fuel filter components.

Included Filters:

• Engine Oil Filter: Filters contaminants from engine oil, protecting internal engine components.
• Hydraulic Filter: Ensures clean hydraulic fluid for smooth operation of hydraulic systems.
• Air Filter: Prevents dust and debris from entering the engine's combustion chamber.
• Fuel Filter: Removes impurities from fuel, safeguarding the fuel injection system.

3. Setup and Installation (Filter Replacement)

Before beginning any maintenance, ensure the tractor is parked on a level surface, the engine is off and cooled down, and the parking brake is engaged. Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection.

3.1. Engine Oil Filter Replacement

1. Locate the engine oil filter. Consult your tractor's manual for the exact location.
2. Place a drain pan beneath the filter to catch any spilled oil.
3. Using an oil filter wrench, carefully loosen and remove the old filter.
4. Clean the filter mounting surface on the engine block.
5. Apply a thin film of new engine oil to the gasket of the new filter.
6. Thread the new filter onto the engine block by hand until the gasket makes contact. Then, tighten an additional 3/4 to 1 full turn, or as specified in your tractor's manual. Do not overtighten.
7. Refill the engine with the recommended type and amount of engine oil.
8. Start the engine and check for leaks around the new filter. Turn off the engine and recheck the oil level.

Image 3.1: Close-up view of the Daedong Engine Oil Filter, part number E6201-32443. This spin-on filter is designed to remove impurities from the engine oil.

3.2. Hydraulic Filter Replacement

1. Locate the hydraulic filter. This may be a spin-on type or an internal cartridge.
2. Place a drain pan to collect hydraulic fluid.
3. Carefully remove the old hydraulic filter. For spin-on types, use a filter wrench. For cartridge types, remove the housing cover and extract the element.
4. Clean the mounting surface or housing.
5. Install the new hydraulic filter, ensuring any new gaskets or O-rings are properly seated.
6. Tighten the filter or housing cover to the manufacturer's specifications.
7. Check and top off the hydraulic fluid level as needed.
8. Start the tractor and operate the hydraulic functions briefly, then recheck for leaks and fluid level.

Image 3.2: Close-up view of the Daedong Hydraulic Filter, part number T5710-38031. This spin-on filter is essential for maintaining the cleanliness of the tractor's hydraulic system.

3.3. Air Filter Replacement

1. Locate the air filter housing, typically near the engine.
2. Unlatch or unbolt the housing cover and carefully remove the old air filter element.
3. Clean the inside of the air filter housing, removing any accumulated dust or debris. Do not use compressed air on the new filter element.
4. Insert the new air filter element, ensuring it is seated correctly.
5. Reattach the housing cover securely.

Image 3.3: A large cylindrical air filter, typically found in the maintenance kit. This filter prevents airborne contaminants from entering the engine.

3.4. Fuel Filter Replacement

1. Locate the fuel filter(s). There may be a primary spin-on filter and/or an internal element.
2. Close the fuel shut-off valve, if present, to prevent fuel leakage.
3. Place a container to catch any spilled fuel.
4. Remove the old fuel filter. For spin-on types, use a filter wrench. For elements, open the housing and extract.
5. Clean the mounting area.
6. Install the new fuel filter, ensuring any new gaskets are properly seated. For spin-on filters, pre-fill with clean fuel if recommended by the manufacturer.
7. Tighten to specifications.
8. Open the fuel shut-off valve. Bleed the fuel system if necessary, following your tractor's manual.
9. Start the engine and check for leaks.

Image 3.4: A Donaldson P573481 filter, commonly used as a fuel or secondary hydraulic filter in tractor applications. This spin-on filter helps ensure clean fuel delivery.

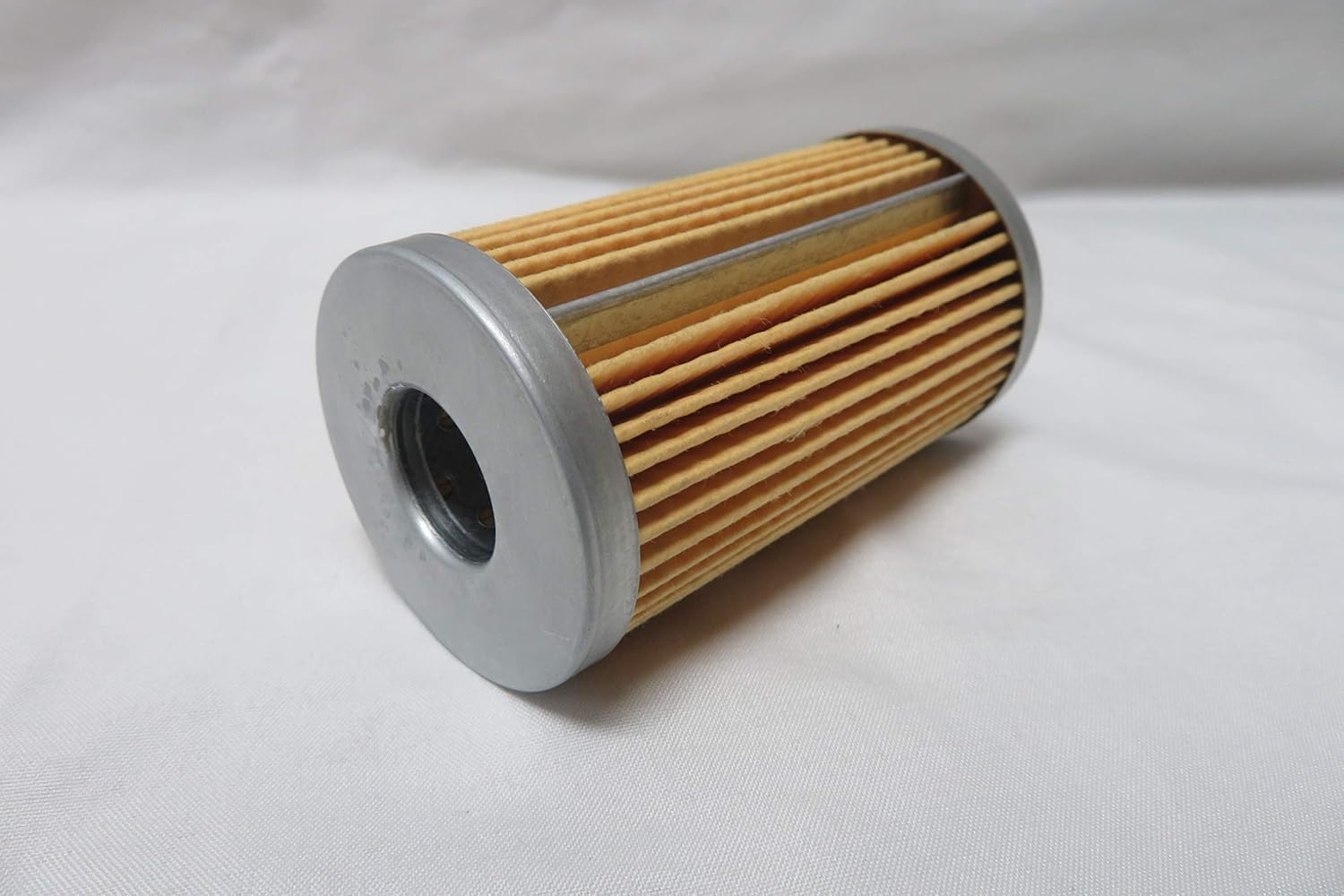

Image 3.5: A pleated filter element, often used as an internal fuel filter or a secondary hydraulic filter element. It captures fine particles to protect sensitive components.

4. Operating and Maintenance Schedule

Consistent adherence to the manufacturer's recommended maintenance schedule is vital for the performance and longevity of your KIOTI tractor. Filter replacement intervals are typically based on operating hours or calendar time, whichever comes first.

General Maintenance Guidelines:

• Engine Oil Filter: Replace every 50-200 operating hours or annually, depending on usage and oil type. Always replace when changing engine oil.
• Hydraulic Filter: Replace every 200-400 operating hours or annually. More frequent replacement may be needed in dusty or demanding conditions.
• Air Filter: Inspect daily or before each use in dusty conditions. Replace every 100-200 operating hours or annually, or sooner if visibly dirty or damaged. Do not attempt to clean paper elements with compressed air.
• Fuel Filter: Replace every 200-400 operating hours or annually. More frequent replacement may be necessary with contaminated fuel.

Always consult your specific KIOTI DK series tractor's operator's manual for the precise maintenance schedule and recommended fluid types.

5. Troubleshooting

Issues related to filters often manifest as reduced performance or system malfunctions. Here are common symptoms and basic troubleshooting steps:

Common Symptoms of Clogged Filters:

• Engine Oil Filter: Low oil pressure warning, engine overheating, reduced lubrication.
• Hydraulic Filter: Slow or erratic hydraulic response, reduced lifting capacity, unusual noises from hydraulic pump.
• Air Filter: Reduced engine power, excessive black smoke from exhaust, increased fuel consumption, engine misfires.
• Fuel Filter: Engine sputtering, difficulty starting, loss of power under load, engine stalling.

Troubleshooting Steps:

1. Inspect Filters: Visually check accessible filters for excessive dirt, damage, or signs of leakage.
2. Check Fluid Levels: Ensure engine oil, hydraulic fluid, and fuel levels are correct.
3. Review Maintenance Records: Confirm that filters have been replaced according to the recommended schedule.
4. Replace Suspect Filter: If a filter is suspected to be the cause, replace it with a new, genuine part.
5. Consult Manual: Refer to your tractor's operator's manual for specific diagnostic procedures or error codes.

If troubleshooting does not resolve the issue, contact an authorized KIOTI service technician.

6. Specifications

This filter kit is designed for specific KIOTI DK Hydro series tractor models. Using incorrect filters can lead to severe damage.

Compatible Tractor Models:

• KIOTI DK35SE Hydro
• KIOTI DK40SE Hydro
• KIOTI DK45SE Hydro
• KIOTI DK50SE Hydro

Manufacturer Part Number: DK35SE40SE45SE50SEHYDRO

UPC: 304369006469

7. Warranty

This filter kit is covered by the standard parts warranty provided by Kioti or the specific filter manufacturer. For detailed information regarding warranty terms, conditions, and duration, please refer to the official warranty documentation that accompanied your original tractor purchase or contact an authorized Kioti dealer. Keep your purchase receipt as proof of purchase for any warranty claims.

8. Support

For further assistance, technical support, or to purchase genuine replacement parts, please contact your authorized Kioti dealer. They have the expertise and resources to provide accurate information and service for your specific tractor model.

You can typically find contact information for your nearest authorized dealer on the official Kioti website or in your tractor's operator's manual.
