1. Introduction
Thank you for choosing the ANFERSONLIGHT 52-inch Tropical Palm Ceiling Fan, Model 3065. This ceiling fan combines an elegant design with practical features to enhance your living space. It features five palm leaf blades, an integrated LED light, and a new bronze finish. This manual provides essential information for the safe and efficient use of your new ceiling fan.
Image 1.1: The ANFERSONLIGHT 52-inch Tropical Palm Ceiling Fan in a living room setting.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Ensure the power supply is disconnected at the circuit breaker before installation or maintenance.
- All electrical wiring must be performed by a qualified electrician and comply with local codes and regulations.
- The mounting structure must be capable of supporting the weight of the fan (approximately 23.85 pounds).
- Maintain a minimum clearance of 7 feet from the floor to the bottom of the fan blades.
- Do not insert objects into the path of the rotating blades.
- This fan is designed for indoor use only. Do not expose to water or excessive humidity.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Ceiling Fan Motor Assembly
- 5 x Palm Leaf Blades
- 1 x Light Fixture with Acrylic Shade
- 1 x Remote Control Set (Remote and Receiver)
- 2 x Downrods (4.9 inches and 9.8 inches)
- Mounting Hardware Kit
4. Specifications
| Brand | ANFERSONLIGHT |
| Model Name | 3065 |
| Size | 52 inches |
| Color | Bronze |
| Material | Acrylic, Glass, Metal |
| Product Dimensions | 52"L x 52"W x 21"H |
| Indoor/Outdoor Usage | Indoor |
| Power Source | AC Powered |
| Installation Type | Downrod Mount |
| Control Method | Remote Control |
| Light Source Type | LED |
| Light Color Options | White Light / Warm Light (3 light changes) |
| Number of Blades | 5 |
| Air Flow Capacity | 5203 Cubic Feet Per Minute |
| Wattage | 60 watts |
| Brightness | 2000 Lumen |
| Item Weight | 23.85 Pounds |
Image 4.1: Key dimensions and characteristics of the ceiling fan.
5. Setup and Installation
Installation of the ANFERSONLIGHT ceiling fan requires basic electrical knowledge and adherence to safety guidelines. It is recommended to have a qualified electrician perform the installation.
5.1 Pre-Installation Steps
- Turn off Power: Locate the circuit breaker for the fan location and turn off the power.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Select Downrod: Choose between the 4.9-inch or 9.8-inch downrod based on your ceiling height and desired fan position.
5.2 Assembly and Mounting
- Assemble Blades: Attach the five palm leaf blades to the motor housing according to the instructions provided in the included installation manual.
- Mount Hanging Bracket: Secure the hanging bracket to the ceiling junction box. Ensure the junction box is rated for ceiling fan support.
- Wire Fan: Connect the fan's electrical wires to the household wiring as per the wiring diagram in the included manual. Ensure all connections are secure.
- Install Light Kit: Attach the LED light fixture and acrylic shade to the fan motor assembly.
- Secure Canopy: Raise the canopy to cover the wiring and secure it to the ceiling bracket.
Refer to the detailed wiring diagrams and step-by-step instructions in the separate installation manual included with your product for precise assembly and wiring procedures.
Image 5.1: Key features and components of the ceiling fan.
6. Operating Instructions
Your ANFERSONLIGHT ceiling fan is controlled by the included remote control. Ensure the remote has working batteries installed.
6.1 Fan Operation
- Power On/Off: Press the fan button on the remote to turn the fan on or off.
- Speed Control: Use the speed buttons (typically 1, 2, 3 or +/-) to cycle through the three available wind speeds.
- Reversible Function: The fan features a reversible motor for year-round comfort. A switch on the fan body (or a button on the remote, depending on model) controls the direction.
Image 6.1: Illustration of the fan's reversible function for seasonal use.
- Summer Mode (Counter-Clockwise): The fan rotates counter-clockwise, creating a downdraft that produces a cooling effect.
- Winter Mode (Clockwise): The fan rotates clockwise, creating an updraft that circulates warm air near the ceiling throughout the room.
6.2 Light Operation
- Light On/Off: Press the light button on the remote to turn the LED light on or off.
- Color Temperature Adjustment: The LED light offers three color temperature options: White Light, Yellow Light, and Warm Light. Each press of the light button will cycle through these options. Please note that the light does not retain the last selected color temperature when turned off and on again; it will cycle to the next option.

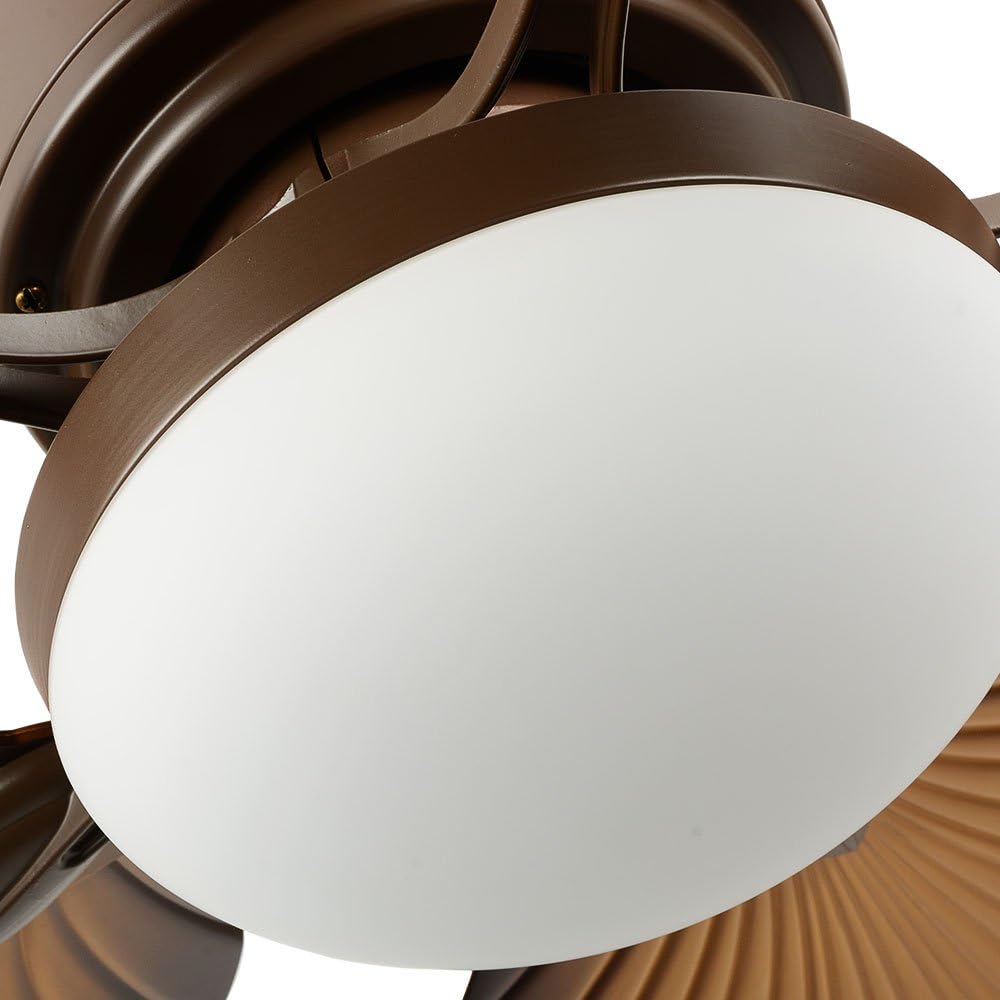

Image 6.2: Detail of the fan's integrated LED light fixture.
6.3 Timer Function
- Consult your remote control for specific timer settings. This feature allows you to set the fan to turn off automatically after a predetermined period.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Periodically wipe the fan blades and motor housing with a soft, damp cloth. The ABS palm blades are dustproof, simplifying cleaning. Do not use abrasive cleaners or solvents.
- Blade Tightness: Check blade screws annually to ensure they are secure. Loose blades can cause wobbling and noise.
- Light Fixture: The LED light source is integrated. If replacement is needed, contact customer support.
Image 7.1: Detail of the fan blades and their connection to the motor.
8. Troubleshooting
If you encounter issues with your ceiling fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power, loose wiring, remote control issue | Check circuit breaker. Verify all wire connections. Replace remote batteries. Ensure remote receiver is correctly installed. |
| Light does not work | Loose wiring, remote control issue, LED failure | Check light kit wiring. Replace remote batteries. If LED is faulty, contact support. |
| Fan wobbles | Loose blades, unbalanced blades, loose mounting hardware | Ensure all blade screws are tight. Check mounting bracket and downrod connections. Use a balancing kit if necessary. |
| Excessive noise | Loose screws, motor issue, blades hitting an obstruction | Tighten all screws. Ensure no obstructions are near blades. If motor noise persists, contact support. |
| Light color cycles every time it's turned on | Intended design feature | This is a characteristic of the fan's light function. The light cycles through White, Yellow, and Warm Light with each activation. |
9. Warranty Information
The ANFERSONLIGHT 52-inch Tropical Palm Ceiling Fan, Model 3065, comes with a 1-year warranty service from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage resulting from improper installation, misuse, accidents, unauthorized repairs, or normal wear and tear.
10. Customer Support
For technical assistance, warranty claims, or any questions regarding your ANFERSONLIGHT ceiling fan, please refer to the contact information provided in the separate installation manual or on the product packaging. You may also visit the ANFERSONLIGHT store on Amazon for further information: ANFERSONLIGHT Store.
