Angveirt Ultrasonic Rodent Repellent User Manual

1. Product Overview

The Angveirt Ultrasonic Rodent Repellent is a humane and effective solution designed to deter rodents such as rats, mice, rabbits, martens, and chipmunks from various areas including car engines, basements, garages, attics, and storage rooms. This battery-operated device utilizes powerful and random blasts of ultrasounds and strobe lights to create an unwelcoming environment for pests, encouraging them to leave the protected area.

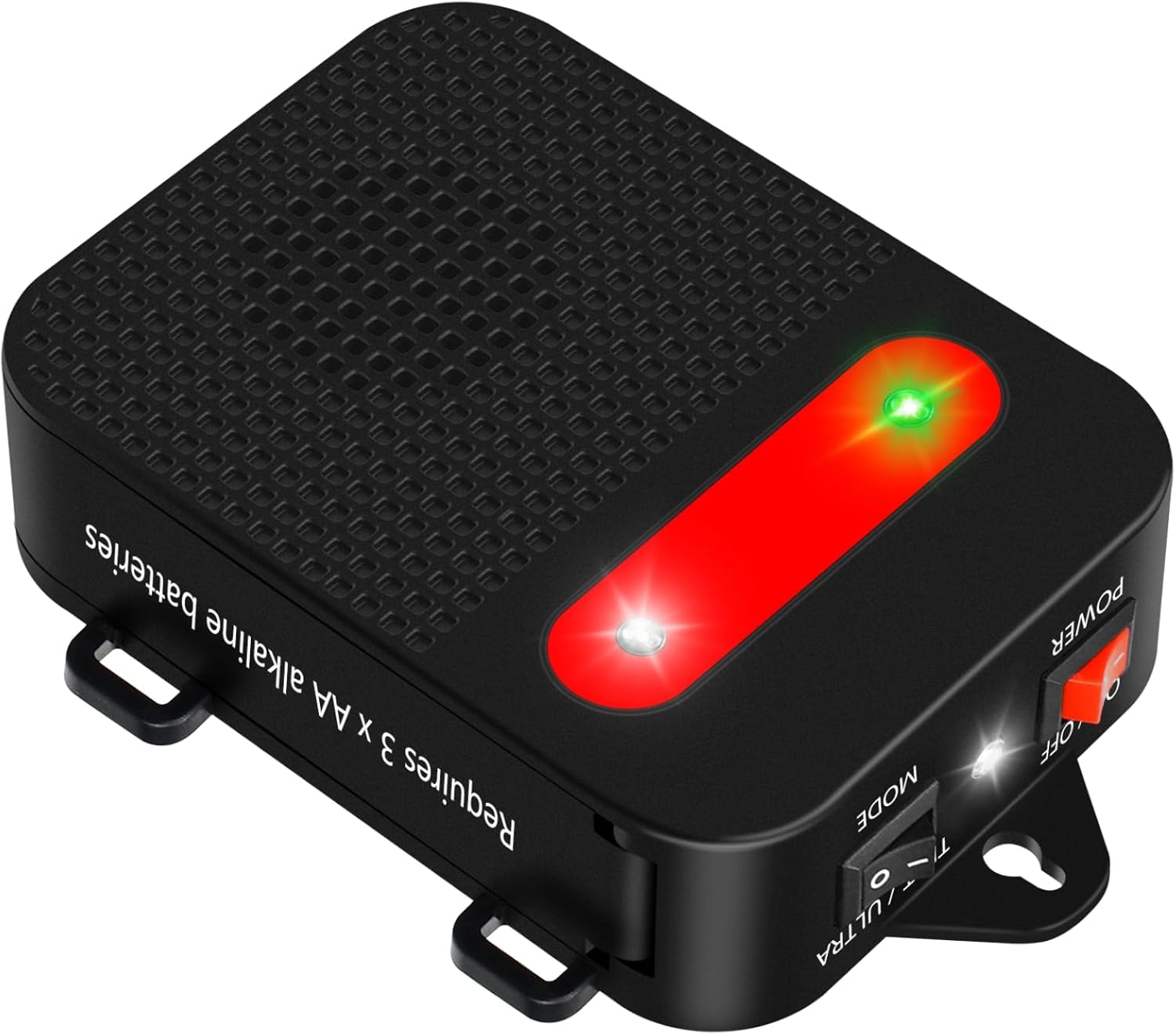

Figure 1: Angveirt Ultrasonic Rodent Repellent. This compact device emits ultrasonic waves and features strobe lights to deter pests.

Key Features:

• Under Hood Rodent Repeller: Produces powerful and random blasts of ultrasounds and strobe lights to keep rodents away.
• Battery Operated: Powered by 3 "AA" alkaline batteries, providing up to 85 days of continuous operation.
• Easy Installation: Can be easily placed in various locations using zip ties.
• Auto ON/OFF: Automatically enters standby mode when vibration is detected (e.g., car started) and resumes operation when vibration stops (e.g., car parked).
• Humane Repellent: Repels rodents without harming them.
• Wide Coverage: Effective in areas up to 300 sq. ft. per unit.

WARNING: Contains strobe lights that may trigger seizures for people and pets with photosensitive epilepsy. Please note this when using it.

2. Setup and Installation

Follow these steps to set up your Angveirt Ultrasonic Rodent Repellent:

1. Battery Installation:

   Locate the battery compartment on the side of the device. Open the compartment and insert 3 "AA" alkaline batteries, ensuring correct polarity (+/-). Close the battery compartment door securely.



   Figure 2: Device components including the ON/OFF button, Test/Ultra mode switch, LED indicator light, ultrasonic speaker, LED flashlight, battery compartment, and mounting holes.



   Figure 3: The device is powered by 3xAA batteries, which are easily accessible. Batteries are not included.

2. Placement:

   Place the repellent in the desired area where rodent activity is observed. Common locations include car engine bays, garages, attics, basements, and storage rooms. Ensure the ultrasonic speaker and LED strobe lights are not obstructed.



   Figure 4: The repellent can be used in various indoor and vehicle locations, including passenger compartments, engine bays, trunks, garages, attics, warehouses, basements, and kitchens.

   For car engine bays, use the provided zip ties to secure the device to a stable surface, away from direct heat or moving parts. It is recommended to face the strobe lights towards the area with the most severe rodent damage or activity.



   Figure 5: Example installation of the repellent in a car engine bay, showing its effective range.
3. Power On:

   Flip the ON/OFF switch to the "ON" position. The device will begin its operation cycle.

3. Operating Instructions

The Angveirt Ultrasonic Rodent Repellent operates in cycles to maximize effectiveness and prevent rodents from becoming accustomed to the deterrents.

Operation Modes:

• Test/Ultra Mode Switch: This switch allows you to select between "Test" mode and "Ultra" mode.
  • Test Mode: Converts inaudible ultrasounds to audible sounds, allowing you to verify the device is functioning. This mode is for testing purposes only and should not be used for continuous operation.
  • Ultra Mode: Emits ultrasonic frequencies (25,000Hz to 55,000Hz) that are inaudible to humans but highly effective at repelling rodents.
• Automatic ON/OFF (Vibration Sensor):

  When placed in a vehicle, the repellent features an intelligent vibration sensor. It will automatically enter standby mode when the car engine starts (detects vibration) to conserve battery life and avoid interference. When the car is parked and no vibration is detected, the device will automatically resume its repelling function.



  Figure 6: The device automatically switches to standby mode when the car is in motion and resumes working when the car is parked.
• Ultrasonic Frequency Range:

  The device emits ultrasounds varying between 25,000Hz to 55,000Hz, which is inaudible to humans but audible and irritating to rodents. This variable frequency prevents pests from adapting to the sound.



  Figure 7: The repellent's ultrasonic frequency range is designed to be effective against various rodents while remaining inaudible to humans. Note: Dogs may be sensitive to the product; different dogs react differently.

How it Works (Video Demonstration):

4. Maintenance

To ensure continuous and effective rodent deterrence, regular maintenance is required:

• Battery Replacement: The 3 "AA" alkaline batteries typically last for approximately 85 days (about 2.5 to 3 months) of 24-hour operation. Replace batteries promptly when the indicator light signals low power or when you notice decreased effectiveness.
• Cleaning: Periodically wipe the device with a dry, soft cloth to remove dust or debris that might obstruct the speaker or LED lights. Do not use harsh chemicals or immerse the device in water.
• Check Placement: Regularly inspect the placement of the device to ensure it remains securely attached and its output is not blocked by new obstructions.

5. Troubleshooting

If you encounter issues with your Angveirt Ultrasonic Rodent Repellent, consider the following:

If problems persist, please contact Angveirt customer support for further assistance.

6. Specifications

7. Warranty and Support

Angveirt is committed to providing reliable and quality products. For any questions, concerns, or technical support regarding your Ultrasonic Rodent Repellent, please contact our customer service team. We strive to ensure your satisfaction and help you keep your property safe from unwanted animals.

Please refer to your purchase documentation for specific warranty details and contact information. As a small business brand, Angveirt values your support and is dedicated to assisting our customers.
