1. Introduction and Safety Information
Thank you for choosing the Baumatic BMECH9WVBL 90cm Wall Mounted Cooker Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and retain them for future reference.
1.1 General Safety Warnings
- Ensure the electrical installation complies with local regulations.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not flambé under the cooker hood.
- Do not leave frying pans unattended during use, as overheated oil can ignite.
- Clean the grease filters regularly to prevent fire hazards.
- Ensure adequate ventilation in the room when the cooker hood is used simultaneously with appliances burning gas or other fuels.
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- Always disconnect the appliance from the power supply before cleaning or maintenance.
2. Setup and Installation
The Baumatic BMECH9WVBL is designed for wall-mounted installation. Proper installation is crucial for optimal performance and safety. It can be configured for either extraction (ducted) or recirculation (filter) mode.
2.1 Installation Requirements
- Ensure the wall structure is strong enough to support the weight of the cooker hood (approximately 22 kg).
- Maintain a minimum distance between the hob and the lower part of the hood as specified by local safety regulations (typically 65-75 cm for electric hobs and 75-85 cm for gas hobs).
- For extraction mode, a 150mm diameter ducting system is required to vent air outside.
- For recirculation mode, optional carbon filters must be installed.
2.2 Mounting the Cooker Hood
Refer to the detailed installation diagram for precise measurements and mounting points. It is recommended that installation be performed by a qualified technician.

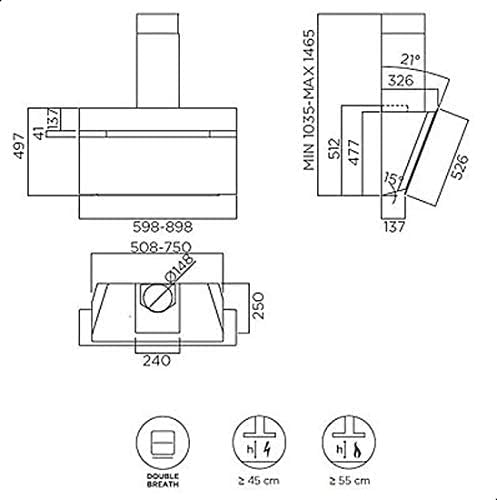

The diagram indicates the following approximate dimensions (in mm):
- Width: 598-898 (main body), 900 (overall)
- Height: 497 (main body), 1035-1465 (adjustable chimney)
- Depth: 526 (angled glass panel)
- Vent Outlet Diameter: 148-150
3. Operating Instructions
The Baumatic BMECH9WVBL cooker hood features intuitive electronic touch controls for easy operation.
3.1 Control Panel
The control panel is located on the front of the hood and consists of touch-sensitive buttons.
3.2 Fan Speed Selection
The hood offers 3 fan speeds plus a boost function to effectively remove steam and odors from your kitchen.
- Speed 1 (Low): Ideal for simmering or light cooking.
- Speed 2 (Medium): Suitable for general cooking.
- Speed 3 (High): For heavy cooking, frying, or strong odors.
- Boost Function: Provides maximum extraction for a short period to clear intense smoke or steam quickly. This function typically reverts to a lower speed after a set time.
To select a speed, simply touch the corresponding button on the control panel. To turn off the fan, touch the power button or cycle through the speeds until the fan stops.
3.3 Lighting
The cooker hood is equipped with twin halogen lamps to illuminate your cooking area.
- To turn the lights on or off, touch the light button on the control panel.
4. Maintenance
Regular maintenance ensures the longevity and efficient operation of your cooker hood.
4.1 Cleaning the Grease Filters
The aluminum grease filters capture airborne grease particles. They should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup and maintain extraction efficiency.
- Disconnect Power: Always switch off and unplug the cooker hood before cleaning.
- Remove Filters: Carefully unlatch and remove the aluminum grease filters.
- Clean Filters: Wash the filters by hand in hot soapy water or in a dishwasher on a low-temperature cycle. Ensure they are completely dry before re-installing.
- Re-install Filters: Place the dry filters back into their positions and secure the latches.
4.2 Replacing Carbon Filters (Recirculation Mode Only)
If your hood is operating in recirculation mode, it uses optional carbon filters to remove odors. These filters are not washable and must be replaced periodically (typically every 3-6 months, depending on usage).
- Disconnect Power: Switch off and unplug the cooker hood.
- Remove Grease Filters: Follow the steps above to remove the aluminum grease filters.
- Remove Old Carbon Filters: Locate and remove the saturated carbon filters (refer to your specific model's diagram for exact placement).
- Install New Carbon Filters: Fit new carbon filters according to the manufacturer's instructions.
- Re-install Grease Filters: Replace the aluminum grease filters.
4.3 Cleaning the Exterior
Clean the black glass exterior with a soft cloth and a mild, non-abrasive cleaning agent. Avoid harsh chemicals or abrasive materials that could scratch the surface.
5. Troubleshooting
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooker hood does not start. | No power supply. | Check if the appliance is plugged in and the circuit breaker is on. |
| Poor extraction performance. | Grease filters are dirty. | Clean the aluminum grease filters. |
| Carbon filters are saturated (recirculation mode). | Replace the carbon filters. | |
| Ducting is blocked or too long/narrow. | Check and clear any obstructions in the ducting. Ensure ducting meets installation requirements. | |
| Lights are not working. | Bulb is faulty. | Replace the halogen bulb(s). Ensure power is disconnected first. |
| Excessive noise. | Loose components or improper installation. | Check for loose screws or parts. Re-check installation. |
6. Specifications
Technical details for the Baumatic BMECH9WVBL Cooker Hood:
- Brand: Baumatic
- Model Number: BMECH9WVBL
- Installation Type: Wall Mounted
- Design: Angled Vertical
- Color: Black
- Material: Glass
- Width: 90 cm (900 mm)
- Height: 1035 - 1465 mm (adjustable chimney)
- Product Dimensions (LxWxH): 52.6 x 90 x 146.5 cm
- Weight: 22 kg
- Extraction Capacity: 900 m³/h
- Control Type: Electronic Touch Control
- Number of Speeds: 3 + Boost function
- Lighting: Twin Halogen Lamps
- Filters: Removable and Washable Aluminum Grease Filters, Optional Carbon Filters (for recirculation)
- Ventilation Style: Extraction (Ducted) or Recirculation
- Vent Outlet Diameter: 150 mm
- Voltage: 220-240V
- Frequency: 50-60Hz
- Special Feature: Touch Control
7. Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official Baumatic website. In case of technical issues or if you require assistance beyond the troubleshooting steps, please contact Baumatic customer support.
Please have your model number (BMECH9WVBL) and purchase date ready when contacting support.
