Bosch GSA 120 Professional Sabre Saw Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your Bosch GSA 120 Professional Sabre Saw. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage. Keep this manual for future reference.

The Bosch GSA 120 Sabre Saw is designed for cutting various materials. It features a powerful 1200 W motor, a low-friction transmission system for extended durability, and an optimized tool holder for efficient performance. The ergonomic design with anti-slip protection and a comfortable grip enhances user control.

2. General Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators.
• Personal Safety: Always wear eye protection. Use personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection when appropriate. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

3. Product Components

Familiarize yourself with the main components of your Bosch GSA 120 Professional Sabre Saw.

Figure 3.1: Overall view of the Bosch GSA 120 Sabre Saw, highlighting the main body, handle, trigger, and blade holder.

Figure 3.2: Rear view of the saw, showing the product label with model number, power ratings, and manufacturing details.

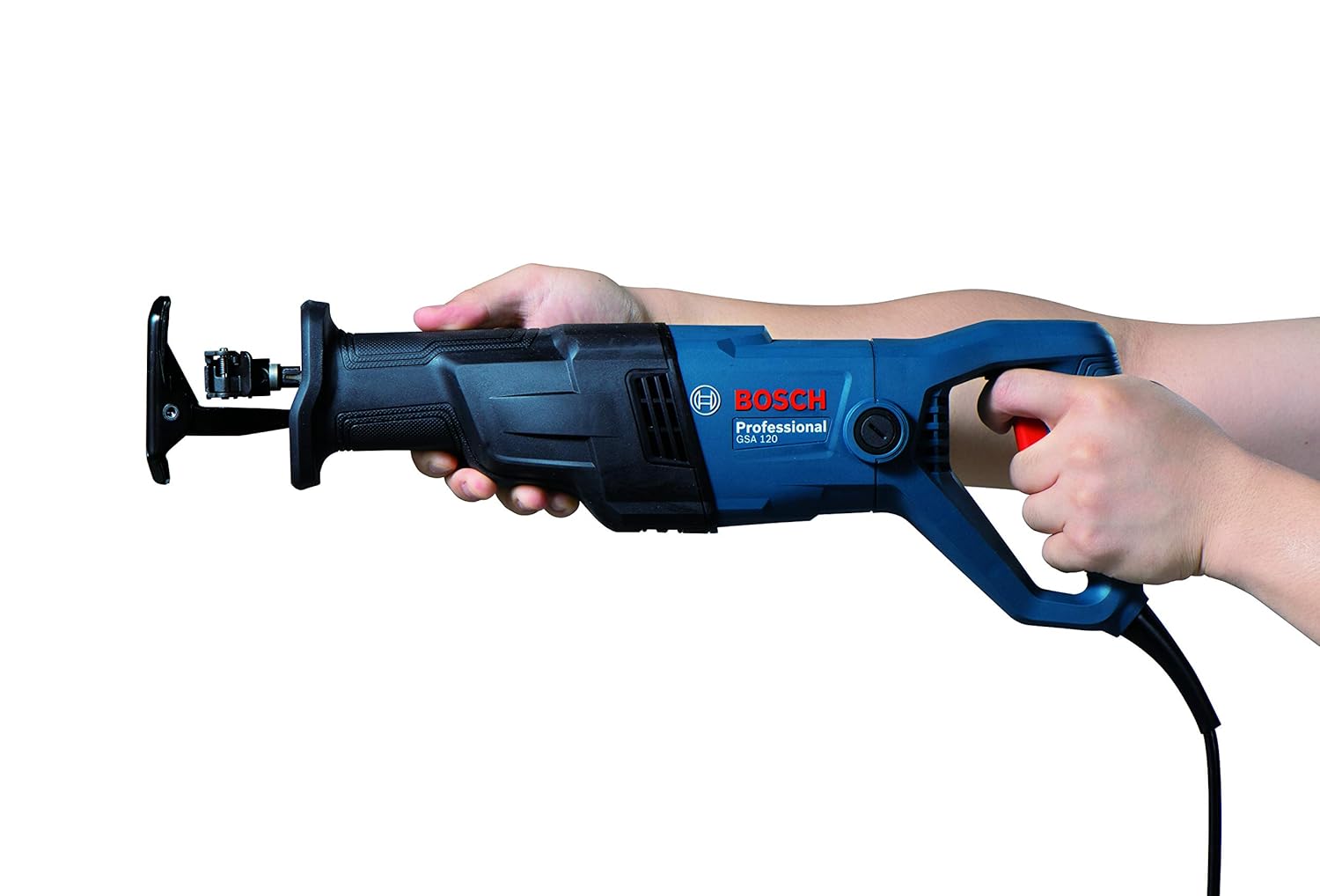

Figure 3.3: Illustration of a user holding the Bosch GSA 120, demonstrating the ergonomic grip and balance during operation.

4. Setup

4.1 Blade Installation

1. Ensure the tool is disconnected from the power supply before installing or changing blades.
2. The Bosch GSA 120 features a tool-less blade change system. Locate the blade release mechanism on the front of the saw.
3. Rotate or pull the blade release mechanism to open the blade clamp.
4. Insert the shank of the sabre saw blade fully into the blade clamp until it clicks into place.
5. Release the mechanism to secure the blade. Gently pull on the blade to ensure it is firmly seated.

4.2 Power Connection

• This tool operates on an AC/DC power source. Ensure the voltage and frequency of your power supply match the specifications listed on the tool's nameplate.
• Plug the power cord into a suitable electrical outlet.
• Always use an extension cord suitable for the power input of the tool and for outdoor use if applicable.

5. Operating Instructions

5.1 Basic Operation

1. Starting the Tool: Press the trigger switch to start the saw. The speed can be varied by the amount of pressure applied to the trigger.
2. Stopping the Tool: Release the trigger switch to stop the saw.
3. Securing Workpiece: Always secure the workpiece firmly to prevent movement during cutting.
4. Cutting Technique: Place the shoe plate firmly against the workpiece before starting the cut. Allow the blade to reach full speed before engaging the material. Apply steady, even pressure.

5.2 Applications

The Bosch GSA 120 is suitable for various cutting tasks. Its powerful motor and robust design allow for efficient cutting in different materials.

Figure 5.1: Example of the GSA 120 being used for cutting metal, such as a car body, demonstrating its versatility.

Figure 5.2: Example of the GSA 120 being used for cutting a large pipe, illustrating its capability for demanding tasks.

6. Maintenance

6.1 Cleaning

• Always disconnect the tool from the power supply before cleaning.
• Keep the ventilation openings clean to prevent overheating. Use a soft brush or compressed air to clear dust and debris.
• Wipe the tool housing with a damp cloth. Do not use harsh chemicals or abrasive cleaners.

6.2 Storage

• Store the tool in a dry, secure location out of reach of children.
• Ensure the power cord is neatly coiled and not kinked.

7. Troubleshooting

8. Specifications

9. Warranty and Support

9.1 Warranty Information

The Bosch GSA 120 Professional Sabre Saw comes with a 6 Month Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

For technical assistance, service, or warranty inquiries, please contact Bosch customer care.

• Customer Care Number: 18004258665
• Manufacturer Address: Bosch Ltd., Post Box No: 3000, Hosur Road, Adugodi, Bangalore - 560030, India.
