Introduction
This manual provides comprehensive instructions for the safe and effective use, setup, operation, and maintenance of your SWANSTROM S205E-040 Standoff Shear Cutter. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

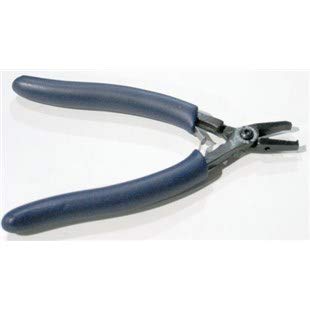

Image: The SWANSTROM S205E-040 Standoff Shear Cutter, featuring blue ergonomic handles and precision cutting jaws designed for standoff shearing.
Product Media
Currently, there are no official product videos available for the SWANSTROM S205E-040 Standoff Shear Cutter. Please refer to the images and text descriptions for visual guidance.
Safety Information
Always prioritize safety when using any hand tool. Failure to follow these safety guidelines may result in personal injury or damage to the tool.
- Wear Eye Protection: Always wear ANSI-approved safety glasses or goggles when operating the shear cutter to protect against flying debris.
- Inspect Tool Before Use: Before each use, inspect the shear cutter for any signs of damage, wear, or loose parts. Do not use a damaged tool.
- Use for Intended Purpose Only: This tool is designed for shearing standoffs. Do not use it for cutting hardened steel, live electrical wires, or any material beyond its specified capacity.
- Keep Hands Clear: Ensure hands and fingers are clear of the cutting jaws during operation.
- Store Properly: Store the tool in a dry, clean place, out of reach of children.
- Maintain a Secure Grip: Always maintain a firm and secure grip on the handles during use.
Setup
The SWANSTROM S205E-040 Standoff Shear Cutter is designed for immediate use out of the packaging. No assembly is required.
- Unpack the Tool: Carefully remove the shear cutter from its packaging.
- Initial Inspection: Perform a visual inspection to ensure there are no visible defects or shipping damage. Check that the jaws open and close smoothly.
- Clean if Necessary: If the tool appears dusty or has any residue from packaging, wipe it clean with a dry, lint-free cloth.
Operating Instructions
Follow these steps for effective and safe operation of your standoff shear cutter:
- Identify Target Standoff: Locate the standoff or component you intend to shear. Ensure it is within the tool's cutting capacity.
- Position the Tool: Open the jaws of the shear cutter and position them around the standoff. Ensure the standoff is seated firmly and squarely within the cutting blades.
- Apply Pressure: With a firm grip on both handles, apply steady, even pressure to close the jaws. The standoff should shear cleanly. Avoid twisting or jerking the tool during the cut.
- Release and Inspect: Once the cut is complete, release the handles and remove the tool. Inspect the cut surface for cleanliness and ensure no burrs or sharp edges remain that could cause injury or damage to other components.
- Clear Debris: Safely dispose of the sheared material.
Note: This tool is specifically designed for shearing standoffs and similar soft metal components. Using it on harder materials or for purposes other than its intended design may damage the blades and void any warranty.
Maintenance
Proper maintenance will extend the life of your SWANSTROM S205E-040 Standoff Shear Cutter and ensure its continued performance.
- Cleaning: After each use, wipe down the tool with a clean, dry cloth to remove any debris, dust, or residue. For stubborn grime, a slightly damp cloth can be used, followed immediately by drying.
- Lubrication: Periodically apply a small amount of light machine oil to the pivot point to ensure smooth operation of the jaws. Do not over-lubricate.
- Storage: Store the shear cutter in a dry environment to prevent rust. Keep the jaws closed when not in use to protect the cutting edges.
- Blade Inspection: Regularly inspect the cutting blades for nicks, dullness, or alignment issues. Severely damaged blades may require professional sharpening or tool replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Jaws are stiff or difficult to open/close. | Lack of lubrication; accumulation of dirt/debris. | Clean the pivot point and apply a small amount of light machine oil. |
| Cut is not clean or leaves burrs. | Dull or damaged blades; incorrect positioning of material; attempting to cut material beyond capacity. | Inspect blades for damage. Ensure material is properly seated. Do not attempt to cut hardened materials. Consider professional sharpening or tool replacement if blades are severely dull. |
| Tool feels loose or wobbly. | Loose pivot screw (unlikely for sealed tools); internal wear. | If the tool has a visible pivot screw, check if it can be tightened (do not overtighten). If not, or if the issue persists, the tool may be worn and require replacement. |
Specifications
- Model: S205E-040
- Brand: Swanstrom
- Type: Standoff Shear Cutter
- Item Weight: 1 Pound
- ASIN: B07XYHR7KV
- Date First Available: September 16, 2019
- Manufacturer: Swanstrom
- Intended Use: Precision shearing of standoffs and similar soft metal components.
Warranty and Support
For specific warranty information regarding your SWANSTROM S205E-040 Standoff Shear Cutter, please refer to the documentation included with your purchase or visit the official Swanstrom website. Warranty terms typically cover defects in materials and workmanship under normal use.
For technical support, replacement parts, or service inquiries, please contact Swanstrom customer service directly. Contact information can usually be found on the manufacturer's website or on the product packaging.
Online Resources: For additional information, product updates, or frequently asked questions, visit the official Swanstrom website: www.swanstromtools.com
