vidaXL Massage Recliner Model 248699 User Manual

Introduction

Thank you for choosing the vidaXL Massage Recliner Model 248699. This manual provides essential information for the safe and efficient use of your new recliner. Please read it thoroughly before assembly and operation, and retain it for future reference.

This recliner is designed to provide comfort and relaxation with its adjustable backrest, footrest, and integrated massage function. It features a sturdy wood and steel frame, padded with thick foam, and upholstered in soft fabric for durability and comfort.

Front view of the vidaXL Massage Recliner in dark grey fabric. — **Image Description:** A clear front view of the vidaXL Massage Recliner, upholstered in dark grey fabric. The chair appears in an upright position, showcasing its design and texture.

Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

Ensure all components are securely assembled before use.
Do not allow children to play on or around the recliner unsupervised.
Keep hands and feet clear of moving parts during recline and upright adjustments.
Do not exceed the maximum weight recommendation of 150 kg (330 lbs).
If the power cord for the massage function is damaged, it must be replaced by a qualified service technician to avoid hazards.
Avoid placing the recliner near heat sources or in direct sunlight to prevent material degradation.

Package Contents

Before assembly, verify that all parts are present. Refer to the assembly diagram (if provided separately) for a complete list of components. Typically, the package includes:

Recliner base and backrest sections
Armrests
Legs/Feet
Massage unit power adapter and remote control
Assembly hardware (screws, bolts, washers, Allen key)
Instruction manual (this document)

Setup and Assembly Instructions

Assembly typically requires two adults. Follow these general steps. For detailed diagrams, please refer to the separate assembly sheet included with your product.

Unpack Components: Carefully remove all parts from the packaging. Place them on a soft, clean surface to prevent scratches.
Attach Legs: Secure the recliner legs to the base using the provided hardware. Ensure they are tightened firmly.
Connect Backrest: Slide the backrest into the designated slots on the recliner base until it clicks securely into place.
Attach Armrests: If separate, attach the armrests to the main body of the recliner.
Connect Massage Unit: Locate the power cable for the massage unit, usually found in a side pocket or under the seat. Connect it to the power adapter, then plug the adapter into a standard electrical outlet.
Final Check: Before first use, gently rock the recliner to ensure all connections are stable and secure.

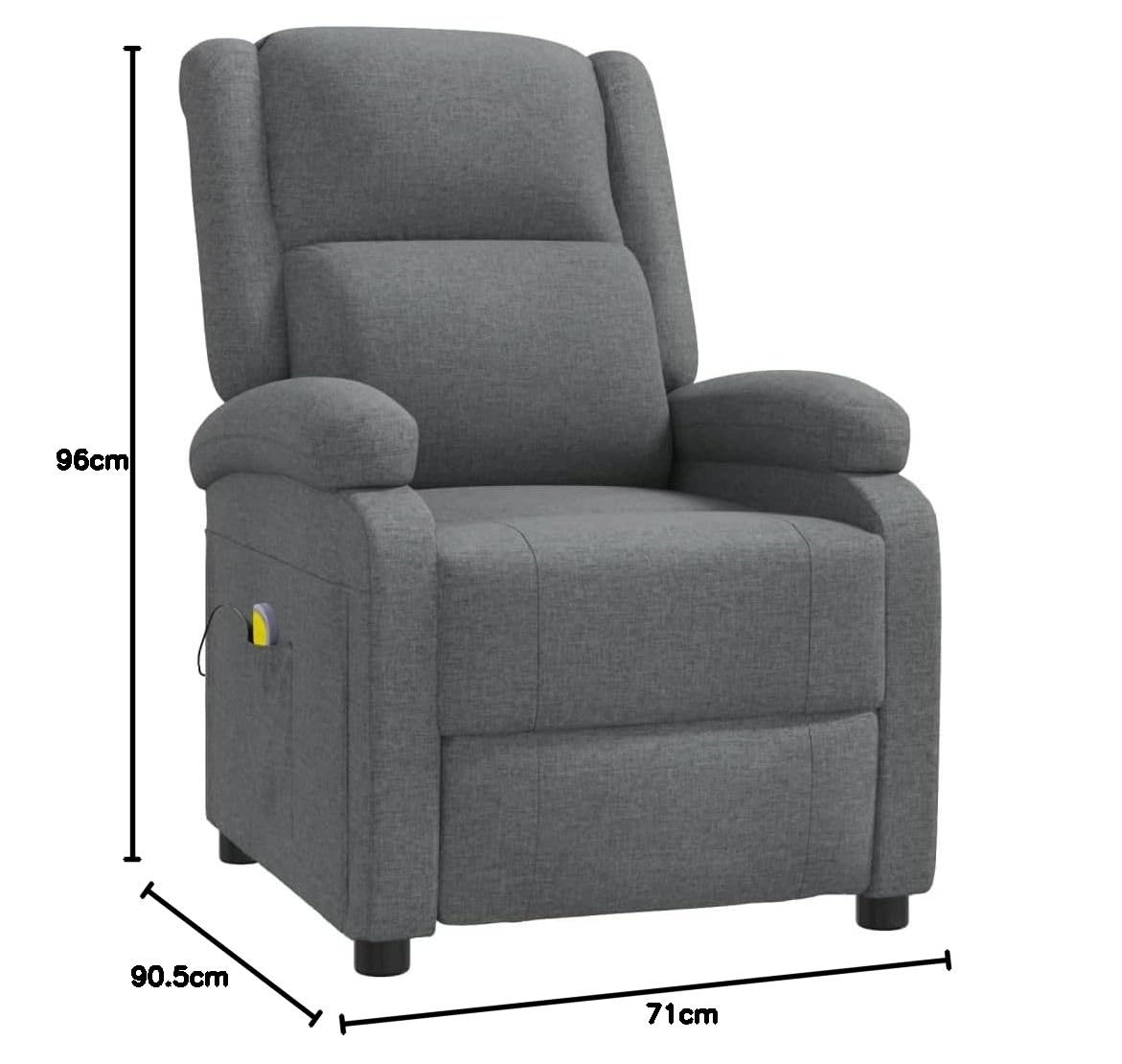

Diagram showing the dimensions of the vidaXL Massage Recliner in upright position. — **Image Description:** This image displays a diagram of the vidaXL Massage Recliner with its key dimensions labeled. The height is 96 cm, depth is 90.5 cm, and width is 71 cm when in the upright seating position. This helps users understand the physical footprint of the chair.

Close-up view of the recliner mechanism, showing the connection points for assembly. — **Image Description:** A detailed close-up of the recliner's internal mechanism, specifically showing the metal frame and connection points where the backrest and other components attach. This image is useful for understanding the assembly process.

Operating Instructions

Reclining Function

To recline the chair, apply gentle pressure to the backrest while pushing forward on the armrests. The footrest will extend, and the backrest will tilt backward. To return to the upright position, lean forward and push the footrest down with your legs until it locks into place.

Side view of the vidaXL Massage Recliner showing the recline mechanism with arrows indicating movement. — **Image Description:** A side view of the recliner illustrating its reclining capability. Multiple faded outlines of the chair show the range of motion from an upright to a fully reclined position, with arrows indicating the direction of movement for both the backrest and footrest. This visually demonstrates how the chair adjusts.

Massage Function

The recliner features an integrated massage function controlled by a remote. The remote is typically stored in a side pocket of the chair.

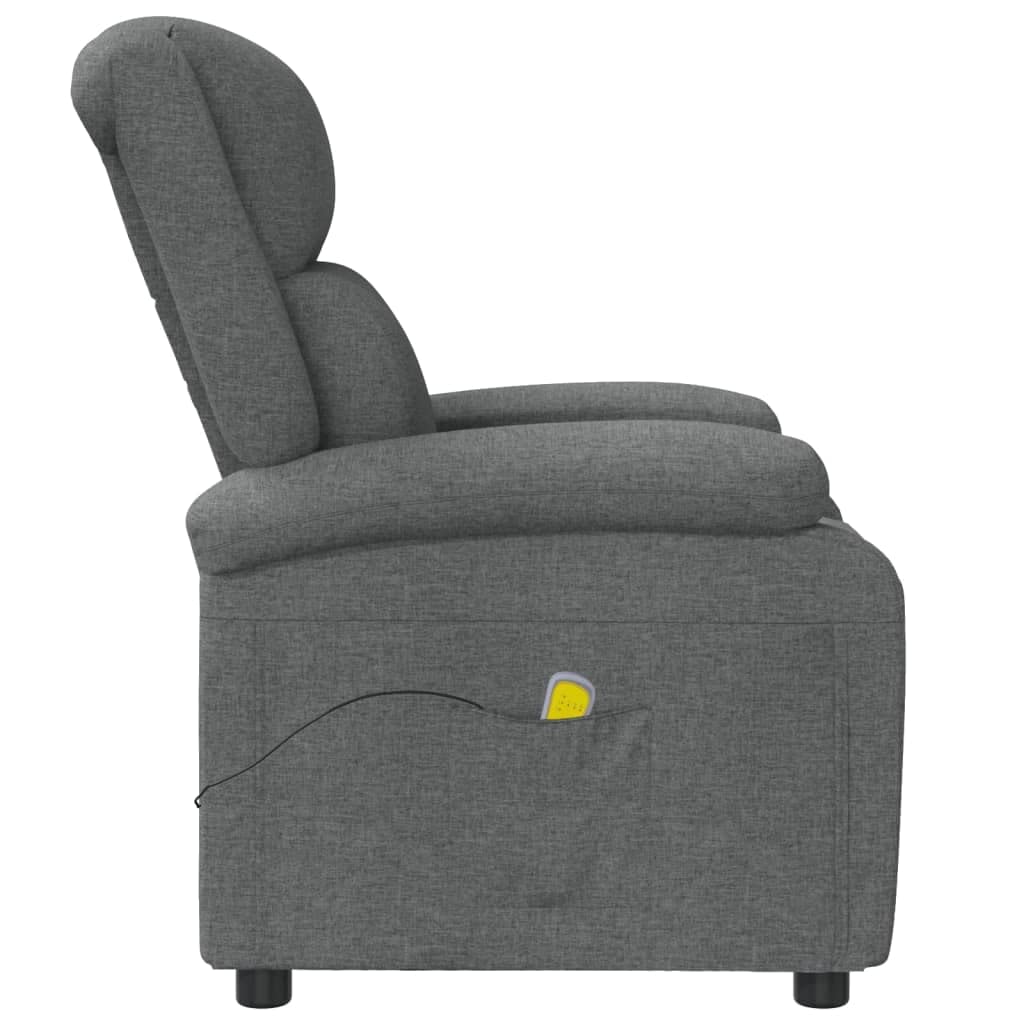

Side view of the vidaXL Massage Recliner showing the remote control in a side pocket. — **Image Description:** This image shows a side profile of the recliner, highlighting a small pocket on the side where the massage remote control is conveniently stored. A yellow remote with a black cord is visible within the pocket.

Close-up of the massage remote control with visible buttons and functions. — **Image Description:** A close-up view of the massage remote control, clearly showing its buttons for power, mode, intensity, and zone selection. This helps users identify and operate the massage functions.

Front view of the vidaXL Massage Recliner with purple circles indicating massage points. — **Image Description:** A front view of the recliner with several purple circular overlays indicating the locations of the massage points within the backrest and seat. This visually represents where the massage function targets the body.

Using the Remote Control:

Power Button: Press to turn the massage function ON or OFF.
Mode Button: Cycle through different massage modes (e.g., kneading, tapping, rolling).
Intensity Button: Adjust the massage intensity (low, medium, high).
Zone Buttons: Select specific massage zones (e.g., upper back, lower back, thighs).
Timer Button: Set a duration for the massage session (e.g., 15, 30 minutes).

Refer to the remote control's specific markings for exact button functions.

Maintenance

Proper care will extend the life of your recliner:

Cleaning Fabric: For general cleaning, vacuum the fabric regularly using a soft brush attachment to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner according to the product instructions, testing on an inconspicuous area first.
Frame Maintenance: Periodically check all bolts and screws to ensure they are tight. Retighten if necessary.
Electrical Components: Keep the massage unit and power cord dry. Do not attempt to repair electrical components yourself.
Avoid Harsh Chemicals: Do not use abrasive cleaners, bleach, or harsh solvents on the fabric or frame, as these can cause damage.

Close-up of the dark grey fabric texture of the recliner. — **Image Description:** A magnified view of the dark grey fabric used for the recliner's upholstery, showing its woven texture. This detail is helpful for understanding cleaning instructions.

Troubleshooting

Problem	Possible Cause	Solution
Recliner does not recline smoothly.	Mechanism obstruction or loose connections.	Check for any objects obstructing the mechanism. Ensure all assembly bolts are tight.
Massage function does not turn on.	Power cord disconnected or remote battery low.	Ensure the power adapter is securely plugged into the wall outlet and the recliner. Check remote control batteries (if applicable).
Unusual noises during operation.	Loose hardware or friction in moving parts.	Inspect and tighten all visible bolts and screws. Apply a silicone-based lubricant to moving metal parts if necessary (avoiding fabric).

Specifications

Feature	Detail
Brand	vidaXL
Model Number	248699
Color	Dark Grey
Material	Polyester fabric, Metal, Wood
Product Dimensions (Upright)	71 cm (W) x 90.5 cm (D) x 96 cm (H)
Product Dimensions (Reclined)	71 cm (W) x 158 cm (D) x 71 cm (H)
Product Weight	24.95 kg
Maximum Weight Recommendation	150 kg
Recommended Use	Reading, Relaxation
Room Type	Living Room
Age Range	Adult

Warranty and Support

Information regarding warranty coverage and customer support for your vidaXL product can typically be found on the manufacturer's official website or through your point of purchase. Please retain your proof of purchase for any warranty claims.

For further assistance or to report missing/damaged parts, please contact vidaXL customer service. Visit the official vidaXL store on Amazon for more information: vidaXL Amazon Store.
