1. Product Overview
The CT Copper Tailor VH18 Copper Vent Hood is a handcrafted island mount range hood designed for kitchen ventilation. It features a powerful 610 CFM exhaust fan, LED lighting, and dishwasher-safe baffle filters. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your vent hood.
Image 1.1: Front view of the CT Copper Tailor VH18 Copper Vent Hood.
Image 1.2: Side view of the CT Copper Tailor VH18 Copper Vent Hood, showcasing its profile.
2. Safety Information
Read all instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Ensure the electrical supply matches the voltage requirements of the unit (120 Volts).
- All electrical wiring must be properly installed and grounded in accordance with local codes.
- Do not operate the vent hood with damaged wiring or if the unit is malfunctioning.
- Maintain proper clearance between the cooking surface and the bottom of the vent hood as specified by local building codes and cooking appliance manufacturers.
- Clean grease filters regularly to prevent grease fires.
- This appliance is for general ventilating use only. Do not use to exhaust hazardous or explosive materials.
The hood vent insert is UL-listed and ETL approved for safety and protection.
3. Installation and Setup
Professional installation is recommended for this island mount vent hood. A CAD drawing will be sent to you once an order is placed to assist with planning.
3.1 Unpacking and Inspection
- Carefully remove all packaging materials.
- Inspect the vent hood for any shipping damage. Report any damage immediately to the carrier and retailer.
- Verify all included components are present: Copper Range Hood Cover, Range Hood Insert, Baffle Filters, Grease Tunnel, User Manual.
3.2 Mounting the Hood
This is an island mount unit. Ensure adequate structural support in the ceiling for the weight of the hood. Refer to the provided CAD drawing for precise mounting dimensions and instructions specific to your model.

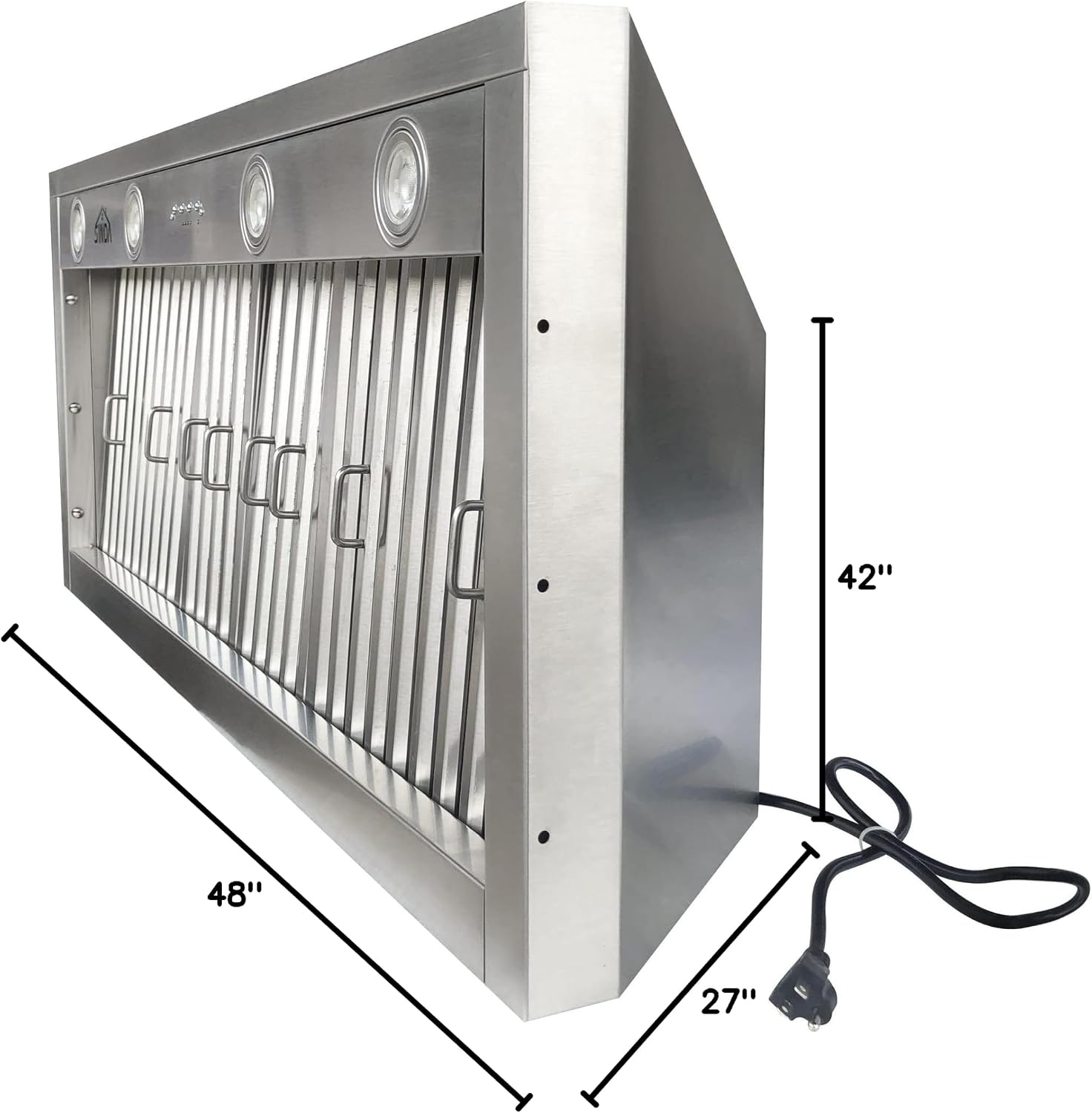

Image 3.1: Dimensional drawing of the vent hood insert, showing 42" width, 48" height, and 27" depth.
3.3 Ducting Requirements
The vent hood requires external ducting for proper operation. Ensure the ductwork is correctly sized and sealed to maximize efficiency and prevent air leaks. Ductless and remote blower ventilation system options are available upon request for specific installations.
3.4 Electrical Connection
Connect the vent hood to a dedicated 120 Volt electrical circuit. All electrical connections must comply with local electrical codes. If you are unsure, consult a qualified electrician.
4. Operating Instructions
The vent hood features push-button controls for fan speed and LED lighting.
Image 4.1: Detail of the control panel, LED lights, and removable baffle filters.
4.1 Fan Operation
- The vent hood has 4 fan speeds, providing up to 610 CFM of airflow.
- Use the push buttons to select the desired fan speed. Higher speeds are recommended for heavy cooking, while lower speeds are suitable for light ventilation.
- The delay shutdown feature allows the fan to continue operating for a set period after cooking to ensure all odors and steam are removed.
4.2 LED Lighting
- The integrated LED lights provide illumination for your cooking surface.
- Press the light button to turn the lights on or off.
Image 4.2: Internal components of the ventilation system, showing the fan and baffle filters.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and longevity of your vent hood.
5.1 Baffle Filters
- The stainless steel baffle filters are designed to trap grease and are dishwasher-safe.
- Remove the filters by pulling the handles and sliding them out.
- Clean filters regularly (e.g., monthly, depending on cooking frequency) to maintain airflow and prevent grease buildup.
- After cleaning, ensure filters are completely dry before re-installing.
5.2 Exterior Cleaning
- The copper hood cover has a clear lacquer coating to prevent tarnishing.
- Clean the exterior with a soft cloth and a mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive pads, as these can damage the finish.
- For the stainless steel components, use a stainless steel cleaner and polish in the direction of the grain.
5.3 LED Lights
LED lights are long-lasting and generally do not require frequent replacement. If a light fails, consult the troubleshooting section or contact customer support.
6. Troubleshooting
If you encounter issues with your vent hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply; circuit breaker tripped; control panel issue. | Check power connection and circuit breaker. If problem persists, contact support. |
| Poor suction. | Clogged grease filters; obstructed ductwork; incorrect fan speed. | Clean or replace filters. Check ductwork for obstructions. Increase fan speed. |
| Excessive noise. | Loose components; fan motor issue; ductwork vibration. | Ensure all parts are securely fastened. Inspect fan for debris. Consult a technician if noise persists. |
| Lights not working. | Loose connection; faulty LED module. | Check light connections. If necessary, contact support for replacement parts. |
If the problem cannot be resolved using the above table, please contact CT Copper Tailor customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | VH18LPI4248 |
| Mounting Type | Island Mount |
| Dimensions (D x W x H) | 27" x 42" x 48" |
| Material | Copper |
| Air Flow Capacity | 610 Cubic Feet Per Minute (CFM) |
| Noise Level | 69 dB |
| Controls Type | Push Button |
| Number of Speeds | 4 |
| Light Source Type | LED |
| Voltage | 120 Volts |
| Wattage | 240.00 W |
| Filter Type | Baffle (Dishwasher-safe) |
| Special Features | Delay Shutdown, Oil Collector, Powerful Vent |
| Certifications | UL-listed, ETL approved |
8. Warranty and Support
8.1 Warranty Information
The CT Copper Tailor VH18 Copper Vent Hood comes with a one-year parts warranty for the range hood insert and a lifetime warranty for the hood cover. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, warranty claims, or inquiries about customization options (including ductless and remote blower systems), please contact CT Copper Tailor customer service. You can find more information and contact details on the official CT Copper Tailor store page:
