VLAND Tail Lights Instruction Manual

1. Introduction

Thank you for choosing VLAND LED Tail Lights for your Ford Mustang GT. This manual provides essential information for the proper installation, operation, and maintenance of your new tail lights. These tail lights are designed for Ford Mustang GT models from 2015 to 2019 and feature a clear lens with sequential turn indicators.

Image 1.1: VLAND Clear LED Tail Lights for Ford Mustang GT (2015-2019). This image displays the clear lens design of the tail light assembly.

2. Safety Information

• Always disconnect the vehicle's battery before beginning any electrical work to prevent electrical shock or damage.
• Ensure the vehicle is parked on a level surface with the parking brake engaged.
• Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
• If you are unsure about any step of the installation process, consult a qualified automotive technician.
• Do not modify the product or its wiring, as this may void the warranty and compromise safety.

3. Package Contents

The package includes the following items:

• One pair of VLAND LED Tail Light assemblies (driver and passenger side).
• Product Manual (this document).
• Necessary wiring harnesses for installation.

4. Setup and Installation

These VLAND tail lights are designed for plug-n-play operation, offering a direct OE fitment or replacement for the stock unit. No complex wiring modifications are typically required.

4.1 Pre-Installation Check

• Verify that the tail lights are compatible with your Ford Mustang GT (2015-2019).
• Inspect both tail light assemblies for any signs of damage during shipping.
• Ensure all included components, especially the wiring harnesses, are present.

4.2 Installation Steps

1. Access the Rear Light Assembly: Open the trunk and locate the access panels or trim pieces that cover the rear of the tail light assemblies. Carefully remove these to expose the mounting bolts and wiring connectors.
2. Disconnect Wiring: Disconnect the electrical connector from the back of the factory tail light.
3. Remove Factory Tail Light: Unscrew the mounting bolts or nuts securing the factory tail light to the vehicle body. Carefully pull the tail light assembly straight out to avoid damaging the alignment pins.
4. Prepare New VLAND Tail Light: Before installing the new VLAND tail light, ensure that any small felt pads or gaskets from the original lights are transferred or replaced if necessary, to ensure a snug fit and prevent rattling.
5. Connect Wiring Harness: Connect the provided VLAND wiring harness to the vehicle's existing electrical connector. Ensure a secure connection.

Image 4.1: The harness assembly for the VLAND tail lights. This image shows the wiring and connector for the tail light, highlighting the plug-and-play design.

6. Mount New Tail Light: Carefully align the new VLAND tail light assembly with the mounting holes and push it into place. Secure it with the previously removed mounting bolts or nuts. Do not overtighten.
7. Optional 3rd Brake Light Cable: Some models may include an extra cable for the 3rd brake light. For EU models, this cable may not be needed. Consult your vehicle's specific wiring diagram if you are unsure.
8. Test Functionality: Before reassembling the trim, reconnect the vehicle's battery and test all light functions: brake lights, running lights, turn signals (left and right), and reverse lights.
9. Reassemble: Once all functions are confirmed, reattach any removed trim pieces or access panels.

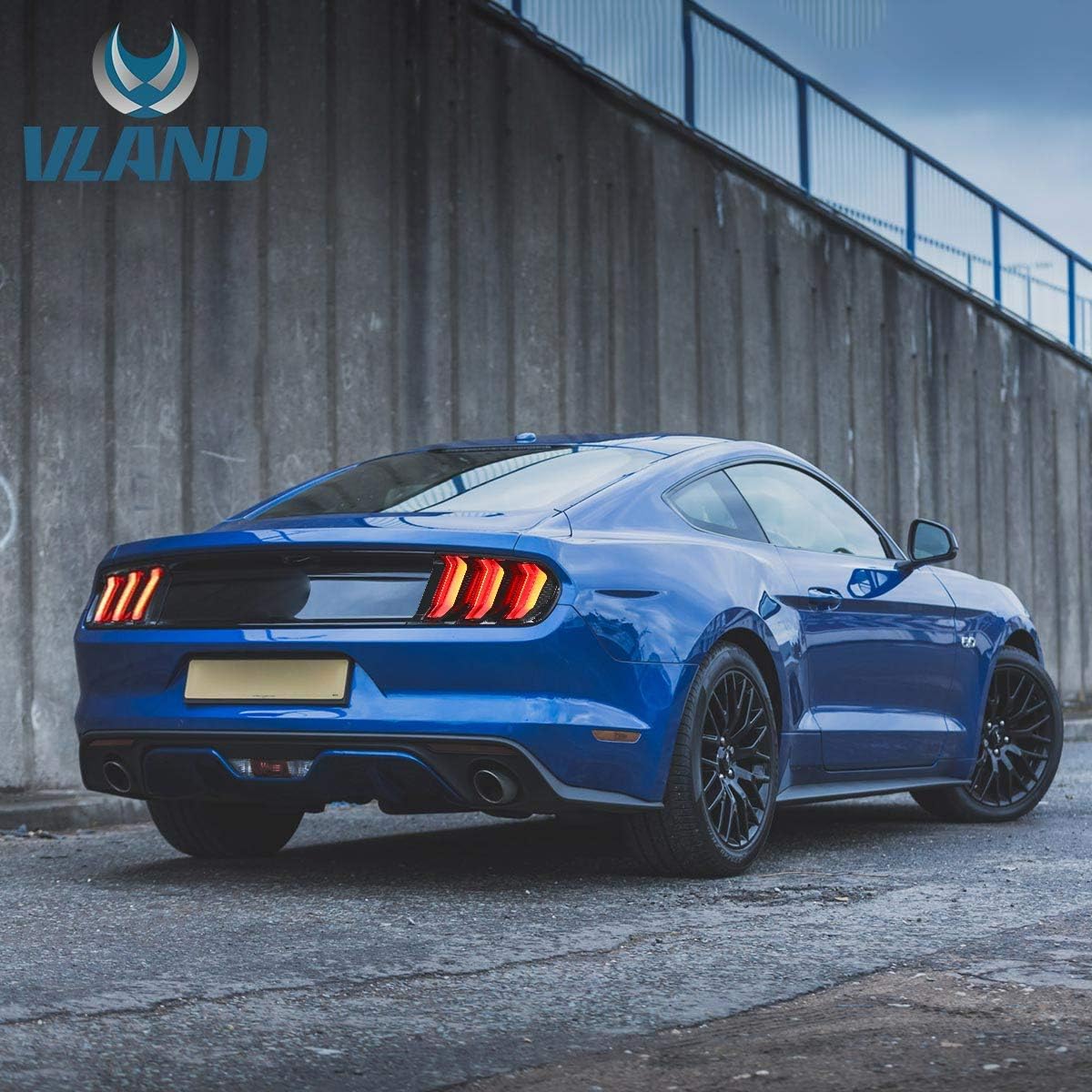

Image 4.2: A blue Ford Mustang GT with VLAND tail lights installed. This image demonstrates the aesthetic integration of the tail lights with the vehicle's design.

5. Operating Instructions

The VLAND LED Tail Lights feature multiple lighting modes for the turn signal function, enhancing visibility and style.

5.1 Light Functions

• Brake Light: Illuminates in Red when the brake pedal is pressed.
• Running Light: Illuminates in Red when the vehicle's lights are on.
• Turn Signal: Illuminates in Yellow with sequential indication.
• Reverse Light: Illuminates in White when the vehicle is in reverse gear.

5.2 Turn Signal Modes

The turn signals offer 5 distinct lighting modes. These modes can typically be cycled through or are pre-programmed based on the vehicle's signal input.

Image 5.1: Illustration of the 5 turn signal modes. This graphic demonstrates the different sequential and static patterns for the yellow turn indicator, including Cursor Indicator Mode, Triple Yellow Mode, All Red (USDM) Mode, Sequential Amber Mode, and Factory Mode.

The tail lights are equipped with Super Bright LED Chips and fiber optic cables, providing a bright neon-like glow. They are designed for full LED display, meaning no additional bulbs are needed.

Image 5.2: Features overview including thorough testing, LED display, and a note on turn signal modes. This image highlights the quality control process and the integrated LED technology, confirming 5 lighting modes for the turn signal.

6. Maintenance

VLAND LED Tail Lights are designed to be maintenance-free due to their durable construction and LED technology. However, proper care can extend their lifespan and maintain their appearance.

• Cleaning: Clean the lens with a soft cloth and mild automotive soap. Avoid abrasive cleaners or harsh chemicals that could damage the PMMA lens.
• Inspection: Periodically check the tail lights for any signs of damage, cracks, or loose connections.
• Waterproof Rating: The tail lights have an IP67 waterproof rating, meaning they are protected against dust ingress and immersion in water up to 1 meter for 30 minutes. This ensures durability against various weather conditions.

Image 6.1: Durability features of VLAND tail lights. This image visually represents the IP67 waterproof, dust-proof, and shock-proof qualities of the product, ensuring resilience in various environmental conditions.

7. Troubleshooting

If you encounter any issues with your VLAND tail lights, refer to the following common troubleshooting steps:

• Lights Not Functioning:
  • Check all electrical connections to ensure they are secure and properly seated.
  • Verify that the vehicle's fuses related to the tail lights are intact.
  • Ensure the vehicle's battery is properly connected and charged.
• Improper Fitment:
  • Ensure the tail light is correctly aligned with the vehicle's body panels and mounting points.
  • Check if any vehicle components need minor adjustment or if small felt pads are missing, which can affect flush seating.
• Water or Moisture Inside Lens:
  • While the product is IP67 rated, extreme conditions or improper installation can sometimes lead to moisture. Ensure the seals are properly seated and the housing is not damaged.
  • If persistent, contact customer support for assistance.
• Sequential Turn Signal Not Working:
  • Confirm that the vehicle's turn signal system is functioning correctly with other lights.
  • Check the wiring connections specific to the turn signal function.

8. Specifications

9. Warranty and Support

VLAND provides a 1-year warranty for these tail lights, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

9.1 Customer Support

For technical assistance, warranty claims, or any questions regarding your VLAND tail lights, please contact VLAND customer support through the retailer where the product was purchased or visit the official VLAND website for contact information.
