1. Introduction
Thank you for choosing the LEACOCO 10W RGB LED Flood Light. This product is designed to provide vibrant, color-changing illumination for outdoor decorative and landscape lighting applications. Featuring IP66 waterproofing and remote control functionality, it offers 16 distinct colors and 4 dynamic modes to enhance your environment. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of your flood light.
2. Safety Information
- Always disconnect power before installation or maintenance.
- Ensure the power supply voltage matches the product's requirements (AC 85-265V).
- Do not look directly into the LED light source when it is illuminated, as it may cause eye strain.
- This product is IP66 waterproof, suitable for outdoor use, but should not be submerged in water.
- Keep the remote control away from water and extreme temperatures.
- Installation should be performed by a qualified electrician if you are unsure about electrical wiring.
- Ensure proper grounding for safety.
3. Package Contents
Verify that all items listed below are included in your package:
- 1 x LEACOCO 10W RGB Floodlight
- 1 x Power Cord (attached)
- 1 x Remote Control (with battery)
- 1 x User Manual (this document)
4. Product Overview
The LEACOCO 10W RGB LED Flood Light features a compact design with a durable aluminum housing and toughened glass. It is equipped with SMD5050 RGB beads for vibrant color output and comes with a 24-key infrared remote control for easy operation.
Image 4.1: The LEACOCO 10W RGB LED Flood Light, showcasing its compact design, power cord, and the included remote control, along with examples of the various colors it can produce.
4.1. Key Features
- RGB Color Changing: 16 static colors and 4 dynamic modes (Flash, Strobe, Fade, Smooth).
- Dimmable: 5 levels of brightness adjustment for static colors.
- IP66 Waterproof: Suitable for outdoor use in various weather conditions.
- Memory Function: The light remembers the last setting when turned off and on.
- Wide Beam Angle: 120-degree beam angle for broad illumination.
- Durable Construction: High-quality heat-dissipating aluminum profile and toughened glass.
4.2. Product Dimensions

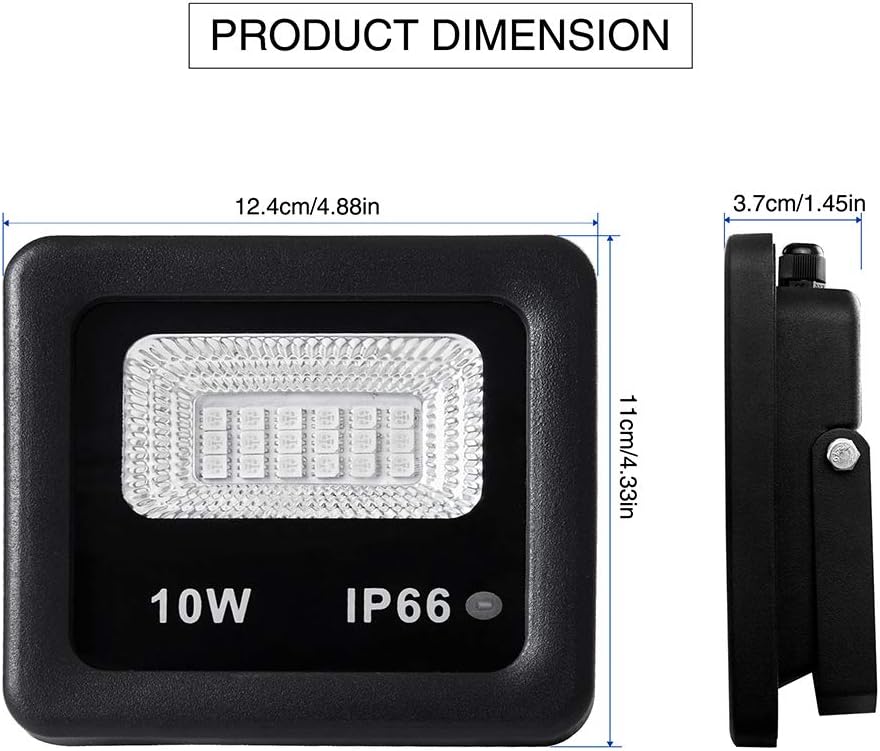

Image 4.2: A diagram illustrating the physical dimensions of the flood light, measuring approximately 4.88 inches (12.4 cm) in length, 4.33 inches (11 cm) in width, and 1.46 inches (3.7 cm) in height.
5. Setup and Installation
The LEACOCO RGB LED Flood Light is designed for easy installation. It can be mounted on a wall or used as a ground mount. Ensure the installation surface is stable and can support the weight of the fixture.
- Choose Location: Select a suitable outdoor location for your flood light, considering the desired illumination area and proximity to a power outlet.
- Mounting:
- For wall mounting, mark and drill holes for the bracket. Secure the flood light bracket to the wall using appropriate screws and anchors (not included).
- For ground mounting, the integrated bracket allows for stable placement on flat surfaces.
- Adjust Angle: The bracket allows for a 180-degree adjustment. Loosen the screws on the side of the bracket, adjust the light to the desired angle, and then tighten the screws securely.
- Power Connection: Plug the flood light into a standard AC 85-265V power outlet. Ensure the connection is secure and protected from water if exposed. The product includes a UL plug and ground wire connection for safety.
Image 5.1: Illustrations demonstrating how to wall mount the flood light, adjust its 180-degree angle, and the importance of proper ground wire connection for safe installation.
6. Operating Instructions
The flood light is controlled using the included 24-key infrared remote control. Ensure the remote control's plastic tab is removed before first use. Point the remote directly at the flood light's sensor for optimal response (control range is approximately 6-8 meters).
Image 6.1: A detailed view of the 24-key remote control, indicating its various buttons for color selection, mode changes, and brightness adjustment, along with the location of the flood light's infrared sensor.
6.1. Remote Control Functions
| Button | Function |
|---|---|
| ON/OFF | Turns the light on or off. |
| Brightness Up/Down | Adjusts the brightness of static colors (5 levels). |
| R, G, B Buttons | Directly selects Red, Green, or Blue color. |
| Color Grid Buttons | Selects one of 16 preset static colors. |
| Flash | Activates a rapid, alternating color change mode. |
| Strobe | Activates a slower, alternating color change mode. |
| Fade | Activates a gradual fade through different colors. |
| Smooth | Activates a smooth transition through the RGB spectrum. |
6.2. Color Changing and Modes
The flood light offers a wide range of color options and dynamic effects to suit various moods and occasions. The memory synchronization function ensures that the light resumes its last setting when powered on.

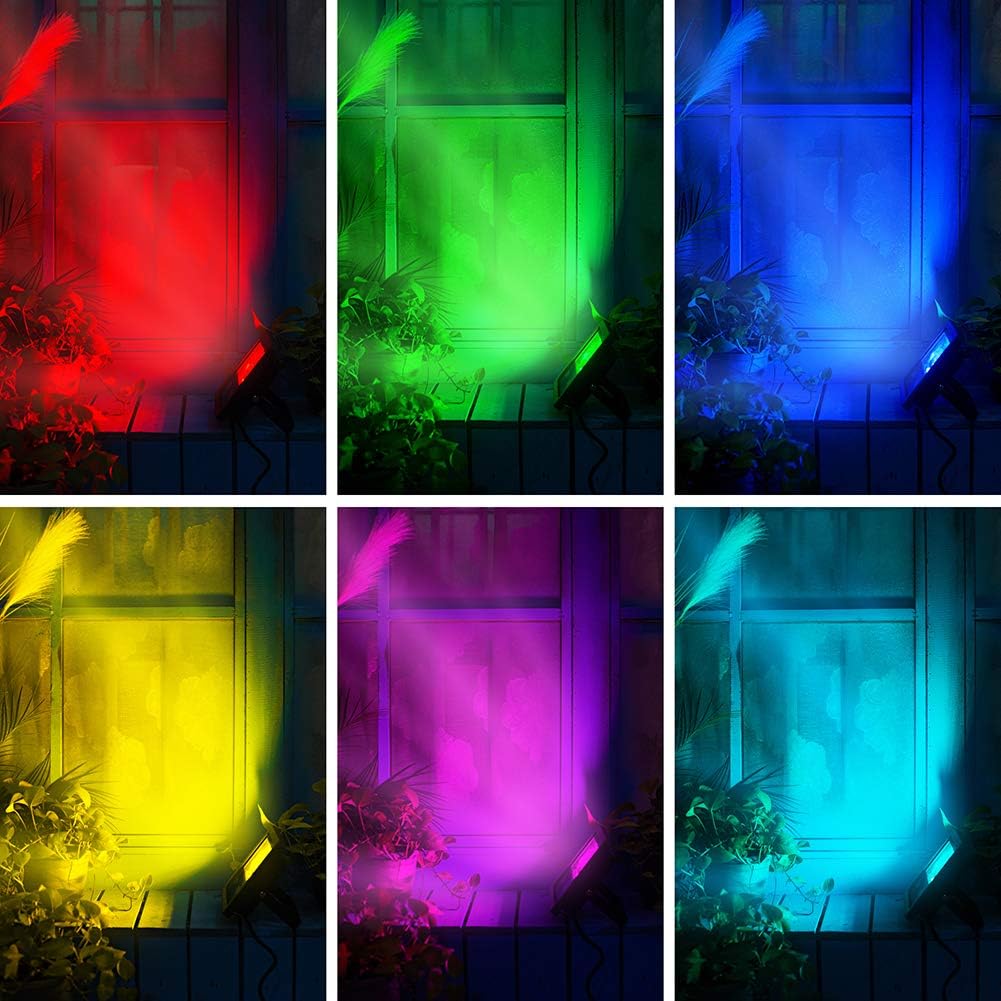

Image 6.2: Examples of the flood light projecting different colors onto a surface, including red, green, blue, yellow, purple, and cyan, demonstrating its color-changing capabilities.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your LEACOCO RGB LED Flood Light.
- Cleaning: Periodically clean the glass surface of the flood light with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents.
- Inspection: Regularly inspect the power cord and housing for any signs of damage. If damage is found, discontinue use and contact customer support.
- Waterproof Integrity: The IP66 rating ensures protection against dust and powerful water jets. While designed for outdoor use, avoid prolonged submersion or high-pressure water sprays directly onto the unit.
Image 7.1: A close-up photograph of the flood light in a wet, outdoor setting, emphasizing its robust construction and IP66 waterproof capabilities, suitable for various weather conditions.
8. Troubleshooting
If you encounter issues with your flood light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, remote battery dead, remote not pointed at sensor. | Check power connection. Replace remote battery. Ensure remote is pointed directly at the light's sensor. |
| Remote control not responding. | Remote battery low/dead, remote too far, obstruction between remote and sensor. | Replace remote battery. Move closer to the light (within 6-8m). Remove any obstructions. |
| Colors appear incorrect or inconsistent. | Internal component issue. | Try resetting the light by unplugging it for a few minutes and plugging it back in. If the issue persists, contact customer support. |
| Light turns off by itself occasionally. | Possible power fluctuation or internal timer (not a standard feature). | Check power supply stability. If it happens frequently, contact customer support. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | LEACOCO |
| Model Number | RGB |
| Wattage | 10 Watts |
| Light Source Type | LED (SMD5050 RGB beads) |
| Light Color | RGB (16 Colors) |
| Brightness | 1000 Lumen |
| Color Temperature | 6500 Kelvin |
| Control Method | Remote Control (Infrared) |
| Input Voltage | AC 85-265V |
| Water Resistance Level | IP66 Waterproof |
| Material | Aluminum, Toughened Glass |
| Product Dimensions (L x W x H) | 4.88" x 4.33" x 1.46" (12.4cm x 11cm x 3.7cm) |
| Item Weight | 13.7 ounces |
| Beam Angle | 120 degrees |
| Special Features | Dimmable, Memory Function |
| Installation Type | Ground Mount, Wall Mount |
| Certifications | FCC, CE, ROSS (RoHS) |
10. Warranty and Customer Support
LEACOCO is committed to customer satisfaction. We provide a 365-day after-sales service for this product. If you have any questions, concerns, or require assistance with your LEACOCO RGB LED Flood Light, please do not hesitate to contact our customer support team. We aim to provide a satisfactory solution within 12 hours.
For support, please refer to the contact information provided on your purchase receipt or the official LEACOCO website.
