Fire-Lite B200S-WH Addressable Sounder Base Instruction Manual

1. Introduction

The Fire-Lite B200S-WH is an addressable sounder base designed for use with compatible Fire-Lite intelligent fire alarm control panels (FACPs). This device provides audible notification in response to alarm conditions detected by an attached intelligent detector. It integrates a sounder directly into the detector base, simplifying installation and wiring. This manual provides essential information for the proper installation, operation, and maintenance of the B200S-WH.

2. Safety Information

WARNING: Installation and wiring of this device must be performed by qualified personnel in accordance with all applicable local and national electrical codes, standards, and the instructions provided in this manual. Failure to follow these instructions may result in property damage, serious injury, or death.

CAUTION: Disconnect all power from the fire alarm control panel before installing, servicing, or removing the B200S-WH sounder base. Electrostatic discharge (ESD) can damage electronic components; handle the device with care and use appropriate ESD precautions.

• Ensure the fire alarm control panel is compatible with the B200S-WH.
• Do not exceed the specified voltage and current ratings.
• Test the system thoroughly after installation and any maintenance.

3. Package Contents

Verify that the following items are included in your package:

• 1 x Fire-Lite B200S-WH Addressable Sounder Base
• Installation Guide (often included with the product, or refer to this manual)

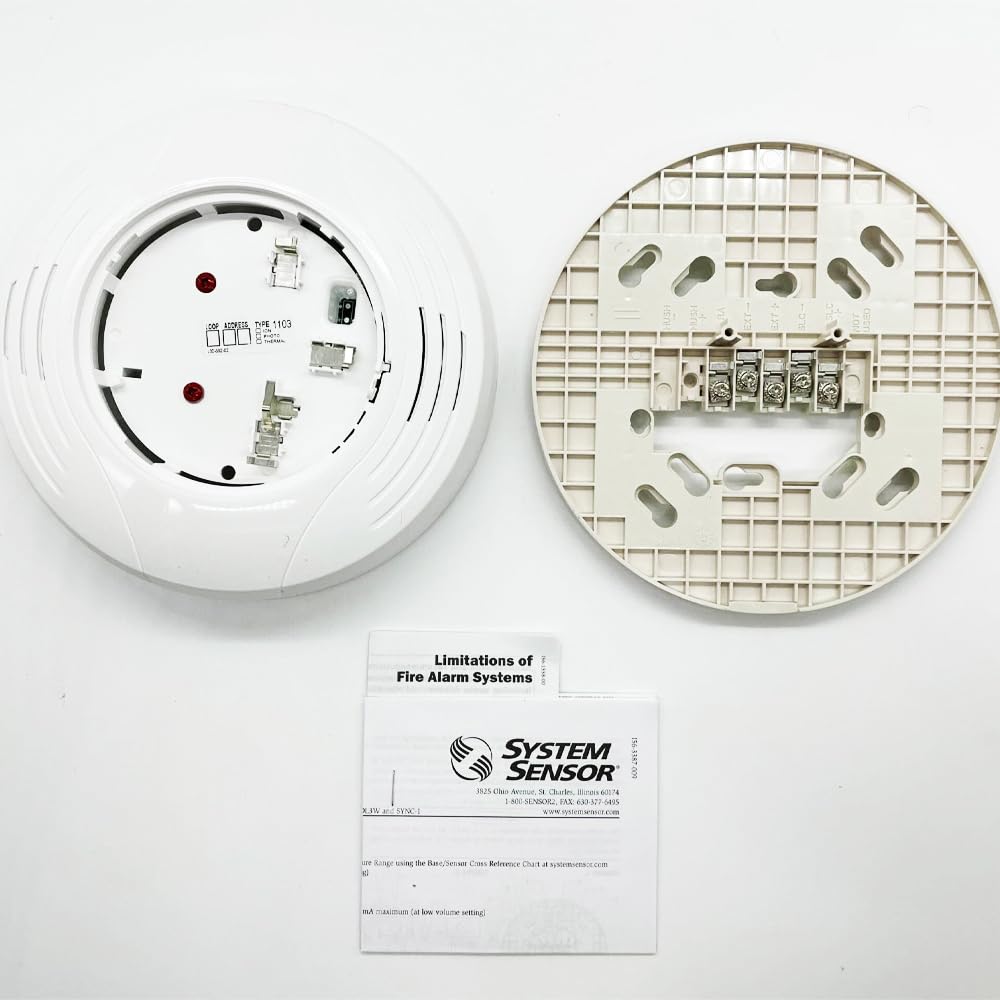

Image 1: The Fire-Lite B200S-WH Addressable Sounder Base. This image shows the white circular base with wiring terminals visible on the underside.

4. Setup and Installation

Proper installation is crucial for the reliable operation of the B200S-WH. Refer to NFPA 72, the National Fire Alarm and Signaling Code, and local authority having jurisdiction (AHJ) requirements for specific installation guidelines.

4.1 Mounting the Base

1. Select a suitable mounting location on a standard single-gang, double-gang, 4-inch square, or octagonal electrical box.
2. Secure the B200S-WH base to the electrical box using the provided screws. Ensure the base is firmly attached and flush with the mounting surface.

4.2 Wiring

Wire the sounder base according to the wiring diagram provided in the Fire-Lite FACP installation manual and the specific application requirements. The B200S-WH connects to the Signaling Line Circuit (SLC) of the FACP.

• Connect the SLC IN wires to the designated terminals on the base.
• Connect the SLC OUT wires to the designated terminals for continuation to the next device.
• Ensure all connections are secure and polarity is correct. Incorrect wiring can prevent proper operation or damage the device.

4.3 Addressing

The B200S-WH is an addressable device. Its address is set by the intelligent detector installed on it. The sounder base itself does not require separate addressing. Ensure the detector is properly addressed before installation onto the base.

4.4 Detector Installation

1. Align the intelligent detector with the B200S-WH base.
2. Insert the detector into the base and rotate it clockwise until it drops into place and locks securely.
3. Verify that the detector is firmly seated and cannot be easily removed without twisting.

5. Operating Instructions

The B200S-WH operates under the control of the connected Fire-Lite intelligent fire alarm control panel.

• Normal Operation: In a normal, non-alarm state, the sounder base remains silent. The LED on the attached detector will flash periodically, indicating normal communication with the FACP.
• Alarm Condition: When the attached detector senses an alarm condition (e.g., smoke, heat), it communicates this to the FACP. The FACP then commands the B200S-WH to activate its audible alarm. The sounder will emit a loud, distinctive tone as programmed in the FACP. The detector's LED will illuminate steadily.
• Alarm Silence/Reset: The sounder will continue to operate until the alarm is silenced or the system is reset from the FACP. Refer to your FACP's manual for specific instructions on silencing and resetting the system.

6. Maintenance

Regular maintenance ensures the continued reliable operation of your fire alarm system components.

• Cleaning: Periodically inspect the sounder base for dust or debris accumulation. If necessary, gently wipe the exterior with a clean, dry cloth. Do not use abrasive cleaners or solvents.
• Testing: The B200S-WH should be tested regularly as part of the overall fire alarm system testing protocol, in accordance with NFPA 72 and local requirements. This typically involves activating an alarm condition to verify the sounder's operation.
• Inspection: Annually inspect wiring connections for tightness and signs of corrosion.

All maintenance and testing should be performed by qualified service personnel.

7. Troubleshooting

If you encounter issues with your B200S-WH, consider the following common troubleshooting steps. For complex issues, consult a qualified fire alarm technician or the Fire-Lite FACP manual.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your authorized Fire-Lite distributor or installer. Fire-Lite Alarms / Honeywell provides technical support for their products.

Manufacturer: Fire-Lite Alarms / Honeywell

For further assistance, please visit the official Fire-Lite website or contact their customer support channels.
