Introduction
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Oregon 596-615 G5 Gator Mulcher Mower Blades. These blades are designed for specific lawn mower decks requiring AYP part numbers 173920, 180054, and 532180054, typically found on 48-inch cutting decks. Please read this manual thoroughly before attempting any installation or maintenance procedures.

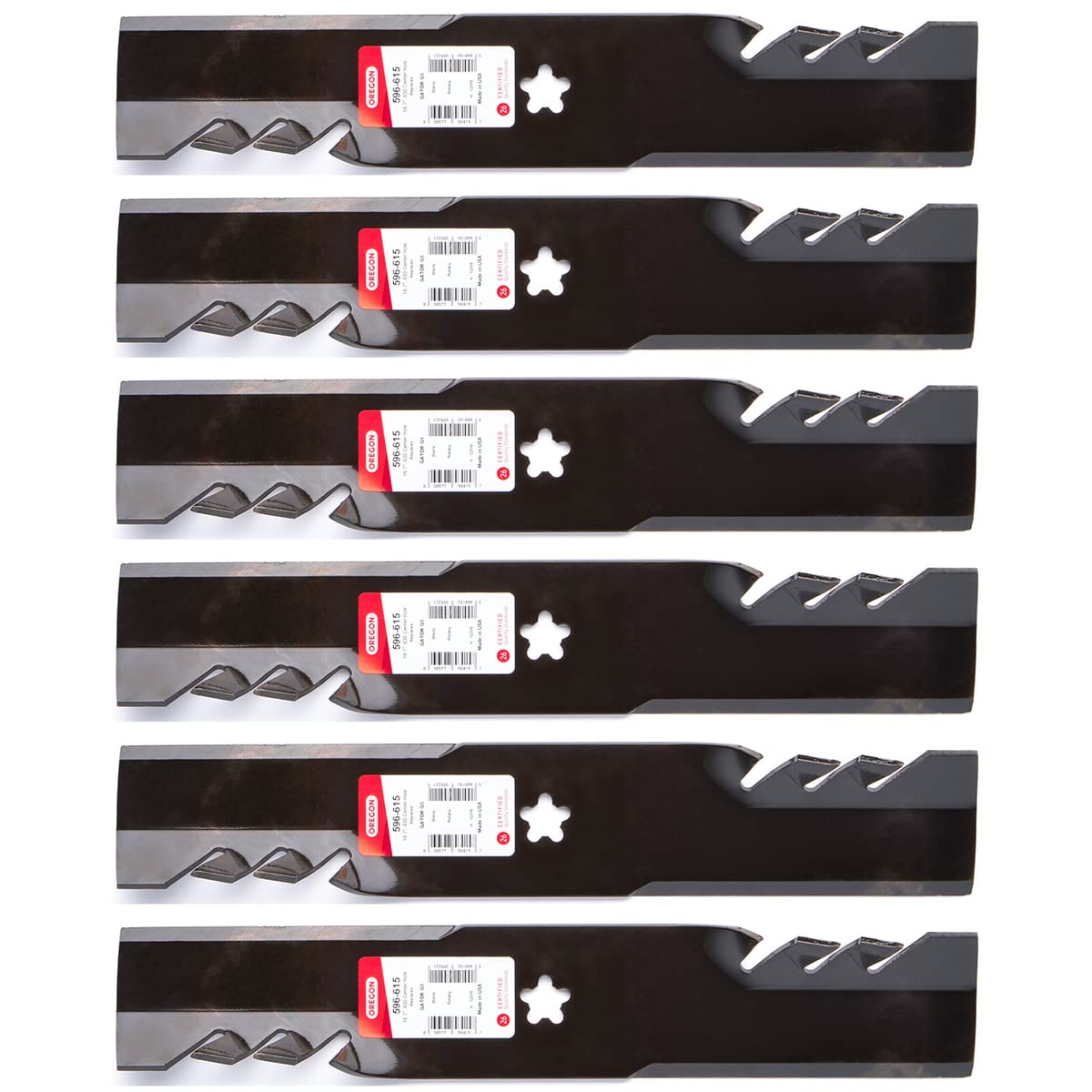

Image: A pack of Oregon 596-615 G5 Gator Mulcher Mower Blades. These blades feature a unique design with aggressive teeth along the cutting edge, optimized for superior mulching performance. The image displays the robust construction and the characteristic 5-point star center hole for mounting.
Safety Information
Always prioritize safety when working with mower blades. Failure to follow these safety guidelines can result in serious injury.
- Disconnect Power: Before performing any work on the mower deck, ensure the engine is off, the spark plug wire is disconnected, and the key is removed to prevent accidental starting.
- Wear Protective Gear: Always wear heavy-duty gloves and eye protection when handling mower blades. Blades are sharp and can cause severe cuts.
- Secure the Mower: Ensure the mower is stable and properly supported before lifting or tilting it to access the deck.
- Inspect Blades Regularly: Check blades for damage, cracks, or excessive wear before each use. Replace damaged blades immediately.
- Proper Torque: Always tighten blade bolts to the manufacturer's specified torque settings. Refer to your mower's owner's manual for specific values.
Package Contents
Your Oregon 596-615 G5 Gator Mower Blade package includes:
- Six (6) Oregon 596-615 G5 Gator Mulcher Mower Blades.
Note: Three blades are typically required for a 48-inch cutting deck. This package provides two full sets of blades for a 48-inch deck, or replacements for two separate 48-inch decks.
Setup (Installation)
Follow these steps to safely install your new Oregon G5 Gator Mulcher Mower Blades:
- Prepare the Mower: Park the mower on a flat, level surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire. Engage the parking brake.
- Access the Deck: Carefully lift or tilt the mower to expose the underside of the cutting deck. Ensure it is securely supported to prevent it from falling.
- Remove Old Blades: Using a wrench or socket, loosen and remove the blade mounting bolt. You may need a block of wood to hold the blade steady while loosening the bolt. Remove the old blade and any washers or spacers. Note their orientation.
- Clean the Spindle: Clean any grass clippings or debris from the blade spindle and mounting area. Inspect the spindle for damage.
- Install New Blades: Place the new Oregon G5 Gator Mulcher Blade onto the spindle. Ensure the blade's cutting edge is facing the correct direction (upwards towards the deck). The 5-point star center hole on the blade must align perfectly with the spindle.
- Secure the Blades: Reinstall any washers or spacers, then thread the blade mounting bolt. Hand-tighten the bolt, then use a torque wrench to tighten it to the mower manufacturer's specified torque. Refer to your mower's owner's manual for the correct torque specification.
- Repeat for All Blades: Repeat steps 3-6 for all three blades on your 48-inch deck.
- Final Check: Once all blades are installed, ensure they are securely fastened and rotate freely without obstruction. Reconnect the spark plug wire before starting the mower.
Operating
Oregon G5 Gator Mulcher Blades are designed for efficient mulching. For optimal performance:
- Mow Dry Grass: Mulching works best on dry grass. Wet grass can clump and lead to an uneven cut.
- Cut No More Than One-Third: Avoid cutting more than one-third of the grass blade length at a time. This promotes healthier lawn growth and better mulching.
- Maintain Engine Speed: Operate the mower at full throttle to ensure maximum blade tip speed for effective mulching and a clean cut.
- Overlap Passes: Overlap each mowing pass slightly to ensure complete coverage and even distribution of mulched clippings.
Maintenance
Regular maintenance of your mower blades ensures optimal cutting performance and extends their lifespan.
- Inspect After Each Use: After each mowing session, inspect the blades for excessive wear, nicks, bends, or cracks. Replace any damaged blades immediately.
- Clean Blades: Remove accumulated grass clippings and debris from the blades and the underside of the deck. This prevents rust and maintains balance.
- Sharpening: Blades should be sharpened regularly to maintain a clean cut. Use a blade sharpener or file to restore the cutting edge. Ensure the blade remains balanced after sharpening to prevent excessive vibration. If you are unsure, consult a professional.
- Replacement: Replace blades when they become excessively worn, bent, or cracked, even if they can be sharpened. Worn blades reduce cutting efficiency and can damage your mower.
Troubleshooting
If you experience issues with your mower's cutting performance, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Cut / Ragged Grass | Dull or bent blades; Incorrect blade installation; Mowing wet grass; Engine speed too low. | Sharpen or replace blades; Reinstall blades correctly; Mow dry grass; Operate at full throttle. |
| Excessive Vibration | Unbalanced blades (due to wear or improper sharpening); Bent blade; Loose blade bolt. | Balance or replace blades; Replace bent blade; Tighten blade bolt to specified torque. |
| Poor Mulching Performance | Dull blades; Mowing excessively tall or wet grass; Engine speed too low. | Sharpen or replace blades; Mow more frequently or when grass is dry; Operate at full throttle. |
Specifications
The Oregon 596-615 G5 Gator Mulcher Mower Blades feature the following specifications:
- Oregon Part Number: 596-615
- Replaces AYP Part Numbers: 173920, 180054, 532180054
- Blade Length: 16-5/8 inches (42.23 cm)
- Center Hole Type: 5-point Star
- Blade Width: 3 inches (7.62 cm)
- Blade Thickness: 0.187 inches (0.47 cm)
- Blade Lift: 1-1/4 inches (3.18 cm)
- Quantity per Pack: 6 blades
- Application: Designed for 48-inch cutting decks (requires 3 blades per deck)
