Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Bosch Readyy'y 20Vmax Serie 2 cordless vacuum cleaner. Please read these instructions carefully before first use and keep them for future reference. This 2-in-1 appliance combines a powerful stick vacuum with a detachable handheld unit for versatile cleaning.
Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Do not use the appliance to pick up liquids, flammable or combustible materials, or hot ashes.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Do not operate the vacuum cleaner if it has been dropped, damaged, left outdoors, or dropped into water.
- Use only as described in this manual and with manufacturer's recommended attachments.
- Do not allow children to use the appliance. Close supervision is necessary when used near children.
- Unplug the charger from the outlet when not in use and before cleaning.
- Use only the charger supplied by the manufacturer to recharge.
Product Overview
The Bosch Readyy'y 20Vmax Serie 2 is designed for flexible cleaning from floor to ceiling. It features a powerful cordless design and an integrated handheld vacuum for quick clean-ups.

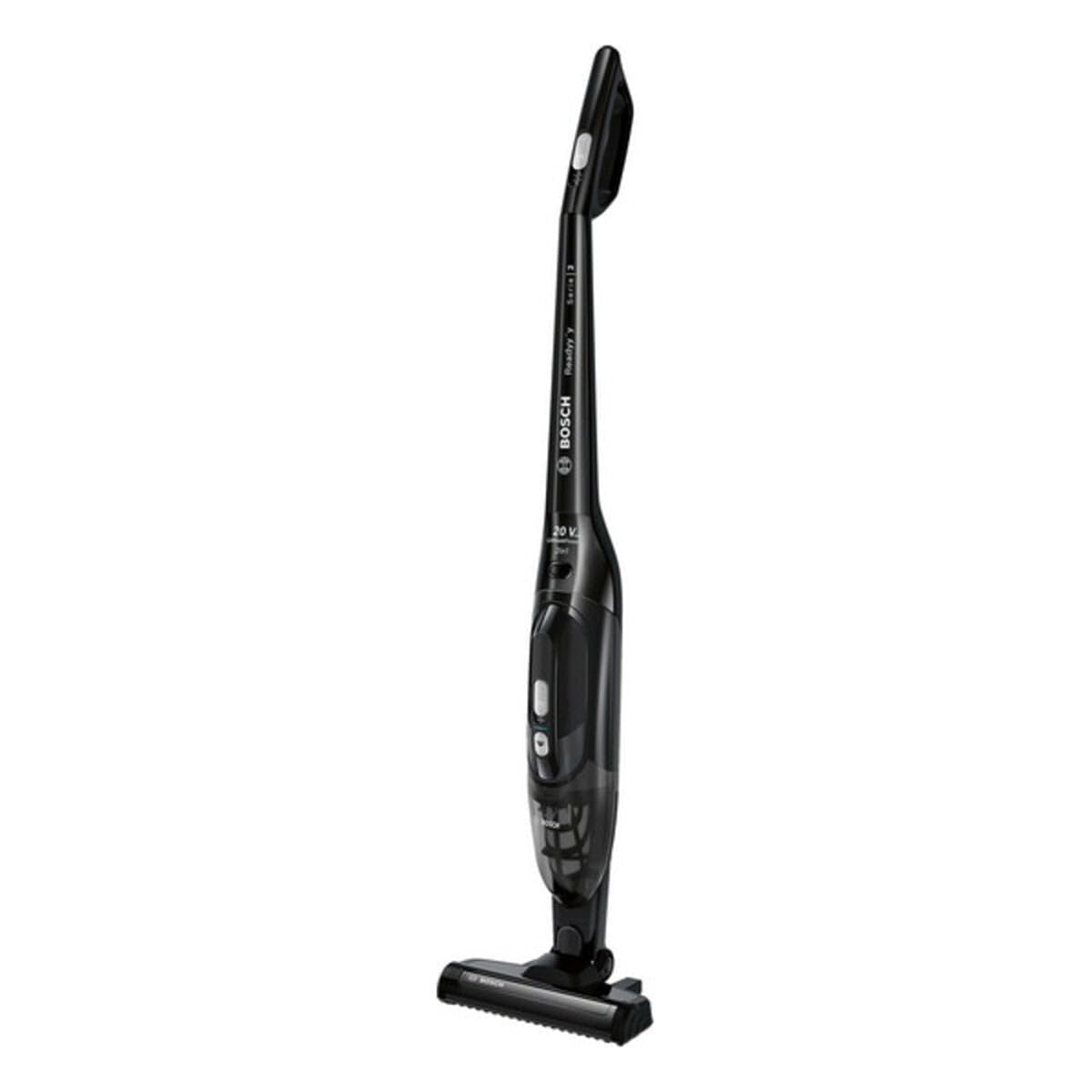

Figure 1: Bosch Readyy'y 20Vmax Serie 2 Cordless Vacuum Cleaner in upright position.
Figure 2: Dimensions of the Bosch Readyy'y 20Vmax Serie 2 Cordless Vacuum Cleaner (Height: 116 cm, Width: 26.5 cm, Depth: 16.5 cm).
Initial Setup
Assembly
The vacuum cleaner is designed for easy assembly. Simply connect the main components as shown in the video below.
Charging the Battery
Before using your Bosch Readyy'y 20Vmax Serie 2 for the first time, ensure the battery is fully charged. A full charge typically takes 4-5 hours.
- Ensure the vacuum cleaner is in its upright, self-standing position.
- Connect the charger cable to the charging port on the main unit.
- Plug the charger into a power outlet. The charging indicator light will illuminate.
- Once fully charged, disconnect the charger.
Video 1: This video demonstrates the assembly of the Bosch Readyy'y 20Vmax Serie 2 cordless vacuum cleaner and how to connect it for charging.
Operating Instructions
Power On/Off
To turn the vacuum cleaner on or off, press the power button located on the handle of the main unit.
Using as a Stick Vacuum
For general floor cleaning, use the appliance in its upright stick vacuum configuration. The motorized brush roll is suitable for various floor types, including carpets, hard floors, and tiles.
Using as a Handheld Vacuum
To use the integrated handheld vacuum, press the release button on the main unit and detach the handheld section. This is ideal for cleaning furniture, car interiors, shelves, or other hard-to-reach areas.
Video 2: This video illustrates how to operate the Bosch Readyy'y 20Vmax Serie 2 as both a stick vacuum and a detachable handheld unit.
Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
Emptying the Dust Container
Empty the dust container after each use or when the 'Max' fill line is reached to maintain strong suction.
- Ensure the appliance is switched off.
- Press the release button to detach the handheld unit.
- Locate the dust container release latch and open the container.
- Empty the contents into a waste bin.
- Close the dust container securely and reattach the handheld unit.
Cleaning the Filter
The washable filter should be cleaned regularly, ideally after every few uses, to prevent loss of suction.
- With the dust container detached, carefully remove the filter assembly.
- Separate the filter components.
- Tap the filter gently over a waste bin to remove loose dust.
- If heavily soiled, rinse the filter under cold running water. Do not use detergents.
- Allow the filter to air dry completely for at least 24 hours before reassembling and reinserting. Do not use a hairdryer or other heating devices.
Cleaning the Brush Roll
Periodically check and clean the brush roll in the floor nozzle to remove tangled hair or debris.
- Ensure the vacuum cleaner is switched off.
- Turn the floor nozzle upside down.
- Locate the brush roll release mechanism (usually a latch or button) and remove the brush roll.
- Use scissors or a brush to carefully cut and remove any tangled hair or fibers.
- Reinsert the brush roll and secure the release mechanism.
Video 3: This video guides you through the process of emptying the dust container and cleaning the filter of your Bosch Readyy'y 20Vmax Serie 2 vacuum cleaner.
Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the table below for common problems and solutions.
| Issue | Possible Cause | Solution |
|---|---|---|
| Low suction power | Dust container full; Filter clogged; Nozzle/hose blocked | Empty dust container; Clean or replace filter; Remove any blockages. |
| Vacuum cleaner does not turn on | Battery not charged; Power button not pressed correctly | Charge the battery; Press the power button firmly. |
| Brush roll not rotating | Hair/debris tangled in brush roll; Brush roll jammed | Clean brush roll; Check for and remove any obstructions. |
| Short operating time | Battery not fully charged; Battery aging | Ensure battery is fully charged; Consider battery replacement if performance significantly degrades. |
Technical Specifications
- Brand: Bosch
- Model: Readyy'y 20Vmax Serie 2
- Special Feature: 2-in-1 (Stick and Handheld), Cyclonic dirt separation, Washable filter
- Filter Type: Washable
- Recommended Surfaces: All floors (Double action)
- Power Source: Battery Powered (Lithium-ion)
- Battery Life: Up to 40 minutes (approx.)
- Charging Time: 4-5 hours (approx.)
Warranty and Customer Support
Your Bosch Readyy'y 20Vmax Serie 2 cordless vacuum cleaner comes with a manufacturer's warranty. For detailed warranty information, service, or technical support, please refer to the warranty card included in the packaging or visit the official Bosch website.
Official Bosch Website: www.bosch-home.com
