Product Overview
The SVAVO V-7101 is a durable, wall-mounted manual soap dispenser designed for liquid soaps, shampoos, gels, and hand sanitizers. Constructed from robust ABS material, it offers resistance to chemicals and impact, ensuring long-lasting performance. Its design prioritizes hygiene and space-saving, making it suitable for various environments including kitchens, bathrooms, and commercial settings.
This dispenser features a transparent tank for easy monitoring of liquid levels and a 700ml (23.7oz) capacity to reduce the frequency of refills. The wide opening facilitates quick and convenient refilling, while the anti-leakage nozzle prevents drips and mess.
Setup and Installation
Follow these steps to properly install your SVAVO V-7101 Wall Mounted Manual Soap Dispenser:
- Unpack Contents: Carefully remove all components from the packaging. Ensure you have the dispenser unit, mounting plate, screws, and wall anchors.
- Separate Mounting Plate: Open the lid of the dispenser and detach the mounting plate from the back of the unit. The mounting plate is designed to be removed for easier installation.
- Choose Location: Select a suitable wall location. Ensure the surface is clean and dry. Consider accessibility for refilling and dispensing.
- Mark Drill Holes: Hold the mounting plate against the wall at the desired height. Use a pencil to mark the positions for the drill holes through the designated holes on the plate.
- Drill Holes: Using an appropriate drill bit for your wall type, drill holes at the marked positions. Insert wall anchors into the drilled holes if necessary for secure mounting.
- Fixate Mounting Plate: Align the mounting plate with the drilled holes and secure it to the wall using the provided screws. Ensure it is firmly attached.
- Mount Dispenser: Carefully slide the main dispenser unit onto the fixed mounting plate until it clicks securely into place.
- Fill with Liquid: Open the top lid of the dispenser. Pour your desired liquid soap, shampoo, or hand sanitizer into the reservoir. The maximum capacity is 700ml (23.7oz).
- Secure Lid: Close the top lid and use the provided safety key to lock it, preventing unauthorized access and spillage.
Operating Instructions
Using your SVAVO V-7101 dispenser is straightforward:
- Dispensing Liquid: Place your hand directly under the dispensing nozzle. Press the wide push button firmly to dispense the desired amount of liquid. Release the button to stop the flow.
- Refilling: To refill, unlock the top lid using the safety key. Open the lid and pour liquid soap, shampoo, or hand sanitizer into the transparent reservoir. Close the lid securely and lock it with the safety key.
Maintenance
Regular maintenance ensures optimal performance and longevity of your dispenser:
- Exterior Cleaning: Wipe the exterior of the dispenser regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the ABS material.
- Nozzle Cleaning: Periodically check the dispensing nozzle for any buildup or clogs. If the flow becomes weak or inconsistent, gently clean the nozzle with a small brush or toothpick to remove any dried soap residue.
- Reservoir Cleaning: When refilling, it is recommended to occasionally rinse the internal reservoir with warm water to prevent accumulation of old soap, especially when switching between different types of liquids.
Troubleshooting
If you encounter issues with your dispenser, refer to the following common solutions:
- Liquid Not Dispensing:
- Check Liquid Level: Ensure there is sufficient liquid in the reservoir.
- Liquid Consistency: If the liquid is too thick, it may not dispense properly. Try diluting it slightly with water.
- Clogged Nozzle: Inspect the nozzle for any blockages. Clean it as described in the Maintenance section.
- Pump Mechanism: Ensure the push button is fully depressed and released during operation.
- Leaking:
- Lid Security: Verify that the top lid is securely closed and locked with the safety key.
- Nozzle Integrity: Check the nozzle for any visible damage or cracks.
- Dispenser Loose on Wall:
- Mounting Plate: Ensure the mounting plate is securely fastened to the wall and the dispenser unit is correctly seated on the plate. Re-tighten screws if necessary.
Specifications
| Feature | Detail |
|---|---|
| Brand | SVAVO |
| Model Number | V-7101 |
| Color | Black |
| Material | ABS Plastic |

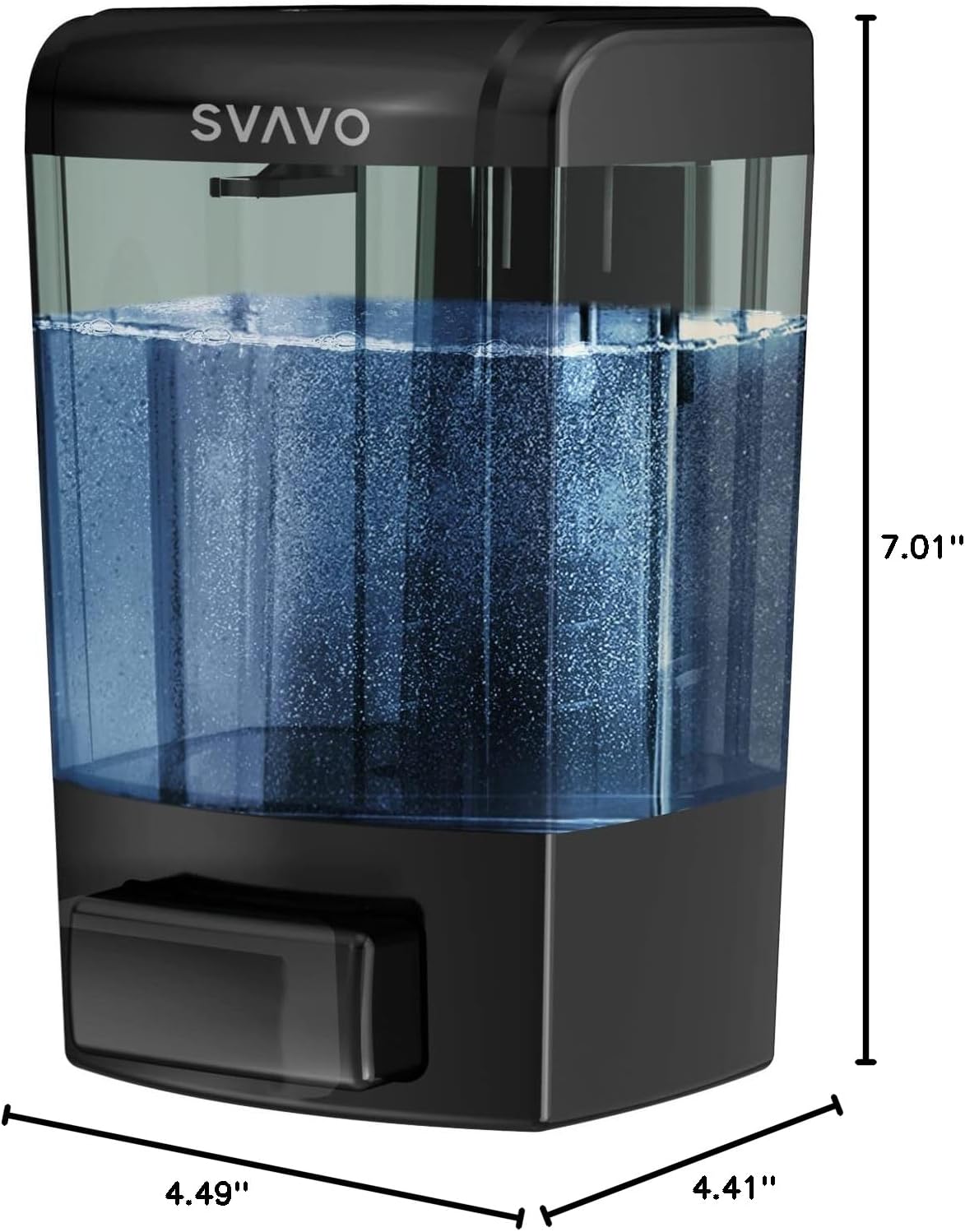

| Product Dimensions (L x W x H) | 7.01" x 4.49" x 4.41" |
| Liquid Volume | 700 Milliliters (23.7 oz) |
| Material Type Free | BPA Free |
Warranty and Support
Your SVAVO V-7101 Wall Mounted Manual Soap Dispenser comes with a 30-day money-back or replacement guarantee. If you experience any issues with your product, please contact our professional after-sale customer service for assistance.
