CAMLOCKbox Security Box for Wildgame Innovations Wraith Trail Cameras (Model 19230) - User Manual

1. Overview

The CAMLOCKbox Security Box is specifically designed to house and protect Wildgame Innovations Wraith Trail Cameras, model 19230. Constructed from heavy 16-gauge steel, this security box provides robust protection against environmental elements, potential theft, and damage from animals. Its design ensures a precise fit for the compatible trail camera, allowing for easy installation and removal without disturbing the camera's position.

This manual provides instructions for the proper installation, use, and maintenance of your CAMLOCKbox Security Box to ensure optimal performance and longevity.

2. Product Features

• Durable Steel Construction: Manufactured from heavy 16-gauge steel for enhanced durability and protection.
• Precision Fit: Engineered for an exact fit with Wildgame Innovations Wraith Trail Cameras (Model 19230), ensuring the camera can be inserted and removed while maintaining its original aiming position.
• Weather and Animal Protection: Helps shield the trail camera from harsh weather conditions and prevents damage from wildlife.
• Theft Deterrent: Provides a physical barrier against theft, compatible with padlocks and 5/16 inch python cable locks.
• Powder Coated Finish: Features a powder-coated finish with a Camo Break-up paint application, offering additional protection against elements and aiding in camouflage.
• Versatile Mounting Options: Can be lagbolted, belted, or bungeed to trees or other structures.
• External Power Access: Designed with cutouts to allow for external power hookup to your trail camera while it is secured within the box.

3. Setup and Installation

Proper installation of the CAMLOCKbox Security Box is crucial for maximizing protection and functionality. Follow these steps to install your trail camera into the security box and mount it securely.

3.1 Inserting the Trail Camera

1. Ensure your Wildgame Innovations Wraith Trail Camera (Model 19230) is powered off.
2. Open the CAMLOCKbox Security Box. The box typically consists of a main housing and a removable front plate.
3. Carefully slide your trail camera into the main housing of the security box. Ensure it fits snugly and aligns with any internal guides or cutouts.
4. Once the camera is seated, reattach the front plate of the security box, ensuring it locks into place or is ready for securing.

Image 3.1: The CAMLOCKbox Security Box disassembled, showing the separate front plate and the main housing where the trail camera is inserted.

Image 3.2: Front view of the CAMLOCKbox Security Box, ready to house a trail camera.

3.2 Mounting the Security Box

The CAMLOCKbox offers multiple options for mounting to a tree or post:

• Lag Bolts: Use appropriate lag bolts (not included) to secure the box directly to a tree or wooden post through the pre-drilled holes on the back and sides of the box. Ensure the bolts are long enough to provide a secure hold.
• Belts/Straps: Thread a heavy-duty strap or belt (not included) through the designated slots on the back of the box and around the tree or post. Tighten securely.
• Bungee Cords: For temporary or less permanent installations, bungee cords (not included) can be used through the mounting holes to attach the box.

Important: Once the box is securely mounted, the camera can be removed and reinserted without needing to reposition the entire box, ensuring the camera maintains its original field of view.

Image 3.3: Rear view of the CAMLOCKbox, highlighting the various mounting holes for lag bolts, straps, or bungee cords.

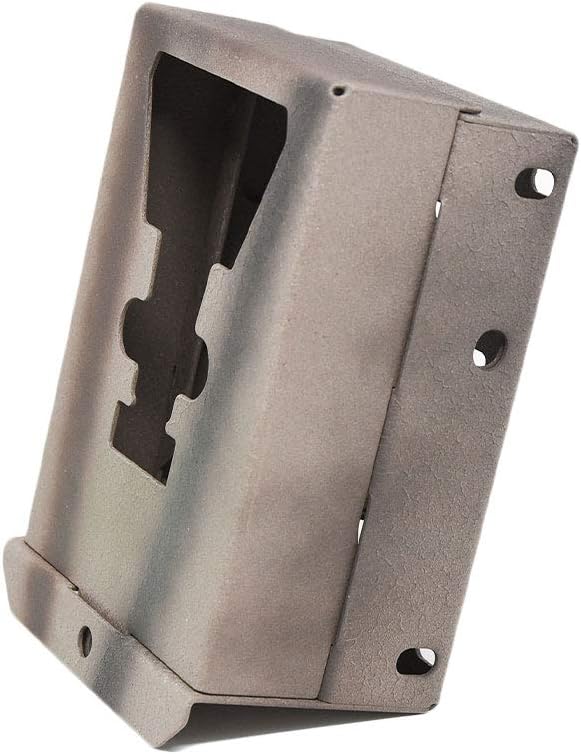

Image 3.4: Side view of the CAMLOCKbox, illustrating the side mounting holes for additional securing options.

4. Securing Your Camera

The CAMLOCKbox is designed to deter theft and unauthorized access. You can enhance security using the following methods:

• Padlock: Use a standard padlock (not included) through the designated locking tab on the front of the box to secure the front plate.
• Python Cable Lock: The box is fully compatible with 5/16 inch python cable locks (not included). Thread the cable through the appropriate openings on the box and around the mounting structure (e.g., tree trunk) for added security, especially in public land where defacing trees is prohibited.

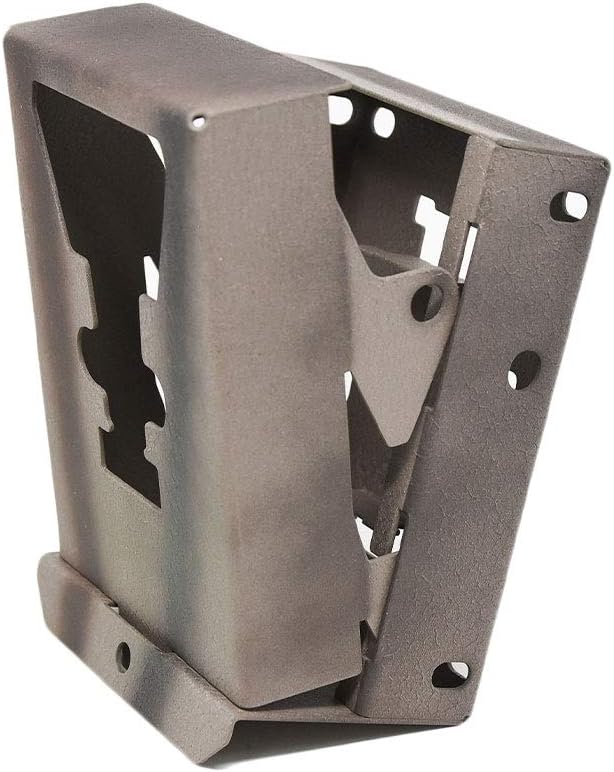

Image 4.1: Angled view of the CAMLOCKbox, highlighting the locking tab for a padlock and openings for a python cable lock.

Image 4.2: An alternative angled view of the CAMLOCKbox, providing a clearer perspective of the internal structure and points for securing the camera and the box itself.

5. Maintenance

The CAMLOCKbox Security Box requires minimal maintenance to ensure its longevity and effectiveness:

• Regular Inspection: Periodically check the box for any signs of damage, rust, or wear, especially after severe weather conditions.
• Cleaning: Wipe down the exterior of the box with a damp cloth to remove dirt, dust, or debris. Avoid abrasive cleaners that could damage the powder-coated finish.
• Lock Mechanism: If using a padlock or cable lock, ensure its mechanism remains clean and lubricated as per the lock manufacturer's instructions.

6. Troubleshooting

Most issues with the CAMLOCKbox Security Box are related to installation or compatibility. Refer to the following common scenarios:

• Camera Does Not Fit: Ensure your trail camera is a Wildgame Innovations Wraith model 19230. This security box is designed for an exact fit with this specific model. Verify the camera orientation when inserting.
• Box Not Secure: Re-check all mounting points. If using lag bolts, ensure they are fully tightened. If using straps or bungee cords, ensure they are taut and properly threaded through the designated slots.
• Lock Not Engaging: Inspect the padlock or cable lock for any obstructions or damage. Ensure the locking tab on the box is aligned correctly.
• External Power Cable Obstruction: Verify that the external power cable is routed through the designated cutout and is not pinched or obstructing the box closure.

7. Specifications

Note: Dimensions provided in the source data (1x1x1 inches) appear to be generic. Please refer to the product packaging for accurate physical dimensions of the security box.

8. Warranty and Support

Specific warranty information for the CAMLOCKbox Security Box is typically provided at the point of purchase or within the product packaging. Please retain your proof of purchase for warranty claims.

For product support, inquiries, or to report any issues, please contact the manufacturer, Camlockbox, or visit the Intotal Store on Amazon.
