LEIMO KPARTS 799868 Carburetor Instruction Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of the LEIMO KPARTS 799868 Carburetor. This carburetor is designed as a replacement part for various Briggs & Stratton small engines, commonly found in lawn mowers and other garden equipment. The kit includes the carburetor, air filter, primer base, spark plug, and gaskets necessary for installation.

Image 1.1: The LEIMO KPARTS 799868 Carburetor, showing compatible OEM numbers.

2. Safety Information

Always prioritize safety when working with small engines and fuel. Failure to follow safety precautions can result in serious injury or property damage.

• Ensure the engine is cool and disconnected from the spark plug wire before beginning any work.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment, including gloves and eye protection.
• Handle fuel with care. Do not smoke or use open flames near fuel.
• Keep children and pets away from the work area.
• Dispose of old parts and fluids responsibly according to local regulations.

3. Compatibility

The LEIMO KPARTS 799868 Carburetor is compatible with a wide range of Briggs & Stratton engines and various lawn mower models. Verify your engine's model number against the list below for proper fitment.

3.1. Compatible Briggs & Stratton OEM Numbers:

• 498170, 799872, 694202, 693909, 692648, 499617, 799868, 497586, 498254, 497314, 497347, 497410, 790821, 14111

3.2. Compatible Engine Series and Models:

• Most 122000 Model Engines (120XXX / 121XXX / 122XXX / 12EXXX / 12TXXX) with Primer Type System.
• Briggs & Stratton 124T02, 124T05, 124T07, 126M02.
• Briggs & Stratton 129700, 129800, 123H00, 123J00, 124H00, 125H00, 12G700, 12G800, 12J700, 12J800, 12J900, 12L800, 12U800, 12V800, 12C700, 12C800, 12D800 4 Cycle Small Engines.

3.3. Compatible Equipment:

• Craftsman 6.5hp Engines
• Snapper Ninja 6.75hp Engines
• Toro Walk Behind Mowers: 16401, 20716, 20712, 20713, 20714
• Stens 50-657, Stens 520-966 (for 4-7 hp engines with no choke)

Image 3.1: Examples of applicable machine types.

Image 3.2: Detailed compatibility chart for Briggs & Stratton engines.

4. Included Components

The LEIMO KPARTS 799868 Carburetor kit typically includes the following components:

• 1 x 799868 Carburetor
• 1 x 795259 Air Cleaner Primer Base
• 1 x Air Filter
• 1 x Spark Plug
• Gaskets (for carburetor and air filter assembly)
• Fuel Hose

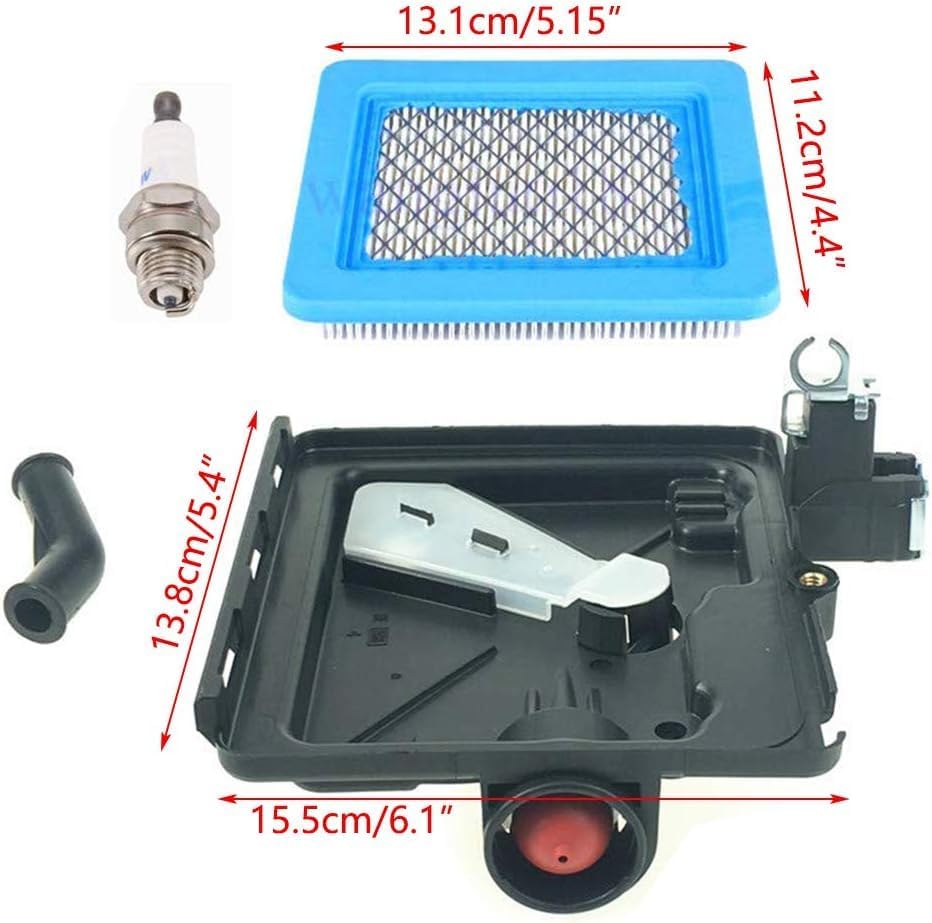

Image 4.1: Overview of all included components in the kit.

5. Setup & Installation

The carburetor is pre-adjusted before shipping, eliminating the need for additional adjustments prior to installation. Installation typically involves removing the old carburetor and replacing it with the new unit and associated components. If you are unsure about any step, it is recommended to consult a qualified technician or refer to your engine's specific service manual.

5.1. General Installation Steps:

1. Preparation: Ensure the engine is off and cool. Disconnect the spark plug wire. Drain any fuel from the tank.
2. Remove Air Filter Assembly: Carefully detach the air filter cover and remove the old air filter. Disconnect any hoses or linkages connected to the air filter base.
3. Remove Old Carburetor: Disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Unbolt the carburetor from the engine. Note the position of all gaskets and spacers.
4. Install New Carburetor: Place new gaskets and spacers in their correct positions. Mount the new LEIMO KPARTS 799868 Carburetor onto the engine. Reconnect the throttle and choke linkages.
5. Connect Fuel Line: Attach the new fuel hose (if included and needed) to the carburetor and fuel tank. Secure with clamps if necessary.
6. Install Air Cleaner Primer Base and Air Filter: Attach the new 795259 Air Cleaner Primer Base. Insert the new air filter and secure the air filter cover.
7. Install Spark Plug: Replace the old spark plug with the new one provided in the kit.
8. Final Checks: Double-check all connections, ensuring they are secure. Reconnect the spark plug wire.

Image 5.1: Detailed views of the carburetor components.

6. Operating Instructions

After successful installation, follow your equipment's manufacturer guidelines for starting and operating the engine. The following are general steps for starting a typical lawn mower engine equipped with a primer bulb:

1. Fill with Fuel: Ensure the fuel tank is filled with fresh, clean gasoline. For 4-cycle engines, do not mix oil with gasoline.
2. Check Oil Level: Verify the engine oil level is correct.
3. Prime the Engine: Press the primer bulb 3-5 times (or as recommended by your engine manufacturer) until fuel is visible in the bulb or fuel line.
4. Start the Engine: Engage the blade control bar (if applicable) and pull the starter rope firmly and smoothly until the engine starts.
5. Warm-up: Allow the engine to run for a minute or two to warm up before engaging in work.

7. Maintenance

Regular maintenance of your carburetor, air filter, and spark plug is crucial for optimal engine performance and longevity.

7.1. Carburetor Maintenance:

• The LEIMO KPARTS 799868 Carburetor is pre-adjusted. Avoid unnecessary disassembly or adjustment unless you have experience with carburetor tuning.
• If the engine is stored for an extended period, it is recommended to drain the fuel or use a fuel stabilizer to prevent fuel degradation and carburetor clogging.

7.2. Air Filter Maintenance:

• Inspect the air filter regularly, especially in dusty conditions.
• Clean or replace the air filter when it appears dirty or clogged. A clogged air filter can restrict airflow, leading to poor engine performance.

7.3. Spark Plug Maintenance:

• Inspect the spark plug for wear, fouling, or damage periodically.
• Replace the spark plug if the electrode is worn, or if there is heavy carbon buildup. Ensure the gap is set correctly according to engine specifications.

8. Troubleshooting

If your engine experiences issues after carburetor replacement, consider the following common troubleshooting steps:

8.1. Engine Does Not Start:

• No Fuel: Check if the fuel tank has fresh gasoline. Ensure the fuel valve (if present) is open.
• Improper Priming: Ensure the primer bulb is pressed the correct number of times.
• No Spark: Check the spark plug. Ensure the spark plug wire is securely connected. Test for spark if possible.
• Air Filter: A severely clogged air filter can prevent starting. Ensure the new air filter is clean and properly installed.

8.2. Engine Runs Roughly or Stalls:

• Fuel Quality: Stale or contaminated fuel can cause rough running. Use fresh fuel.
• Air Filter: A partially clogged air filter can affect engine performance.
• Gaskets/Seals: Check for air leaks around the carburetor gaskets or intake manifold. Ensure all bolts are tightened correctly.
• Spark Plug: A fouled or incorrectly gapped spark plug can lead to rough running.

If issues persist after performing these checks, it is advisable to seek assistance from a professional small engine mechanic.

9. Specifications

10. Warranty & Support

For information regarding product warranty, returns, or technical support, please refer to the product packaging or contact the seller directly through the platform where the purchase was made. Provide your purchase details and model number (799868) when seeking support.
