1. Introduction
The Generic Frontier MXv4 Universal Remote Control is designed to simplify your home entertainment experience by controlling up to four different IR-equipped video and/or audio devices. This manual provides comprehensive instructions for setting up, operating, and maintaining your remote control.
2. Key Features
- IR Remote Control technology.
- Capable of controlling up to four compatible devices.
- Frequency: 433 MHz.
- Ergonomic design with a sleek piano-black finish.
- Quick setup instructions printed on the battery door.
3. Setup Instructions
3.1 Battery Installation
The remote control requires two (2) AA batteries (included). Follow these steps to install them:
- Locate the battery compartment on the back of the remote control.
- Press down on the latch and slide the battery cover off.
- Insert two AA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery cover back into place until it clicks securely.

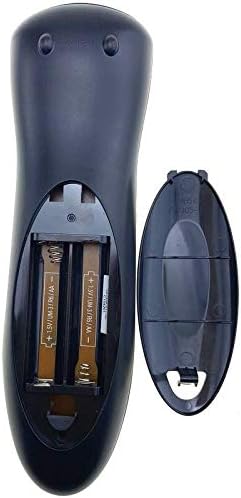

Figure 1: Battery compartment with AA batteries installed.
3.2 Device Programming (Quick Setup)
The MXv4 remote can be programmed to control various devices using a simple three-step process. These instructions are also conveniently printed on the battery door of the remote.
Figure 2: Quick Setup instructions on the back of the remote.
- Press and Hold SETUP: Locate the SETUP button. Press and hold it until the LED light on the remote blinks twice.
- Select Device Type: Press the desired device key (e.g., TV, DVD, AUX) that you wish to program.
- Program Device: Point the remote at your device. Press and hold the OK button until your device turns off. This indicates successful programming.
Repeat these steps for each device you wish to control with the MXv4 remote.
4. Operating Instructions
Once programmed, the MXv4 remote allows you to control your devices. Below is a general overview of common button functions.
Figure 3: Front view of the MXv4 Remote Control.
- Device Selectors (TV, DVD, AUX): Press these buttons to select which device the remote will control. The LED will indicate the active device.
- POWER: Turns the selected device on or off.
- VOL +/-: Adjusts the volume of the selected audio device.
- CH PQ +/-: Changes channels on the selected TV or set-top box.
- MUTE: Silences the audio.
- GUIDE: Accesses the program guide (if supported by the device).
- Navigation Pad (Up, Down, Left, Right, OK): Used to navigate menus and confirm selections.
- MENU: Opens the menu of the selected device.
- PLAY, PAUSE, FWD, REW, STOP, RECORD: Control playback functions for compatible devices like DVD players or DVRs.
- Number Pad (0-9): Used for direct channel entry or inputting numbers.
5. Maintenance
To ensure the longevity and optimal performance of your remote control, follow these maintenance guidelines:
- Cleaning: Wipe the remote with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Battery Replacement: Replace batteries when the remote's performance degrades or the LED indicator fails to light up. Always replace both batteries at the same time with new ones of the same type.
- Storage: Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid Drops: Protect the remote from physical impact, as this can damage internal components.
6. Troubleshooting
If you encounter issues with your MXv4 remote control, try the following troubleshooting steps:
- Remote Not Responding:
- Check if the batteries are inserted correctly and have sufficient charge. Replace them if necessary.
- Ensure there are no obstructions between the remote and the device's IR receiver.
- Verify that the correct device mode (TV, DVD, AUX) is selected on the remote.
- Device Not Programming:
- Ensure you are following the quick setup steps precisely.
- Try repeating the programming steps multiple times.
- Confirm that your device is IR-compatible.
- Limited Functionality: Some advanced functions may not be supported by all devices. Ensure the remote is programmed for the specific device type.
7. Specifications
| Model Number | MXV4 (URC-6250BC0-0011-R) |
| Brand | Generic |
| Item Weight | 6 ounces |
| Batteries | 2 AA batteries (included) |
| Frequency | 433 MHz |
| Special Feature | Universal |
| Color | Black |
| Max Number of Supported Devices | 4 (if compatible) |
| Compatible Devices | Television, DVD, AUX (IR-equipped devices) |
8. Warranty and Support
Specific warranty information for this product is not provided in the available details. For any product support or warranty inquiries, please refer to the retailer or manufacturer from whom the product was purchased.
