SHIMANO SLX CN-M7100 12-Speed Bicycle Chain Instruction Manual

1. Introduction and Overview

The SHIMANO SLX CN-M7100 is a high-performance 12-speed bicycle chain designed for mountain biking (MTB) applications, including E-MTB. It is engineered to provide efficient power transfer, smooth shifting, and reliable engagement across various terrains. This chain incorporates advanced technologies such as SIL-TEC surface treatment for reduced friction and an extended inner plate design for enhanced chain retention.

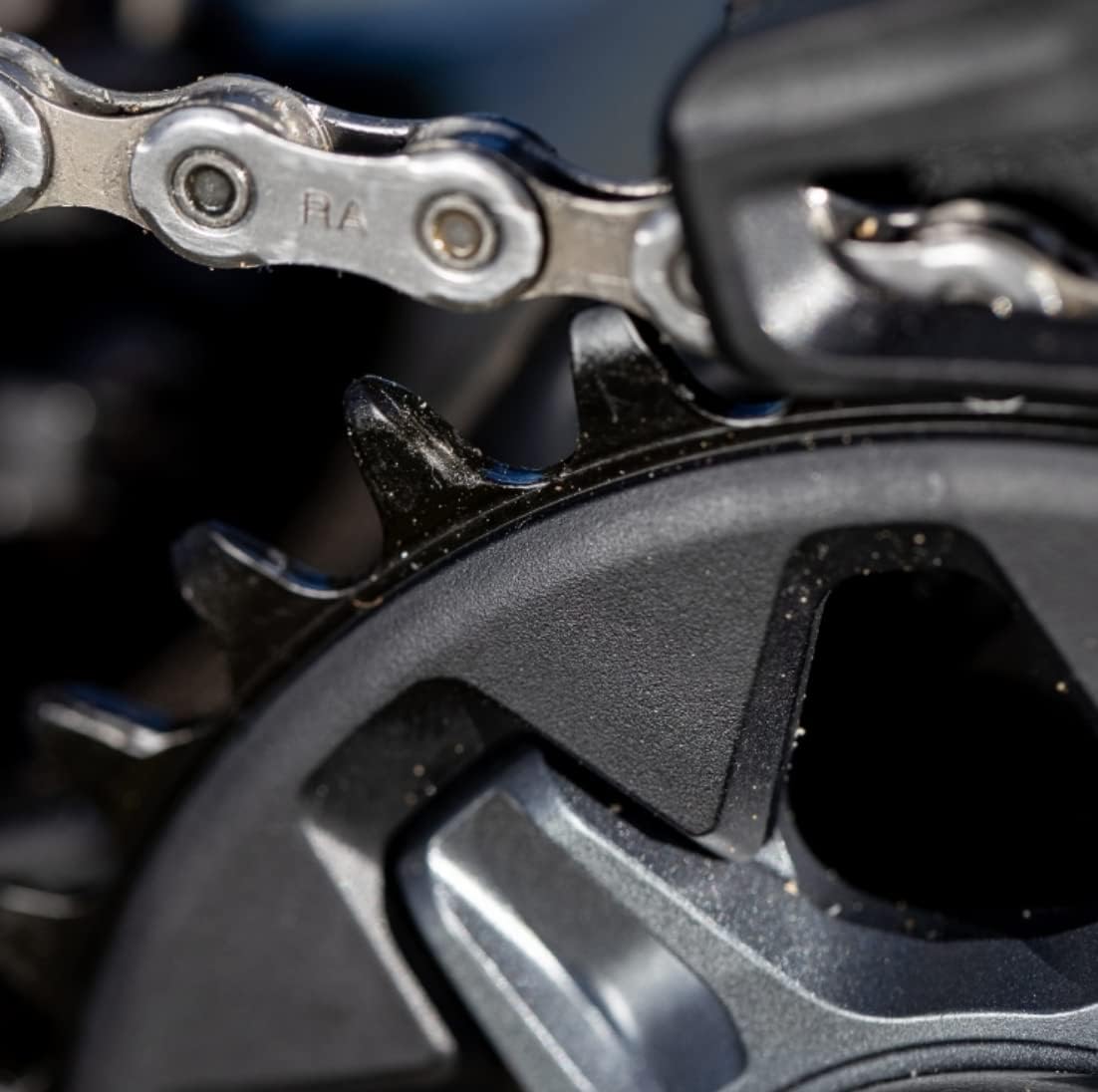

Image 1.1: Close-up view of the SHIMANO SLX CN-M7100 chain engaged with a sprocket.

This manual provides instructions for the proper installation, operation, and maintenance of your SHIMANO SLX CN-M7100 chain to ensure its longevity and optimal performance.

2. Key Technologies

The SHIMANO SLX CN-M7100 chain features several key technologies to enhance its performance and durability:

• SIL-TEC: SHIMANO's ultra-low friction surface treatment. This advanced plating process improves system performance by reducing friction, increasing durability, and enhancing mud shedding capabilities.
• Quick-Link (SM-CN910-12): A tool-free connection link for easy installation and removal of the chain. This simplifies maintenance and repairs.
• Extended Inner Plate Design: Enhances chain engagement and retention, which helps to minimize chain drops during aggressive riding and improves power transfer.

Image 2.1: Visual representation of SHIMANO's Quick-Link, SIL-TEC, and HG technologies.

3. Setup and Installation

Proper installation is crucial for the performance and safety of your bicycle chain. The SHIMANO SLX CN-M7100 chain is designed for use with SHIMANO SLX M7100 12-speed drivetrain systems.

3.1 Tools Required

• Chain tool (if adjusting chain length)
• Quick-Link pliers (recommended for easier Quick-Link installation/removal)
• Measuring tape or chain length calculator

3.2 Chain Length Adjustment

The correct chain length is essential for optimal shifting performance and to prevent damage to your drivetrain. Refer to the SHIMANO dealer's manual or official SHIMANO technical documents for detailed instructions on determining the appropriate chain length for your specific bicycle setup. Incorrect chain length can lead to poor shifting, excessive wear, or drivetrain damage.

3.3 Quick-Link Installation

1. Route the chain through the front and rear derailleurs and around the cassette and chainring, ensuring it is correctly positioned.
2. Bring the two ends of the chain together.
3. Insert the Quick-Link (SM-CN910-12) into the chain ends, ensuring the directional arrow (if present) on the Quick-Link points in the direction of chain rotation.
4. Pull the chain taut to engage the Quick-Link plates.
5. To fully secure the Quick-Link, apply firm pressure to the pedals while the chain is on the top of the chainring and cassette. You should hear a click as the Quick-Link locks into place. Alternatively, use Quick-Link pliers.

Image 3.1: The SHIMANO SLX CN-M7100 chain, showing its links and construction.

Note: The Quick-Link is designed for secure connection. Ensure it is fully engaged before riding.

4. Operating Instructions

The SHIMANO SLX CN-M7100 chain is optimized for smooth and precise shifting with SHIMANO 12-speed drivetrains. To ensure optimal performance:

• Shift Smoothly: Avoid shifting under heavy load or while applying excessive force to the pedals. Anticipate terrain changes and shift proactively.
• Maintain Cadence: A consistent pedaling cadence helps the chain and drivetrain operate efficiently and reduces wear.
• Compatibility: This chain is specifically designed for 12-speed SHIMANO SLX M7100 components. Using it with incompatible components may result in poor performance or damage.

The extended inner plate design and SIL-TEC coating contribute to reliable engagement and reduced friction, providing a smooth riding experience suitable for aggressive trail riding, enduro, and E-MTB applications.

5. Maintenance

Regular maintenance extends the life of your chain and ensures consistent performance.

5.1 Cleaning

• Clean your chain regularly, especially after riding in wet or dirty conditions.
• Use a dedicated chain cleaner or a mild degreaser and a brush to remove dirt and grime from the chain links.
• Rinse thoroughly with water and dry the chain completely before applying lubricant.

5.2 Lubrication

• Apply a high-quality bicycle chain lubricant to each link after cleaning and drying.
• Allow the lubricant to penetrate for a few minutes, then wipe off any excess with a clean cloth. Excess lubricant can attract dirt.
• Lubricate more frequently in wet or dusty conditions.

5.3 Chain Wear Check

• Chains stretch over time due to wear on the pins and rollers. A worn chain can damage your cassette and chainrings.
• Use a chain wear indicator tool to regularly check for chain stretch.
• Replace the chain when it reaches the recommended wear limit (typically 0.5% to 0.75% stretch for 12-speed chains) to prevent premature wear of other drivetrain components.

6. Troubleshooting

This section addresses common issues you might encounter with your bicycle chain.

6.1 Chain Skipping or Poor Shifting

• Cause: Worn chain, worn cassette/chainrings, improperly adjusted derailleur, dirty chain, or incorrect chain length.
• Solution: Check chain wear and replace if necessary. Inspect cassette and chainrings for wear. Adjust front and rear derailleurs according to SHIMANO technical documents. Clean and lubricate the chain. Verify correct chain length.

6.2 Chain Noise (Squeaking, Grinding)

• Cause: Dry chain, dirty chain, cross-chaining, or misaligned drivetrain components.
• Solution: Clean and lubricate the chain. Avoid extreme gear combinations (cross-chaining). Check derailleur alignment and adjustment.

6.3 Chain Drops

• Cause: Worn chainring teeth, worn chain, bent derailleur hanger, or improperly adjusted front/rear derailleur.
• Solution: Inspect chainring teeth for wear. Check chain wear and replace if needed. Verify derailleur hanger alignment. Adjust derailleurs.

For persistent issues, consult a professional bicycle mechanic or refer to official SHIMANO technical service information.

7. Specifications

8. Warranty and Support

The SHIMANO SLX CN-M7100 chain comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty information provided with your product packaging or visit the official SHIMANO website.

For technical assistance, troubleshooting beyond the scope of this manual, or warranty claims, please contact SHIMANO customer support or an authorized SHIMANO dealer.

SHIMANO Official Website: bike.shimano.com
