UAC CK 2306 A/C Compressor and Component Kit Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your UAC CK 2306 A/C Compressor and Component Kit. This kit is designed as an OE replacement to meet or exceed original equipment specifications, ensuring reliable performance for your vehicle's air conditioning system.

The kit includes a new compressor and clutch, a drier/accumulator, and an expansion device. These components are critical for restoring your vehicle's air conditioning functionality.

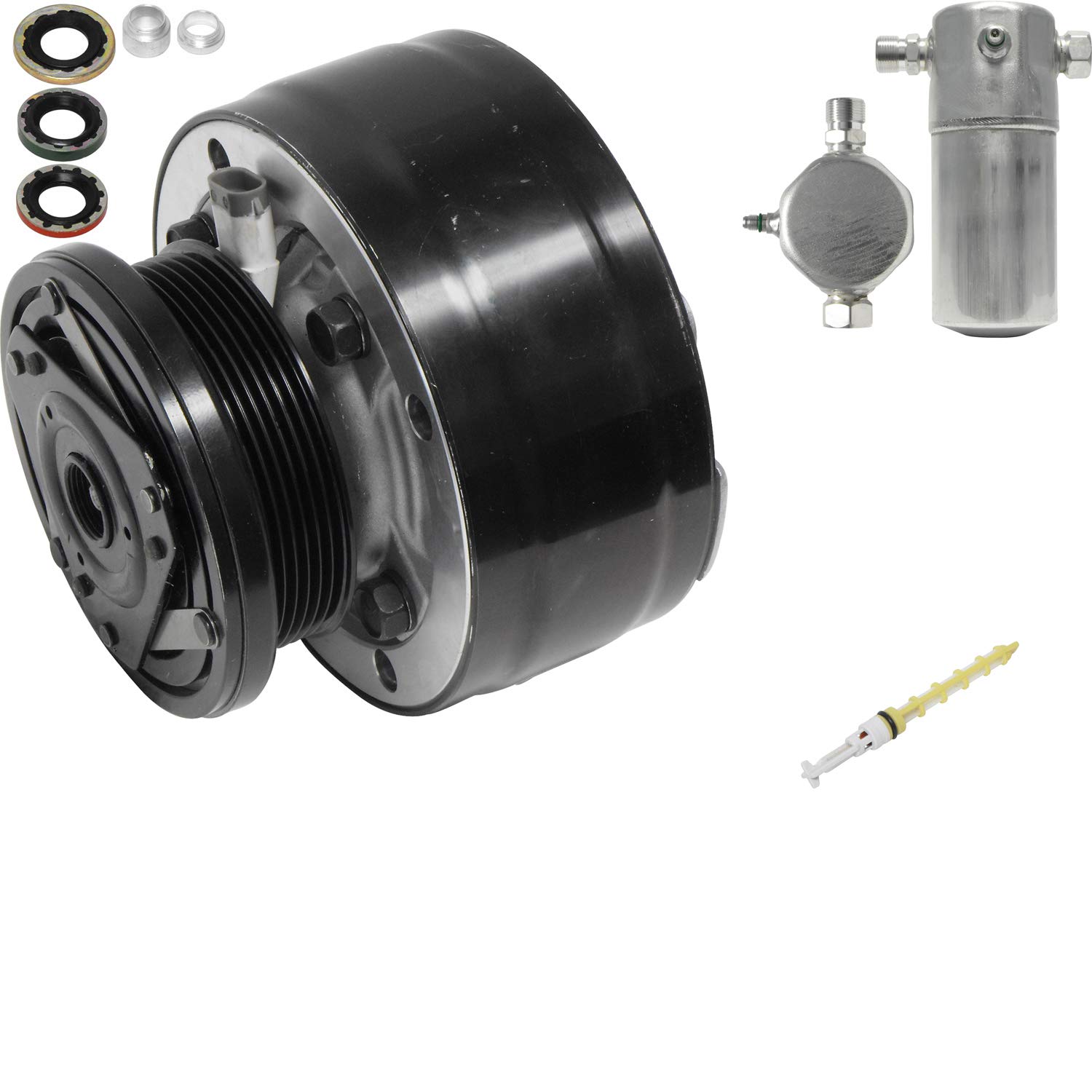

Image: UAC CK 2306 A/C Compressor and Component Kit. This image displays the main components included in the kit: the compressor with its clutch, the drier/accumulator, and the expansion device.

Safety Information

Warning: Automotive air conditioning systems contain refrigerants under high pressure. Improper handling can cause severe injury, including frostbite and chemical burns. Only qualified personnel with proper training and equipment should service A/C systems.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and long sleeves, when working on A/C systems.
• Never discharge refrigerant into the atmosphere. Use an approved recovery machine to evacuate the system.
• Ensure the vehicle's engine is off and the battery is disconnected before beginning any installation or maintenance.
• Refer to your vehicle's service manual for specific safety precautions and procedures.

Setup and Installation

Proper installation is crucial for the longevity and performance of your new A/C compressor kit. It is highly recommended that installation be performed by a certified automotive technician.

1. System Flush: Thoroughly flush the entire A/C system to remove old oil, debris, and contaminants. Failure to do so will void the warranty and can lead to immediate compressor failure.
2. Component Replacement: Replace the old compressor, drier/accumulator, and expansion device with the new components from this kit. The drier/accumulator and expansion device are critical to replace as they filter contaminants and regulate refrigerant flow.
3. Lubrication: The compressor may come charged with shipping oil to keep internal components lubricated during transit. This oil must be drained and replaced with the correct type and amount of PAG oil specified for your vehicle's A/C system. Refer to your vehicle's service manual for exact specifications.
4. Vacuum and Leak Test: After installation, evacuate the A/C system using a vacuum pump for at least 30-45 minutes to remove all moisture and air. Perform a leak test to ensure system integrity before charging.
5. Refrigerant Charge: Charge the system with the correct type and amount of refrigerant (e.g., R-134a) as specified by your vehicle manufacturer. Overcharging or undercharging can damage the compressor and reduce system efficiency.
6. Performance Check: Start the engine, turn on the A/C, and check for proper operation, including cold air output and correct system pressures.

Note: Always consult your vehicle's specific service manual for detailed, model-specific installation procedures and torque specifications.

Operating Principles

The UAC CK 2306 A/C Compressor is a core component of your vehicle's air conditioning system. Its primary function is to compress the refrigerant gas, increasing its pressure and temperature, which is a crucial step in the refrigeration cycle. The compressor is engaged by the vehicle's climate control system when cooling is required.

The drier/accumulator filters moisture and contaminants from the refrigerant, while the expansion device regulates the flow of refrigerant into the evaporator, allowing it to expand and cool the air.

Proper operation relies on the entire A/C system being correctly charged and free of leaks or blockages.

Maintenance

Regular maintenance of your vehicle's A/C system can extend the life of your UAC compressor kit and ensure optimal performance.

• Regular Inspection: Periodically inspect A/C hoses and connections for signs of leaks, wear, or damage.
• Refrigerant Level Check: Have your A/C system's refrigerant level checked annually by a qualified technician. Low refrigerant can indicate a leak and cause the compressor to work harder, leading to premature failure.
• Cabin Air Filter: Replace your vehicle's cabin air filter regularly to ensure good airflow and prevent debris from entering the A/C system.
• Run A/C Periodically: Even in cold weather, run your A/C system for a few minutes once a month to keep seals lubricated and prevent component seizure.

Troubleshooting

If you experience issues with your A/C system after installing the UAC CK 2306 kit, consider the following common problems and solutions:

• No Cold Air:
  • Check refrigerant level. Low refrigerant is a common cause.
  • Inspect the compressor clutch for engagement. If it's not engaging, check electrical connections and fuses.
  • Verify proper system charge and ensure no leaks are present.
• Unusual Noises (e.g., grinding, squealing):
  • Could indicate an issue with the compressor's internal components or clutch bearing.
  • Check the serpentine belt tension and condition.
  • Ensure proper lubrication (correct oil type and amount).
• A/C System Cycles On and Off Frequently:
  • Often a sign of low refrigerant or an overcharged system.
  • Could also be a faulty pressure switch.

For complex issues, it is recommended to consult a professional automotive technician.

Specifications

Warranty and Support

The UAC CK 2306 A/C Compressor and Component Kit is backed by an industry-leading warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact UAC customer support directly.

For technical assistance or support, please visit the official UAC website or contact their customer service department. Ensure you have your product model number (CK 2306) and purchase details available when seeking support.
