1. Introduction
This manual provides instructions for the installation, use, and maintenance of the Lifetime Appliance DA97-08400A Left Door Shelf Basket. This replacement part is designed for specific Samsung refrigerator models. Please read this manual thoroughly before installation to ensure correct fit and function.
2. Important Safety Information
- Always disconnect power to the refrigerator before attempting any repairs or installations, especially if working near electrical components.
- Handle the shelf basket carefully to avoid damage or injury.
- Ensure the replacement part is securely installed before placing items on it.
3. Product Overview
The DA97-08400A is a replacement left door shelf basket designed for compatible Samsung refrigerators. It serves as a storage compartment within the refrigerator door, providing space for various food and beverage items.
A clear, front-facing view of the transparent plastic left door shelf basket.
4. Compatibility
This shelf basket is specifically designed for the larger bin on the LEFT refrigerator door. It is not compatible with the smaller bin, which typically uses part number DA97-08408A.
Important: If your refrigerator model number is not listed below, this part may not fit.
Compatible Refrigerator Models:
- RF4287HABP
- RF4287HAPN
- RF4287HAWP
- RF4287HARS
Verify Measurements:
Before installation, it is crucial to confirm the dimensions of your existing shelf or the space available in your refrigerator door. The dimensions of this shelf basket are approximately 14 inches in length, 9 1/4 inches in depth, and 3 7/8 inches in height. Even a slight difference in measurements (e.g., 1/8 inch) can prevent proper fit.
An image displaying the dimensions of the shelf basket: 14 inches in length, 9 1/4 inches in depth, and 3 7/8 inches in height. It emphasizes confirming measurements before purchase.
A graphic advising users to verify their refrigerator model number to ensure compatibility, as many replacement parts may look similar but not fit.
5. Setup and Installation
The installation of the DA97-08400A Left Door Shelf Basket is designed to be straightforward.
- Preparation: Ensure the refrigerator door is open and stable. If replacing an old shelf, remove it by lifting and pulling it out of its tracks.
- Installation: Align the new shelf basket with the designated tracks on the left refrigerator door. Gently slide the shelf into place until it clicks or locks securely into position.
- Verification: Lightly tug on the installed shelf to ensure it is firmly seated and does not wobble.
An illustration highlighting the precise fit of the replacement shelf basket, designed to integrate seamlessly with compatible refrigerator models.
6. Operating Instructions
Once installed, the shelf basket functions as a standard storage compartment. To ensure longevity and proper function:
- Loading: Distribute weight evenly within the basket. Avoid overloading the shelf, as excessive weight can stress the plastic and mounting points.
- Placement: Place taller items towards the back or sides to prevent them from tipping when the door is opened or closed.
7. Maintenance and Care
Regular cleaning will help maintain the appearance and hygiene of your shelf basket.
- Cleaning: Remove the shelf basket from the refrigerator. Wash with mild soap and warm water. Avoid abrasive cleaners or harsh chemicals, as these can damage the plastic.
- Drying: Thoroughly dry the shelf basket before returning it to the refrigerator.
- Inspection: Periodically inspect the shelf for any signs of cracks or damage.
8. Troubleshooting
- Shelf does not fit: Double-check your refrigerator's model number and compare it against the list of compatible models. Verify the measurements of the shelf and your refrigerator door opening. Ensure you are attempting to install it in the correct position (larger left door bin).
- Shelf is loose or wobbly: Ensure the shelf is fully seated in its tracks. Remove and re-install, applying firm, even pressure until it locks into place.
- Damage during installation: If the shelf is damaged during installation, refer to the warranty information or contact customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Part Numbers | DA97-08400A, DA97-08400C, AP4578476, 2051371, PS4175796, B006E7X8G6 |
| Product Dimensions | 14 x 9.25 x 3.88 inches |
| Item Weight | 1.9 pounds |
| Color | White |
| Manufacturer | Lifetime Appliance Parts |
| Compatible Refrigerator Models | RF4287HABP, RF4287HAPN, RF4287HAWP, RF4287HARS |
10. Warranty Information
This Lifetime Appliance product includes a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact customer support.

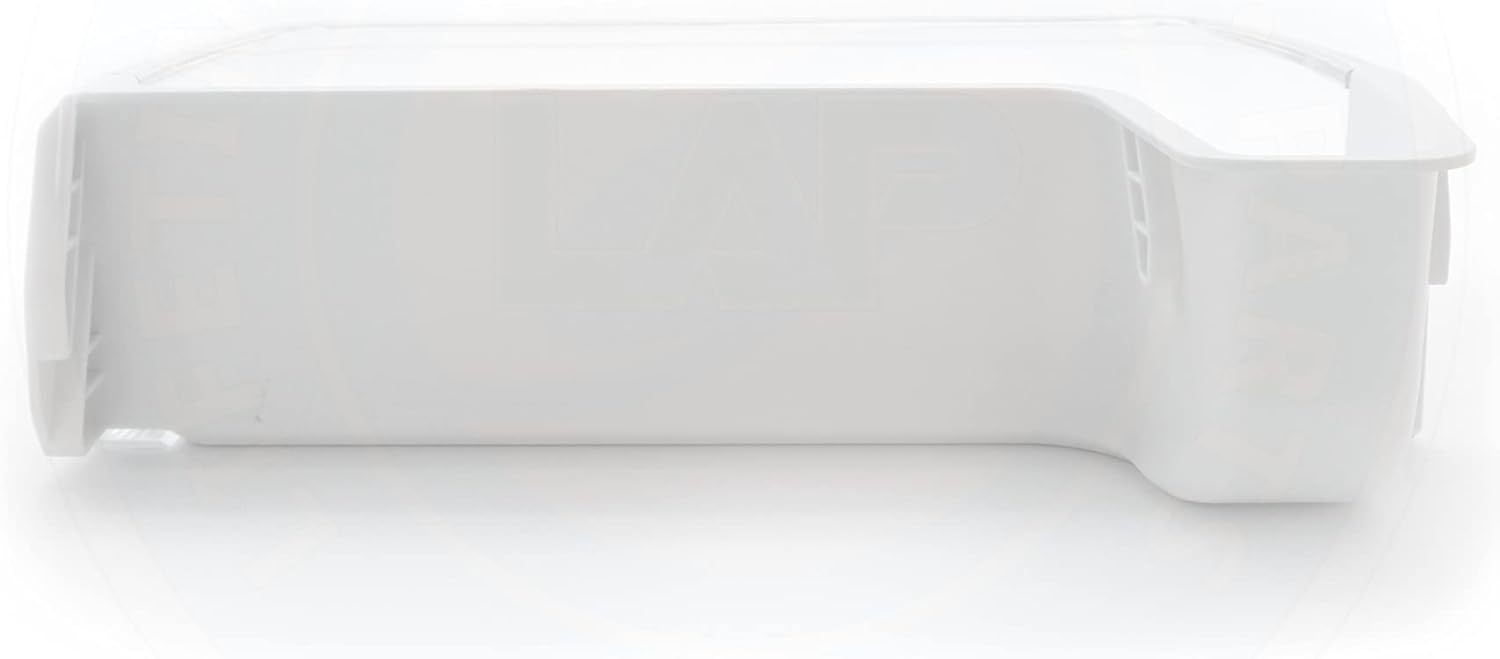

An image highlighting key features of the shelf basket, including its durability and a 1-year warranty.
11. Customer Support
If you have questions regarding compatibility, installation, or require assistance with your Lifetime Appliance DA97-08400A Left Door Shelf Basket, please contact our customer support team.
How to Find Your Appliance Model Number:
To ensure accurate assistance, please have your refrigerator's model number ready. The model number can typically be found on a label located:
- On the side panel of the refrigerator.
- Behind the kick plate at the bottom front.
- Inside the refrigerator compartment (e.g., on a side wall or ceiling).
Once you have your model number, you can search online for a parts breakdown list or contact us directly for verification.
A visual guide explaining how to locate the appliance model number on a refrigerator side panel, microwave behind door, or dryer inside panel, and how to use it to find the correct part or contact support.
