AKZYTUE 3.7V 4000mAh 6050100 Lipo Battery User Manual

1. Product Overview

The AKZYTUE 3.7V 4000mAh 6050100 Lithium Polymer (LiPo) battery is a rechargeable power source designed for various low-power electronic devices. It features a PH2.0mm JST connector for compatibility with specific applications. This battery is characterized by its compact size and stable voltage output, making it suitable for portable electronics.

Figure 1: Front view of the AKZYTUE 3.7V 4000mAh 6050100 Lipo battery, showing its compact design and attached PH2.0mm JST connector.

2. Important Safety Warnings

Please read and understand all safety warnings before using this battery. Failure to follow these instructions may result in fire, injury, or property damage.

• Connector Compatibility: The battery connectors are exclusively JST PH2.0mm. These connectors are NOT UNIVERSAL. Ensure the connector type, polarity, and battery size precisely match your device's requirements before purchase and connection.
• Polarity Warning: Incorrect polarity connection will cause damage to your device or the battery. Always verify the positive (red wire) and negative (black wire) terminals match your device's input.
• Non-Power Battery: This 3.7V 4000mAh 6050100 Lithium Battery is a NON-POWER BATTERY. It is not designed for high-current applications such as UAVs, mini RC helicopters, RC small drones, model aircraft, electric toys, or power tools. Using it in such devices can lead to overheating, damage, or fire.
• Charging: Only use chargers specifically designed for Lithium Polymer batteries with a maximum charge voltage of 4.25V. Do not overcharge or discharge the battery beyond its specified limits.
• Storage: Store the battery in a cool, dry place away from direct sunlight, heat sources, and flammable materials.
• Damage: Do not use the battery if it shows any signs of swelling, leakage, or damage.

Figure 2: Illustration demonstrating the critical importance of correct polarity when connecting the battery. The red wire is positive (+), and the black wire is negative (-). Incorrect connection can damage the device or battery.

3. Specifications

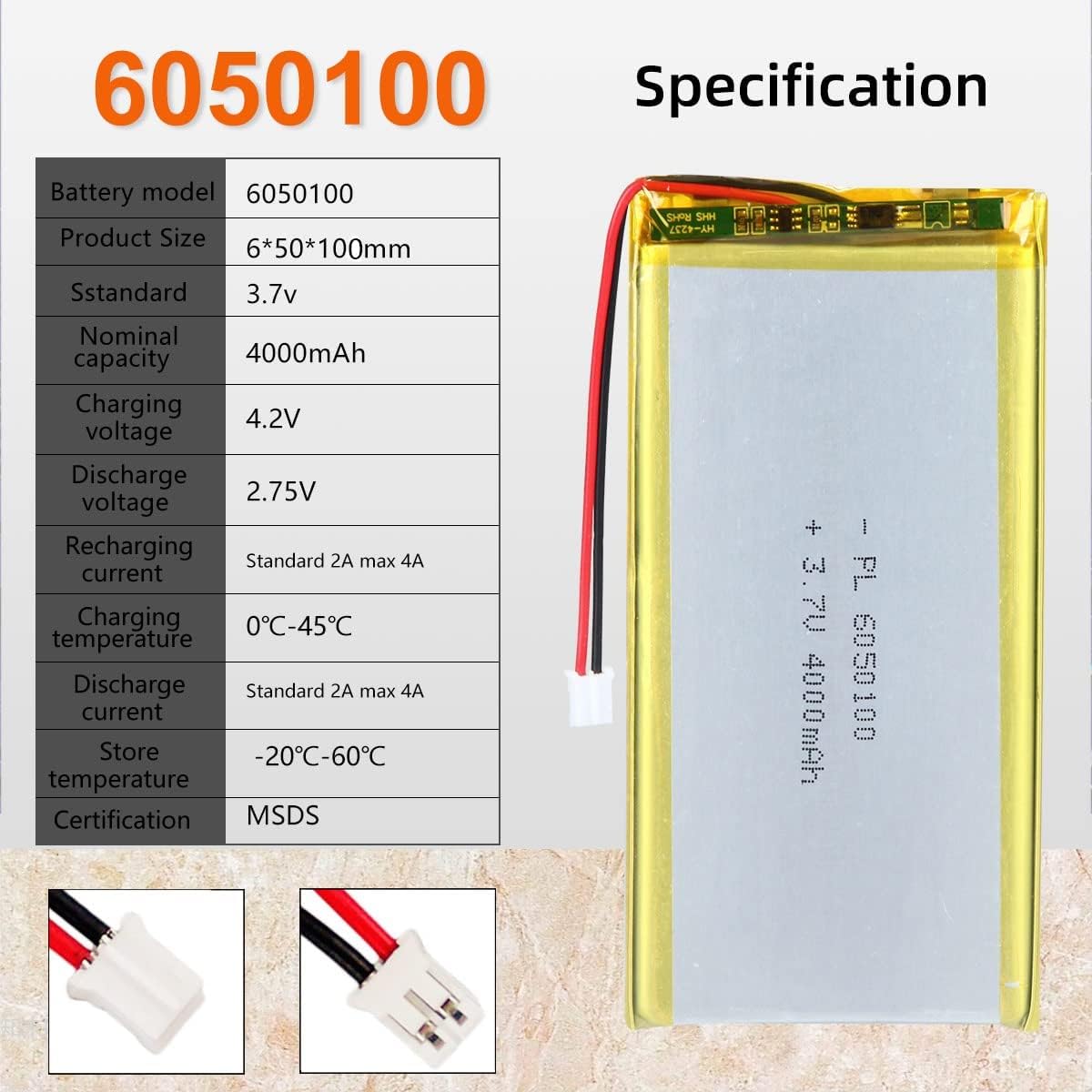

Figure 3: Detailed specifications of the 6050100 battery, outlining its electrical and physical characteristics.

4. Setup and Installation

Before installing the battery, ensure your device is powered off and disconnected from any external power sources.

1. Verify Compatibility: Double-check that the PH2.0mm JST connector, voltage (3.7V), capacity (4000mAh), and physical dimensions (6x50x100mm) of this battery are compatible with your device.
2. Check Polarity: Carefully identify the positive (+) and negative (-) terminals on your device's battery input. The red wire of the battery's connector is positive, and the black wire is negative. Ensure they align correctly.
3. Connect Battery: Gently insert the PH2.0mm JST connector into the corresponding port on your device. Do not force the connector. A secure, snug fit indicates proper connection.
4. Secure Battery: If applicable, secure the battery within its compartment to prevent movement during operation.

Figure 4: Visual guide for correct battery connection. Always ensure the connector orientation matches the device's polarity to prevent damage.

5. Operating Instructions

Once installed, the battery is ready for use. This battery is designed for a range of low-power applications.

5.1 Charging the Battery

• Use a compatible LiPo battery charger that supports 3.7V (1S) batteries and has a maximum charge voltage of 4.25V.
• Connect the battery to the charger. Ensure correct polarity.
• Monitor the charging process. Do not leave charging batteries unattended.
• Disconnect the battery once fully charged.

5.2 Recommended Applications

This battery is suitable for devices requiring stable, low-to-moderate current draw, including:

• MP3/MP4 players
• Bluetooth wireless headsets
• GPS devices
• Baby monitors
• Game consoles (e.g., Game Boy, certain PSP models after modification)
• Smart watches
• Monitoring units
• POS machines
• Dashcams
• Mobile power banks
• Bluetooth speakers
• VR glasses
• Beauty devices
• Pet trackers
• Ring video doorbells

Figure 5: Examples of devices compatible with this battery, highlighting its versatility for low-power electronics.

6. Maintenance and Storage

Proper maintenance and storage will extend the lifespan of your battery.

• Regular Charging: For optimal performance, avoid fully discharging the battery. Recharge it before it drops below its minimum voltage (2.75V).
• Long-Term Storage: If storing the battery for an extended period, charge it to approximately 50% of its capacity (around 3.8V-3.9V per cell).
• Storage Conditions: Store the battery in a cool, dry environment, ideally between -20°C and 60°C, away from direct sunlight, extreme temperatures, and corrosive materials.
• Inspection: Periodically inspect the battery for any signs of physical damage, swelling, or leakage. Discontinue use immediately if any issues are observed.
• Cleaning: Keep the battery and its connectors clean and free of dust or debris. Use a dry, soft cloth for cleaning.

7. Troubleshooting

If you encounter issues with your battery, refer to the following common problems and solutions:

8. Disposal

Lithium Polymer batteries must be disposed of properly to prevent environmental harm and safety hazards. Do not dispose of batteries in household waste.

• Recycle LiPo batteries at designated recycling centers or through specialized battery disposal programs.
• Contact your local waste management authority for information on battery recycling in your area.

9. Warranty and Support

For warranty information or technical support regarding your AKZYTUE 3.7V 4000mAh 6050100 Lipo battery, please refer to the seller's return policy or contact the manufacturer directly through their official channels. Keep your proof of purchase for warranty claims.

Manufacturer: AKZYTUE

Model Number: 6050100

ASIN: B07TXJCCY8

For further assistance, you may visit the AKZYTUE Store on Amazon.
